| PST-BSD08 Specifications | |

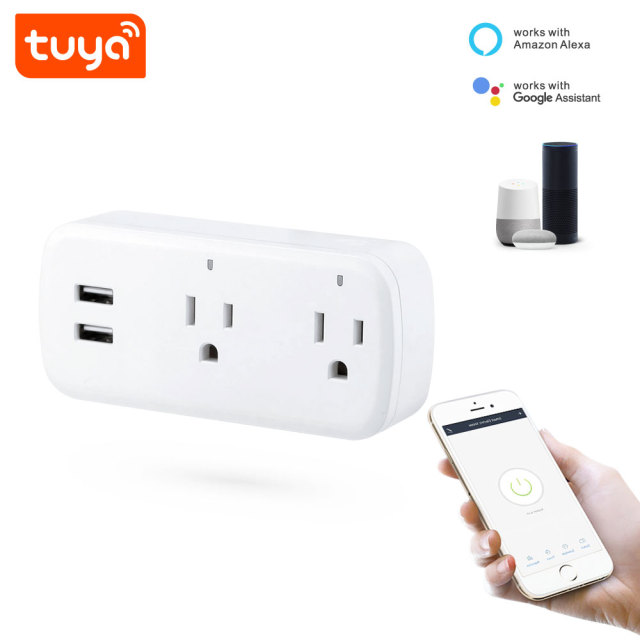

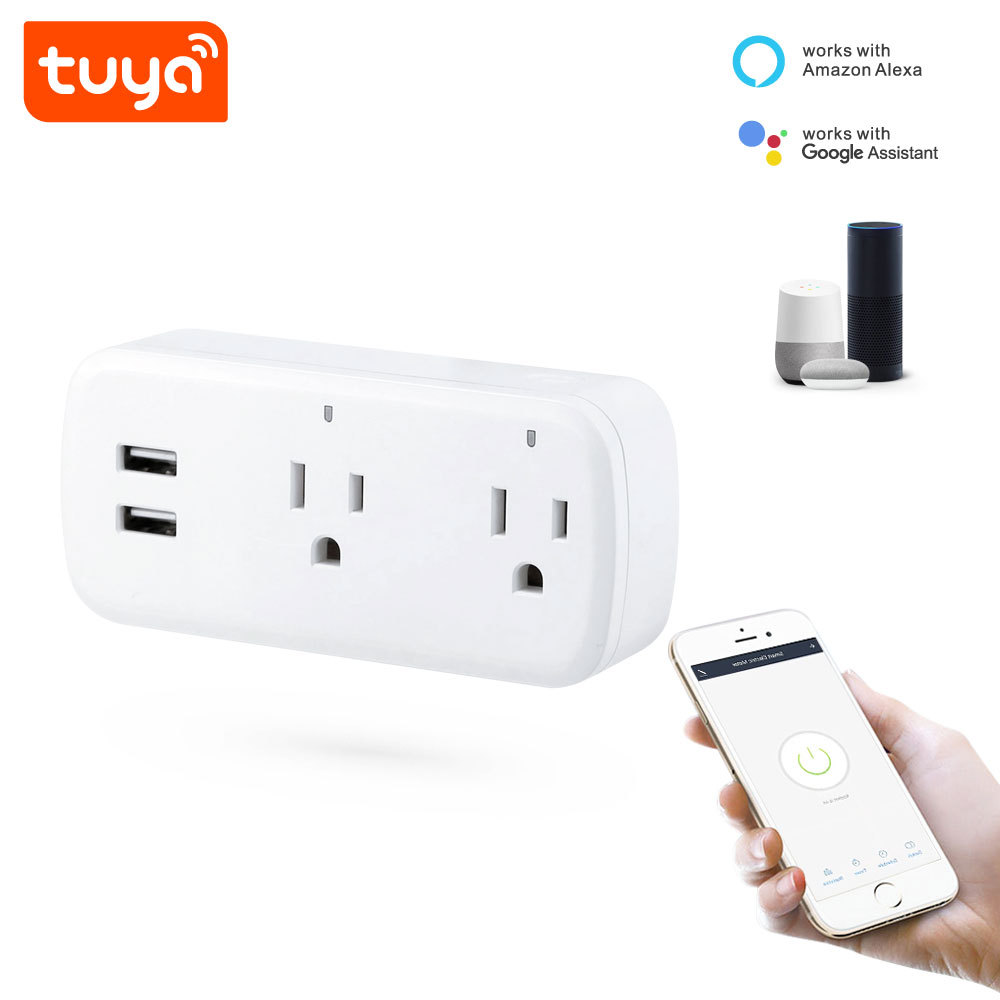

| Name | WiFi Smart US Standard Dual Outlet Plug Smart Socket with 2 USB Port |
| Model | PST-BSD08 |
| Plug Standard | US Standard |
| Material | ABS+PC |
| Input Voltage | AC 110V-250V, 50/60Hz |
| Output Voltage | AC 110V-250V, 50/60Hz |
| USB voltage | 5V |
| Energy Monitor | No |
| Switch mode | Switch/Mobile phone |
| APP | Tuya Smart or Smart Life |
| Rated Current | 10A or 16A(Max) |
| Maximum power | 1760W |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Control mode | APP/voice/manual control |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Dimension | Box:12.5*6*6cm |
| Weight | 0.15kg |

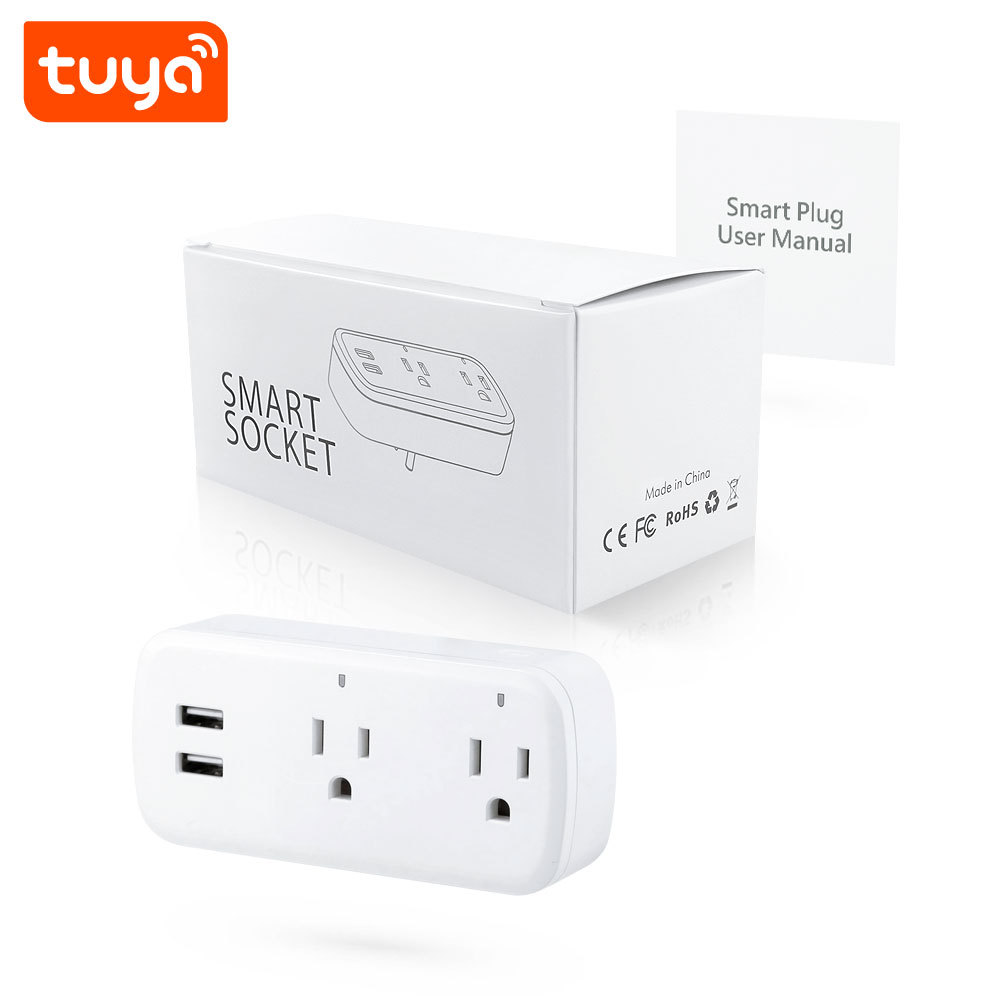

| PST-BSD08 Package List | |
| Smart Socket | x1 |
| User Manual | x1 |
| PST-BSD08 Basic Information FAQ | |
| Q1: What is this product? A: It's a Tuya smart power strip with AC outlets and USB ports, enabling smart control for connected devices. |
|
| Q2: Which apps does it work with? A: It works with Smart Life and Tuya Smart apps. You can download them from App Store (for iOS) or Google Play (for Android). |
|
| Q3: What's the main purpose of this smart plug? A: The main purpose is to enable remote control, voice control, and scheduling of the electrical devices plugged into it, making your home more intelligent and convenient. |
|
| Q4: Do I need a hub? A: No. It connects directly to a 2.4G WiFi network via the Smart Life APP—no extra hub required. |
|
| PST-BSD08 Compatibility & Integration FAQ | |
| Q5: Can it work with 5GHz WiFi? A: Most likely, it only supports 2.4GHz WiFi. This is common for many smart plugs to ensure wider compatibility with home networks. Check the product manual for confirmation. |
|
| Q6: What types of electrical devices can I plug into it? A: It can be used with most small to medium - sized electrical devices, such as lamps, fans, coffee makers, etc. However, do not exceed its maximum power rating (check the product specs). |
|
| Q7: Which smart home platforms does it work with? A: It works with Amazon Alexa and Google Assistant. You can also control it via the Tuya or Smart Life app on your mobile device. |
|
| Q8: Can multiple users control it? A: Yes. Share device access in the Smart Life APP (add family members’ accounts for shared control). |
|
| PST-BSD08 Setup & Installation FAQ | |
| Q9: How do I set up the smart plug? A: First, plug the smart plug into a power outlet. Then, open the Tuya or Smart Life app on your phone, add the device following the in - app instructions (usually involves connecting to WiFi), and complete the configuration. |
|
| Q10: What if I can't connect the smart plug to my WiFi? A: First, check if your WiFi is working properly and is a 2.4GHz network. Restart the smart plug, your router, and try the setup process again. Make sure you enter the correct WiFi password. |
|
| PST-BSD08 Functionality FAQ | |
| Q11: How to set up voice control? First, connect the power strip to the Tuya App. Then, in the Alexa or Google Assistant app, search for and enable the Tuya skill, and follow the prompts to link your Tuya account. After that, you can use voice commands like “Alexa, turn on the [device name] connected to the power strip”. |
|
| Q12: Can I set a schedule for the smart plug? A: Yes, you can use the Tuya or Smart Life app to set schedules for when the plug turns on or off. For example, you can schedule a lamp to turn on at 7 PM every day. |
|
| Q13: Is remote control possible? A: Absolutely. As long as your mobile device has an internet connection, you can open the app and control the smart plug from anywhere in the world. |
|
| Q14. Can I install it outdoors? A: No. It’s for indoor use. Protect from direct rain/water; it’s not waterproof. |
|
| Q15. What is device sharing? A: Device sharing allows you to share control of the smart plug with other family members. You can send an invitation via the app, and once accepted, they can also control the plug. |
|
| PST-BSD08 Safety & Troubleshooting FAQ | |
| Q16. What is the maximum power capacity of the smart plug? A: Check the product specifications. It is usually rated for a certain voltage and current (e.g., 110 - 240V, 10A). Do not connect devices that exceed this capacity to avoid overheating or damage. at most 16A. |
|
| Q17. Does it have over - current protection? A: Most smart plugs of this type come with over - current protection to automatically cut off power if the current exceeds the safe limit, protecting your devices and home. |
|
| Q18. The smart plug is offline in the app. What should I do? A: Check if the plug is still plugged into the outlet and receiving power. Restart the plug and your router. If the problem persists, try resetting the smart plug (usually by pressing and holding the power button for a few seconds) and set it up again. |
|
| Q19: The power strip won't connect to Wi - Fi. What should I do? A: First, check if your Wi - Fi is 2.4GHz (it doesn't support 5GHz). Ensure the Wi - Fi password is correct. Restart the power strip and your router, then try the connection process again in the Tuya App. |
|
| Q20: Voice control isn't working. How to fix? A: Verify that the power strip is connected to the Tuya App and the voice assistant skill is properly linked. Check if the voice assistant is connected to the internet. Try re - enabling the skill and re - linking the accounts. |
|
| Q21: One of the outlets isn't working. What to check? A: First, make sure the device plugged into the outlet is in good condition. Check if the outlet is enabled in the Tuya App. If not, try resetting the power strip (follow the reset steps in the manual) and check again. |
|
| Q22: USB ports not charging devices. How to troubleshoot? Ensure the devices are compatible with the USB output (5V DC). Check if the USB ports are enabled in the app (if applicable). Try different USB cables and devices to rule out cable or device issues. If the problem continues, reset the power strip and check again. |
|
| PST-BSD08 OEM & ODM Service | |
| Q23. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS, if only 500PCS extra charge 0.20USD/PCS; Laser logo: 100PCS |
|
