| PST-SM-301-X Specifications | |

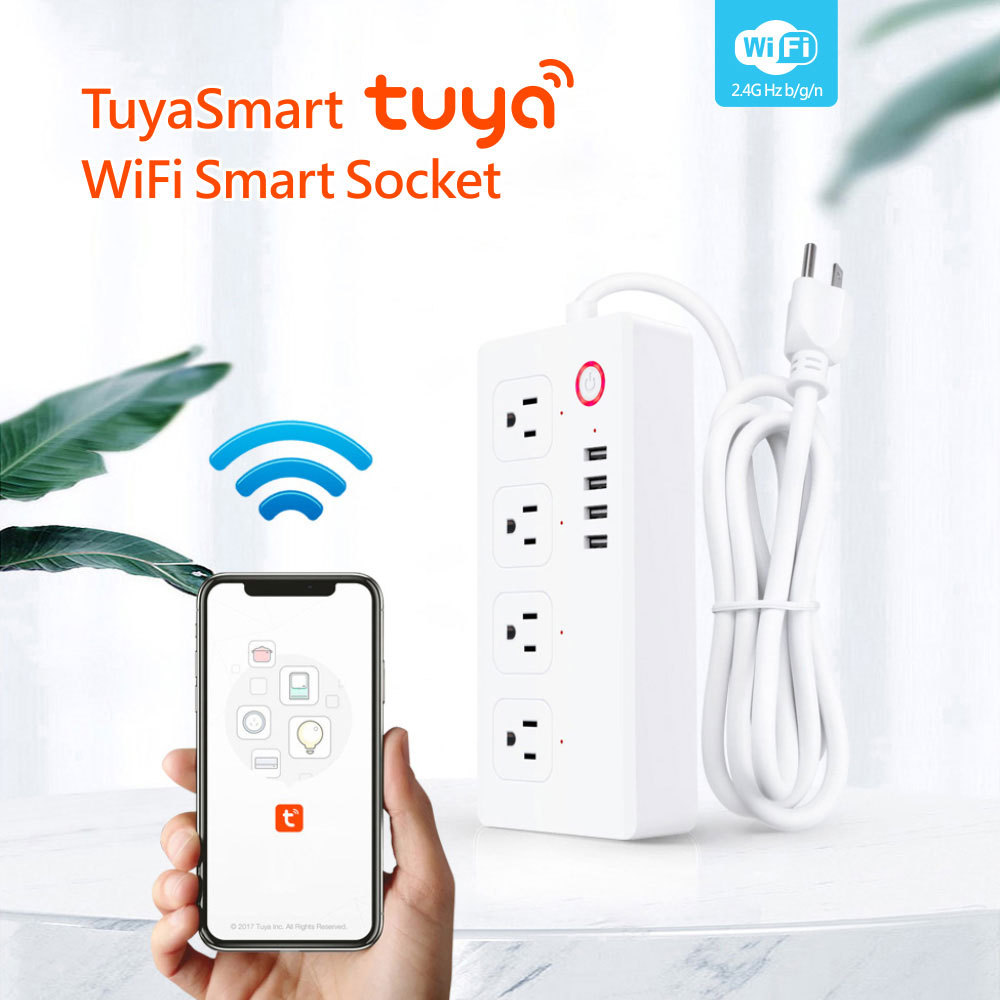

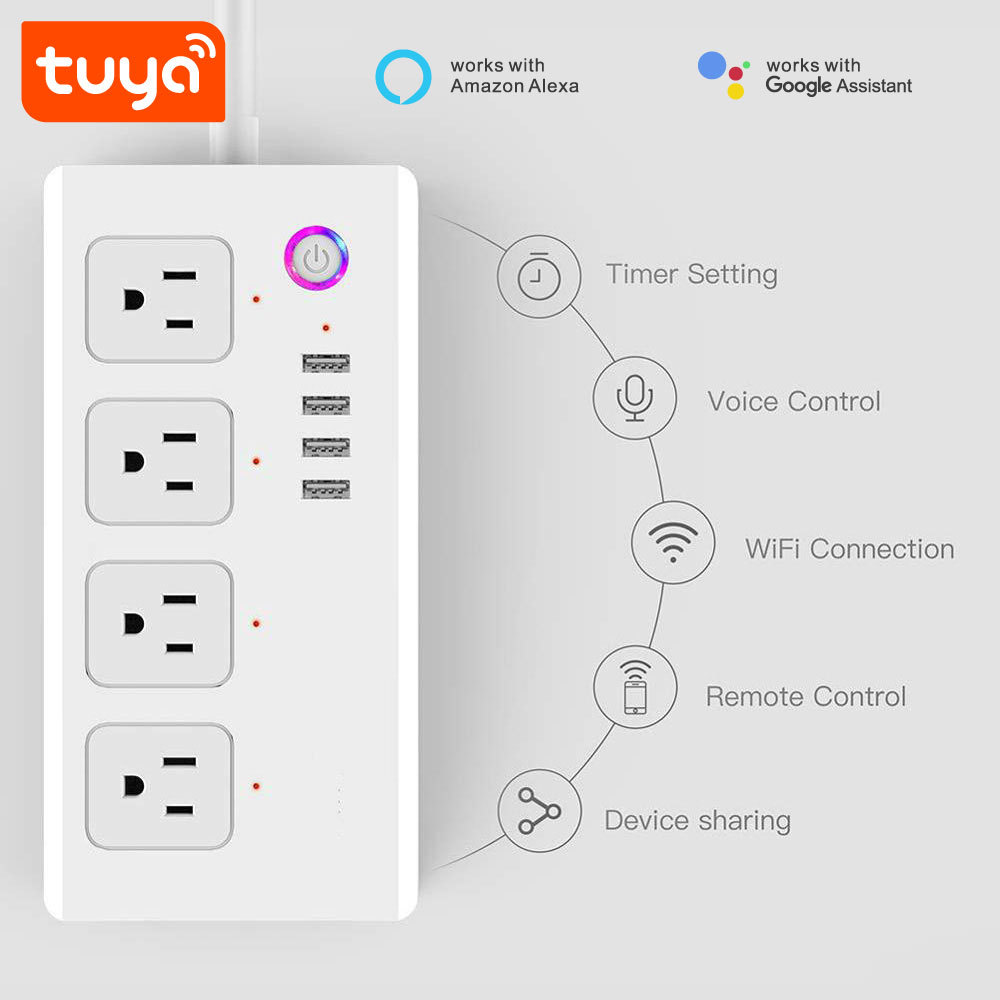

| Product Name | Tuya Smart WiFi US Four Outlet Power Strip With 2 USB & 2 Type-C Ports |
| Smart App Support | Tuya Smart / Smart Life |
| Color | White |
| Material | Fireproof ABS+PC |
| Plug Standard | US 3-Prong Plug (NEMA 5-15P) |
| Outlet Standard | US 10A Outlets (NEMA 5-15R) |
| Single-port charging output | USB-A: USB1/18W 5V3A,9V2A,12V1.5; USB2, USB3: 5W 5V1A; Type-C: 20W 5V3A,9V2.22A,12V1.67A; APDO1: 3.3-5.9V/3A, APDO2: 3.3-11V/1.8A |
| Dual-port charging output | Type-C: USB1, 15W/5V3A; USB2, USB3: 5W/5V1A 4 口: 20W/5V4A |
| Number of AC Outlets | 4 |
| Number of USB-A Ports | 2 |
| USB-A Output | 5V 2.1A (Max 10.5W per port) |
| Number of Type-C Ports | 2 |
| Type-C Output | 18W & 20W Fast Charging (PD/QC compatible) |
| Total USB/Type-C Output | Max 30W combined |
| Input Voltage | AC 110-240V 50/60Hz |
| Output Power (Max) | 10A 1250W (at 125V) / 2400W (at 240V) |
| WiFi Standard | 2.4GHz IEEE 802.11b/g/n (No 5GHz support) |
| Wireless Protocol | Tuya Smart Protocol |
| Voice Control Compatibility | Work with Amazon Alexa/Google Assistance |
| Remote Control | Yes (via 2.4GHz WiFi, no hub required) |
| Timing & Scheduling | Custom on/off schedules |
| Device Sharing | Multi-user access via app |
| Surge Protection | Integrated anti-surge circuit |
| Safety Features | Overload protection |
| Cable Length | 1.5m (5ft) thick copper cord |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 5% ~ 95% non-condensing |

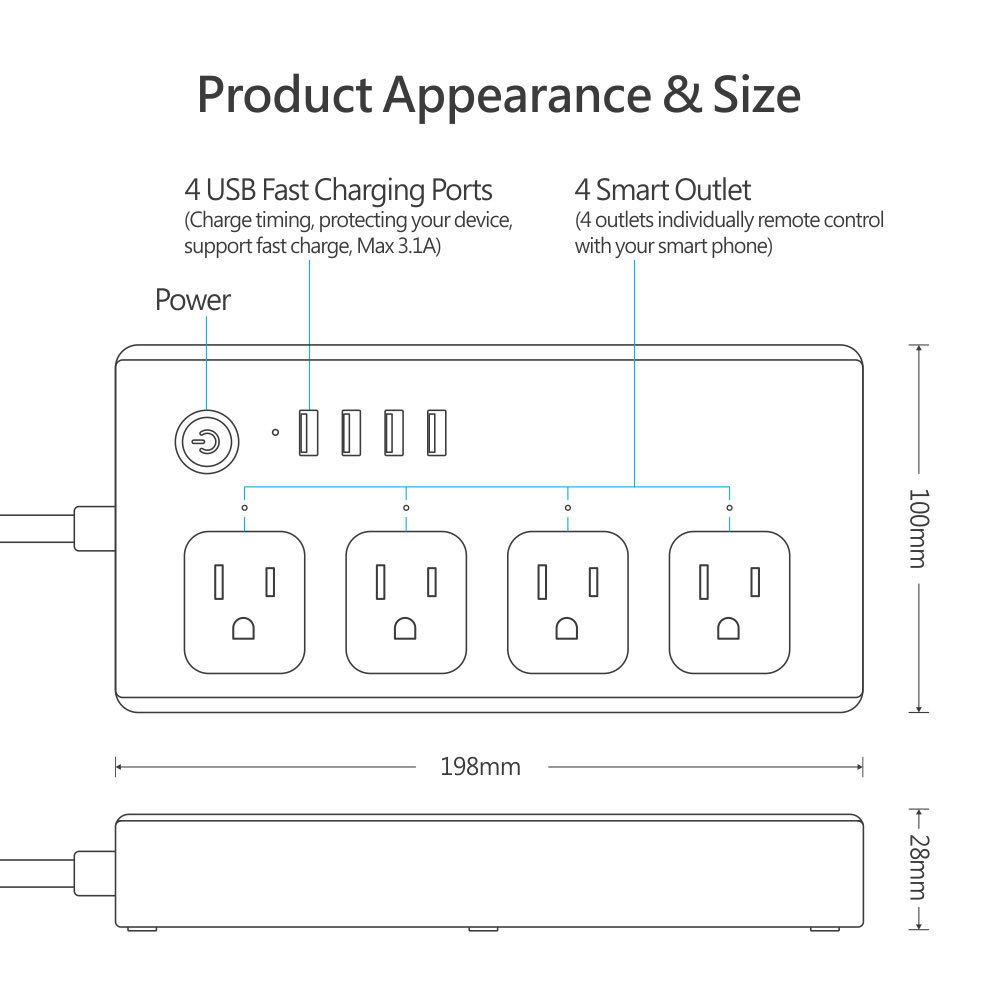

| Product Size | 200*100*29mm |
| Box Dimension | 25*17.5*4cm |
| Unit Weight | 0.6kg |
| Carton Packing | 440*275*375mm/outer carton; 20pcs/outer carton; 13.63kg/outer carton |
| PST-SM-301-X Package List | |
| Smart Power Strip | x1 |
| User Manual | x1 |
| PST-SM-301-X Product FAQ | |
| Q1: What is the input and output voltage of the smart socket? Its input and output voltage are both AC 110-240V. |
|
| Q2: What is the maximum current the smart socket can support? It supports a maximum current of 10A. |
|
| Q3: Which home appliances can be used with this smart socket? It supports home appliances with power less than 10A. |
|
| Q4: Can I control the smart socket with my voice? Yes, you can control connected devices simply with your voice via Amazon Echo or Google Home. |
|
| Q5: How do I connect the smart socket to the app? Follow three steps: Download the Tuya app, connect to WiFi, and add the device in the app. |
|
| Q6: How to set up voice control? First, connect the power strip to the Tuya App. Then, in the Alexa or Google Assistant app, search for and enable the Tuya skill, and follow the prompts to link your Tuya account. After that, you can use voice commands like “Alexa, turn on the [device name] connected to the power strip”. |
|
| Q7: Can I set a schedule for the smart plug? A: Yes, you can use the Tuya or Smart Life app to set schedules for when the plug turns on or off. For example, you can schedule a lamp to turn on at 7 PM every day. |
|

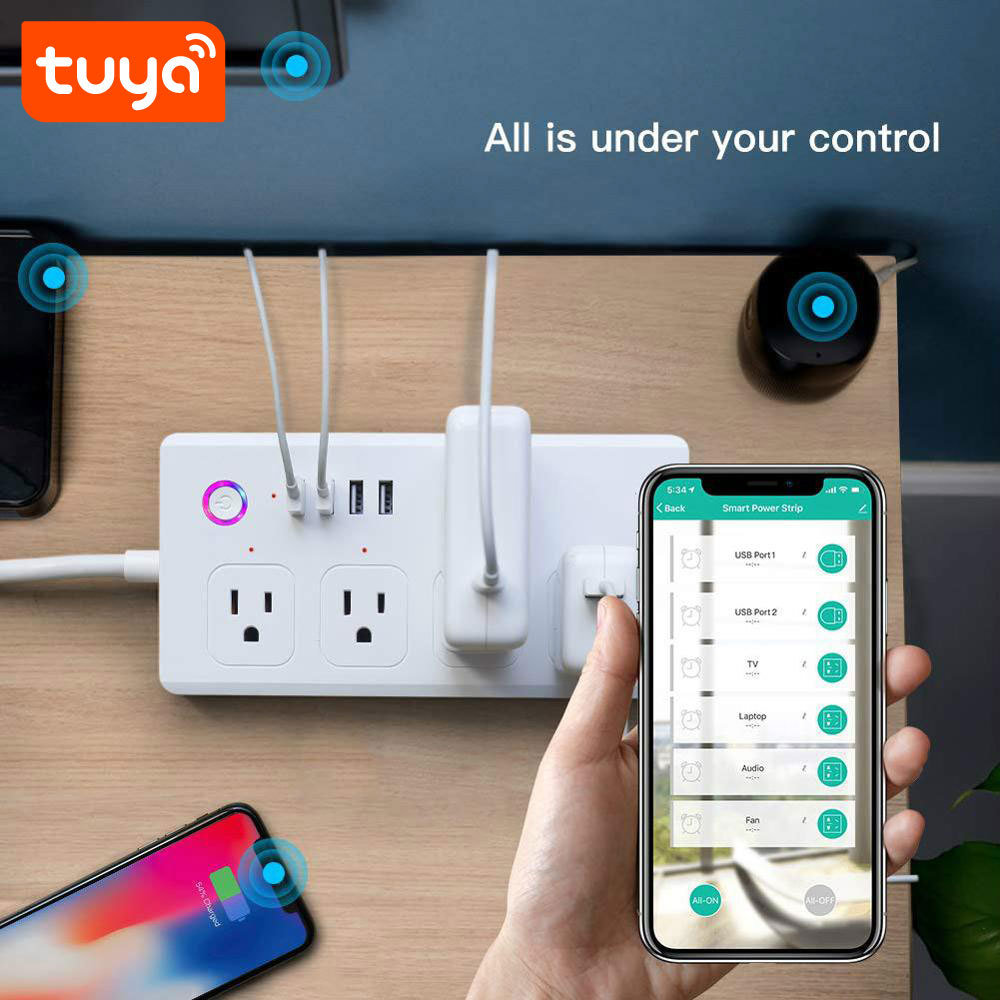

| Q8: Is remote control possible? A: Absolutely. As long as your mobile device has an internet connection, you can open the app and control the smart plug from anywhere in the world. |
|
| Q9: Can I install it outdoors? A: No. It’s for indoor use. Protect from direct rain/water; it’s not waterproof. |
|
| Q10: What is device sharing? A: Device sharing allows you to share control of the smart plug with other family members. You can send an invitation via the app, and once accepted, they can also control the plug. |
|
| Q11: Can I control multiple devices at once with the app? Yes, you can add and control multiple devices at once with the TuyaSmart app. |
|
| Q12: The smart plug is offline in the app. What should I do? A: Check if the plug is still plugged into the outlet and receiving power. Restart the plug and your router. If the problem persists, try resetting the smart plug (usually by pressing and holding the power button for a few seconds) and set it up again. |
|
| Q13: The power strip won't connect to Wi - Fi. What should I do? A: First, check if your Wi - Fi is 2.4GHz (it doesn't support 5GHz). Ensure the Wi - Fi password is correct. Restart the power strip and your router, then try the connection process again in the Tuya App. |
|
| Q14: Voice control isn't working. How to fix? A: Verify that the power strip is connected to the Tuya App and the voice assistant skill is properly linked. Check if the voice assistant is connected to the internet. Try re - enabling the skill and re - linking the accounts. |
|
| Q15: One of the outlets isn't working. What to check? A: First, make sure the device plugged into the outlet is in good condition. Check if the outlet is enabled in the Tuya App. If not, try resetting the power strip (follow the reset steps in the manual) and check again. |
|
| Q16: USB ports not charging devices. How to troubleshoot? Ensure the devices are compatible with the USB output (5V DC). Check if the USB ports are enabled in the app (if applicable). Try different USB cables and devices to rule out cable or device issues. If the problem continues, reset the power strip and check again. |
|
| Q17: Does the smart socket support timer settings? Yes, you can set automatic on/off schedules or auto-off routines for connected appliances. |
|
| Q18: How does the timer function improve daily life? It helps save time and makes life more comfortable, e.g., turning on the air conditioner before arriving home. |
|
| Q19: Can I share the smart socket with family members? Yes, you can easily share the device among family members via the app. |
|
| Q20: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| Q21: What safety features does the smart socket have? It has an integrated anti-surge circuit for stable surge immunity, making it safer and more durable. |
|
| Q22: Can the smart socket work with other Tuya smart products? Yes, it supports linkage control with all Tuya smart products. |
|
| Q23: Can the smart socket start/stop working based on environmental factors? Yes, connected devices can automatically start/stop based on temperature, location, and time. |
|
| PST-SM-301-X OEM & ODM Service | |
| Q24: OEM Service: Box & manual OEM: 1000PCS: each add 0.18USD/PCS. If over 2000PCS. OEM box free, OEM user manual: 0.18USD/PCS. Laser logo: 100PCS |
|
