| PST-SM-301-K Specifications | |

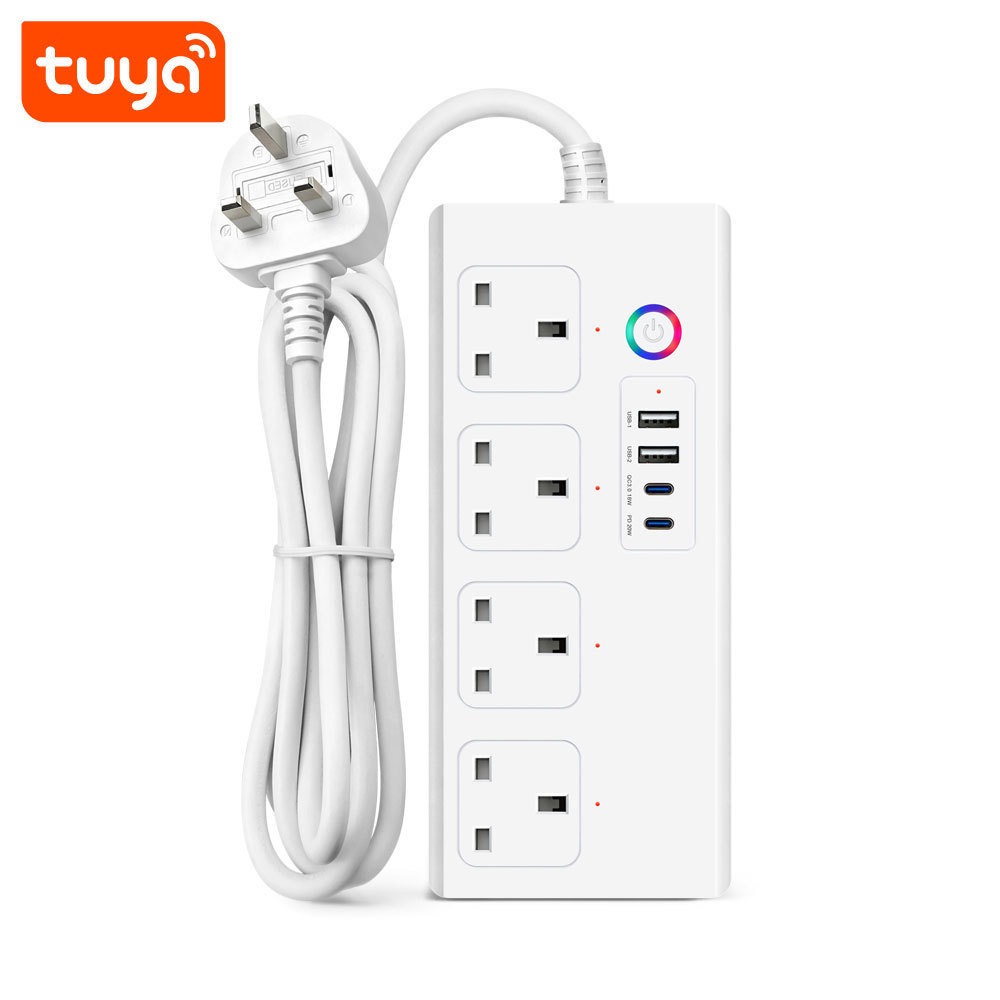

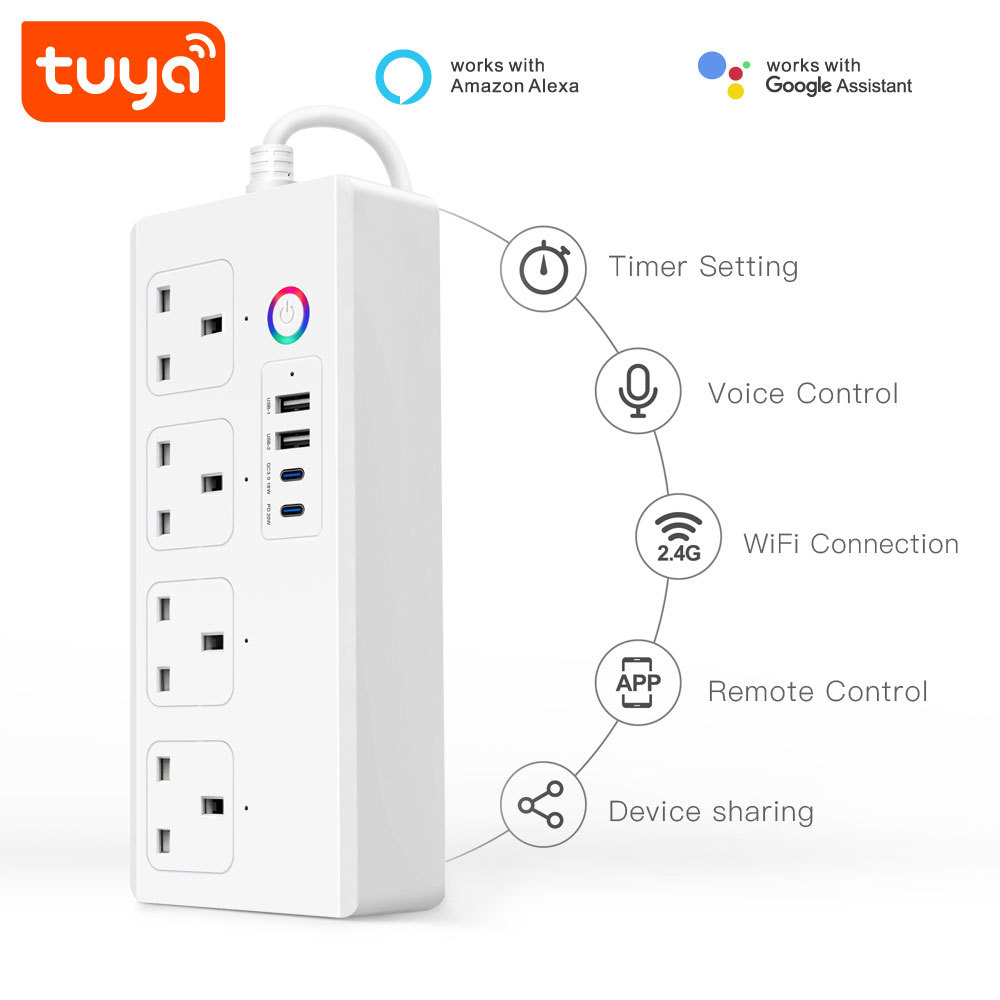

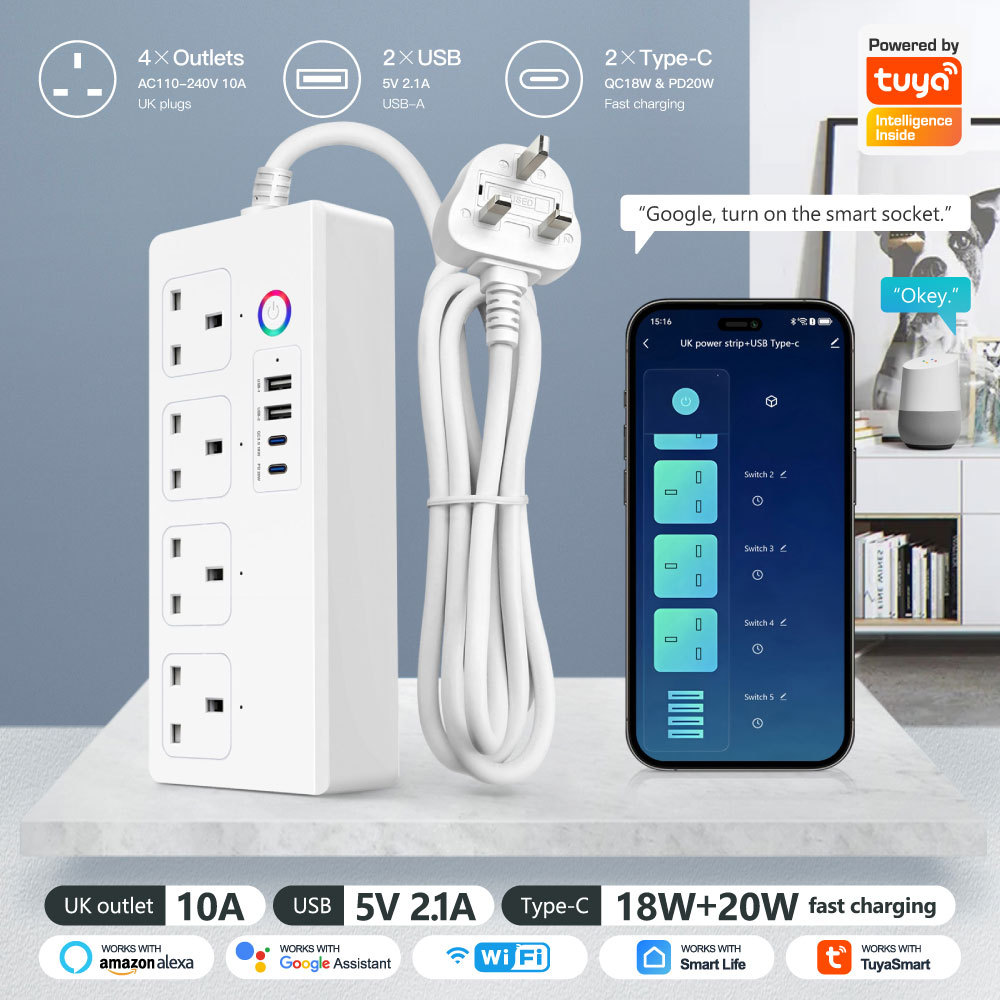

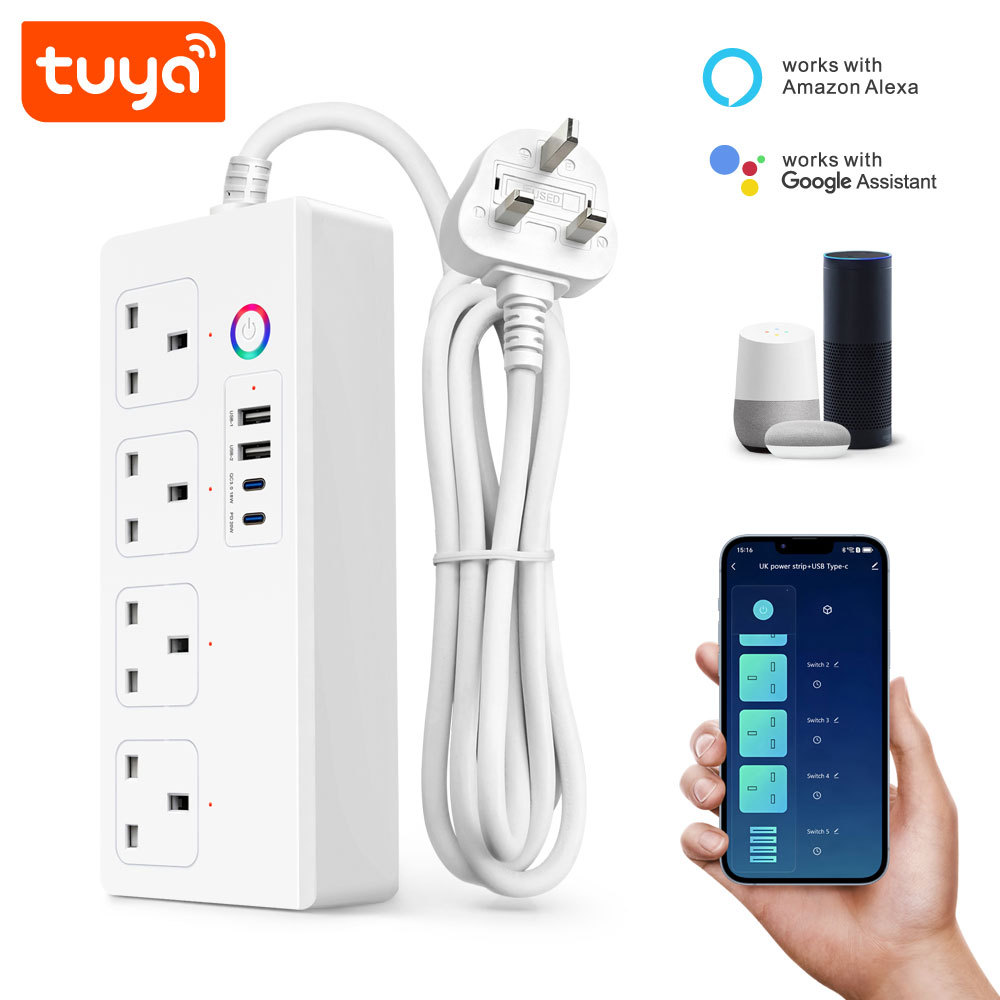

| Product Name | Tuya Smart WiFi UK Four-Outlet Power Strip with 2 USB-A & 2 Type-C Ports |
| APP Name | Tuya Smart or Smart Life |
| Color | White |

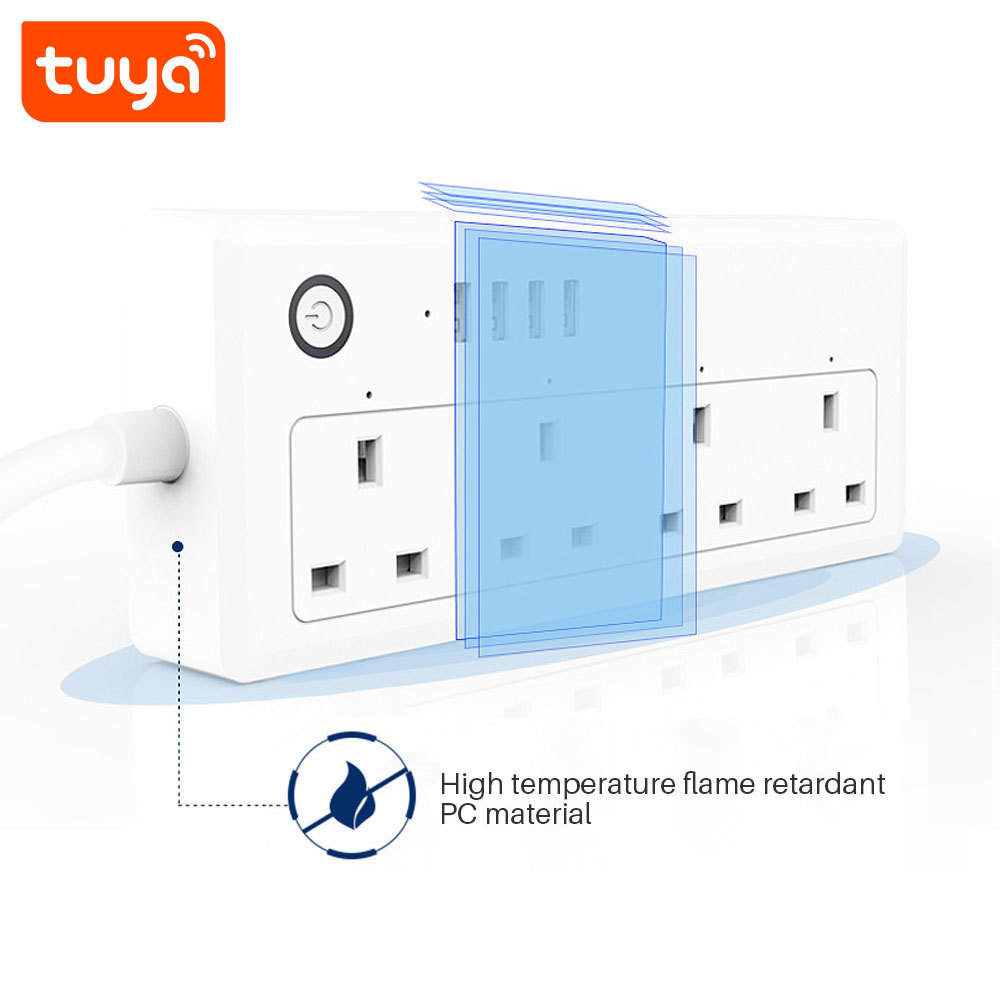

| Material | Fireproof ABS+PC |
| Plug Standard | UK 3-Pin Plug |
| Outlet Standard | UK 16A Outlets |
| AC Outlet Quantity | 4 |
| Outlet Control | Independent control for each outlet |
| USB-A Port Quantity | 2 |
| USB-C Port Quantity | 2 |
| USB-A Output | 5V 2.1A; maximum 10.5W per port |
| USB-C Output | 18W and 20W fast charging; PD/QC compatible |
| Total USB/Type-C Output | Maximum 30W combined |
| Single-Port Charging Output | USB-A USB1: 18W, 5V3A / 9V2A / 12V1.5A; USB-A USB2 and USB3: 5W, 5V1A; USB-C: 20W, 5V3A / 9V2.22A / 12V1.67A; APDO1: 3.3-5.9V/3A; APDO2: 3.3-11V/1.8A |
| Dual-Port Charging Output | USB-C + USB1: 15W / 5V3A; USB2 + USB3: 5W / 5V1A; four-port charging shares 20W / 5V4A |
| Input Voltage | AC 110-240V 50/60Hz |
| Maximum Output | 16A 250V; maximum 3500W at 240V, 1850W for 110V |
| WiFi Standard | 2.4GHz IEEE 802.11 b/g/n; 5GHz not supported |
| Voice Control Compatibility | Works with Amazon Alexa / Google Assistant |
| Remote Control | Yes, via 2.4GHz WiFi; no hub required |
| Timing & Scheduling | Custom ON/OFF schedules |
| Device Sharing | Multi-user access via APP |
| Surge Protection | Integrated anti-surge circuit |
| Safety Features | Overload protection |
| Cable Length | 1.5m (5ft) thick copper cord |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 5%-95% RH, non-condensing |

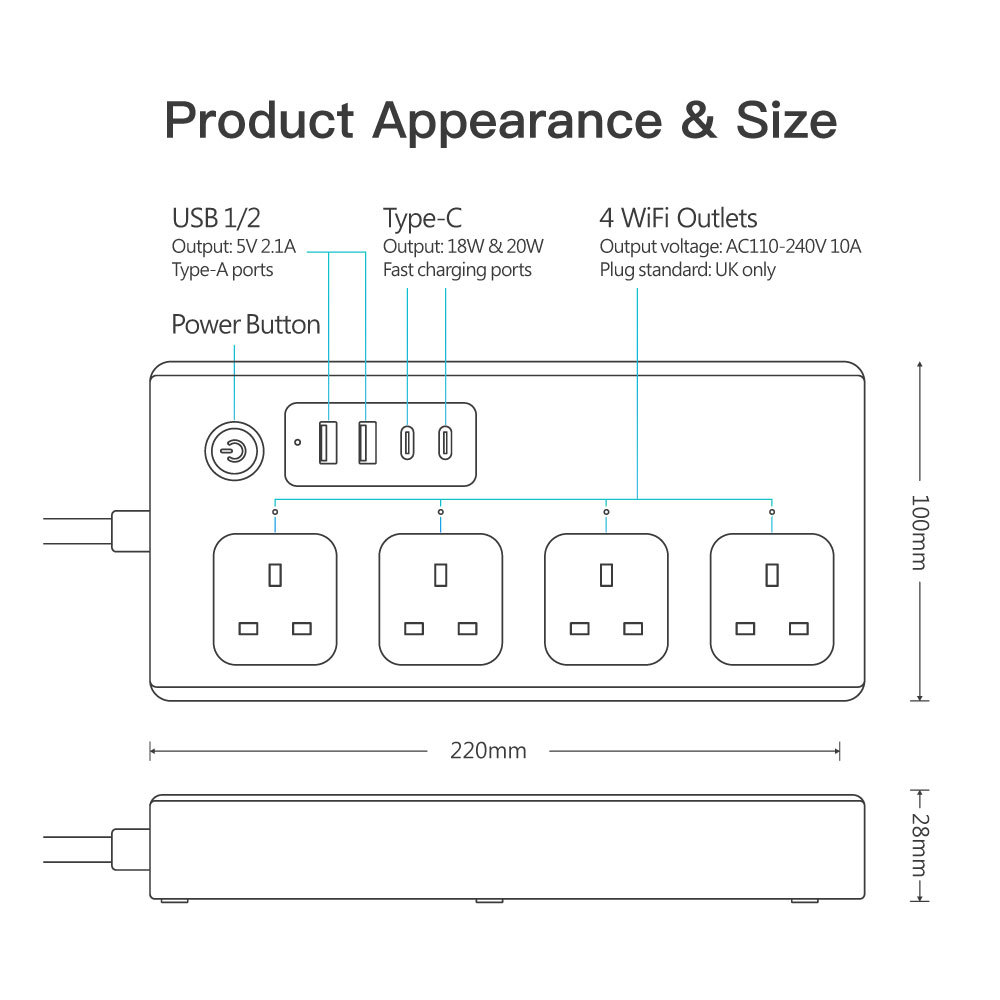

| Product Dimension | 220 × 100 × 32.5 mm; UK version |
| Box Dimension | 25 × 17.5 × 4 cm |
| Unit Weight | 0.6 kg |
| Carton Packing | 440 × 275 × 375 mm outer carton; 20 pcs/carton; 13.63 kg/carton |
| Application | Home, office and indoor appliance control |
| PST-SM-301-K Package List | |
| Smart Power Strip | x1 |
| User Manual | x1 |
| PST-SM-301-K Product FAQ | |
| Q1: What plug standard is used for the PST-SM-301-K? A1: This is the UK version with a UK 3-pin plug and UK 16A outlets. Confirm the destination-market certification before final listing publication. |
|
| Q2: What is the input voltage of the smart power strip? A2: The input range is AC 110-240V, 50/60Hz. |
|
| Q3: What maximum current can the smart power strip support? A3: The maximum output rating is 16A at 250V. Do not exceed the confirmed electrical rating. |
|
| Q4: What appliances can be used with this smart socket? A4: It supports home appliances within the confirmed 16A electrical rating, such as lamps, chargers, fans and small household appliances. |
|
| Q5: Can the smart socket start or stop working based on environmental factors? A24: It can be included in APP automation scenes based on supported Tuya triggers, schedules, device status or other compatible conditions. |
|
| Q6: How do I connect the smart socket to the APP? A6: Download the Tuya Smart or Smart Life APP, connect the phone to a 2.4GHz WiFi network, select Add Device and follow the pairing instructions. |
|
| Q7: How do I set up voice control? A7: Add the device to the Tuya APP first. Then link the Tuya account in the Alexa or Google Home APP and test the supported commands. |
|
| Q8: Can I set a schedule for the smart plug? A8: Yes. Custom ON/OFF schedules can be configured in the Tuya Smart or Smart Life APP. |
|
| Q9: Is remote control possible? A9: Yes. The device can be controlled remotely through the APP when it is powered and connected to a 2.4GHz WiFi network. |
|
| Q10: Can I install the power strip outdoors? A10: No. It is intended for indoor use. Protect it from direct rain, water and wet locations. |
|
| Q11: What is device sharing? A11: Device sharing allows other family members to access the smart power strip through their own APP accounts. |
|
| Q12: Can multiple devices be controlled at once with the APP? A12: Yes. The APP can manage multiple compatible devices under the same home account. |
|
| Q13: What should I do if the WiFi connection fails? A13: Confirm the phone is connected to 2.4GHz WiFi, check the password, move the device closer to the router and reset the device before pairing again. |
|
| Q14: What should I do if voice control is not working? A14: Verify that the Tuya account is linked correctly, the voice assistant skill is enabled and the device name is unique and easy to recognize. |
|
| Q15: What should I check if one outlet is not working? A15: Check that the outlet is enabled in the APP, test the appliance with another outlet and inspect the plug and cable. Reset the power strip if necessary. |
|
| Q16: How do I troubleshoot USB charging? A16: Check that the USB device and cable are in good condition, confirm the USB ports are enabled where applicable and test another compatible cable. |
|
| Q17: Does the USB section support fast charging? A17: Yes. The USB-C ports support fast charging up to the specified 18W/20W profiles, with PD/QC compatibility as listed. |
|
| Q18: Can I charge several USB devices at the same time? A18: Yes. The product supports simultaneous charging, but the available output is shared when multiple ports operate together. |
|
| Q19: How does the timer function improve daily life? A19: Schedules can automate appliances such as lamps or fans, helping reduce manual operation and prepare devices before arrival. |
|
| Q20: Can I share the smart socket with family members? A20: Yes. You can share the device through the Tuya Smart or Smart Life APP with authorized family accounts. |
|
| Q21: Will I receive real-time alerts? A21: APP notifications depend on the configured Tuya functions and account settings. Confirm the required alert behavior before making a listing claim. |
|
| Q22: What safety features does the smart socket have? A22: The product includes overload protection and an integrated anti-surge circuit. These functions do not replace a building circuit breaker. |
|
| Q23: Can the smart socket work with other Tuya smart products? A23: Yes. It uses the Tuya Smart ecosystem and can participate in compatible APP scenes and automation routines. |
|
| PST-SM-301-K OEM & ODM Service | |
| Box & manual OEM: 1000PCS: each add 0.18USD/PCS. If over 2000PCS. OEM box free, OEM user manual: 0.18USD/PCS. Laser logo: 100PCS |
|
