| PST-TYTHE-D2 Specifications | |

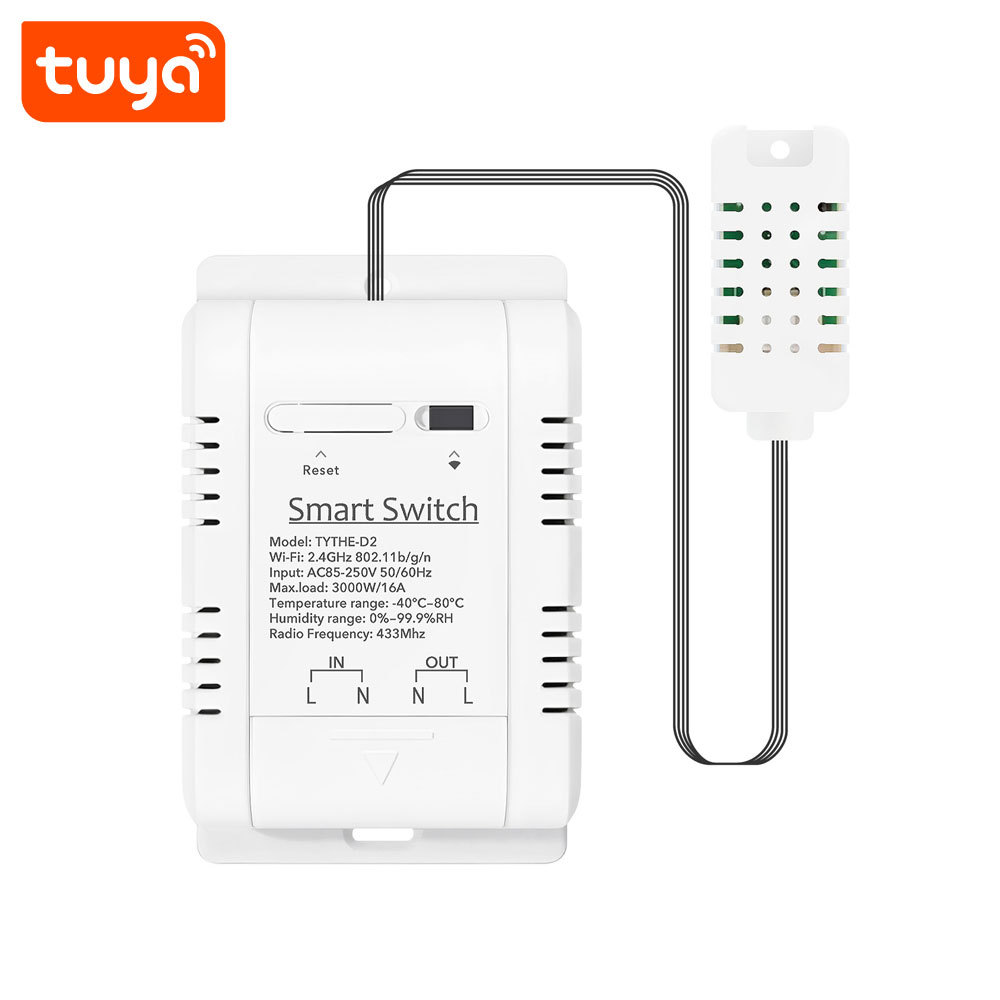

| Product Name | Tuya Smart WiFi Temperature & Humidity Switch 16A 3000W with Energy Consumption |
| APP Name | Tuya Smart or Smart Life |
| Work Voltage | AC85-250V Terminal |
| Max. Power | 3500W(16A) |
| Material | Flame - Retardant PC |
| Temperature Measurement Accuracy | ±1°C |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Connection | WiFi + BLE |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Wireless Frequency (RF) for Controller | RF 433Mhz |
| Can extra add | RF Remote controller |
| Control Modes | Mobile App, Voice Control (Compatible with Smart Assistants), Manual |
| Installation | In - line Installation (IN/OUT Terminals for L/N Wiring) |
| Protection Features | Overload Protection, Over - temperature Protection |

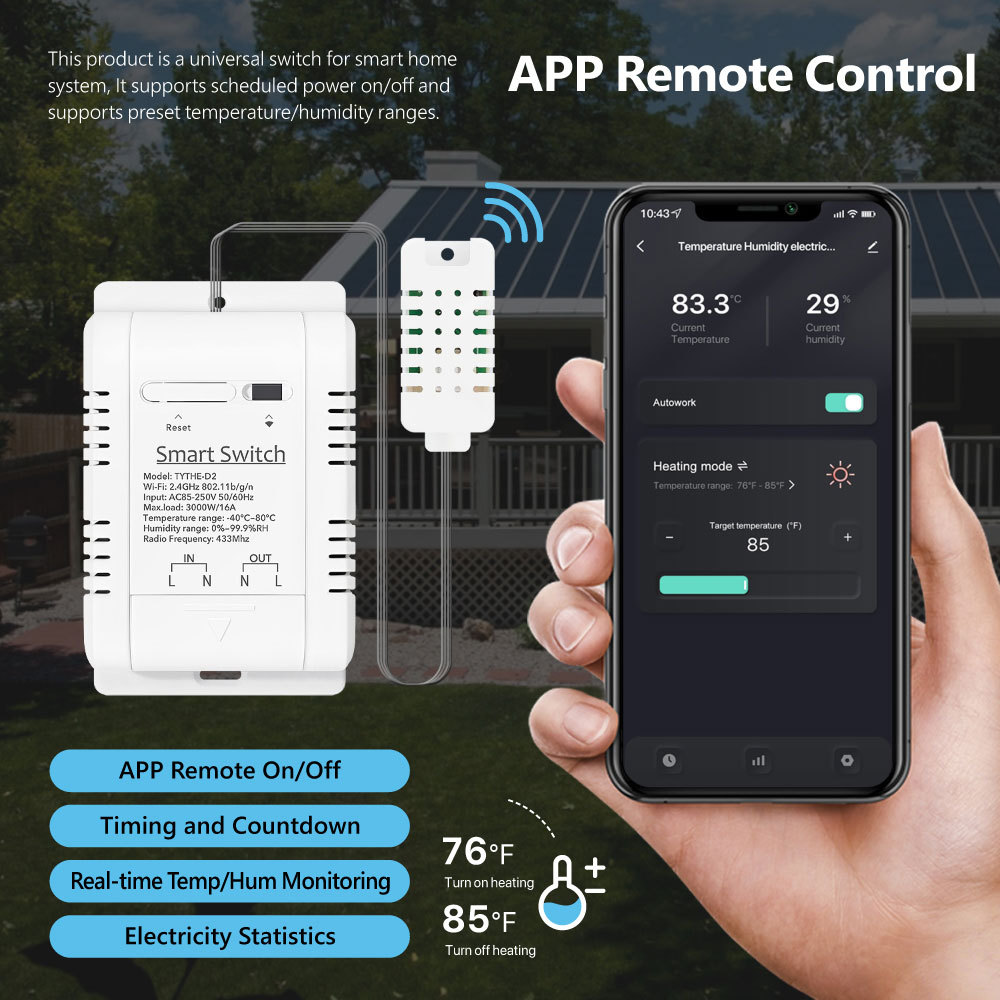

| Remote Control Function | Remotely control home appliances from anywhere via mobile APP |
| Applicable Home Appliances | Blinds, corridor lights, garage doors, wall/ceiling fans, TV, etc. |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 6*5.5*10cm |
| Weight | 0.11kg |
| PST-TYTHE-D2 Package List | |
| WIFI Smart Switch | x1 |
| ABS temperature & humidity probe | x1 |
| User Manual | x1 |
| PST-TYTHE-D2 Product FAQ | |

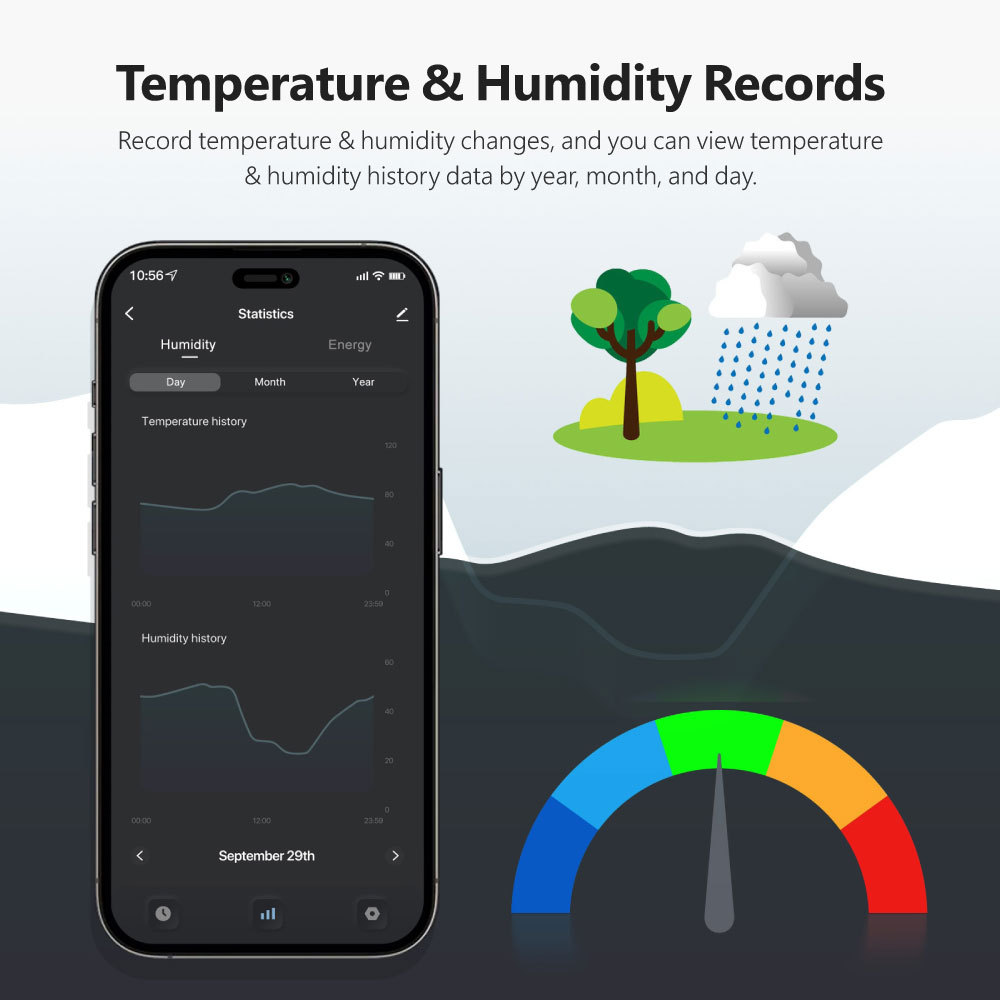

| Q1: What are the main functions of this Wi - Fi smart switch? A: It supports APP remote control, temperature monitoring, humidity monitoring, electricity statistics, and timer functions. |
|
| Q2: How does the switch connect to my home network? A: It connects to your home network via Wi - Fi 2.4GHz (802.11b/g/n) and also has BLE functionality. |
|
| Q3: What voltage does the switch support? A: It supports an input voltage range of AC 85 - 250V. |
|
| Q4: Can I use this switch in countries with different electrical frequencies? A: Yes, it can work with both 50Hz and 60Hz electrical frequencies. |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: What is the maximum power that the switch can handle? A: The maximum load power is 3000W. |
|
| Q7: What's the maximum current the switch can handle? A: The maximum load current is 16A. |
|
| Q8: Which voice assistants is the smart lock compatible with? A: It works with Amazon Alexa and Google Assistant. |
|
| Q9: What is the temperature monitoring range of this switch? A: The temperature monitoring range is - 20°C to 80°C. |
|
| Q10:How can I control the switch? A: You can control it through the Tuya Smart mobile app, use voice commands with compatible smart assistants like Amazon Alexa or Google Assistant, or operate it manually. |
|
| Q11: How do I install this smart switch? A: It is installed in - line, using the IN/OUT terminals for live (L) and neutral (N) wiring. It's recommended to have a professional electrician install it if you're not experienced with electrical work. |
|
| Q12: Does the switch have any protection features? A: Yes, it has overload protection and over - temperature protection to safeguard connected devices and itself. |
|
| Q13: How much power does the switch consume when it's on standby? A: The standby power consumption is less than 0.5W. |
|
| Q14: Can I set a timer for the switch? A: Yes, you can set scheduled on/off times for the switch through the Tuya Smart app. |
|
| Q15: Can I create automated scenes with this switch? A: Yes, it supports scene linkage and can be used to create automated scenes with other Tuya - compatible devices. |
|
| Q16: Can I share control of the switch with my family members? A: Yes, you can share device control with family members via the Tuya Smart app. |
|
| Q17: What should I do if the switch fails to connect to my Wi - Fi? A: First, make sure your Wi - Fi is working properly and you're entering the correct password. Then, try resetting the switch and re - adding it to the app. If the problem persists, check if there are any signal interference issues or contact Tuya's customer support. |
|
| Q18: Can I use this switch outdoors? A: Due to its operating temperature and humidity requirements, it's generally designed for indoor use. Using it outdoors may affect its performance and lifespan. |
|
| Q19: Can I connect multiple switches to one app? A: Yes, the Tuya Smart app allows you to connect and manage multiple Tuya - compatible smart switches and other devices. |
|
| Q21: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| Q22: How accurate is the humidity measurement? A: The humidity measurement accuracy is ±3% RH. |
|

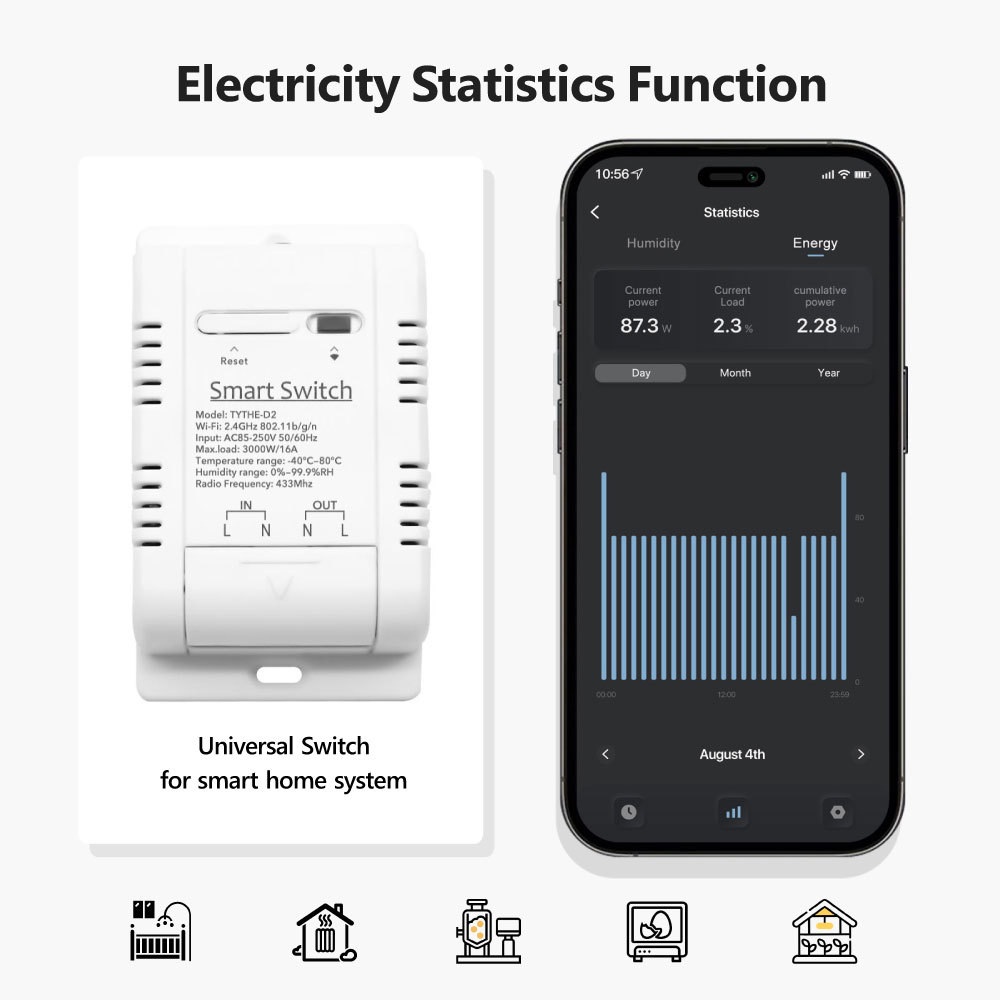

| Q23: Does the switch track electricity consumption? A: Yes, it has electricity statistics functionality to track power consumption. |
|
| PST-TYTHE-D2 OEM & ODM Service | |
| Q24: Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS: 0.05USD/Each; 5000PCS free; Laser logo: 50PCS. |
|
