| PST-WV05W Specifications | |
| Product Name | Tuya Smart WiFi Sprinkler Timer Pro with Built-in Water Meter for Garden & Lawn |
| APP Name | Tuya Smart or Smart Life |

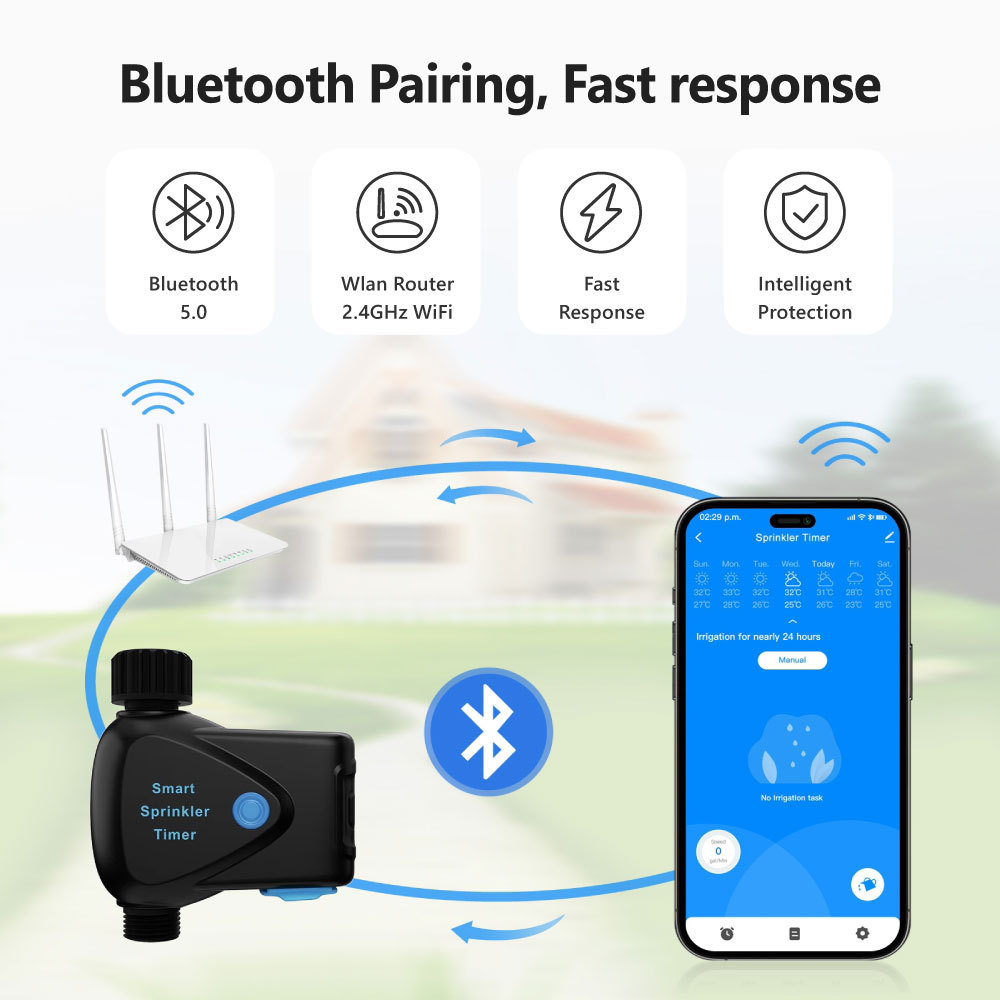

| Pairing Method | WiFi EZ-Pairing + BLE fast distribution network |
| Power Supply | AA/LR6 1.5V * 4( replaceable) |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Remote Control | Mobile phone APP |
| Pipe size | 3/4 inch |
| Thread type | G, NH(optional) |
| Standby consumption | 200uA |
| Waterproof level | IP65 (dust-tight, water jet resistant) |
| Wireless distance | 45M |
| Working pressure | 0.03MPa ～ 1MPa |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Core Control Modes | Manual Watering, App Remote Watering, Timing Irrigation |
| Core Feature | Built-in water meter (tracks water consumption accurately) |
| Smart Scenes | Linkable with Tuya smart soil sensors |

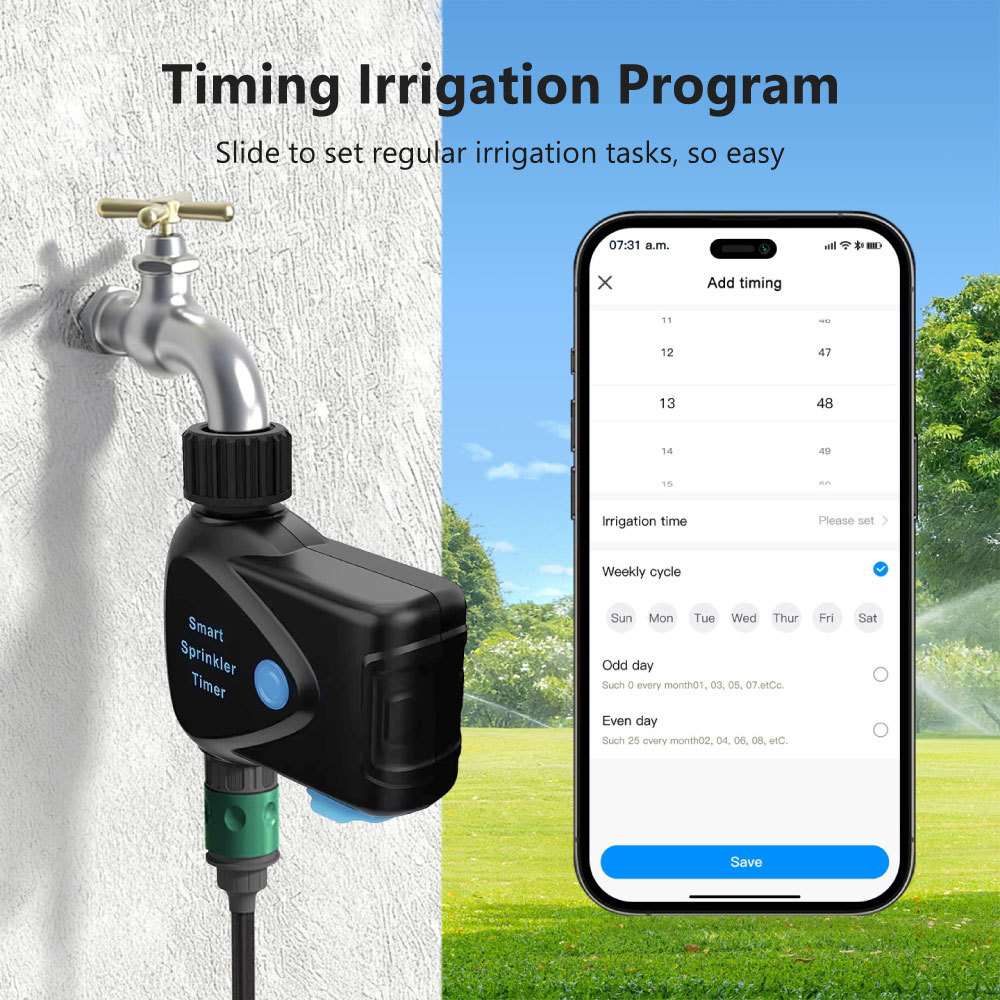

| Timing Function | Customizable irrigation schedules (multiple time periods per day/week) |
| Timing Range | 1 minute to 240 minutes per irrigation session |
| Irrigation Frequency | Daily / Every 1-30 days / Custom weekly schedule |
| Material | ABS plastic (impact-resistant, UV-protected) |
| Applicable Scenarios | Garden, lawn, flower beds, potted plants, vegetable patches |
| Installation | Tool-free twist-on installation (no professional skills required) |
| Operation Temp. | :-10℃ ～ 60℃ (14°F～140°F) |
| Operating Humidity: | 1% ～ 95%RH（non-condensing） |
| Color | Bright Green & Matte Black |

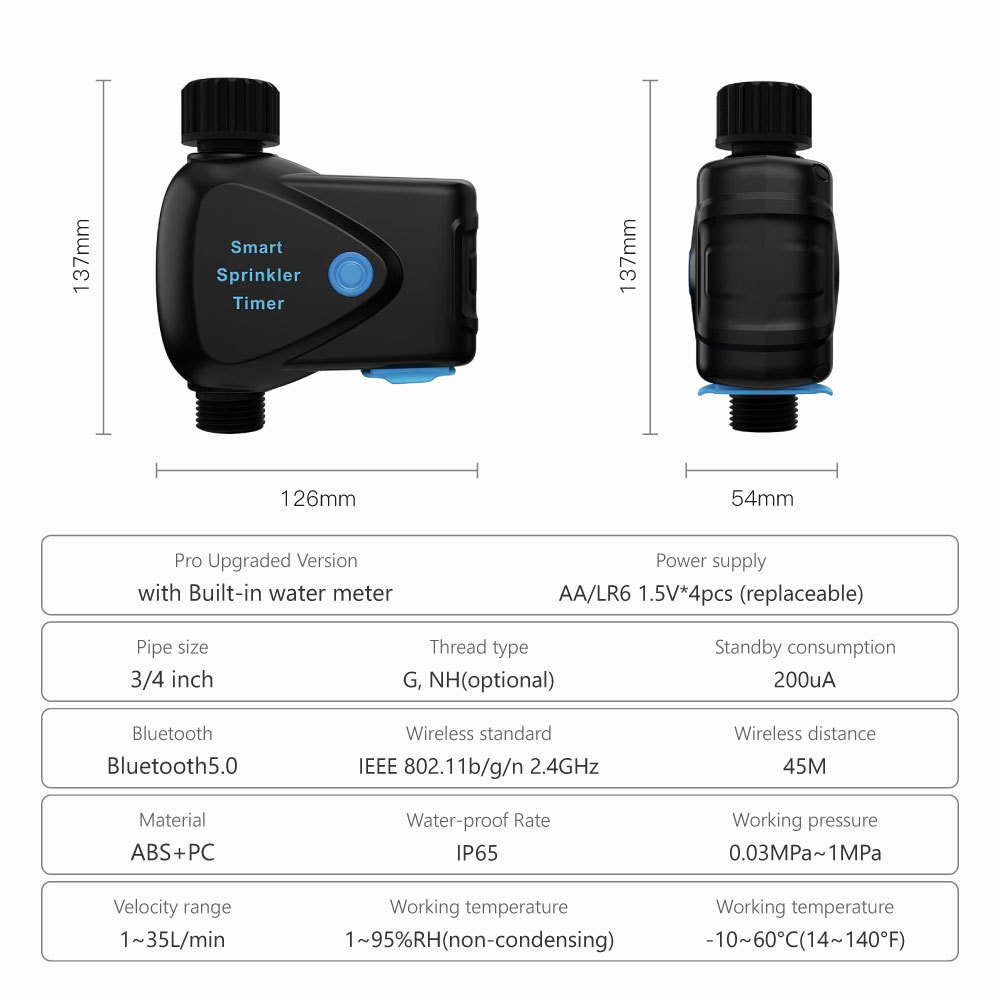

| Product Size | 137mm X 126mm X 54mm |
| Box Dimension | 17.6*15.7*5.4cm |
| Unit Weight | 450g |
| Carton Packing | 20PCS per ctn |
| PST-WV05W Package List | |
| Sprinkler Meter | x1 |
| Adapter (hose connector) | x1 |
| User Manual | x1 |
| PST-WV05W Product FAQ | |
| Q1: What is the function for this product? A: It has a built-in water meter to accurately track water consumption, helping you save water. It simplifies garden/lawn watering, saves water, and ensures plants get proper care even when you’re away. |
|
| Q2: How does the controller connect to my home network? A: It connects to your home network via Wi - Fi 2.4GHz (802.11b/g/n) and also has BLE functionality. |
|
| Q3: How to connect it to WiFi? A: Open the Tuya Smart or Smart Life app, add the device, select the 2.4GHz WiFi network, enter the password, and follow the app prompts. |
|
| Q4: Can I control the timer when I’m not at home? A: Yes, you can remotely control it via the app from anywhere with an internet connection. |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: Can multiple users control the device? A: Yes, you can share device access with family members via the app. |
|
| Q7: How long can each irrigation session last? A: Each session can be set from 1 minute to 240 minutes. |
|
| Q8: Which voice assistants is the smart lock compatible with? A: It works with Amazon Alexa and Google Assistant. |
|
| Q9: Will I be able to check past watering records? A: Yes, the app automatically logs irrigation history (duration, frequency) for you to view anytime. |
|
| Q10: Can it work with other smart devices? A: Yes, it can link with Tuya smart soil sensors to create automated smart scenes. |
|
| Q11: How long do the batteries last? A: Battery life is up to 6-12 months, depending on how frequently you use it. |
|
| Q12: Does it have a filter to prevent clogging? A: Yes, it has a built-in water filter to stop debris from blocking the valve. |
|
| Q13: Can I set a child lock for the device? A: Yes, you can enable the child lock setting through the app. |
|
| Q14: What scenarios is this timer suitable for? A: It’s ideal for gardens, lawns, flower beds, potted plants, and vegetable patches. |
|
| Q15: Does it support multiple irrigation schedules at once? A: Yes, you can set multiple custom schedules (e.g., morning and evening watering). |
|
| Q16: Does it support multiple languages in the app? A: Yes, the Tuya Smart and Smart Life apps support multiple languages. |
|
| Q17: What should I do if the device disconnects from WiFi? A: Try re-pairing via BLE fast distribution network, or check your WiFi signal strength. |
|
| PST-WV05W OEM & ODM Service | |
| Q18: Can make OEM? A: Yes, we can. PID OEM:3000PCS Box OEM: 2000PCS, User Manual OEM: 2000PCS. Laser logo: 50PCS. |
|
