| PST-CT80WR Specifications | |

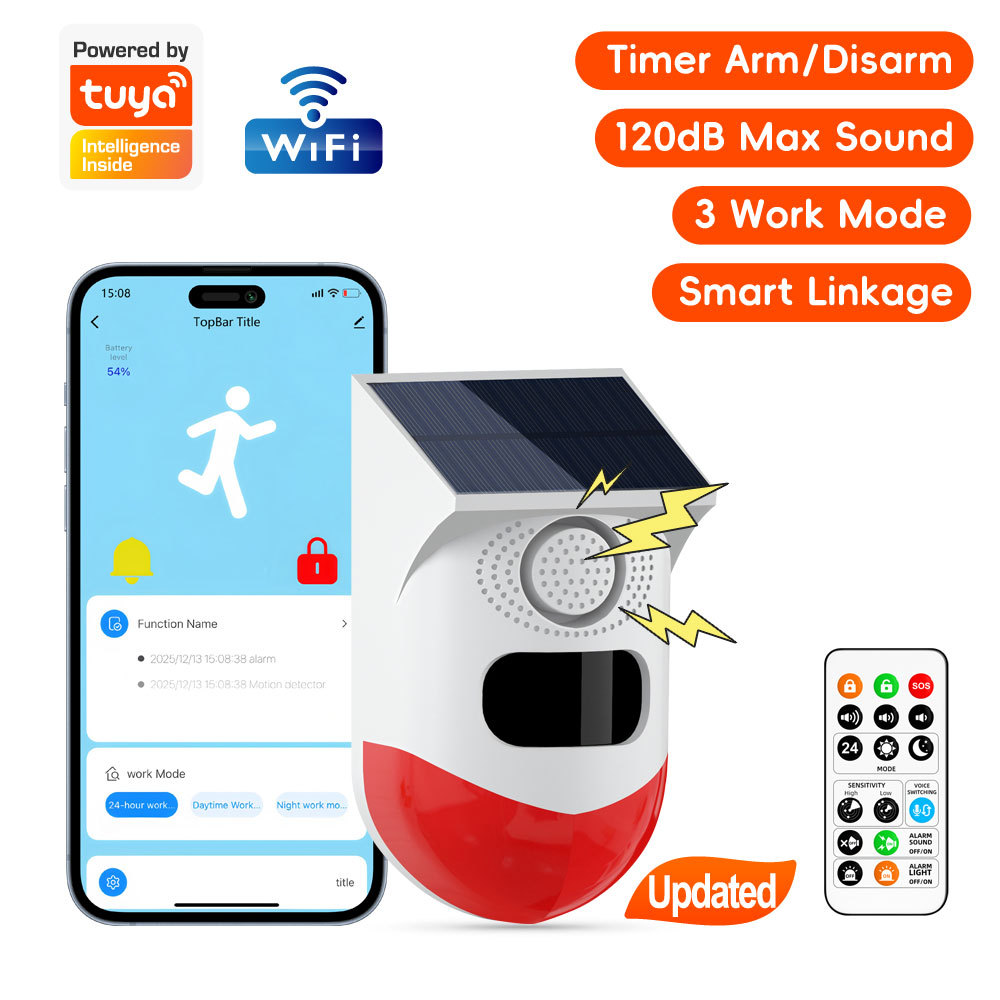

| Name | Solar Waterproof WiFi Wall Mounted PIR Alarm with 433Mhz |
| Model | PST-CT80WR |
| APP Name | Tuya Smart or Smart Life |
| Alarm method | Sound & Light |

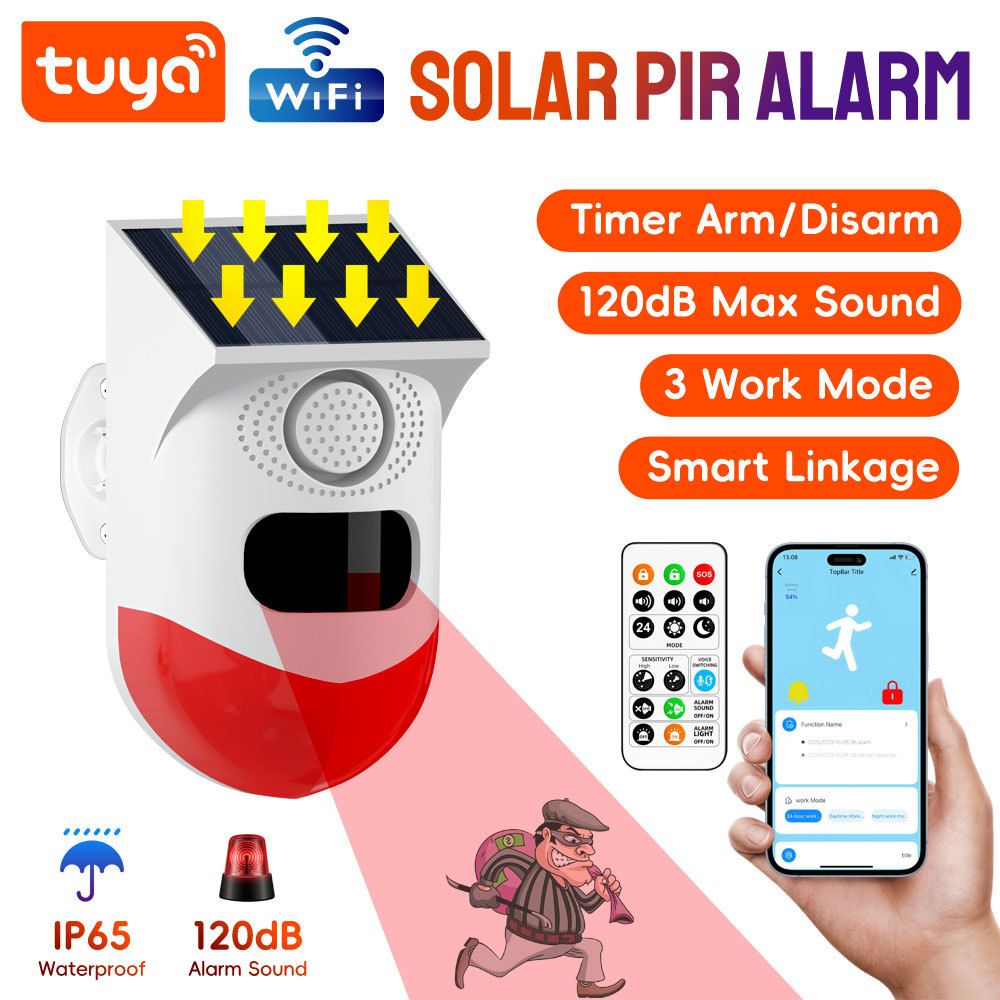

| Alarm sound | ≤ 120dB (Within 10cm) |
| Backup Battery | 3.7V 600mAH polymer lithium battery |
| Solar panel | 5V*0.6W; 6-8h charging time |
| PIR sensitivity angle | 110 degree |
| PIR sensitivity distance | 9-12m |
| Pet-proof: | ≤ 15kg |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Tuya Smart product Linkage control | Support |
| Operation Temp. | –10°C to +50°C |
| Humidity | 5%--95% non-condensing |
| Installation | Wall-mounted |

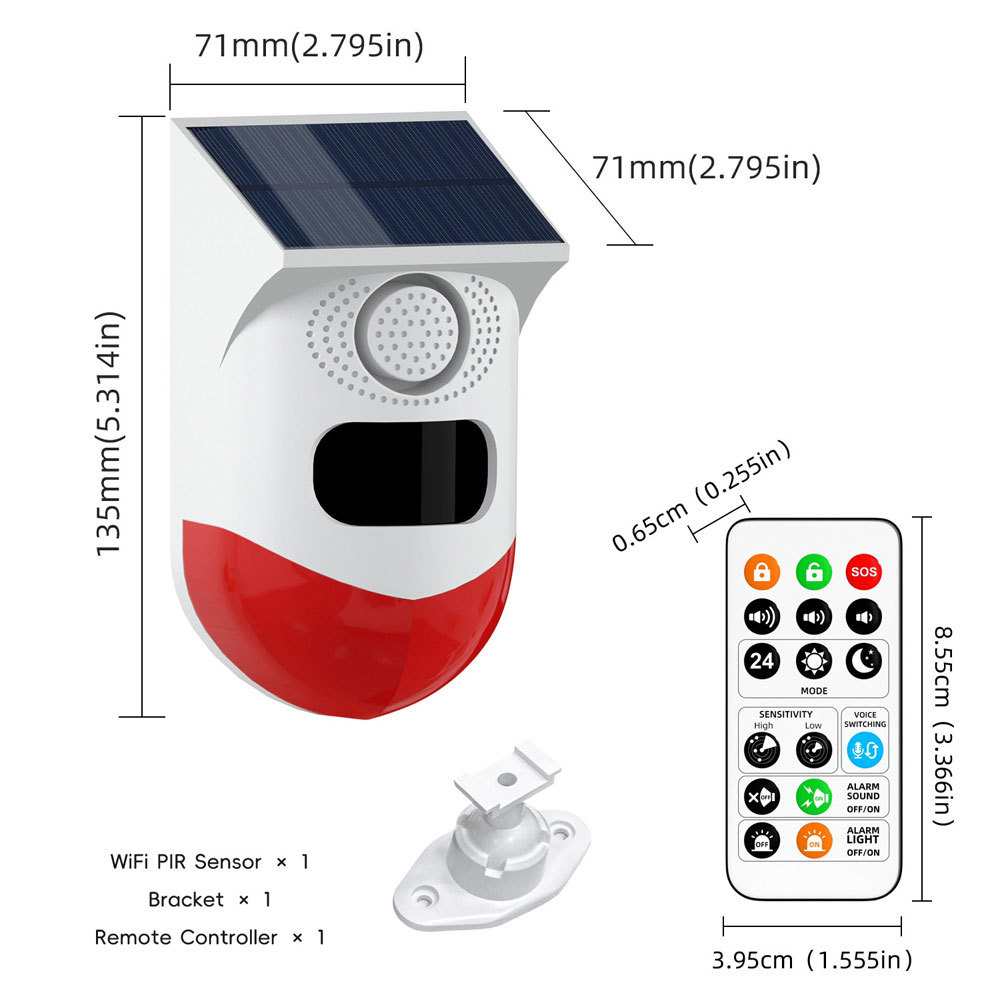

| Box Dimension | 14*8*7.5cm |
| Unit Weight | 250g |
| Carton Packing | 50PCS per carton: 12.55kg, 41*30*40cm |

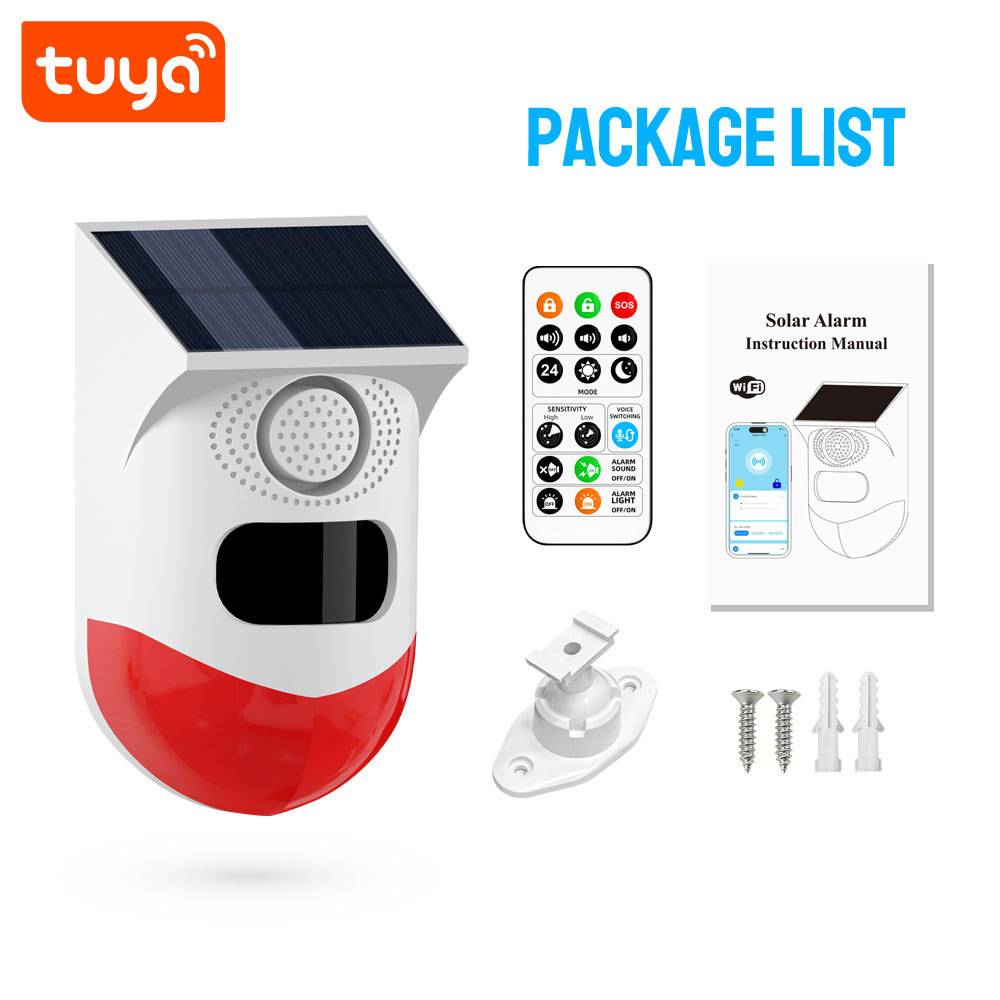

| PST-CT80WR Package List | |
| WiFi Solar PIR Alarm | x1 |
| Bracket | x1 |
| USB Cable | x1 |
| Remote controller | x1 |
| User Manual | x1 |
| PST-CT80WR Product FAQ | |
| Q1: What is this device? A: This is an outdoor infrared detector belonging to the Smart Home Series, which supports remote control. |
|
| Q2: What brands is it compatible with? A: It is compatible with Tuya Smart and SmartLife platforms. |
|

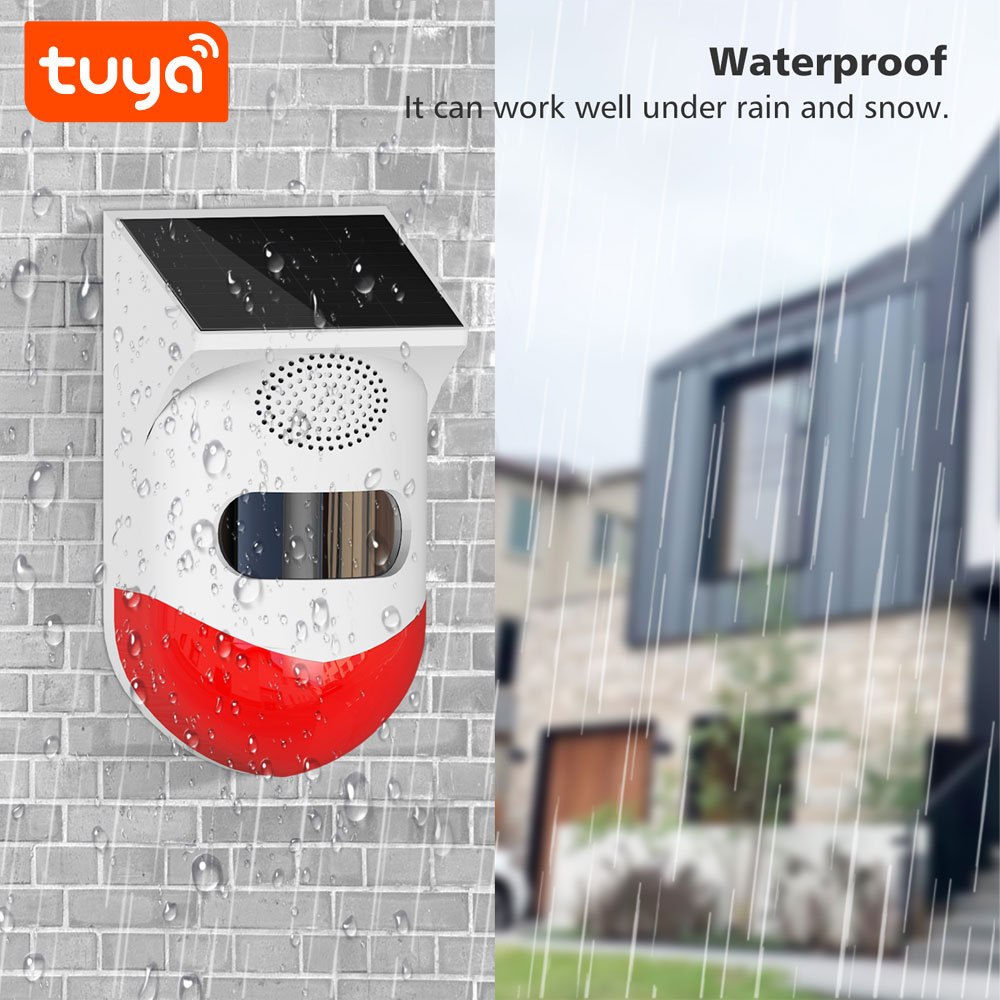

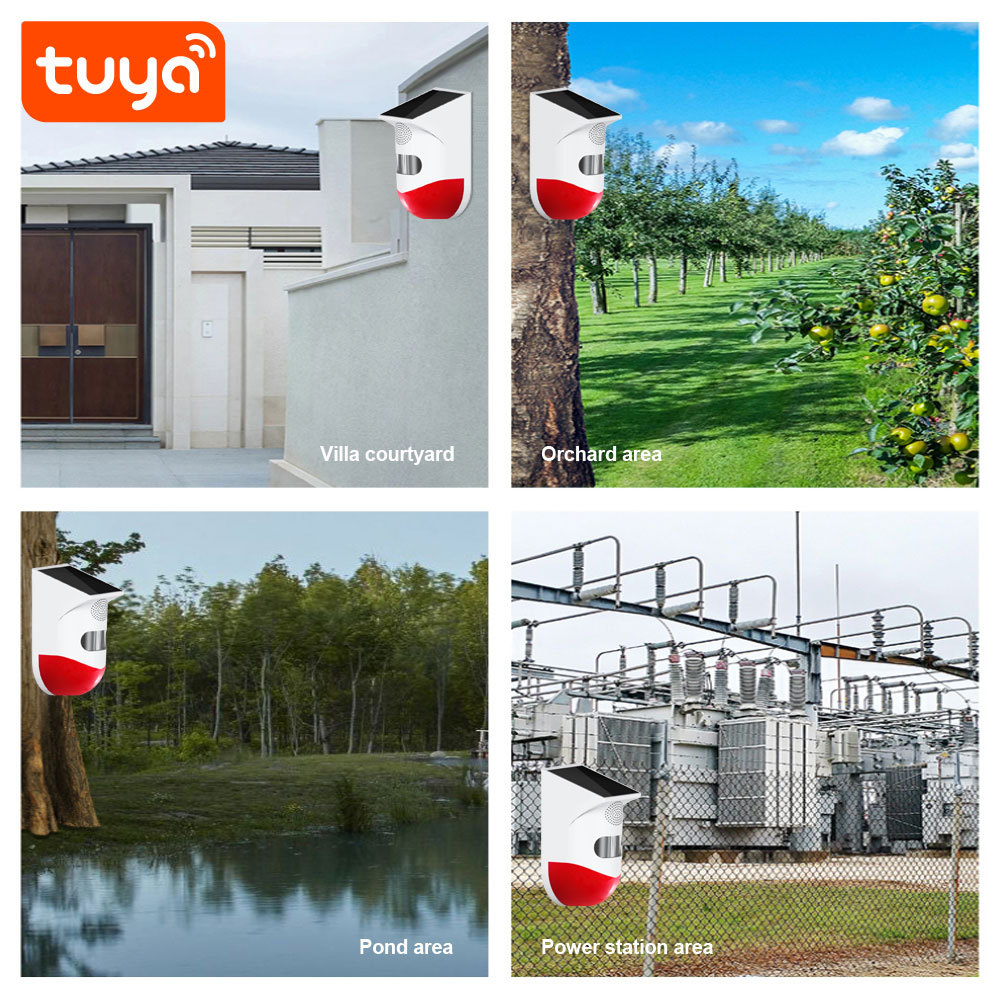

| Q3: Where can I install this detector? A: It is designed for outdoor installation, such as on walls around your house, in the garden, or near entrances. |
|
| Q4: What is the recommended installation height? A: For optimal performance, it is recommended to install it at a height of about 2 - 3 meters from the ground. |
|
| Q5: How does the infrared detection work? A: It uses infrared sensors to detect the heat signature of moving objects. When an intruder enters its detection range, it will trigger an alert. |
|
| Q6: How do I connect the sensor to my Wi - Fi network? Open the relevant app (usually Tuya - based). Put the sensor in pairing mode (refer to the user manual for instructions), then follow the in - app prompts to connect it to your 2.4GHz Wi - Fi network. |
|
| Q7: What if my Wi - Fi signal is weak near the installation location? You can try moving the sensor to a location with better Wi - Fi coverage or install a Wi - Fi extender in the area to boost the signal. |
|
| Q9: Does it support 5GHz Wi - Fi networks? Most likely, it only supports 2.4GHz Wi - Fi networks. |
|

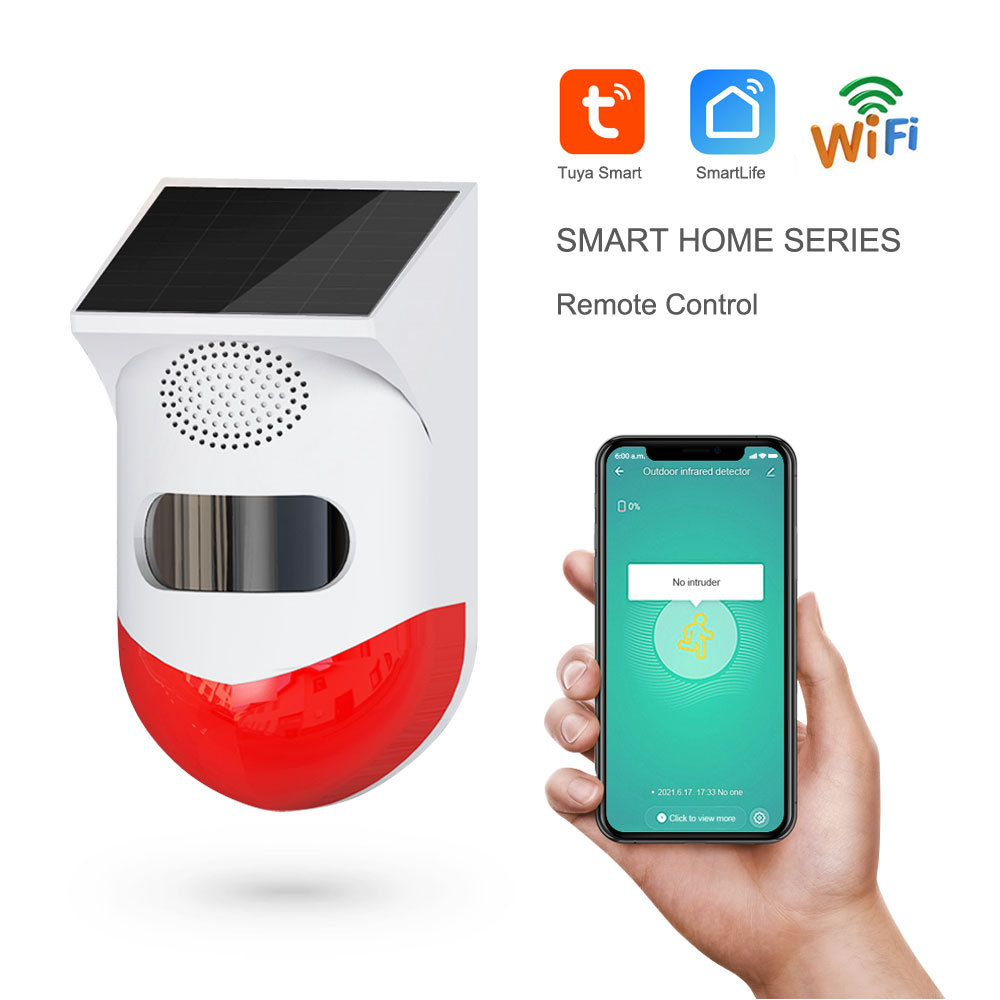

| Q10: How does it work with Tuya Smart? After connecting the sensor to your Wi - Fi and adding it to the Tuya app, you can control and monitor it through the Tuya Smart interface. You can also set up automation rules within the Tuya ecosystem. |
|
| Q11: How sensitive is the motion detection? The sensitivity can usually be adjusted in the app. You can set it to detect only significant movements or be more sensitive to minor motions depending on your needs. |
|
| Q12: Does the sensor work with voice assistants? A: It supports Amazon Alexa and Google Assistant. |
|
| Q13. What if I can't find the sensor in the app? First, make sure the sensor is in pairing mode. Check your Wi - Fi connection and ensure the app is up - to - date. You can also try restarting the sensor and the app. |
|
| Q14. Can I share access to the sensor with other family members? Yes, in the app, there are usually options to share device access. You can invite family members by sending them a link or adding their account details, depending on the app's sharing features. |
|
| Q15. How quickly does it detect an intruder? A: It has a fast - response time and can detect an intruder within milliseconds once they enter the detection area. |
|
| Q16. Can it distinguish between people and animals? A: It mainly detects heat signatures and movement. While it may not specifically distinguish between people and animals in all cases, the sensitivity can be adjusted to some extent. |
|
| Q17. The sensor is not detecting motion. What should I do? Check the sensitivity settings in the app and adjust if needed. Also, make sure there are no obstructions in front of the sensor and it's properly installed and powered. |
|
| Q18. I'm receiving false motion detections. How can I fix this? Lower the sensitivity setting in the app. Also, check if there are sources of false triggers like moving curtains, ventilation, or pets, and adjust the sensor's position if necessary. |
|
| Q19. The app is not receiving notifications. What's wrong? Ensure that notification permissions are enabled for the app on your smartphone. Also, check your phone's network connection and make sure the sensor is properly connected to Wi - Fi. |
|
| Q20: How quickly does it detect an intruder? A: It has a fast - response time and can detect an intruder within milliseconds once they enter the detection area. |
|
| Q21: Does it work in bad weather? A: It is designed to work in various weather conditions, but extreme weather like heavy storms or blizzards may affect its performance. |
|
| Q22: Can I set different detection sensitivity levels? A: Yes, you can adjust the detection sensitivity through the associated mobile app according to your needs. |
|

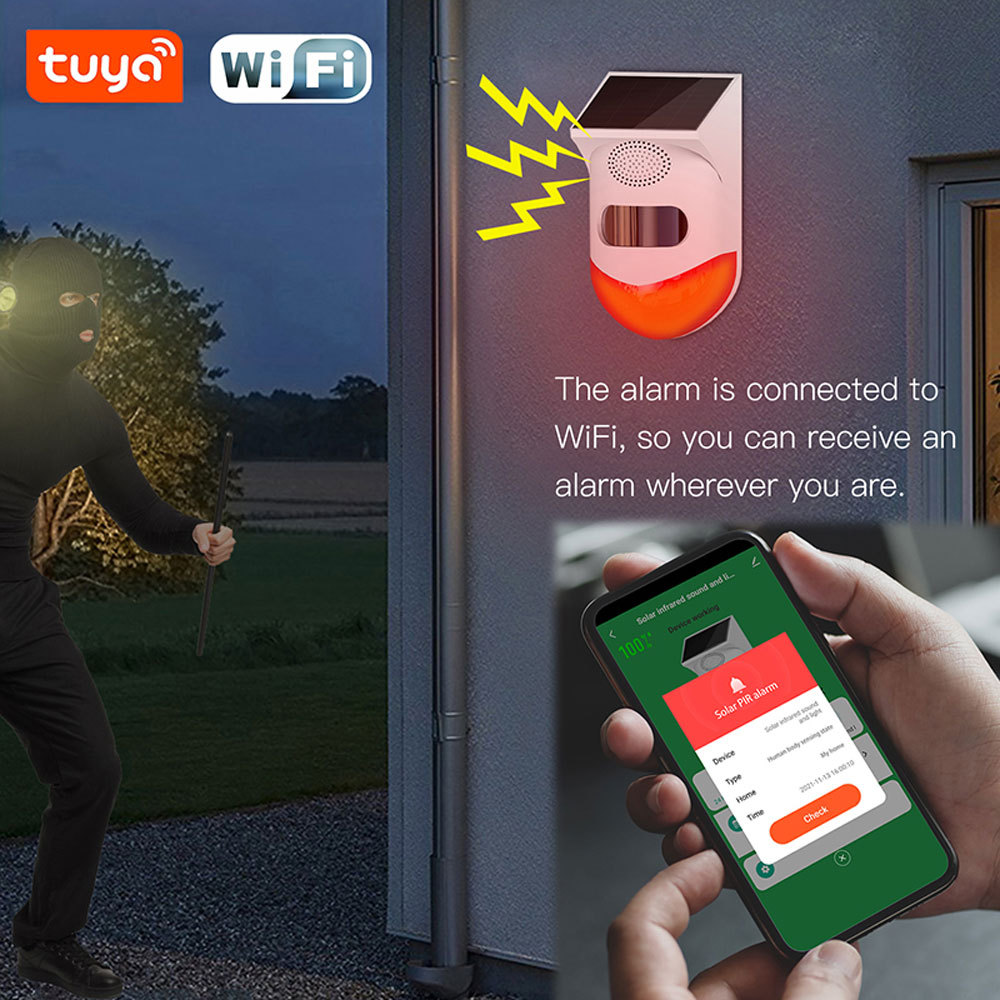

| Q24: Can I receive real - time alerts on my phone? A: Yes, when the detector detects an intruder, it will send real - time alerts to your phone through the connected app. |
|
| Q26: Can I view the detection history in the app? A: Yes, the app allows you to view the detection history, including the time and date of each detection event. |
|

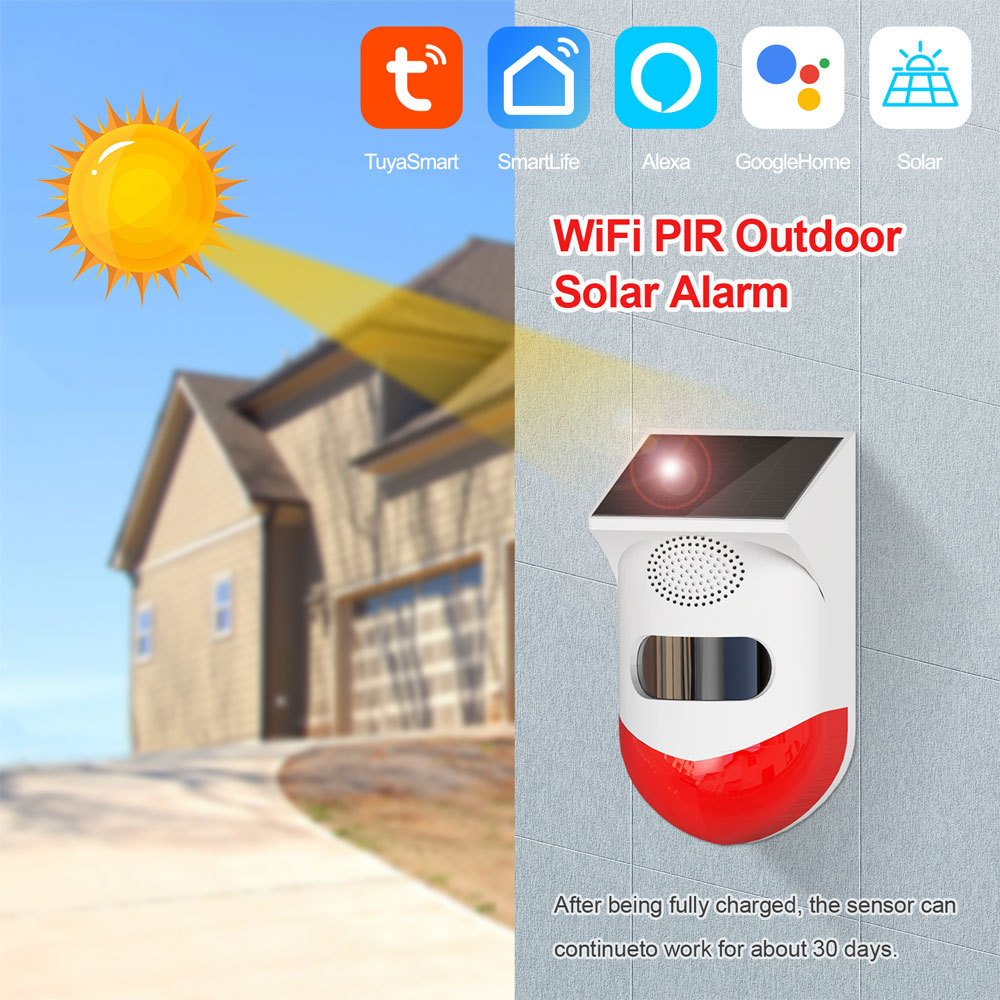

| Q27: How is the detector powered? A: It is mainly powered by solar energy. The built - in solar panel charges the internal battery during the day. |
|
| Q28: What if there is no sunlight for a long time? A: The internal battery has a certain capacity to store energy. In case of continuous cloudy days or lack of sunlight, it can still operate for a certain period, depending on the battery capacity and usage. |
|
| Q29: Can I replace the battery? A: The battery is designed to be non - replaceable. However, it has a long lifespan and is designed to be recharged via the solar panel. |
|
| Q30: Does it make a sound when detecting an intruder? A: Yes, it has an integrated speaker that emits an alarm sound when an intruder is detected. |
|
| Q:31 Can I adjust the volume of the alarm sound? A: You can adjust the volume of the alarm sound through the settings in the associated mobile app. |
|
| Q32: What types of alerts can it send? A: It can send sound alerts from the device itself and push notifications to your mobile phone via the app. |
|
| Q33: Does it record video or take pictures? A: This detector is mainly for motion detection and sending alerts. It does not have video recording or picture - taking functions. |
|
| Q34. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS, if only 500PCS extra charge 0.2USD/PCS; Laser Logo: 100PCS |
|
