| PST-DDL4-TY Specifications | |

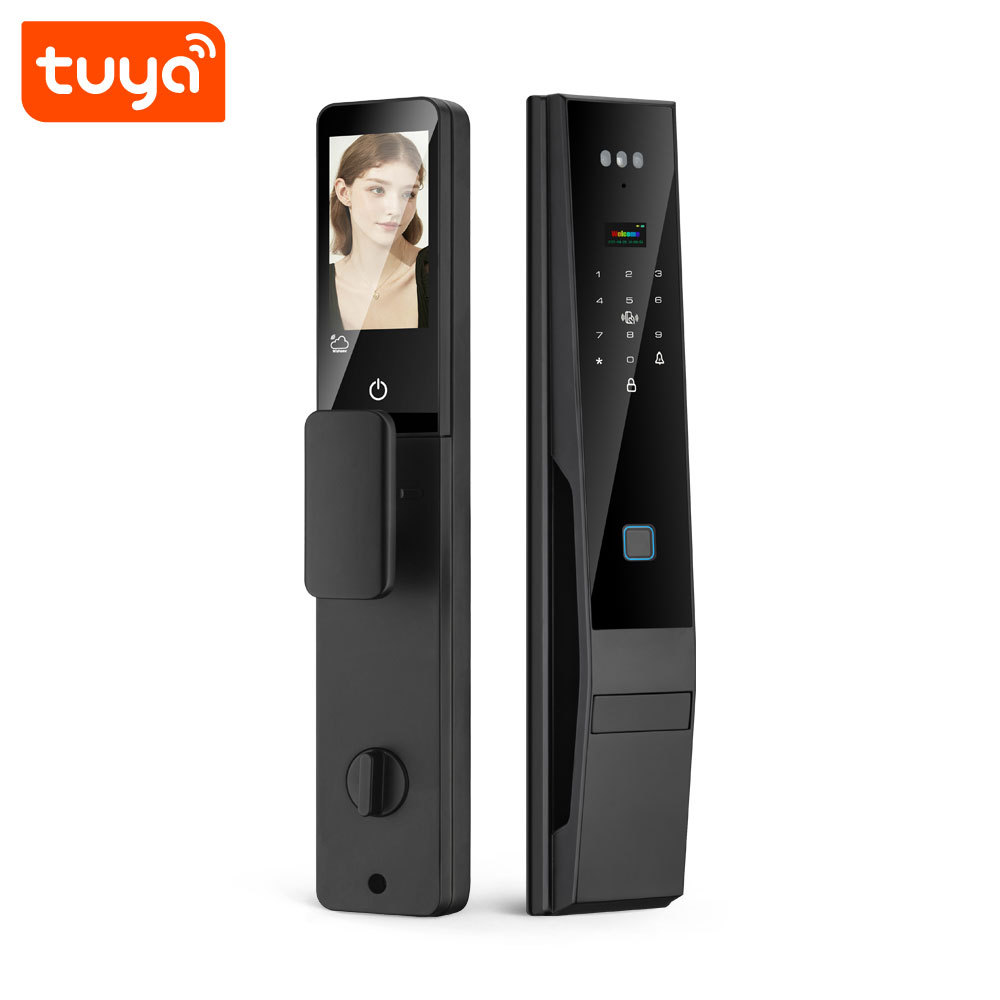

| Product Name | Tuya Smart WiFi Fingerprint Door Lock 3D Face & Video Intercom & Palm & Peephole |
| APP Name | Tuya Smart or Smart Life |
| Default Color | Black |
| Material | Aluminum alloy + tempered glass panel |
| Unlock Way | Fingerprint, password, card, key, temporary password, remote, face scan, palm print |
| Screen Size | 4.5-inch integrated screen |
| 3D Face Camera | 2.0-megapixel camera |
| Remote active unlocking | Can remote active unlocking from App direcly |
| System Capacity | in total support 300: 3 admin + 297 users: 1. Face and palm max 50; 2. fingerprint max 100; |
| Power Supply | 7.4V 4200mA Lithium battery |
| Emergency Power | 5V Type-C DC |
| Standby Current | Lower than 80uA |
| Door thickness | 50-80mm |
| Product Size | Front lock: 410mm*76mm*55mm, rear lock: 416mm*77mm*73mm |

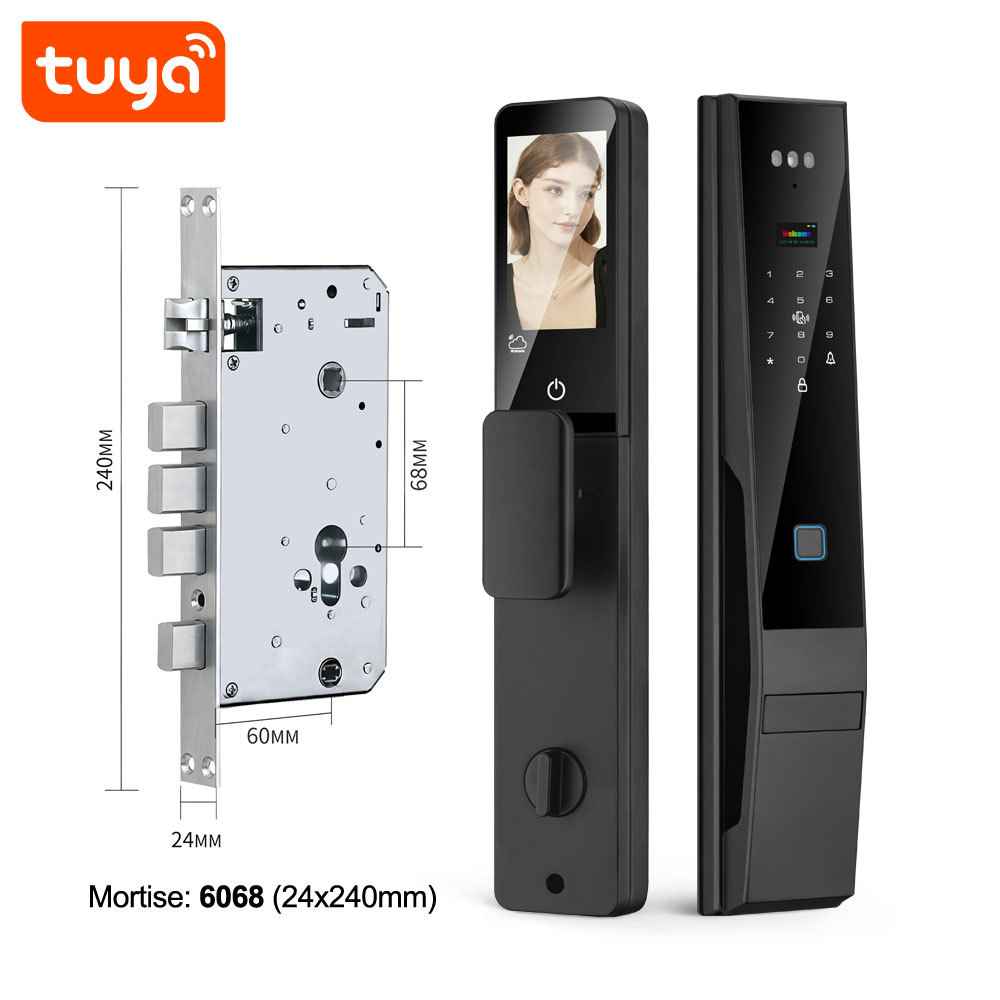

| Compatible Lock Body | 6068 (Not included) |
| Multi-Language | Chinese, English, Vietnamese, Portuguese, Arabic, Russian, Thai, Spanish, Indonesian |

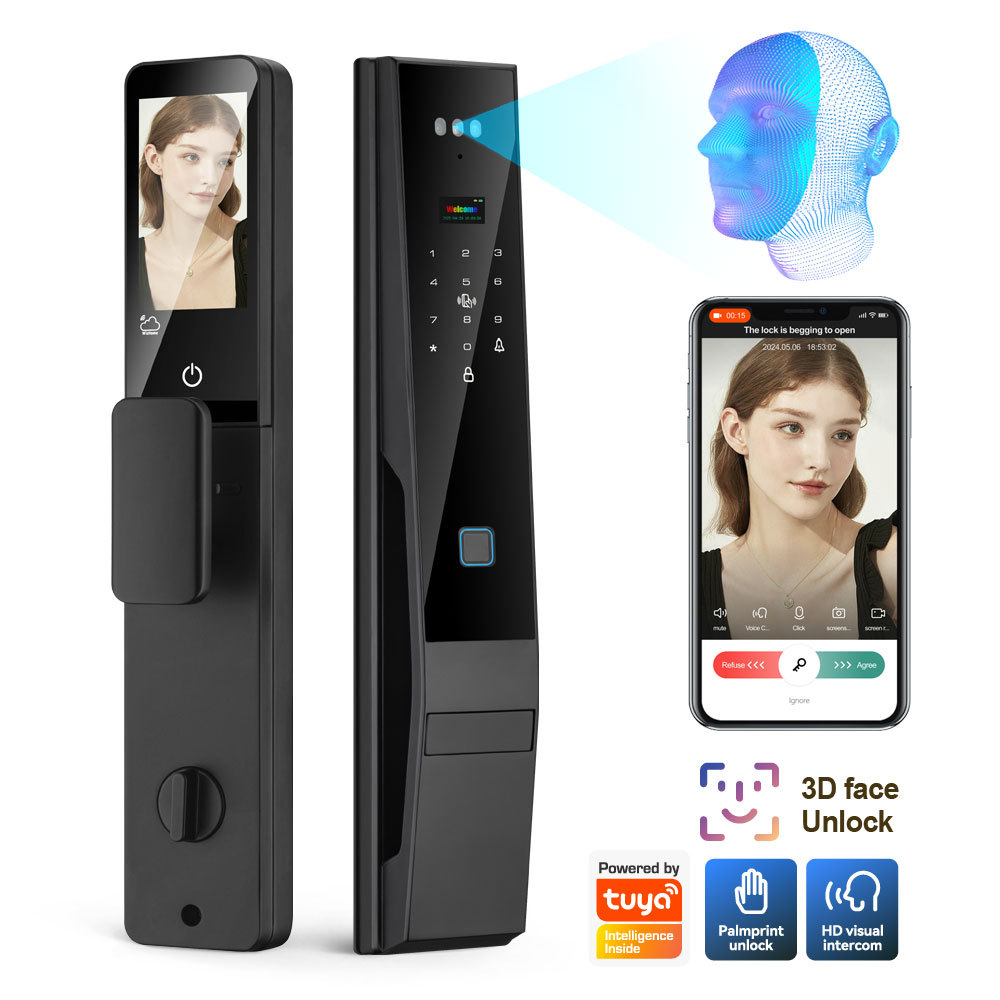

| 3D Face Recognition | 0.3s recognition speed, 99.9% accuracy, works in low light (0.1-1000 lux) |
| Remote Control | Unlock, lock, access log view, temporary password generation via app |
| Anti-peep PIN | Supports random digits before/after real PIN to prevent snooping |

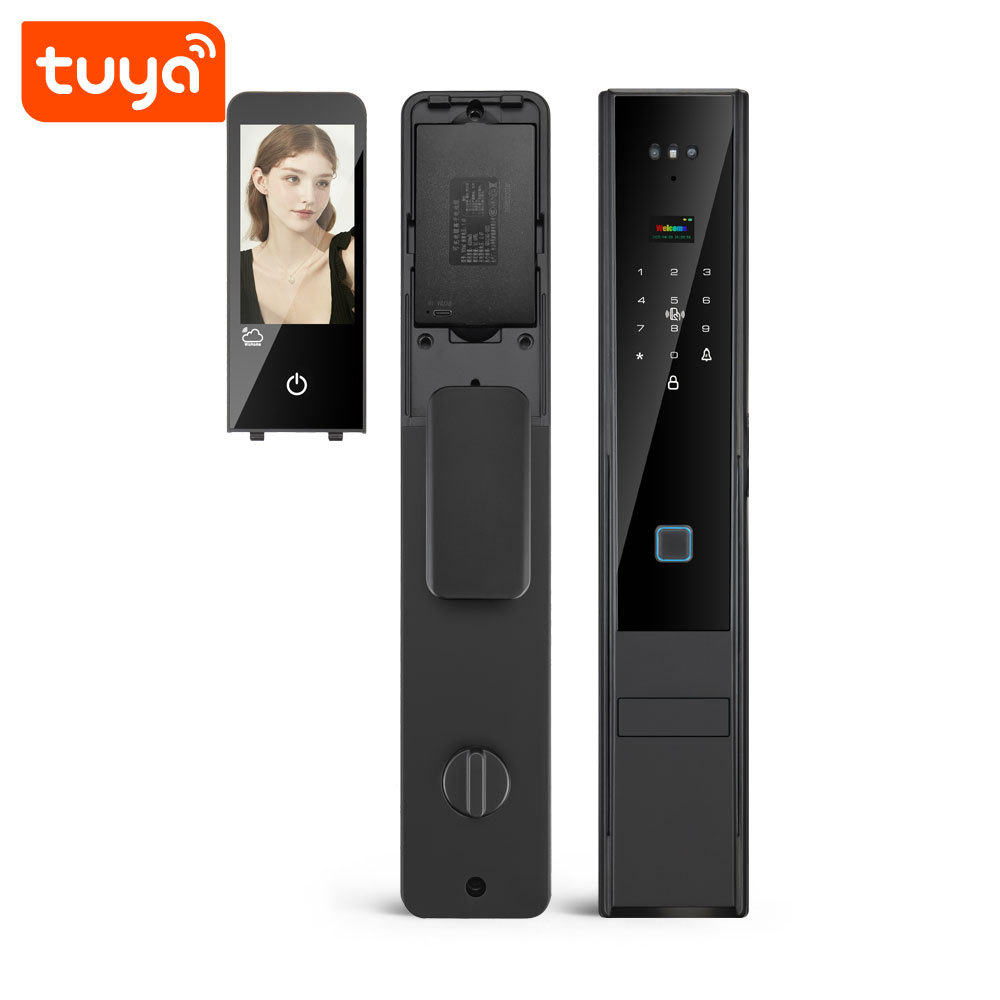

| Update hot function | The battery cover now is touchscreen. without it, the door lock doesn't affect normal use |
| Optional | RF433 remote controller |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Operation Temp. | –10°C to +50°C |
| Humidity | 5%--95% non-condensing |
| Unit Box Dimension | 462×262×130cm |
| Unit Weight | 3.1kg(Not include lock body) |
| Carton Packing | 6PCS/Ctn |

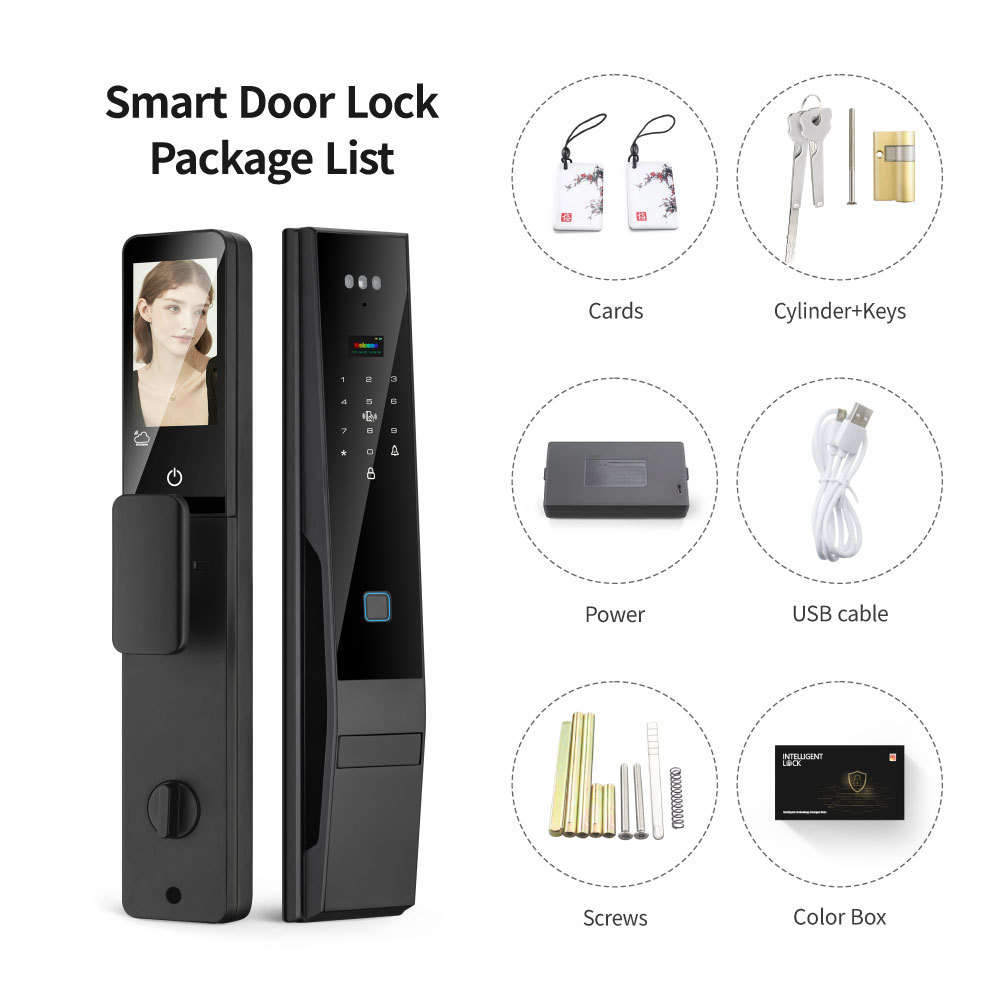

| PST-DDL4-TY Package List | |
| Fingerprint Door Lock | x1 |
| Key | x2 |
| ID Card | x2 |
| Use Manual | x1 |
| PST-DDL4-TY Product FAQ | |
| Q1: What is this product? A: It’s a smart door lock with multiple unlocking methods, integrated into Tuya/Smart Life ecosystems, suitable for doors with specific lock body hole spacings. |
|
| Q2: What languages does it support? A: check the commands as following: 555666888#，Chinese 555666880#，English 555666881#，Vietnamese 555666882#，Portuguese 555666883#，Arabic 555666884#，Russian 555666885#，Thai 555666886#，Spanish 555666887#，Indonesian |
|
| Q3: Can I add temporary users? A: Yes! Use the Tuya/Smart Life app to create temporary passwords or swipe cards for guests, then delete access later. |
|

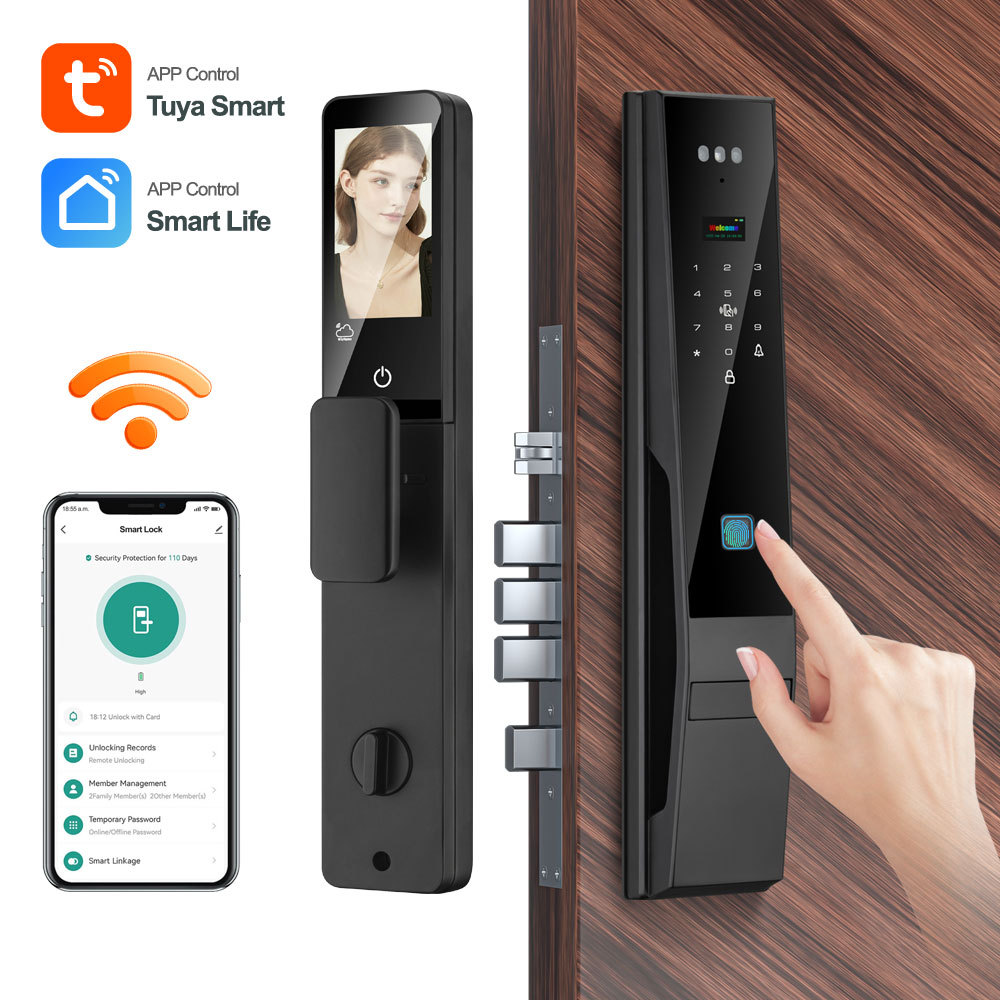

| Q4: Which apps control this lock? A: Smart Life, or Tuya App—all allow remote management (unlocking records, user access, etc.). |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: Can I unlock it remotely? A: Yes, via the app (requires WiFi/network connection for remote access). |
|
| Q7: Does it work with other Tuya devices? A: Yes! Integrate it into smart scenes (e.g., “Away Mode” arms the lock and triggers security cameras). |
|
| Q8: What alarm functions does it have? A: It includes alarms for wrong passwords, forced opening, and low battery. |
|
| Q9: Can I generate temporary passwords? A: Yes, you can create temporary passwords via the app for guests or short-term access. |
|
| Q10: Can I share the smart lock with family members? Yes, you can easily share the device among family members via the app. |
|
| Q11: What’s the screen for? A: The screen shows visitor previews (monitoring function) and unlock statuses. |
|
| Q12: Can I check the lock status remotely? A: Yes, the app shows real-time status (locked/unlocked) and sends notifications for lock/unlock events. |
|
| Q13:Can it be used on wooden/metal doors? A: Yes, it’s compatible with most standard wooden, metal, and composite doors (check door thickness requirements). |
|
| Q14. Can I delete a user’s access? A: Yes—remove their face, fingerprint, password, or card via the app. |
|
| Q15. Face unlock isn’t working—what to do? A: Ensure proper lighting, re - enroll the face, or reset the lock (follow the manual for reset steps). |
|
| Q16. App can’t connect to the lock—why? A: Check WiFi (2.4GHz only), reset the lock’s network, or ensure the app and lock firmware are updated. |
|
| Q17. Fingerprint sensor is slow—how to fix? A: Clean the sensor (no moisture/dust), re - enroll the fingerprint for better accuracy. |
|
| Q18. Can it be used for commercial doors? A: Yes, as long as the door’s lock body and thickness match. Ideal for small businesses needing basic access control. |
|
| Q19: Can I use it in cold climates? A: Aluminum alloy handles cold well, but extreme temperatures may affect battery/electronics. Test in your environment. |
|
| Q20: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| PST-DDL4-TY OEM & ODM Service | |
| Q21. Can make OEM? A: Yes, we can. Box & manual OEM: 1000PCS: free; 500PCS: 1USD/Box; Laser logo OEM: 100PCS: 1USD/PCS extra; Power on screen Logo: 50PCS. |
|
