| PST-TY201-C Specifications | |
| Name | Tuya Smart EU WiFi Smart In Wall Socket with Metering function |
| Model | PST-TY201-C |
| Socket Standard | EU Standard |
| Input Voltage | AC 100V-250V, 50/60Hz |
| Output Voltage | AC 100V-250V 16A |
| USB Port | DC5V 2A |
| Type C Port | DC5V 2A |
| Body Material | Flame - retardant PC (assumed, typical for smart sockets) |
| Safety Protection | Overload protection (via 16A current limit) |
| Supported Appliances | Home appliances ≤ 16A power |
| USB Device Compatibility | Charges phones, tablets, etc., via 5V 2A USB ports |
| Switch mode | Switch/Mobile phone |
| App Name | Tuya Smart or Smart Life |
| Installation Type | Wall - mounted, fits standard EU wall boxes |
| Metering Function | Yes, tracks energy consumption of connected devices |
| Timer & Schedule | Supports automatic on/off timing |
| Device Sharing | Allows sharing control with family members |
| Rated Current | 16A |
| Max Power | 3000W |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Product Size (H×W×D) | 82×82×42mm |
| Mounting Box Compatibility | Fits standard 86mm wall mounting boxes (depth ≥ 35mm recommended) |
| Dimension | 9.5*9.5*5cm |
| Weight | 0.15kg |
| PST-TY201-C Package List | |
| Smart Socket | x1 |
| Installation Screws | x2 |
| User Manual | x1 |
| PST-TY201-C Product FAQ | |
| Q1: What is this product? A: It’s a WiFi Smart Wall Socket (EU Version) with metering, USB + Type - C ports, and smart control via apps/voice assistants. |
|
| Q2: What is the maximum current the smart socket can support? A: It supports a maximum current of 16A. |
|
| Q3: Can I control it without WiFi? A: Physical buttons work without WiFi, but smart features (app/voice) need WiFi. |
|
| Q4: How to connect to WiFi? A: Press the pairing button till LED flashes, open the app, select “Add Device,” and follow prompts (2.4GHz WiFi only). |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: How to set a timer? A: Open Tuya Smart App → select the socket → tap “Timer/Schedule” → set on/off times. |
|
| Q7: Can it work during power outages? A: No, but it retains settings and resumes smart functions when power returns. |
|
| Q8: Which voice assistants is the smart socket compatible with? It works with Amazon Alexa and Google Assistant. |
|
| Q9: Can I control the smart socket with my voice? Yes, you can control connected devices simply with your voice via Amazon Echo or Google Home. |
|
| Q10: How do I connect the smart socket to the app? Follow three steps: Download the Tuya app, connect to WiFi, and add the device in the app. |
|
| Q11: How to set up voice control? First, connect the power strip to the Tuya App. Then, in the Alexa or Google Assistant app, search for and enable the Tuya skill, and follow the prompts to link your Tuya account. After that, you can use voice commands like “Alexa, turn on the [device name] connected to the power strip”. |
|
| Q12: Can I set a schedule for the smart socket? A: Yes, you can use the Tuya or Smart Life app to set schedules for when the plug turns on or off. For example, you can schedule a lamp to turn on at 7 PM every day. |
|

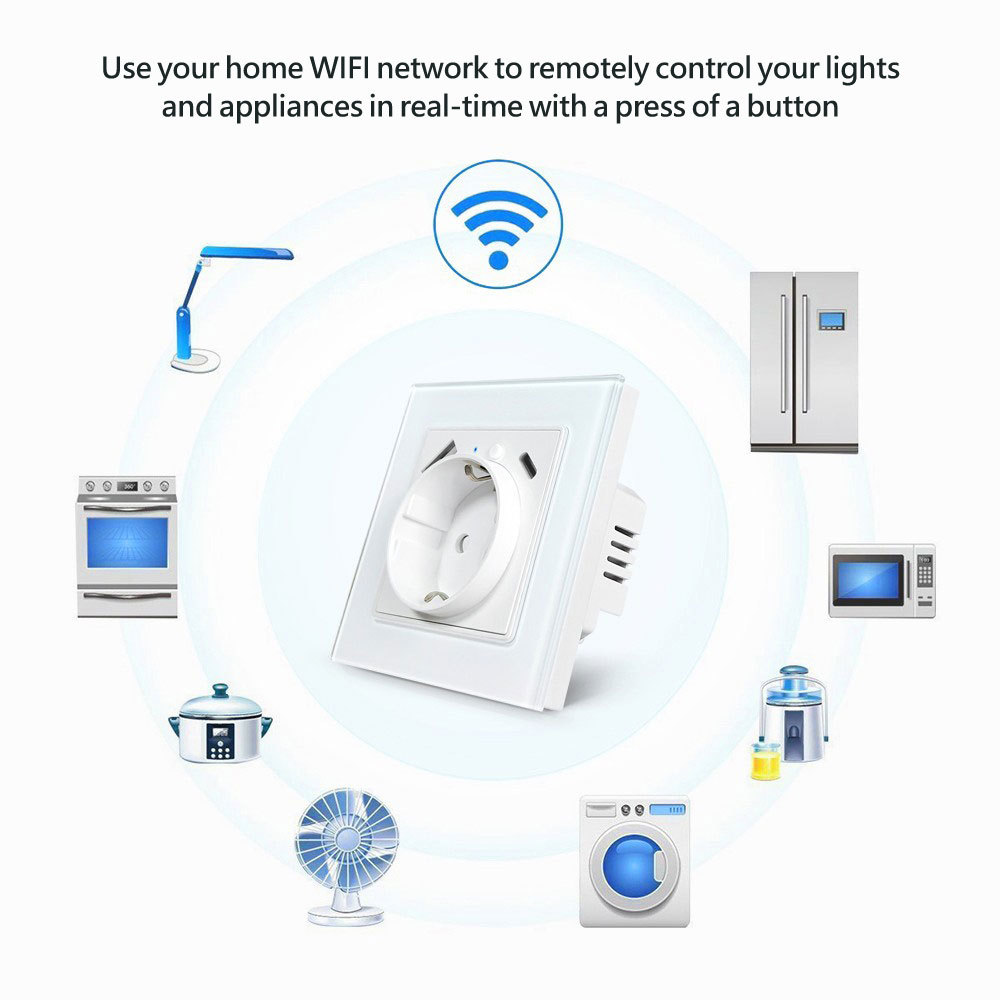

| Q13: Is remote control possible? A: Absolutely. As long as your mobile device has an internet connection, you can open the app and control the smart plug from anywhere in the world. |
|
| Q14. What’s the max socket current? A: 16A—supports appliances ≤16A (e.g., heaters, TVs). |
|

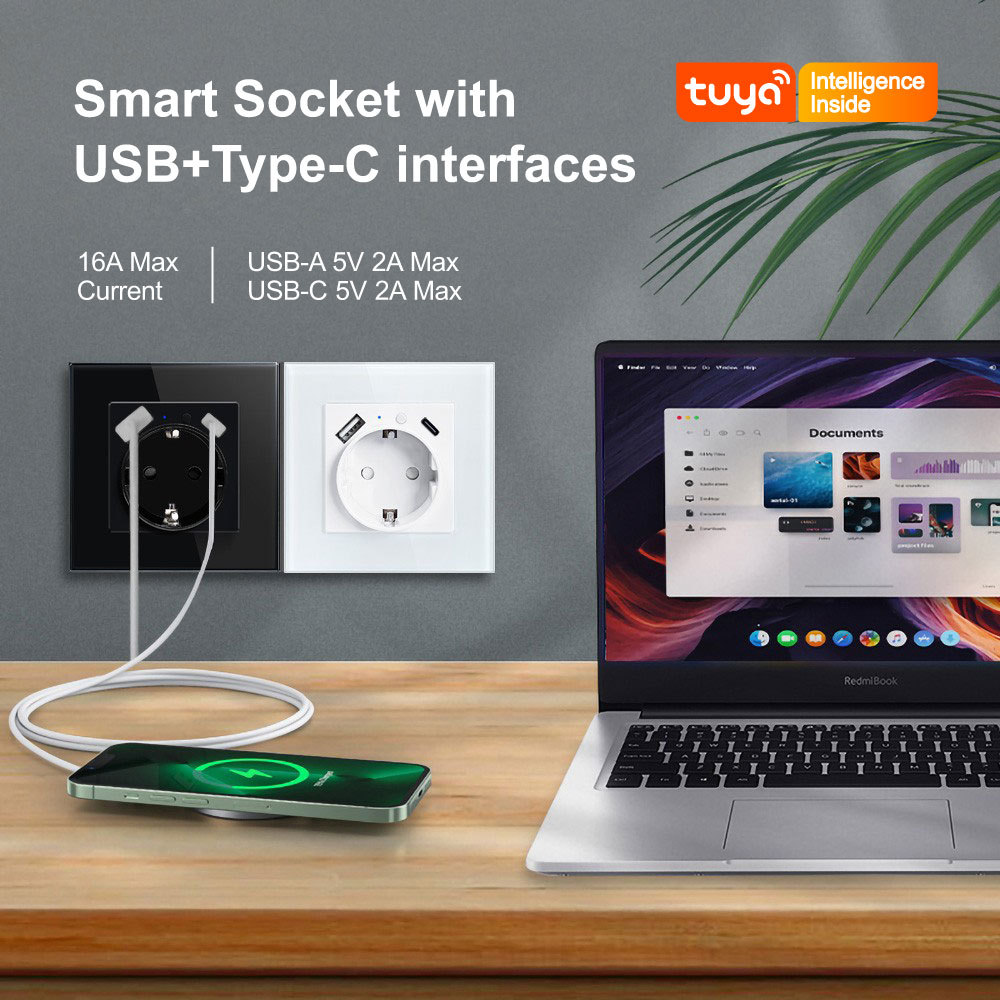

| Q15. USB/Type - C output specs? A: Both ports output 5V 2A—charge phones, tablets, etc. |
|
| Q16. What plug standard does the smart socket use? It uses the EU plug standard only. |
|
| Q17. Can I control multiple devices at once with the app? Yes, you can add and control multiple devices at once with the TuyaSmart app. |
|
| Q18. The smart socket is offline in the app. What should I do? A: Check if the plug is still plugged into the outlet and receiving power. Restart the plug and your router. If the problem persists, try resetting the smart plug (usually by pressing and holding the power button for a few seconds) and set it up again. |
|
| Q19: The smart socket won't connect to Wi - Fi. What should I do? A: First, check if your Wi - Fi is 2.4GHz (it doesn't support 5GHz). Ensure the Wi - Fi password is correct. Restart the power strip and your router, then try the connection process again in the Tuya App. |
|
| Q20: Voice control isn't working. How to fix? A: Verify that the power strip is connected to the Tuya App and the voice assistant skill is properly linked. Check if the voice assistant is connected to the internet. Try re - enabling the skill and re - linking the accounts. |
|

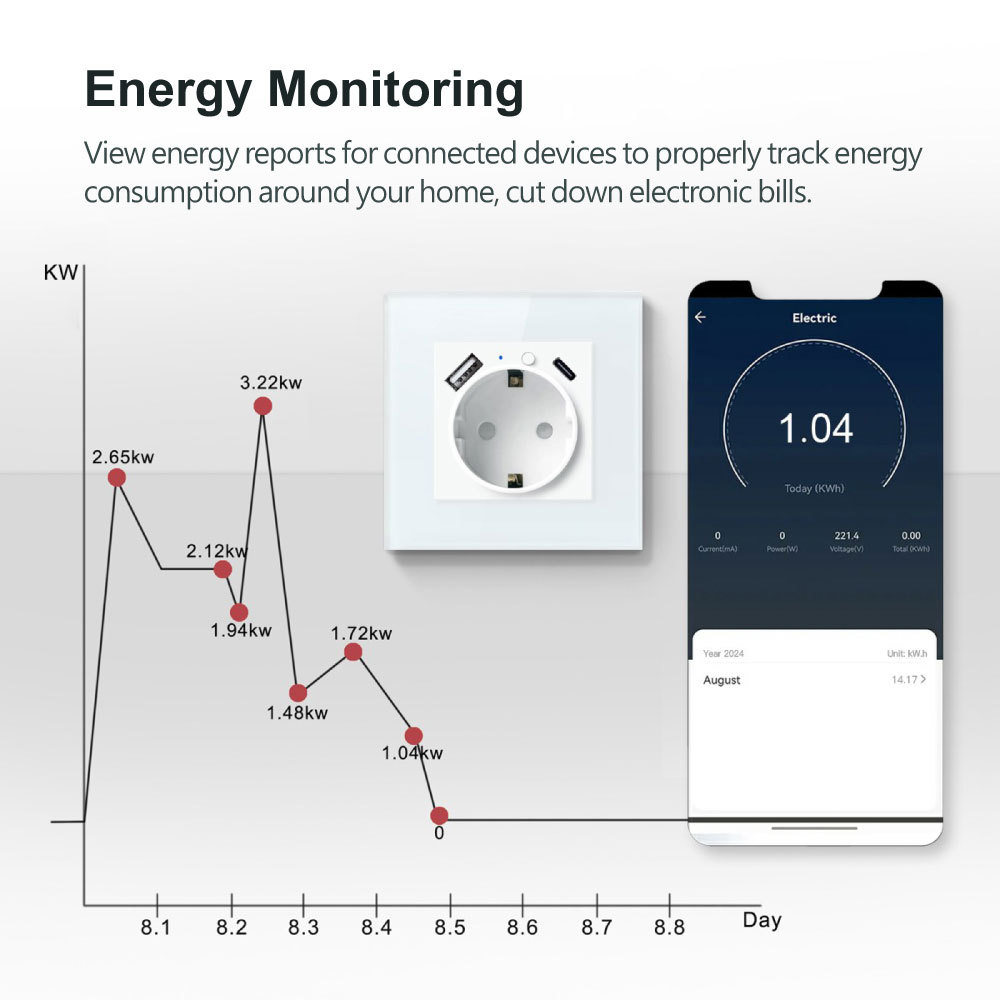

| Q21: What’s “metering function”? A: Tracks energy usage (kWh) of connected devices—view reports in the app to monitor consumption. |
|
| Q22: Can I set a timer? A: Yes! Use the app to schedule auto on/off (e.g., turn off a lamp at 10 PM). |
|
| Q23: Does the smart socket support timer settings? Yes, you can set automatic on/off schedules or auto-off routines for connected appliances. |
|
| Q24: How does the timer function improve daily life? It helps save time and makes life more comfortable, e.g., turning on the air conditioner before arriving home. |
|
| Q25: Can I share the smart socket with family members? Yes, you can easily share the device among family members via the app. |
|
| Q26: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| Q27: Remote control without WiFi? A: No—smart features (app/voice) need WiFi. Physical socket works without. |
|
| Q28: Can the smart socket work with other Tuya smart products? Yes, it supports linkage control with all Tuya smart products. |
|
| Q29: Can the smart socket start/stop working based on environmental factors? Yes, connected devices can automatically start/stop based on temperature, location, and time. |
|
| Q30: Overload protection? A: Yes—cuts power if current exceeds 16A to protect devices. |
|
| PST-TY201-C OEM & ODM Service | |
| Q31. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS: each add 0.15USD/PCS. If over 2000PCS. OEM box & user manual free. Laser logo: 100PCS |
|
