| PST-TD01 Specifications | |

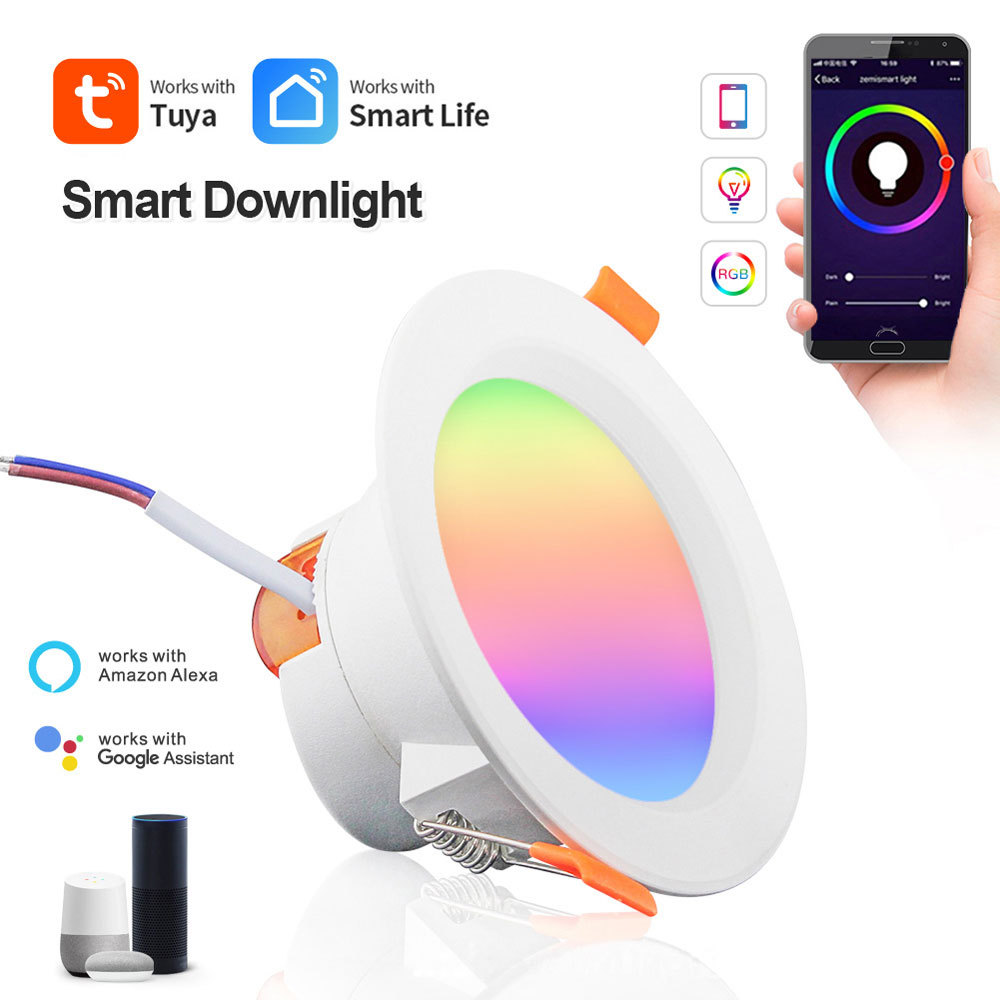

| Product Name | Tuya Smart WiFi LED RGBCW Ceiling Recessed Dimmmable Downlight |
| Input Voltage | AC 100V-250V |
| Power | Default: 3.5'' 7W, Option: 2.5'' 5W, 4'' 10W, 6'' 15W |
| Color Temperature | 2700K - 6500K |
| Lamp Body Material | Die - cast aluminum |
| APP Name | Tuya Smart or Smart Life |
| Drive Type | Constant current drive (stable current, overload protection) |
| Beam Angle | 120 degree |
| Switch mode | Switch/Mobile phone |
| Color Changing | RGBCW, 16,000,000 colors available |

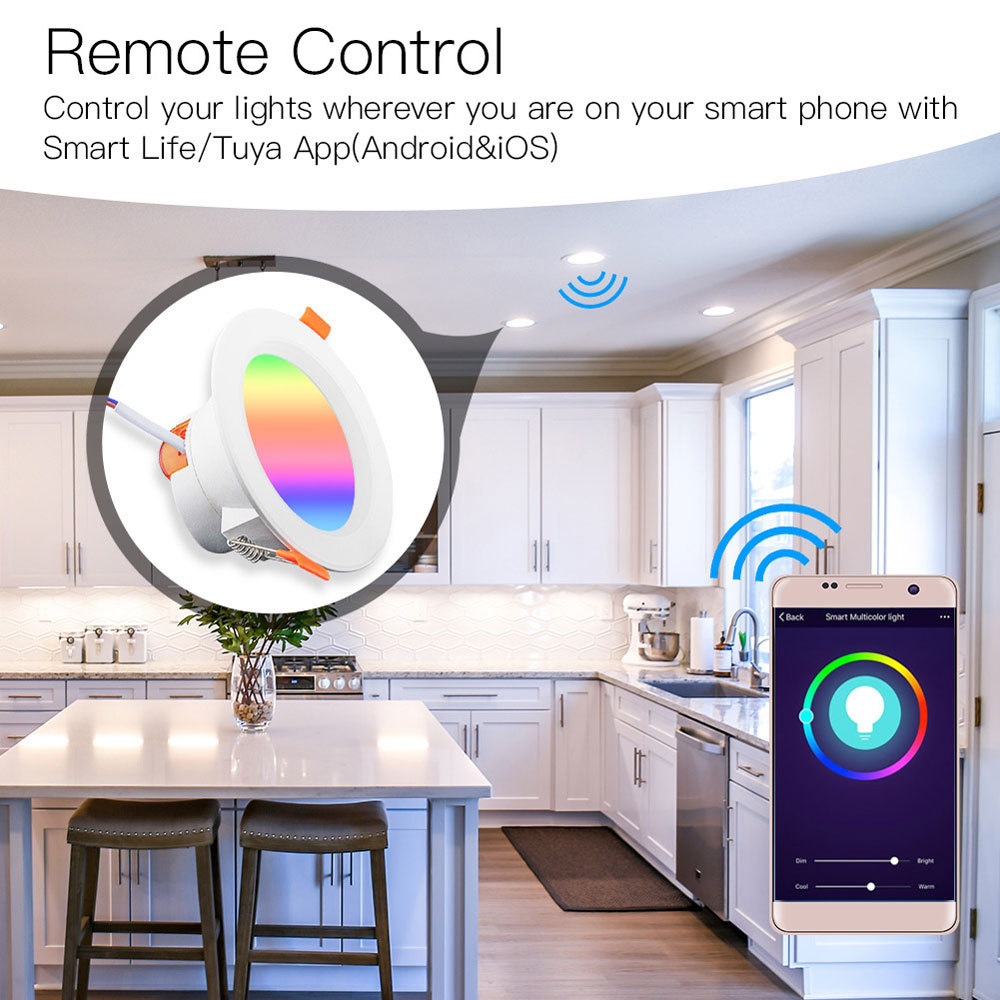

| Control Mode | Mobile APP remote control, voice control, group control |
| Smart Scenes | 8 scene modes (Night, Reading, Party, Leisure, Soft, Rainbow, Shine, Gorgeous) |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Dimension | Box: 13.3*12*9cm |
| Weight | 0.2kg |
| PST-TD01 Package List | |
| Smart Downlight | x1 |
| User Manual | x1 |
| PST-TD01 Product FAQ | |
| Q1: What's special about the lens? A: It's an anti - glare lens with uniform light transmission. |
|
| Q2: Is the brightness adjustable? A: Yes, it's dimmable. |
|
| Q3: Does it have a timer function? A: Yes, it supports left time and schedule settings. |
|
| Q4: Is it energy - saving? A: Yes, it has an efficient energy - saving design. |
|
| Q5: How is it installed? A: It uses a spring fastener for installation. |
|
| Q6: Is it compatible with 5GHz WiFi? A: No, it's only compatible with 2.4GHz WiFi. |
|
| Q7: What drive type does it have? A: Constant current drive. |
|
| Q8: Can devices be shared among family members? A: Yes, devices can be easily shared among family members. |
|
| Q9: It doesn’t respond to voice commands. A: Ensure it’s paired with Alexa/Google Assistant, the voice assistant is online, and the commands are correct. Re - link the device in the assistant’s app if needed. |
|
| Q10: How many colors does it have? A: 16 million colors, with light and dark setting and warm white adjustment. |
|
| Q11: What's the beam angle? A: 120 degrees. |
|
| Q12: Can I control multiple devices at once? A: Yes, you can add and control multiple devices at once with one App. |
|
| Q13: Do I need a separate hub for connectivity? A: No. It connects directly to your home WiFi/Bluetooth, so no extra hub is required. |
|

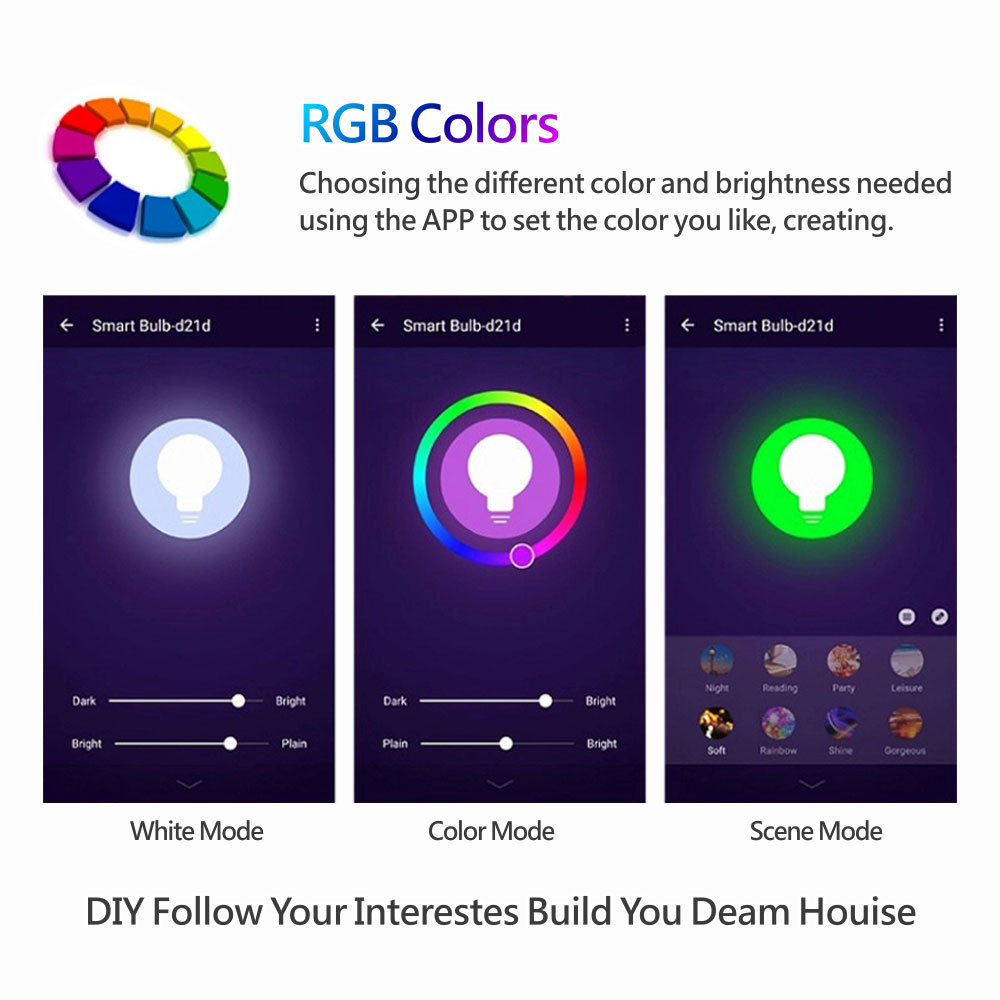

| Q14: Can the bulb's color be customized via APP? A: Yes, you can choose different colors and brightness via the APP. |
|
| Q15: Can the bulb work without WiFi? A: No, WiFi connection is required for smart control functions. |
|
| Q16: How many scene modes does it have? A: 8 scene modes: Night, Reading, Party, Leisure, Soft, Rainbow, Shine, Gorgeous. |
|
| Q17: How thick is the 3.5" version? A: It has a 2.9mm ultra - thin body. |
|
| Q18: What's the hole size for the 3.5" version? A: Φ90 - 100mm. |
|
| Q19: What are the dimensions of the 3.5" lamp? A: Φ120×29mm. |
|
| PST-TD01 OEM & ODM Service | |
| Q20: Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS Laser logo: 50PCS |
|
