| PST-GD01 Specifications | |
| Product Name | Tuya Smart WiFi Automatic Gate Garage Door Opener Controller Module |
| APP Name | Tuya Smart or Smart Life |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Voltage | AC100-240V 50/60Hz |
| Standby Power Consumption | ≤0.5W |
| Working Current | ≤1.5A |
| Protection Grade | IP20 |
| Control Mode | App Control, Voice Control, Manual Control (via Connected Switch) |
| Main Function | Remote control, status monitoring, timing operation via Tuya App |
| Supported Garage Door Types | Rolling doors, sectional doors, swing doors (compatible with most standard garage door motors) |
| Timer Function | Supports scheduled opening/closing (daily/weekly cycles) |
| Material | PC + ABS |
| Operation Temp | from -10°C to +55°C |
| Humidity | 10%--90% non-condensing |

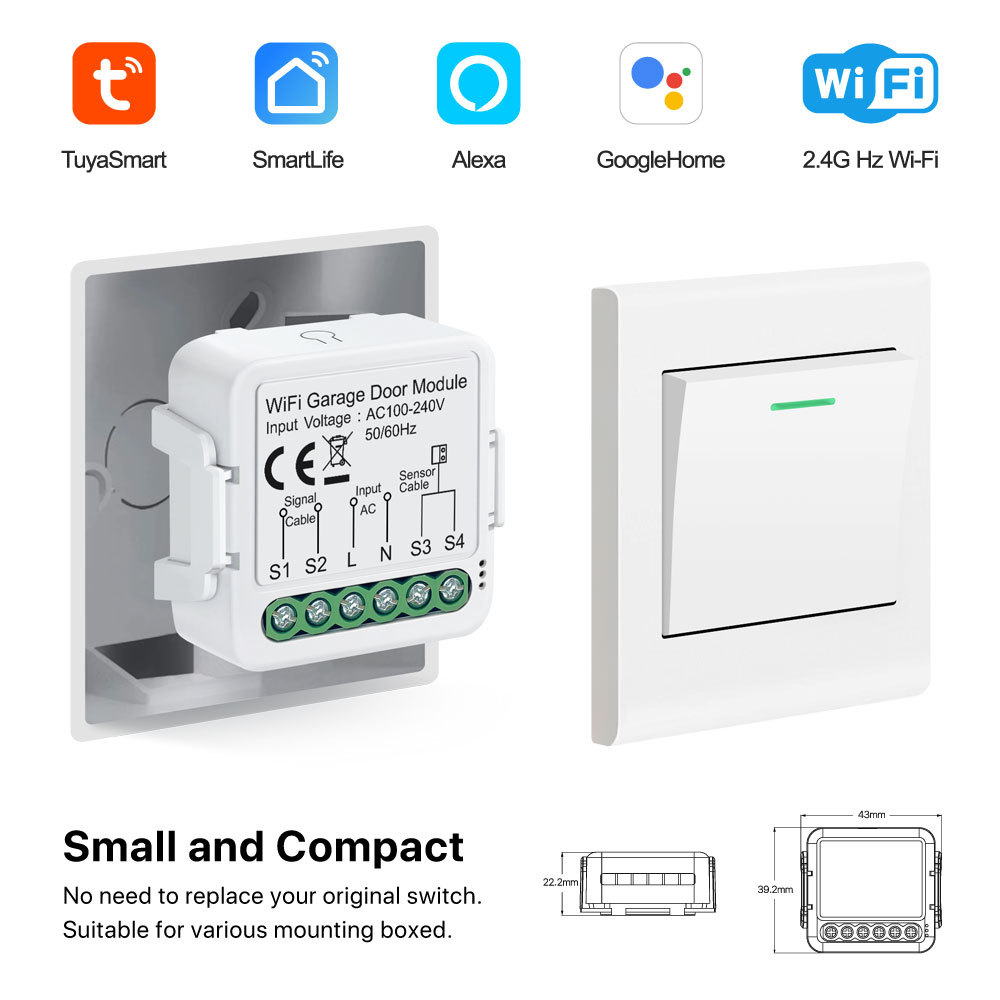

| Product Size | 39.2*39.2*18MM |
| Box Dimension | 15*10*4cm |
| Unit Weight | 0.25kg |
| PST-GD01 Package List | |

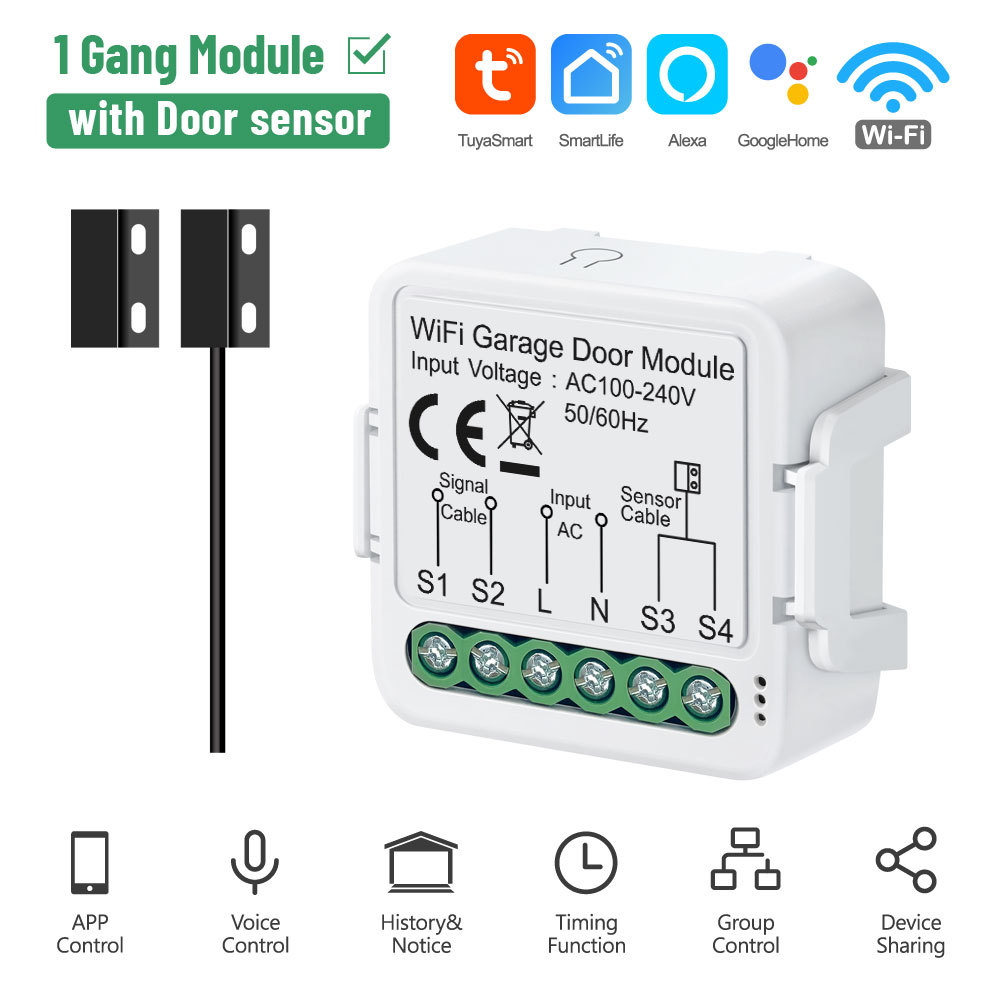

| WIFI Smart Switch | x1 |
| Installation Screws | x2 |
| Bracket | x1 |
| Wired Door Sensor | x1 |
| Connection Signal Cable | x1 |
| User Manual | x1 |
| PST-GD01 Product FAQ | |
| Q1: What devices is the Tuya Smart WiFi Garage Door Opener compatible with? A: It is compatible with most standard garage door motors, including AC motors (110-240V) , supporting rolling doors, sectional doors, and swing doors. |
|
| Q2: Can I control the garage door when I’m away from home? A: Yes, via the Tuya Smart or Smart Life App, you can remotely control and monitor the door status anywhere with an internet connection. |
|
| Q3: Does it work with 5GHz Wi-Fi? A: No, it only supports 2.4GHz Wi-Fi networks. |
|
| Q4: How do I receive alerts about the garage door status? A: The App sends real-time push notifications for events like unauthorized access, the door being left open, or malfunctions. |
|
| Q5: Does it have safety features? A: Yes, it includes overcurrent protection, overheating protection, and works with external obstacle detection sensors (sold separately) to prevent accidents. |
|

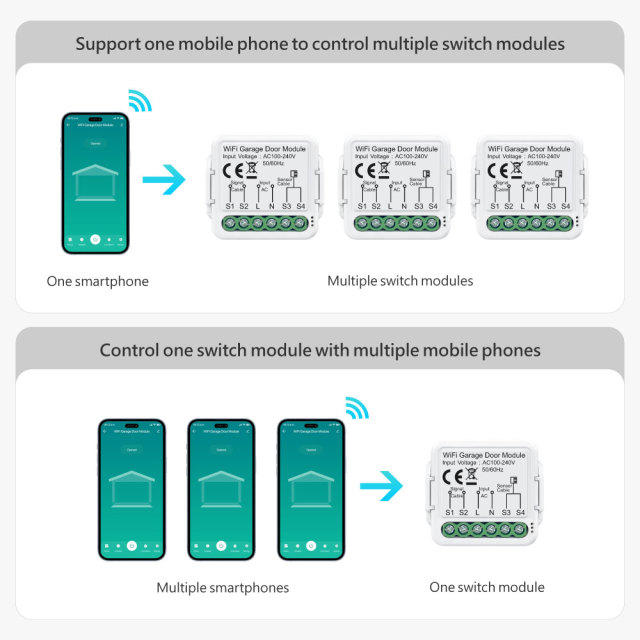

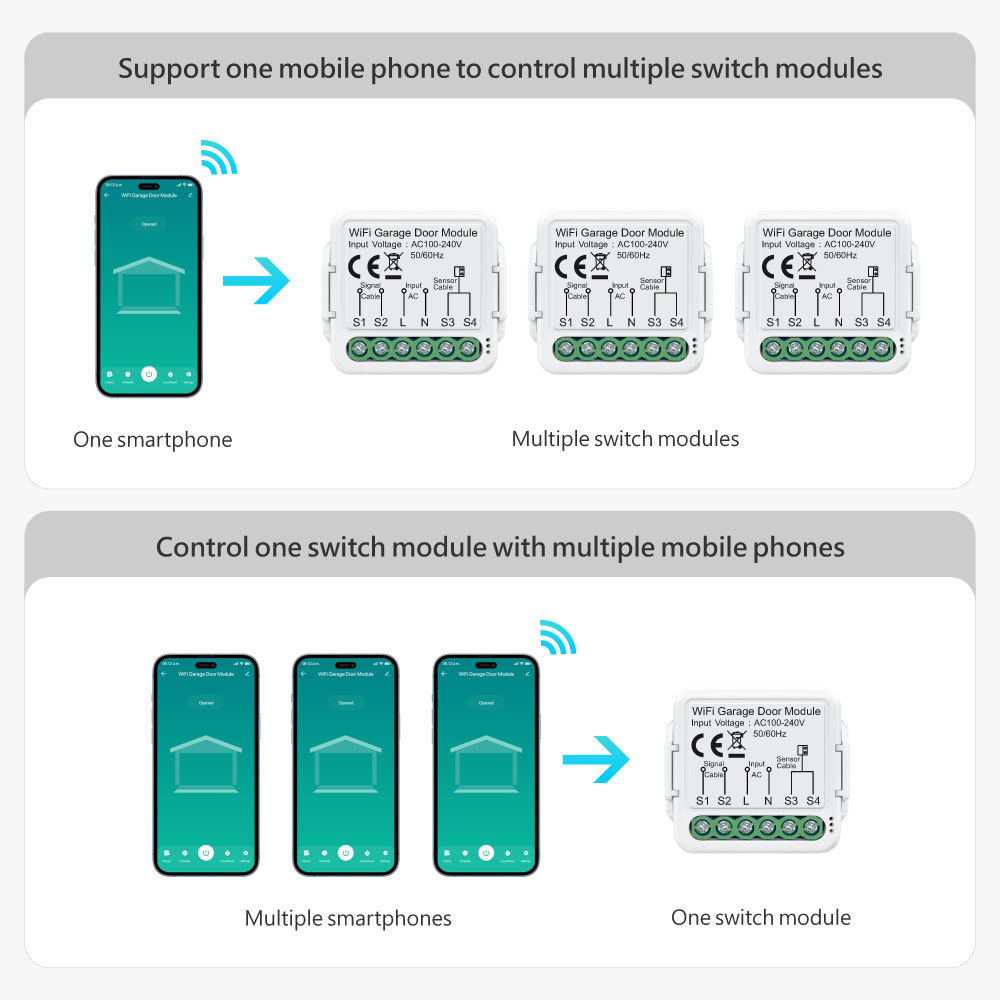

| Q6: Can multiple users control the device? A: Yes, you can share device access with family members via the app. |
|
| Q7: How to connect to voice assistants like Alexa or Google Assistant? A: Open the Alexa/Google Assistant app, enable the Tuya/Smart Life skill, log in with your Tuya account, and discover the module. Then you can voice-control your lights. |
|
| Q8: What if the module can’t connect to Wi-Fi? A: Check if the Wi-Fi is 2.4GHz, the password is correct. Reset the module (find the reset method in the manual, usually pressing a reset button until the indicator flashes), then retry setup. |
|
| Q9: Can I set curtain scenes (like morning open)? A: If the APP or system supports it, you can set curtain scenes for automatic control. |
|
| Q10: Does it have a timer function? A: Yes. In the Tuya/Smart Life app, you can set scheduled on/off times for the switch. |
|
| Q11: Does it need a hub? A: No, it connects directly to your Wi-Fi network, so no additional hub is required. |
|
| Q12: How do I pair the module with Wi-Fi? A: It supports easy Wi-Fi pairing, such as via AP mode or EZ mode (follow APP instructions). |
|
| Q13: How is the door status detected? A: It uses a built-in hall sensor to provide real-time feedback on whether the door is open or closed. |
|
| Q14: Can I set a schedule for the garage door to open/close automatically? A: Yes, the timer function supports daily or weekly scheduled opening/closing cycles via the App. |
|
| Q15: What if the app can’t find the switch during setup? A: Make sure the switch is in pairing mode (indicator flashing rapidly), your phone’s Bluetooth is on, and you’re using a 2.4GHz Wi-Fi network. |
|
| Q16: Does it support multiple languages in the app? A: Yes, the Tuya Smart and Smart Life apps support multiple languages. |
|
| Q17: What is the maximum load capacity it can handle? A: It is compatible with motors up to 1000N thrust, suitable for most residential garage doors. |
|

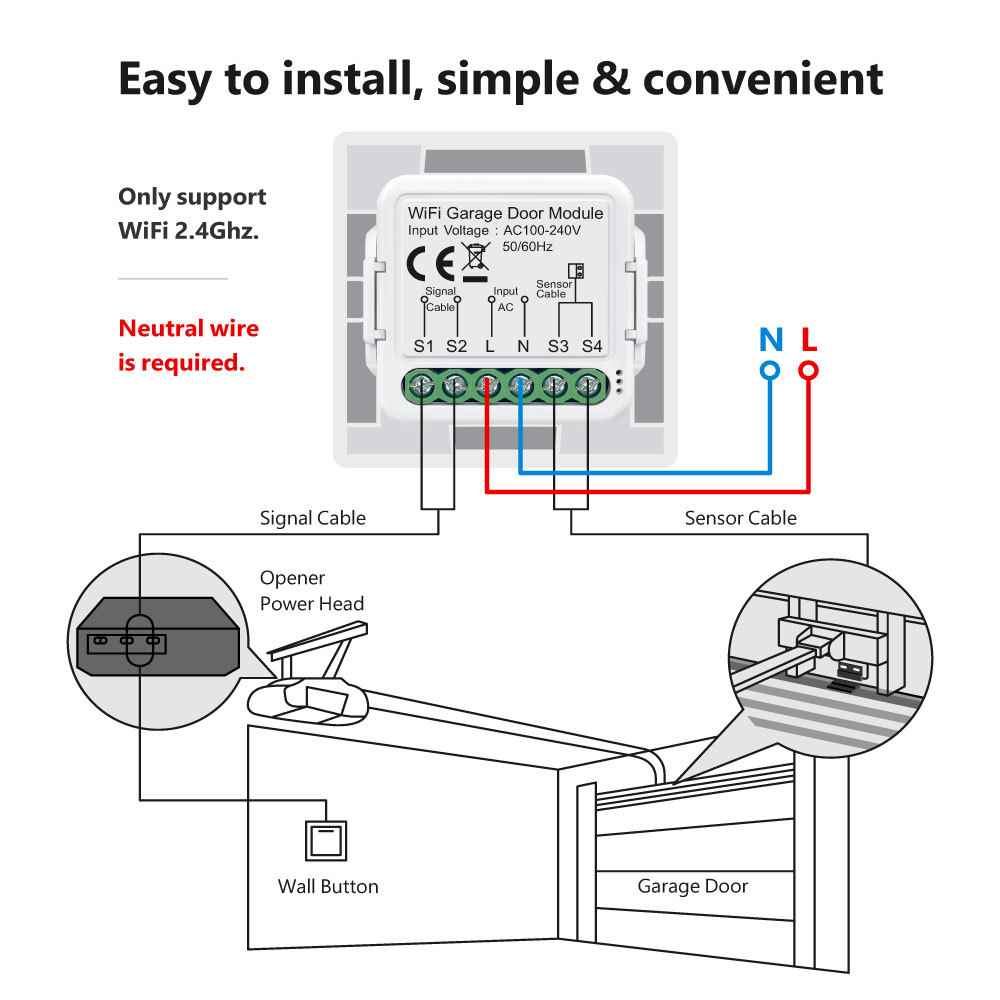

| Q18: How do I install the opener? A: It requires a wired connection with clear terminal labels for easy setup. A mounting bracket and screws are included in the package. |
|
| Q19: Can I check the door’s opening/closing history? A: Yes, the App records a history log of all door operations, including timestamps and user actions. |
|
| Q20: Is it compatible with existing garage door remotes? A: Yes, it works alongside most existing remotes; you can use both the App and physical remotes to control the door. |
|
| Q21: What if the App shows the wrong door status? A: Check the hall sensor connection, ensure the door is properly aligned with the sensor, or reset the device and re-calibrate via the App. |
|
| PST-GD01 OEM & ODM Service | |
| Q22: Can make OEM? A: Yes, we can. PID OEM:1000PCS Box OEM: 2000PCS, If less than 2000PCS: charge 60USD. User Manual OEM: 40USD. Laser logo: 50PCS. |
|
