| PST-MG1-6DW Specifications | |

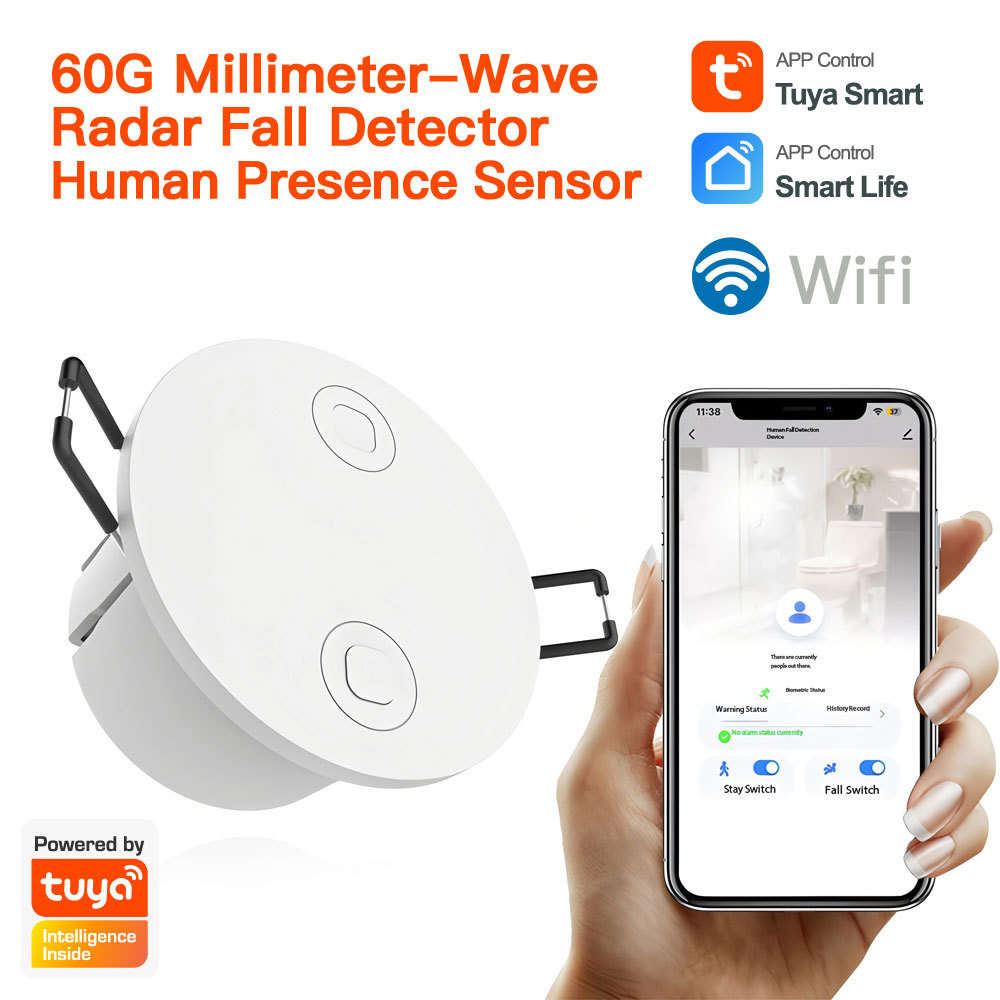

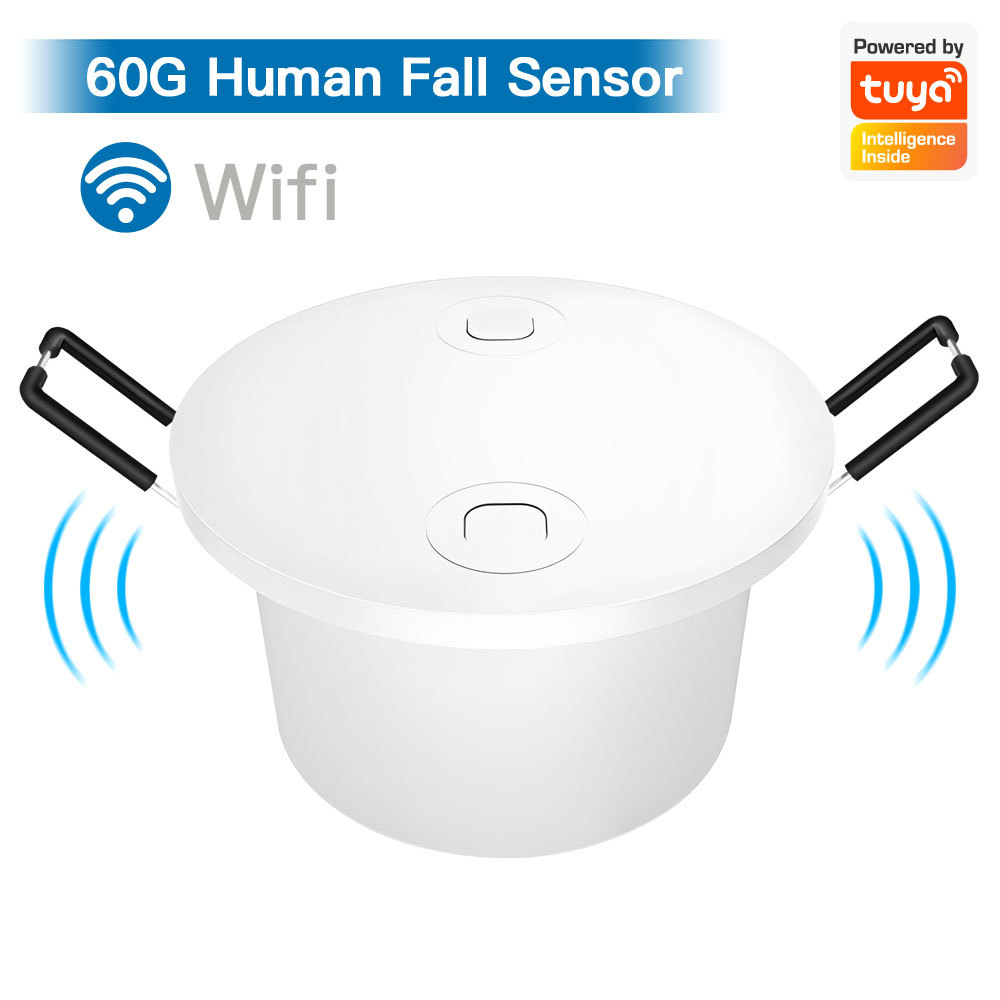

| Product Name | Tuya Smart WiFi Remote Monitoring 60G Millimeter-Wave Radar Fall Detector High-Precision Human Presence Sensor, Essential for Elderly Care |
| APP Name | Tuya Smart or Smart Life |
| Color | White |
| Material | ABS |
| Core Detection Technology | 60GHz High-Precision Millimeter-Wave Doppler Radar |
| Main Function | Human Fall Detection & Real-Time Alarm Trigger |
| Additional Functions | Human Presence Detection, Micro-Movement Detection, Respiratory & Heartbeat Monitoring |
| Fall Detection Logic | Immediate alarm for suspected fall; long-time motionless alarm if human body stays static for 5 minutes within 30 seconds after the second detection |
| Inactivity Alert Function | Sends alert if someone stays still/inactive for an excessively long time |
| Detection Coverage - Moving Human Body | Max 3 meters |
| Detection Coverage - Static Human Body | Max 2 meters |
| Detection Coverage - Fall Event | Max 4 meters |
| Detection Radius | Up to 2.5 meters |
| Detection Angle | Wide angle 90-100°. narrow angle approx 70° |

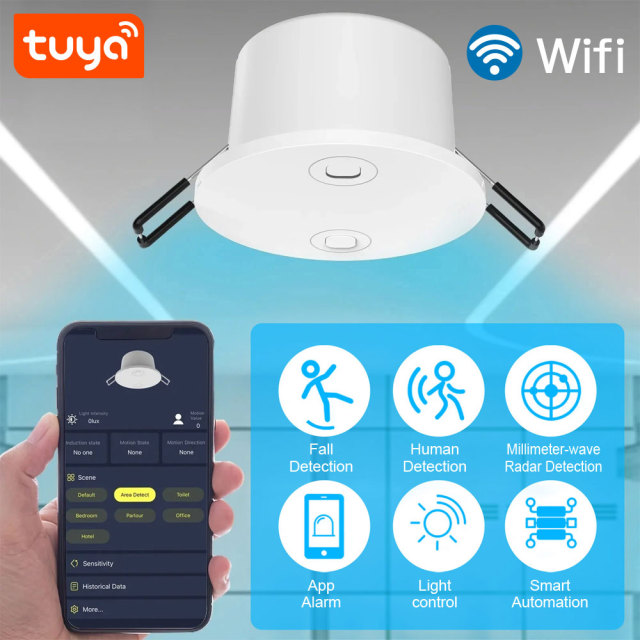

| Installation Method | Ceiling Mounted (Embedded Installation) |
| Recommended Installation Height | 2.2 - 2.8 meters |
| Compatible Mounting Barrel Size | 65-68mm diameter( fits standard 66-68mm ceiling opening) |
| Power Supply | AC 110V - 220V |
| Radar Transmit Power | ≤10dBm (1mW) |
| Operating Temperature Range | -10℃ ~ 55℃ |
| Operating Humidity Range | ≤95% RH (Non-condensing) |
| Customizable Settings | Dwell time / sensitivity can be freely adjusted via APP |
| Alarm Notification | Real-time APP push notifications( alarm history record viewable in APP) |
| Power Consumption | Low power consumption( compliant with global safety standards) |
| Applicable Scenarios | Bedroom, living room, bathroom, office, conference room, hotel, elderly care facilities, etc. |
| Target Users | Elderly people living alone, patients with limited mobility, people in need of long-term care |
| Special Feature | 24/7 uninterrupted home monitoring, no need for wearable devices |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Box Dimension | 10*7*8cm |
| Unit Weight | 0.12kg |
| PST-MG1-6DW Package List | |
| WiFi Ceiling Radar Fall Detector | x1 |
| User Manual | x1 |
| PST-MG1-6DW Product FAQ | |
| Q1: What is the main purpose of this 60GHz fall detection sensor? A: This high-precision millimeter wave radar sensor is specially designed for indoor human fall monitoring, real-time fall alarm, human presence detection and long-time static reminder, which is widely used for elderly safety care and smart home monitoring. |
|
| Q2: Which WiFi frequencies does it support? A: It supports 2.4G Hz b/g/n WiFi frequencies. |
|
| Q3: How do I connect the sensor to my Wi - Fi network? A: Download the Tuya Smart app from the app store. Open the app, create an account if you don't have one. Then, follow the in - app instructions to add a new device. Select the Wi - Fi vibration sensor and enter your Wi - Fi password when prompted. |
|
| Q4: What if my Wi - Fi signal is weak near the sensor's location? A: You may consider using a Wi - Fi extender or a mesh Wi - Fi system to boost the signal. Ensure that the sensor is within a reasonable range of your router for optimal connectivity. |
|
| Q5: Is it a standalone device? A: Yes, it's a standalone device. However, it requires a WiFi connection and can be managed through the Tuya app for full functionality. |
|
| Q6: What detection technology does this sensor adopt? A: It adopts advanced 60GHz millimeter-wave Doppler radar detection technology, featuring high sensitivity, strong anti-interference and zero privacy leakage. |
|
| Q7: Does this device use a camera for monitoring? A: No, it uses pure radar non-contact detection without any camera shooting, no image or video collection, fully protecting user personal privacy. |
|
| Q8: Where should I install the sensor? A: It is recommended to install it on the ceiling, away from direct sunlight, heat sources, and strong air currents for optimal performance. |
|
| Q9: Can the sensor detect both moving and static people? A: Yes, it can accurately identify moving human bodies, static staying people and subtle body movements, achieving full-time human status monitoring. |
|
| Q10: What should I do if the sensor doesn't connect to my Wi-Fi network? 1. Check the Basics Power: Ensure the sensor is properly powered. Wi - Fi Signal: Make sure the sensor is within range of your Wi - Fi router. 2. Reset the Sensor 3. Re - add the Device in the App 4. Check Router Settings 5. Update Router and App Firmware |
|
| Q11: Does this product support heartbeat and respiration monitoring? A: Yes, the high-sensitivity radar can capture tiny human body vibration data to monitor real-time breathing and heartbeat status. |
|
| Q12: Does the sensor work with voice assistants? A: It supports Amazon Alexa and Google Assistant. |
|

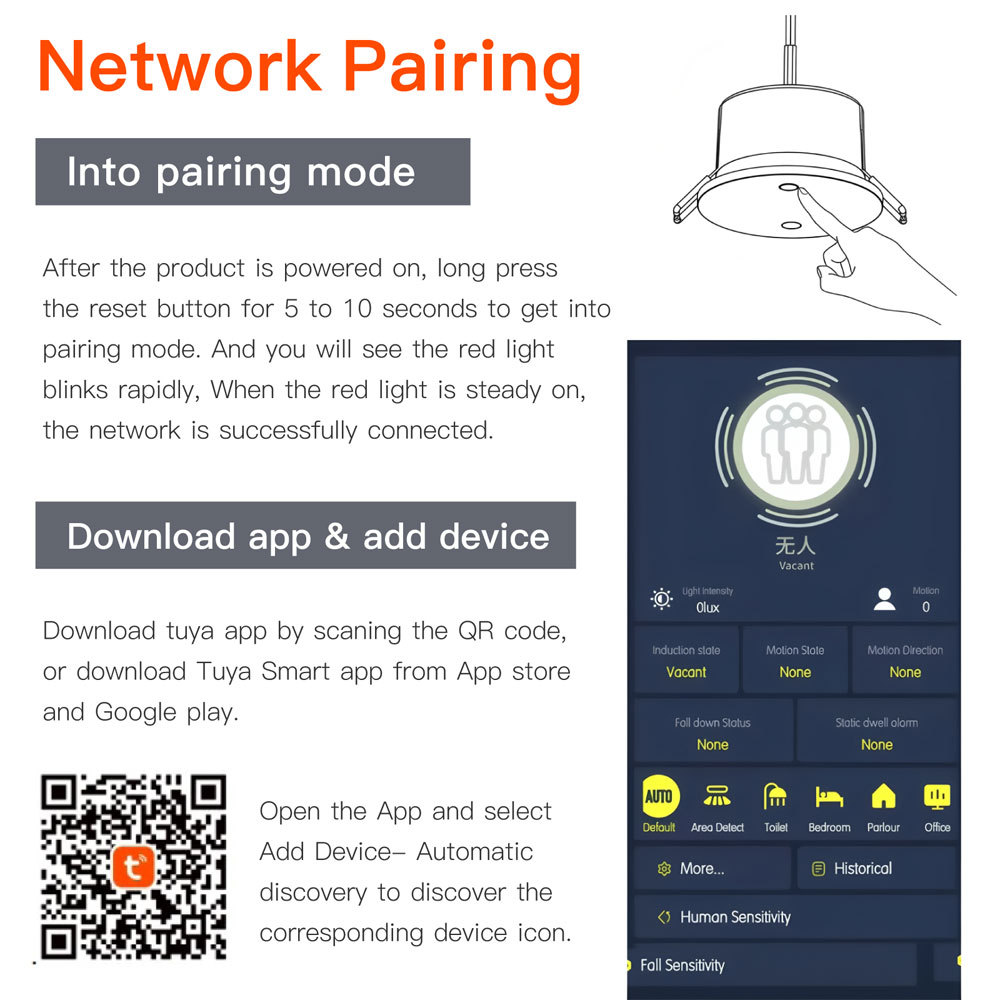

| Q13. What if I can't connect it to the app? Ensure your WiFi network is working and the password is correct. Make sure the device is in pairing mode. If the problem persists, try resetting the device by pressing and holding the red button for a longer time (usually 10 - 15 seconds) and then attempt to connect again. |
|
| Q14: What is the maximum detection distance of the fall sensor? A: The detection distance is up to 4 meters for fall events, 3 meters for moving people and 2 meters for static people. |
|
| Q15. Can I control the device remotely? A: Yes, as long as the device is connected to WiFi and your phone has an internet connection, you can control it remotely through the app. |
|
| Q16: What is the detection angle of this millimeter wave sensor? A: It supports a wide detection angle of 90°-100° and a narrow angle of 70°, covering most indoor home spaces without blind spots. |
|
| Q17: Will light or darkness affect the detection effect? A: No, radar detection is completely unaffected by light, darkness, strong light and shadow changes, supporting 24-hour all-weather stable work. |
|
| Q18. The app can't find the sensor. What's wrong? Ensure the sensor is powered on and in pairing mode. Also, check your phone's Bluetooth and Wi - Fi settings, and make sure they are turned on. |
|
| Q19. Can someone else access my sensor's data? As long as you keep your app account credentials secure, and your Wi - Fi network is protected, it's very unlikely that others can access your sensor's data. |
|
| Q20. Can I share the sensor data with other family members? Yes, in the Tuya Smart app, there's an option to share the device with other users. You can add their email addresses or phone numbers associated with their Tuya accounts. |
|
| Q21. Can it detect through walls? A: No, the sensor cannot detect through solid walls. It relies on direct line - of - sight or minimal obstructions for accurate detection. |
|
| Q22: Can it work normally in humid environments such as bathrooms? A: Yes, it is not affected by water vapor, humidity and dust, and is perfectly suitable for installation in bathrooms, toilets and other humid private spaces. |
|
| Q23: The sensor is not showing up in the app. What should I do? First, make sure the sensor is powered on and in pairing mode. Check your WiFi connection and try resetting the sensor by pressing the reset button for a few seconds. Then, try adding the device again in the app. |
|
| Q24: The sensor is giving false detections. What should I do? A: First, check the installation location for potential interference sources such as fans or moving objects. You can also adjust the sensitivity settings in the Tuya app if available. |
|
| Q25: The sensor is offline in the app. How do I fix it? Check your WiFi router to ensure it's working properly. Try restarting the sensor and the router. If it's still offline, check the sensor's connection settings in the app. |
|
| Q26: Does environmental noise and temperature interfere with the sensor? A: No, the professional radar algorithm effectively filters environmental interference from temperature, humidity, airflow and noise, with extremely stable detection performance. |
|
| Q27: What installation method does this product support? A: It adopts embedded ceiling installation, which is beautiful and concealed, suitable for ceiling openings of standard specifications. |
|
| Q28: What is the recommended installation height for the sensor? A: The optimal installation height is 2.2 meters to 2.8 meters, which ensures the best detection range and accuracy. |
|
| Q28: What ceiling opening size is required for installation? A: It fits standard ceiling openings of 65mm to 68mm, compatible with most universal ceiling mounting barrels on the market. |
|
| Q29: How does the sensor send an alarm when a fall occurs? A: Once a fall event is detected, the system will immediately push real-time alarm notifications to the bound mobile APP. |
|
| Q30: Does it have a long-term inactivity reminder function? A: Yes, it will trigger a static inactivity alarm if the human body keeps motionless for a set time to prevent accidental danger. |
|
| Q31: Is the radar radiation harmful to the human body? A: No, the radar transmit power is lower than 10dBm with ultra-low radiation, which meets international safety standards and is harmless to humans and pets. |
|
| Q32: Can the sensor distinguish humans from pets? A: Yes, it has an intelligent human body filtering algorithm, which can effectively filter pet interference and avoid false alarms. |
|
| Q33: Who is the target user of this product? A: It is mainly for solitary elderly people, people with limited mobility, postoperative rehabilitation patients and families with elderly care needs. |
|
| OEM Service: Box & manual OEM: 1000PCS, if only 500PCS extra charge 0.30USD/PCS; Laser Logo: 500PCS |
|
