| PST-IP-MSA1K Specifications | |

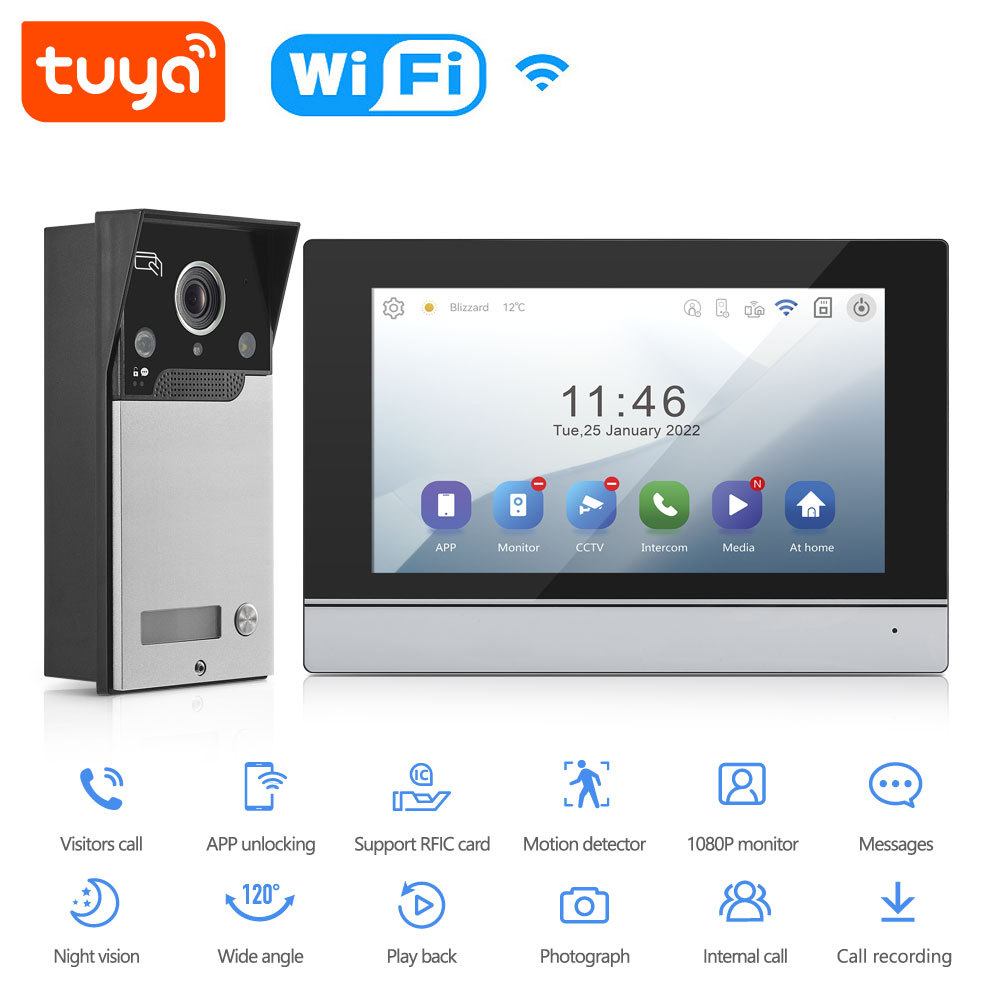

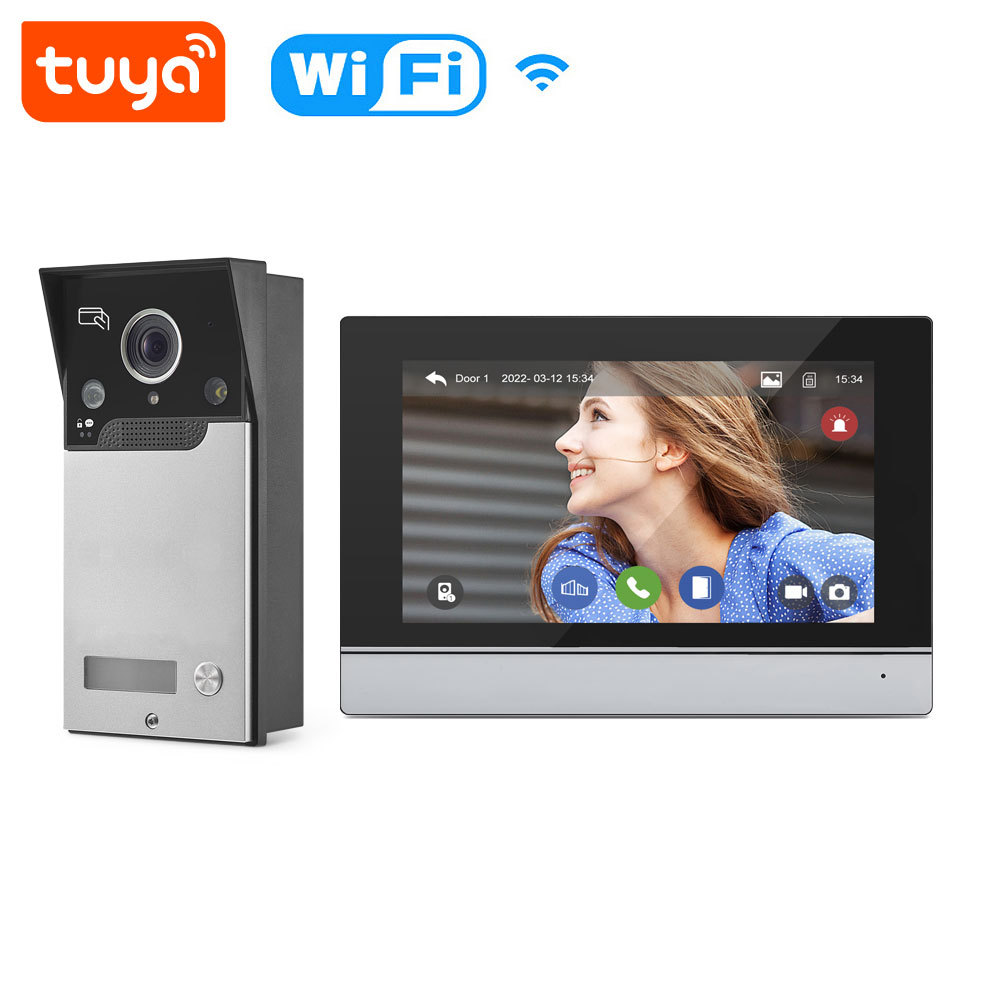

| Product Name | Tuya Smart WiFi 1 Button Waterproof IP Apartment Video Door Phone Kit |
| APP Name | Tuya Smart or Smart Life |
| Indoor Unit Screen | FHD 7 inch IPS Touch monitor: support digital photo frame+weather display |
| Outdoor Unit Camera | HD Wide-angle Camera |
| Night Vision Function | Infrared Night Vision Fill Light |

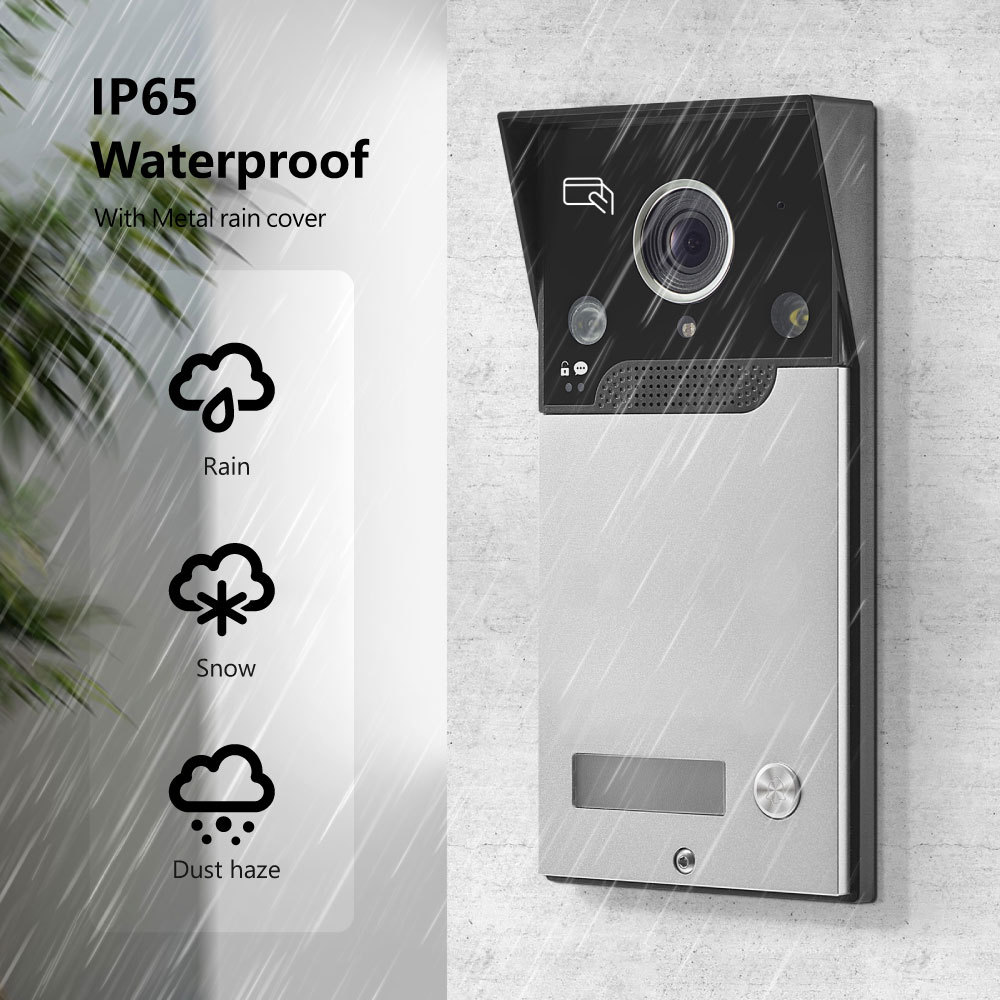

| Waterproof Rating | IP65 Waterproof & Rainproof (Outdoor Unit) |
| Power Supply Mode | DC15V 1.2A / Standard POE Power Supply--Both Optional |
| Standby Power Consumption | ≤2W |
| Operating Power Consumption | ≤5W |
| Installation Method | Flush Mount for Outdoor Unit, Wall Mount for Indoor Unit |
| Outdoor Unit Material | Outdoor: ABS Engineering Plastic+Aluminum Alloy |
| Indoor Monitor Material | Tempered glass+ABS+Brushed aluminum alloy |
| Supported Languages | English, Chinese, Arabic, Russian, French, German, Portuguese, Spanish, Italian |
| Max Supported Indoor Units | 4 Units per Call Button of Single Outdoor Station |
| Max Supported Outdoor Stations | 2 Units (DOOR1/DOOR2) |
| Alarm Sensor Interface | 8-Zone Anti-intrusion Alarm Interface |
| Max Supported ID Cards | 50 Cards |
| Local Storage | Built-in 5MB Storage, Support TF Card Expansion |
| Video Recording | Support Auto/Manual Video Recording, TF Card Required |
| Photo Capture Function | Support Auto/Manual Photo Capture |
| Two-way Intercom | Support Two-way Intercom between Indoor & Outdoor Unit, Indoor Units, Indoor Unit & Mobile APP |
| Remote Unlock | Support Remote Control of Electric Lock/Garage Lock via Indoor Unit & Mobile APP |
| Scene Modes | Support 3 Scene Modes: At Home, Away, Sleep |
| Message Push | Support Incoming Call & Alarm Message Push to Mobile APP |
| Network Connection | Support WiFi 802.11b/g/n + Wired RJ45 Network Connection |
| Operating Temperature | -10℃ ~ +55℃ |
| Operating Humidity | 10% ~ 90%RH (No Condensation) |
| Unit Box Dimension | 20.8*18.5*9cm |
| Unit Weight | 1.15kg |

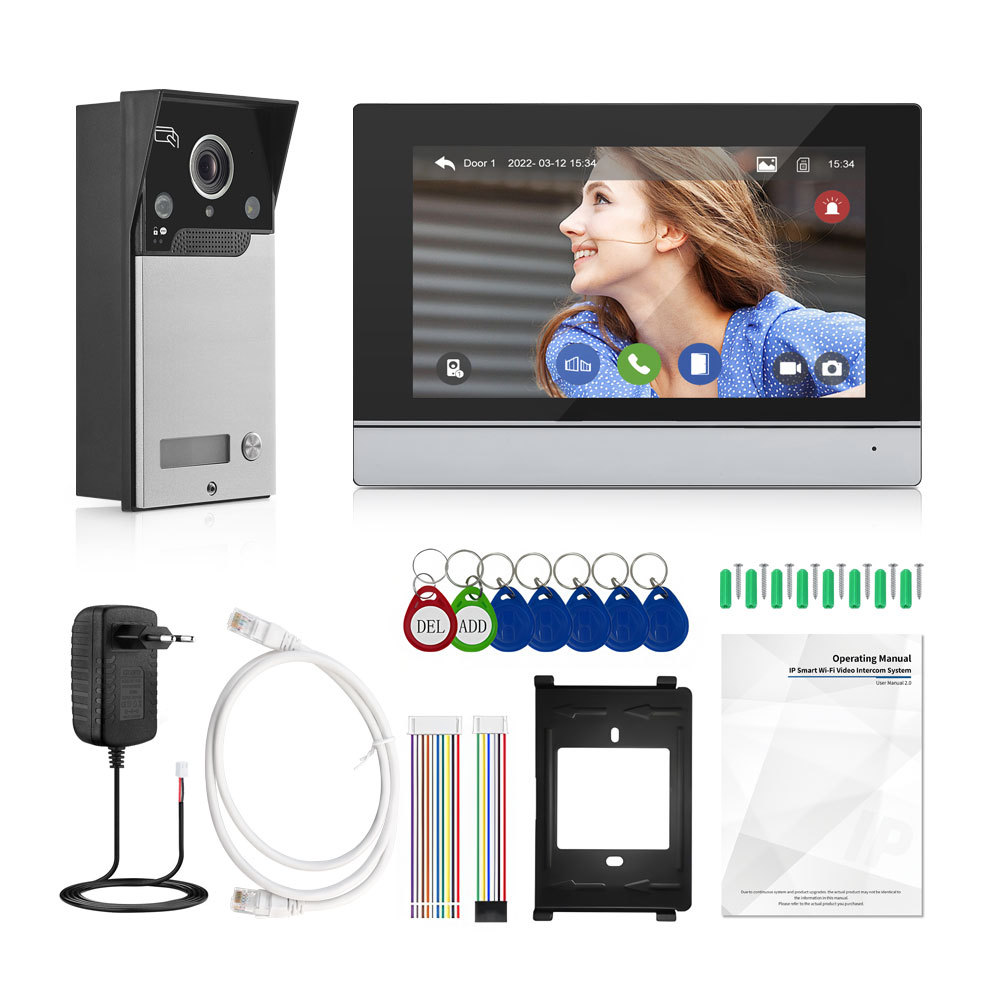

| PST-IP-MSA1K Package List | |
| Outdoor station | x1 |
| Indoor monitor | x1 |
| Standard RJ45 Network Cable | x2 |
| Installation Screw Kit | x1 |
| Indoor Monitor Mount Bracket | x1 |
| ID cards | x5 |
| Product User Manual | x1 |
| PST-IP-MSA1K Product FAQ | |
| Q1: What is the Tuya Smart WiFi IP Video Intercom System? A: It is a multi-apartment video door phone and access control system compatible with the Tuya Smart ecosystem, featuring indoor monitor units and an outdoor door station with camera, card access, and mobile APP remote control. |
|
| Q2: What power supply options does this system support? A: The system supports dual power supply modes: DC 15V power adapter and standard POE (Power over Ethernet). Users can switch between the two modes via the DIP switch on the device---both are optional & extra charge. |
|
| Q3: What is the camera resolution of the outdoor unit? A: The outdoor door station features a 2.0 megapixel HD camera, delivering clear and sharp video images for visitor identification. |
|
| Q4: Does this system support card access control? A: Yes, the outdoor door station has a built-in ID card reader. It supports up to 50 ID cards for door access, allowing residents to unlock the door by swiping a registered card. |
|
| Q5: What types of door locks are compatible with this system? A: The system supports NC/COM/NO relay output, making it compatible with most electric locks, magnetic locks, and electronic door locks commonly used in access control systems. |
|
| Q6: Does the system support an exit button? A: Yes, the system supports connection to an external exit button, allowing people inside to open the door by pressing the exit button without using the indoor monitor. |
|
| Q7: How is video recording stored on this system? A: The system uses a TF card (Micro SD card) for local video and photo storage. The indoor unit has a built-in TF card slot for inserting a memory card. |
|
| Q8: What working modes does this intercom system have? A: The system features three scene modes: Home mode, Away mode, and Sleep mode, each with different ringtone, recording, and notification settings to suit different scenarios. |
|

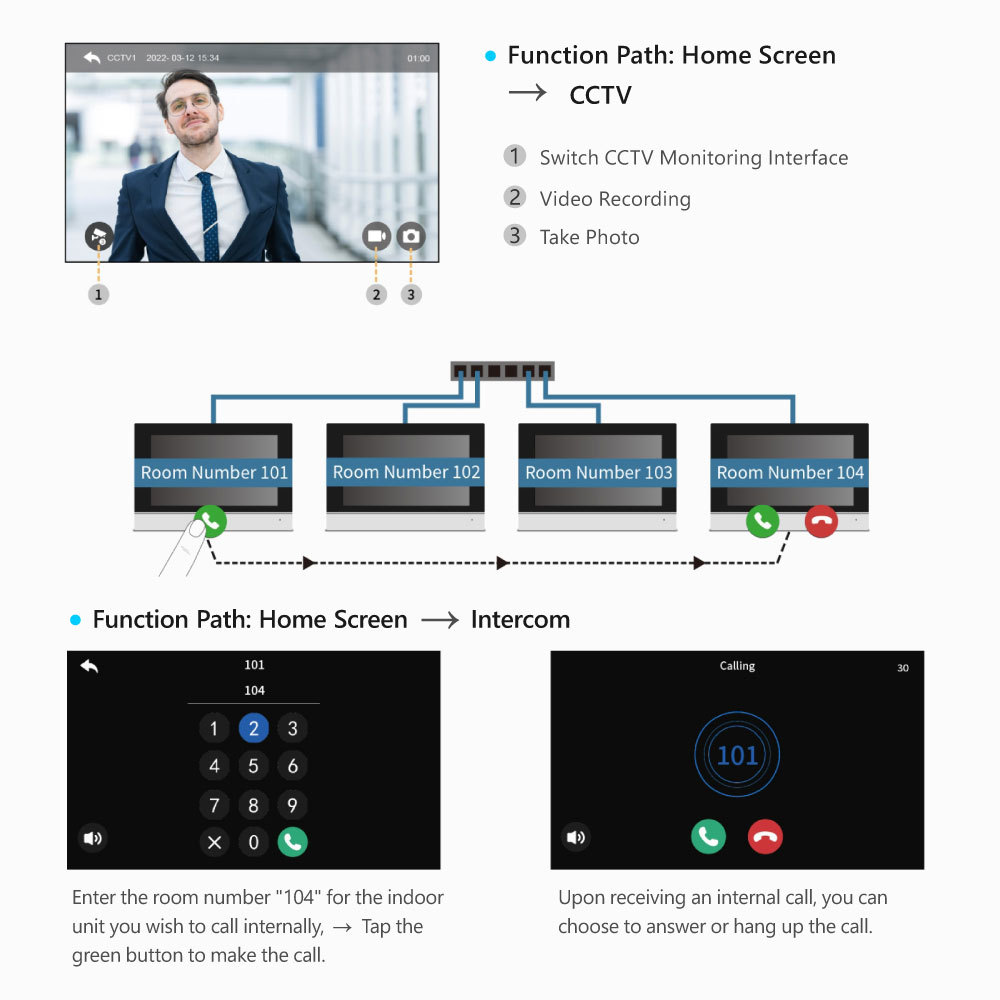

| Q9: Can indoor units call each other internally? A: Yes, multiple indoor units in the same system can call each other for internal intercom communication using room numbers (e.g., 101-104). |
|
| Q10: Does the system support security alarm functions? A: Yes, the system supports external security sensors. When sensors are triggered, the system will activate an alarm with a buzzer sound. Three security modes (Home/Away/Sleep) are available. |
|
| Q11: How many alarm sensors can be connected to the system? A: Each indoor unit can be connected to a maximum of 8 alarm sensors for 8-zone anti-intrusion monitoring. |
|
| Q12: Can the system work with both WiFi and wired network? A: Yes, the indoor monitor unit supports both WiFi and wired Ethernet connections. Users can switch between the two network modes in the system settings. |
|
| Q13: How many ID cards can be registered in the system? A: The system supports registration of up to 50 ID cards for access control. |
|
| PST-IP-MSA1K OEM & ODM Service | |
| Customization Type | Supported Service Content |
| Branding Customization | Support custom product model, silk-screen LOGO, brand packaging and labeling |
| System Customization | Support custom boot screen, default system language, function parameter presets |
| Accessories Customization | Support custom package list, accessory specifications, user manual language versions |
| Technical Support | Provide exclusive OEM/ODM technical support, one-to-one after-sales guarantee service |
| MOQ | Box OEM: 500PCS; User Manual OEM: 1000PCS, Laser logo: 50PCS. |
