| PST-PW02 Specifications | |

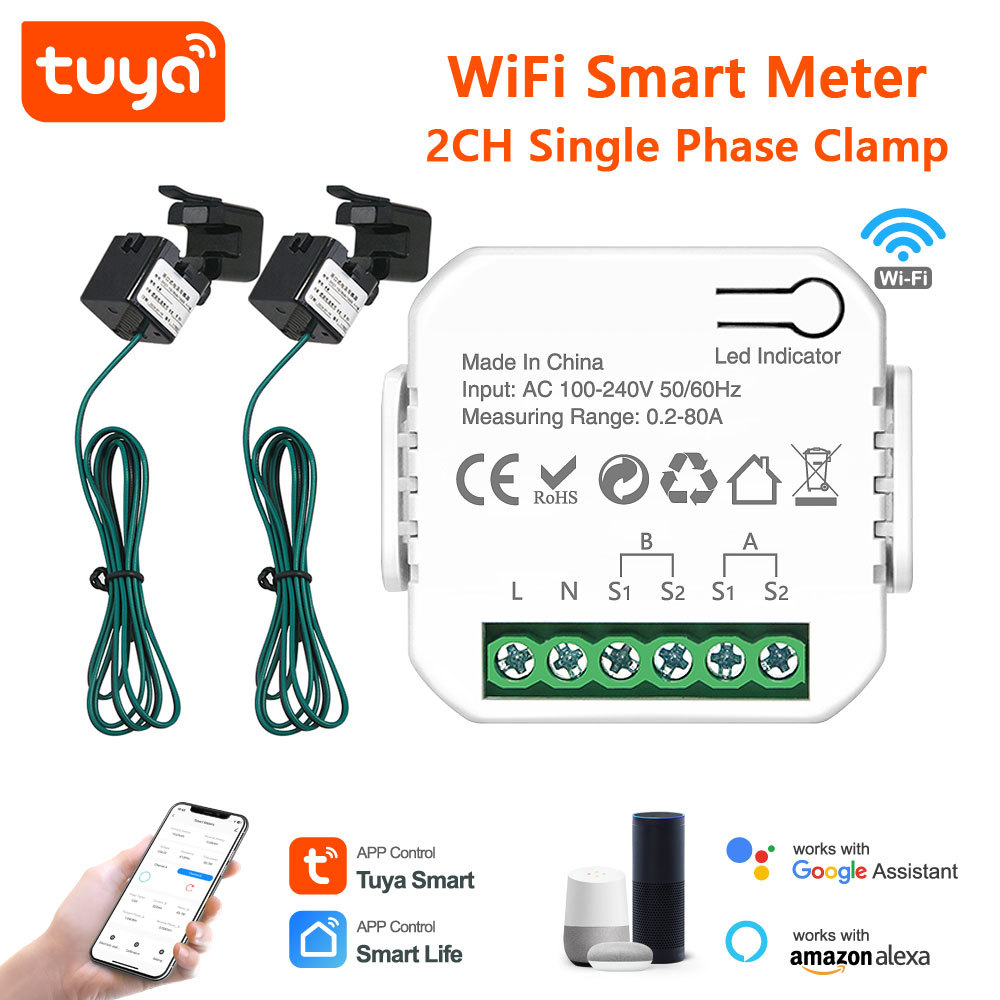

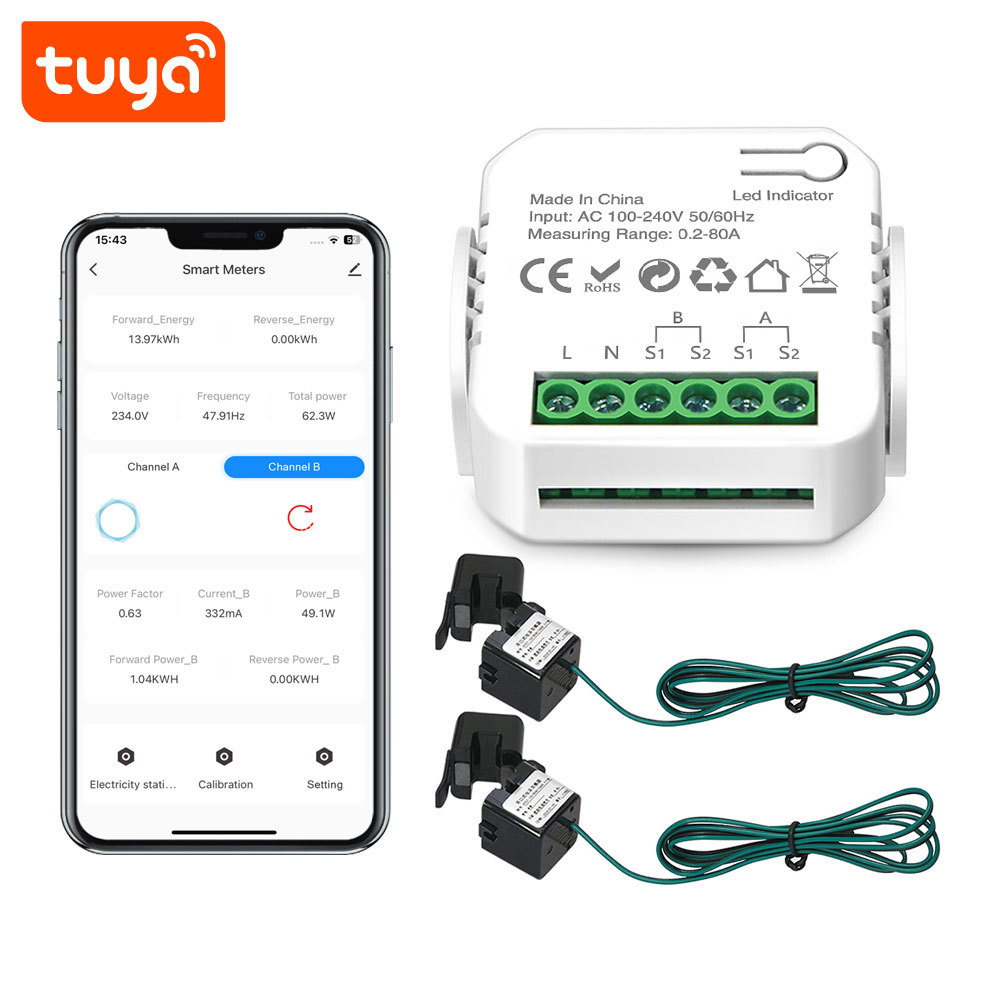

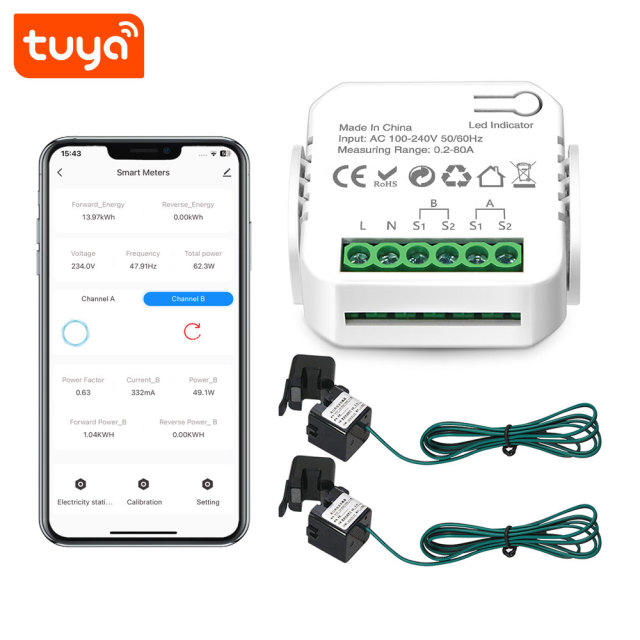

| Product Name | Tuya Smart WiFi Single - Phase 2 - Channel Clamp Meter |
| APP Name | Tuya Smart or Smart Life |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Input | AC100-240V 50/60Hz |
| Output | AC100-240V 50/60Hz |

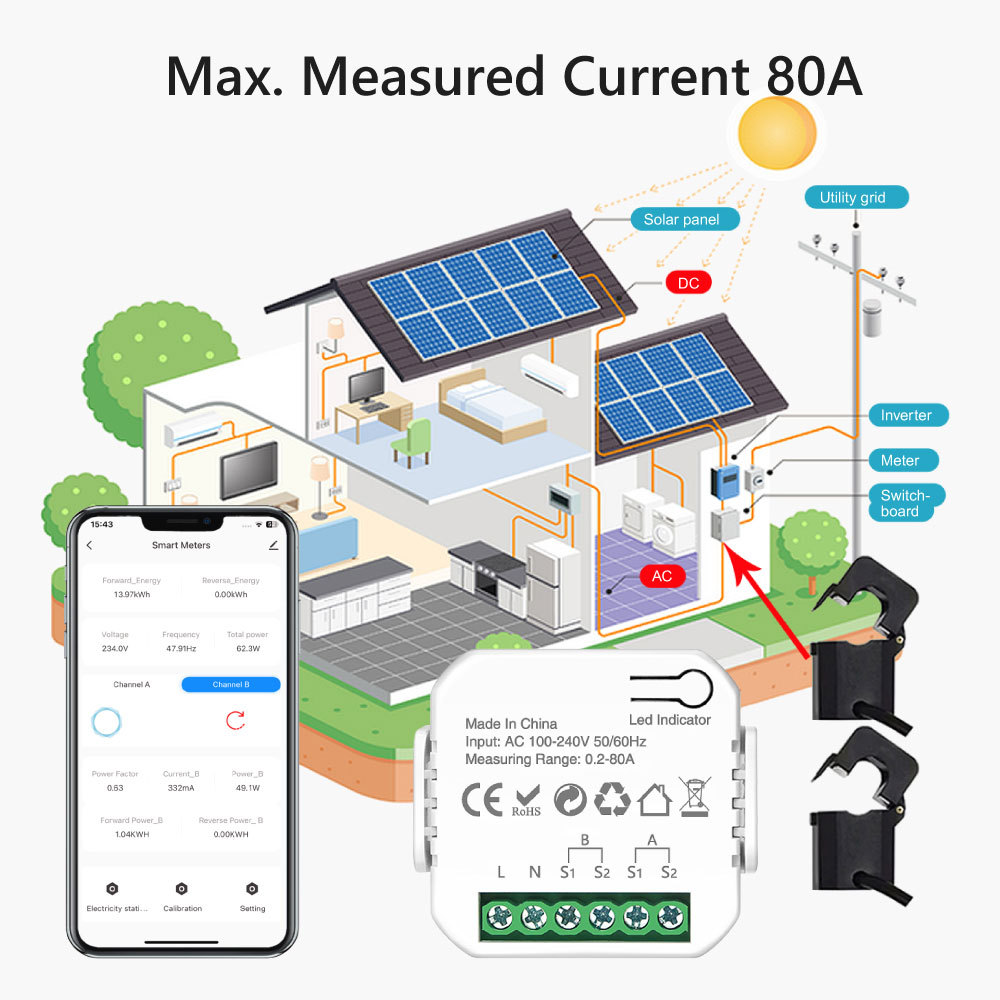

| Measuring Range | 0.2-80A |
| CT Rating | 10mm |
| Control Mode | App Control, Voice Control, Manual Control |
| Function | Single-phase current monitoring, WiFi data transmission, smart app integration |
| Monitoring Type | AC current (single-phase) |

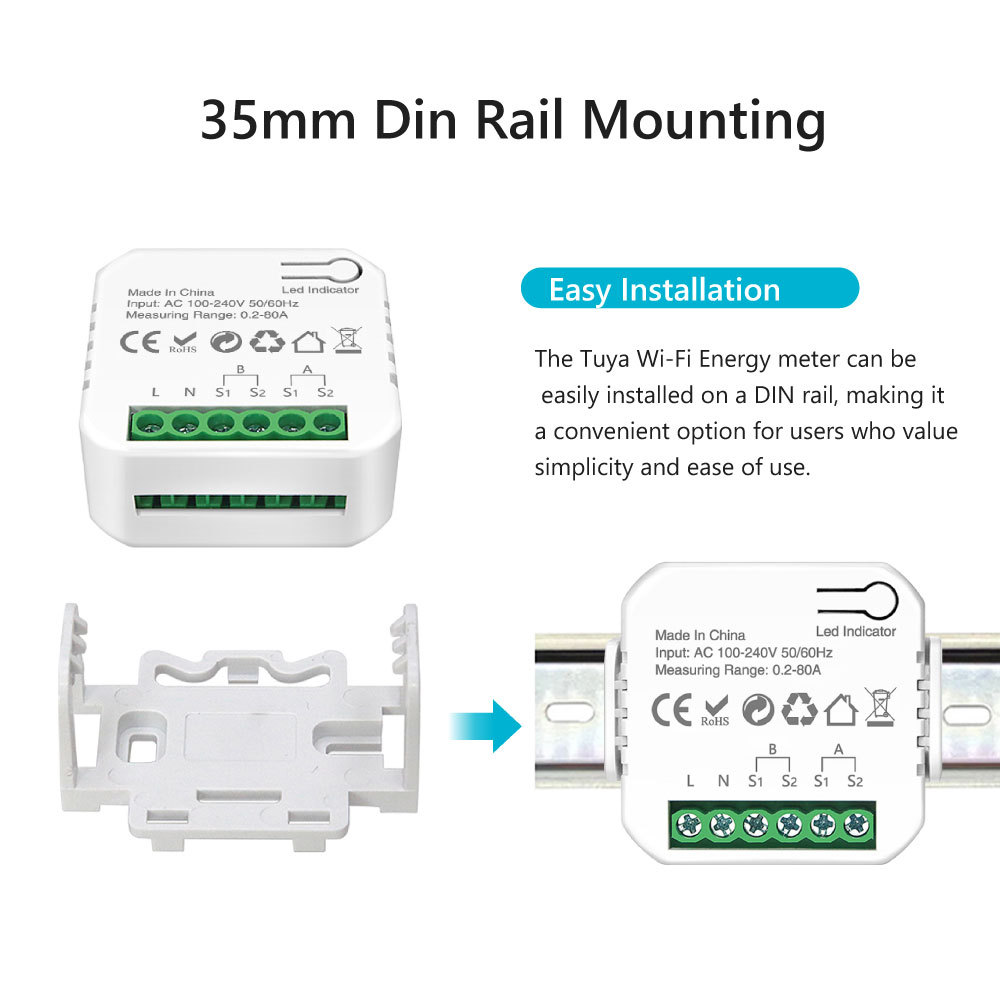

| Installation Method | Clamp-on (non-invasive, no wiring required for current measurement) |
| Measurement Accuracy | ±2% |
| Material | PC + ABS |
| Operation Temp | from -10°C to +55°C |
| Humidity | 10%--90% non-condensing |
| Product Size | 46x46x19mm |
| Box Dimension | 10*8.5*3.5cm |
| Unit Weight | 0.12kg |
| Carton Packing | 100PCS per ctn: 51x38x35cm: 12kG |
| PST-PW02 Package List | |
| WIFI Smart Clamp | x1 |
| Instaillation Screws | x1 |
| Current Transformer Clamp | x2 |
| User Manual | x1 |
| PST-PW02 Product FAQ | |
| Q1: What is the main function of this clamp? A: It is a smart device that monitors two-phase AC current in real time, transmits data via WiFi to the Tuya Smart/Smart Life app, and supports remote monitoring and overcurrent alarms. |
|
| Q2: How does it measure current? A: It uses a non-invasive clamp-on design—simply clamp it around the live wire; no need to cut or disconnect the cable. |
|
| Q3: Does it work with 5GHz Wi-Fi? A: No, it only supports 2.4GHz Wi-Fi networks. |
|
| Q4: Can I control it when away from home? A: Yes. As long as the switch is connected to Wi-Fi and your phone has an internet connection, you can control it via the Tuya/Smart Life app. |
|

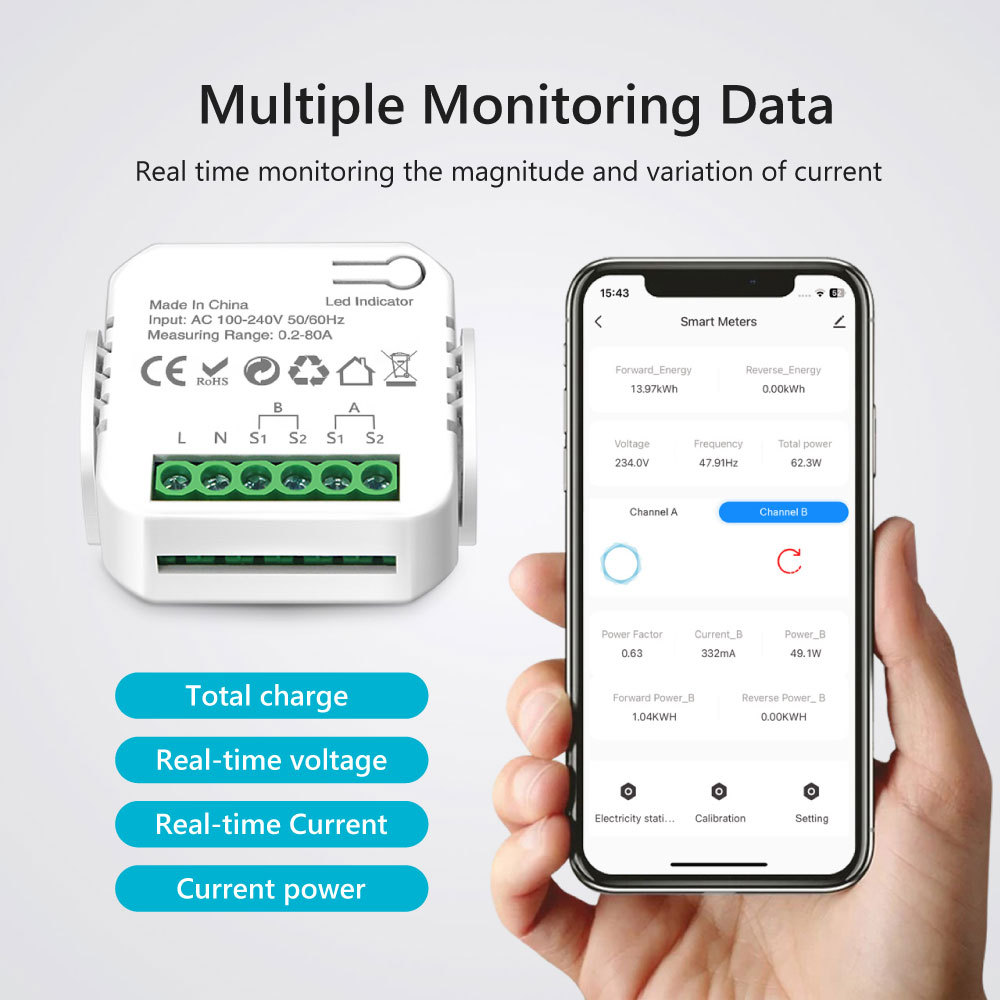

| Q5: Can I monitor current data remotely? A: Yes, as long as the device is connected to WiFi, you can view real-time current data via the app from anywhere with an internet connection. |
|
| Q6: Can multiple users control the device? A: Yes, you can share device access with family members via the app. |
|
| Q7: How to connect to voice assistants like Alexa or Google Assistant? A: Open the Alexa/Google Assistant app, enable the Tuya/Smart Life skill, log in with your Tuya account, and discover the module. Then you can voice-control your lights. |
|
| Q8: What if the module can’t connect to Wi-Fi? A: Check if the Wi-Fi is 2.4GHz, the password is correct. Reset the module (find the reset method in the manual, usually pressing a reset button until the indicator flashes), then retry setup. |
|
| Q9: Does it support scene linkage with other Tuya devices? A: Yes. You can set up scene linkage in the Tuya/Smart Life app to have the module work with other Tuya smart devices. |
|
| Q10: Does it have a timer function? A: Yes. In the Tuya/Smart Life app, you can set scheduled on/off times for the switch. |
|
| Q11: Does it need a hub? A: No, it connects directly to your Wi-Fi network, so no additional hub is required. |
|
| Q12: Can it send alarms? A: Yes, it supports overcurrent alarms. You can set a threshold in the app, and it will send notifications if the current exceeds this limit. |
|
| Q13: Does it work with three-phase systems? A: No, it is specifically designed for two-phase systems. For three-phase monitoring, use a multi-channel model. |
|
| Q14: What happens if the wire diameter is larger than the clamp opening? A: Do not force it—use a model with a larger clamp opening to avoid damaging the device or affecting accuracy. |
|
| Q15: What if the app can’t find the switch during setup? A: Make sure the switch is in pairing mode (indicator flashing rapidly), your phone’s Bluetooth is on, and you’re using a 2.4GHz Wi-Fi network. |
|
| Q16: Does it support multiple languages in the app? A: Yes, the Tuya Smart and Smart Life apps support multiple languages. |
|
| PST-PW02 OEM & ODM Service | |
| Q17: Can make OEM? A: Yes, we can. PID OEM:1000PCS Box OEM: 1000PCS, User Manual OEM: 1000PCS. Laser logo: 50PCS. |
|
