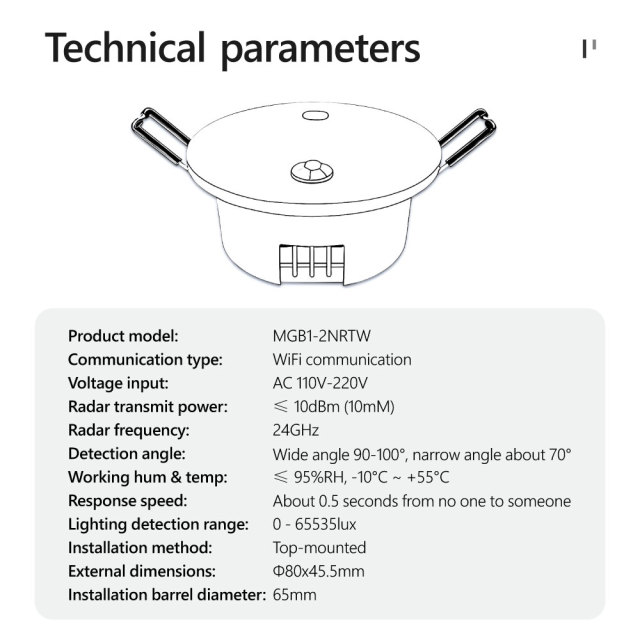

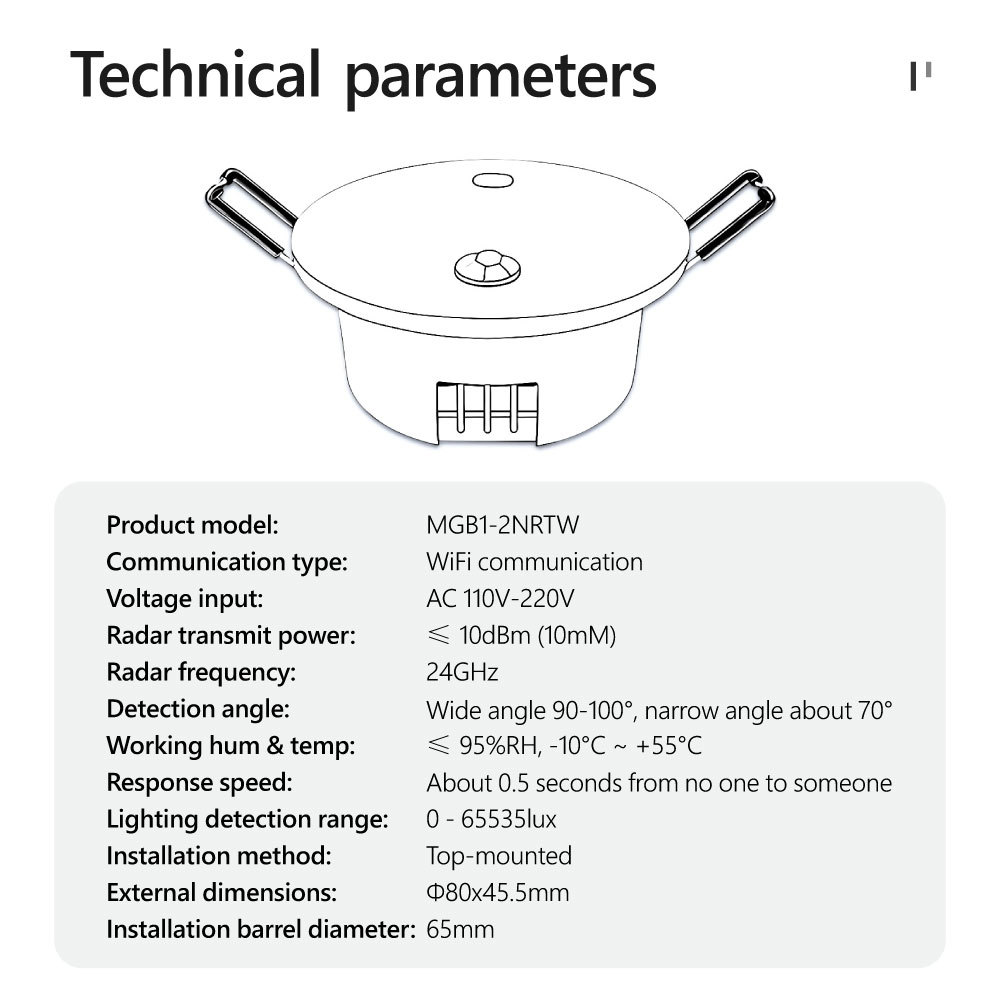

| PST-MGB1-2NRTW Specifications | |

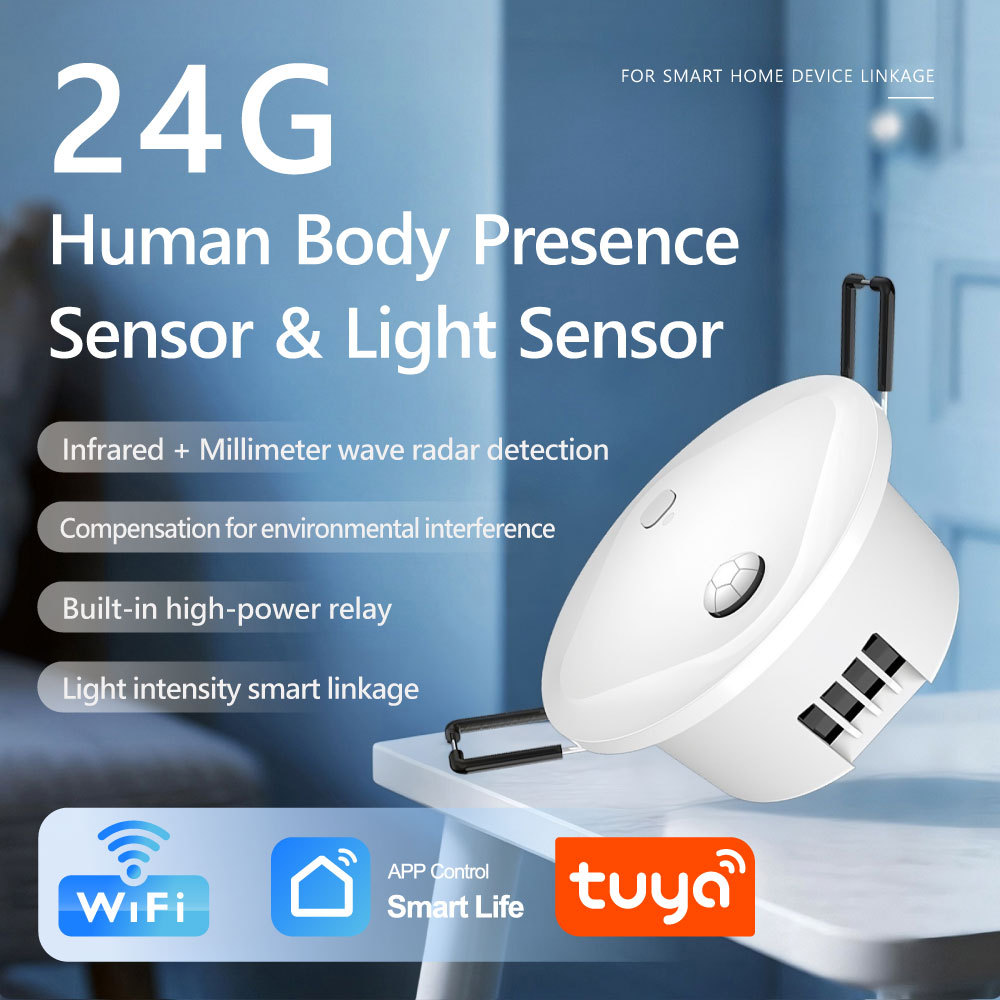

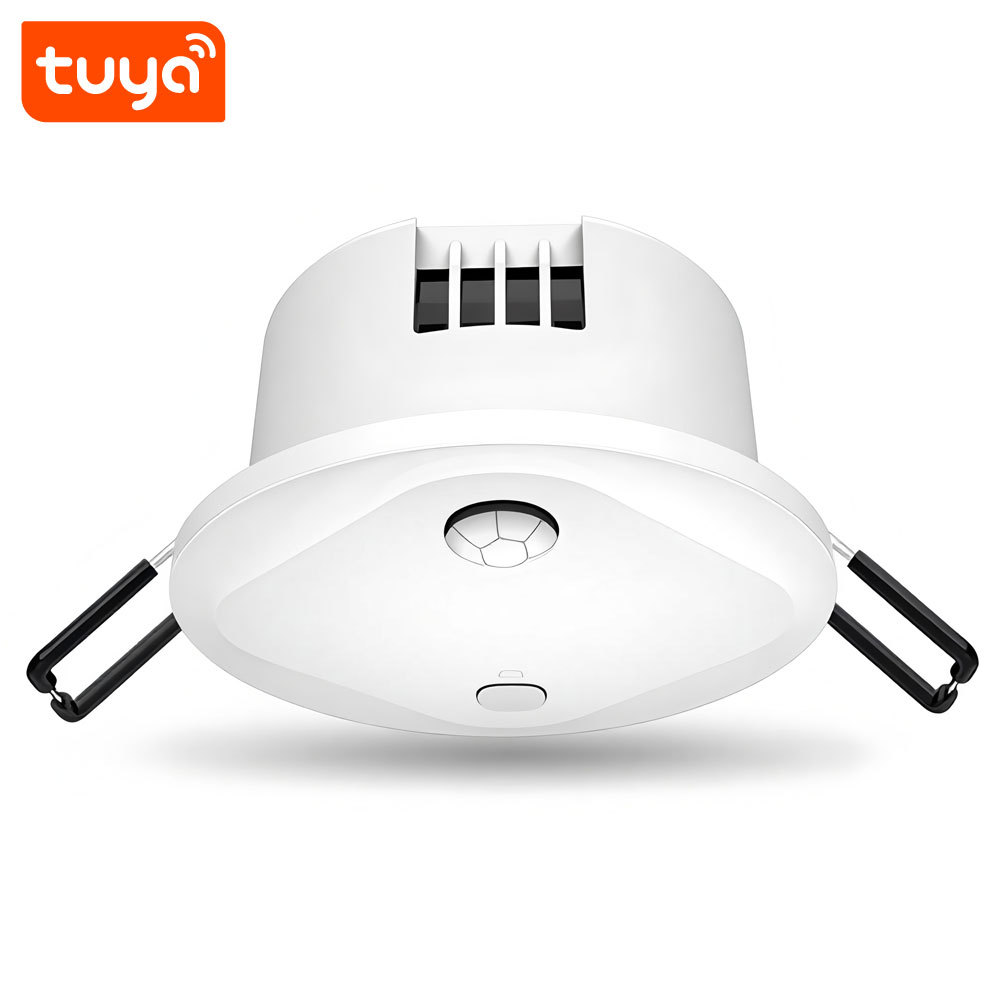

| Product Name | Tuya Smart WiFi 24G Breathing Presence Sensor & Light Sensor & PIR & Relay |

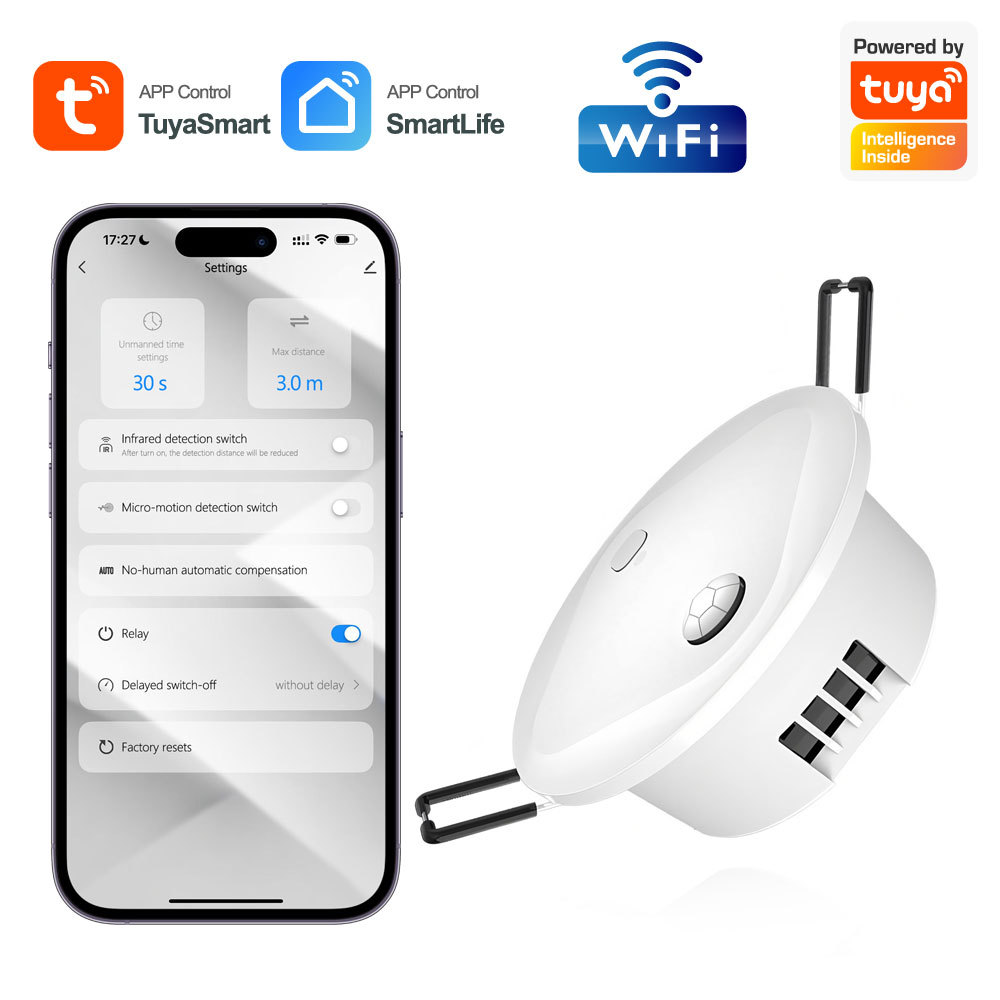

| APP Name | Tuya Smart or Smart Life |
| Color | White |
| Material | ABS |
| Radar Operating Frequency | 24GHz |
| Radar Transmitting Power | ≤10dBm (10mW) |

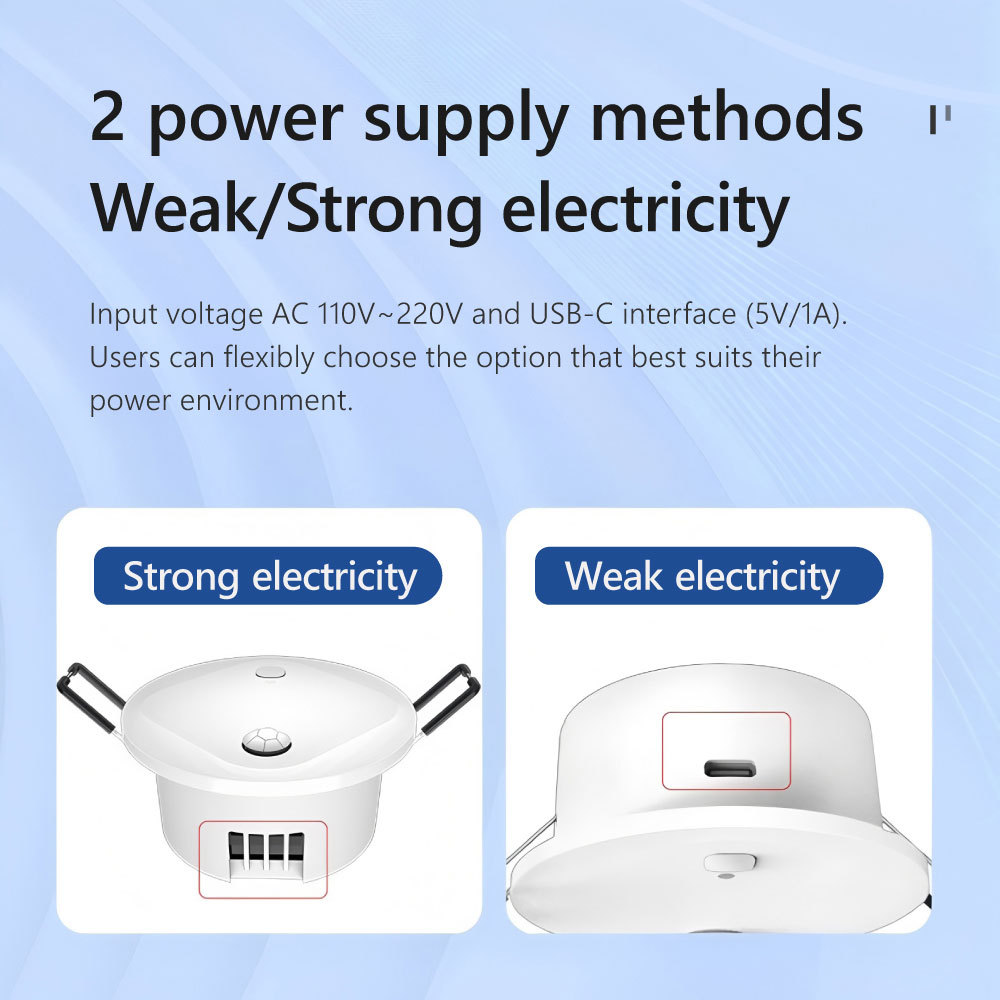

| Power Input Voltage | 110V-220V AC |
| Wireless Communication | 2.4G WiFi (5G WiFi not supported) |
| Installation Method | Top-mounted Ceiling Installation |
| Product Dimension | 80mm Diameter |
| Max Detection Distance (Motion Human) | (Motion Human),3m (±0.5m), adjustable 2m/2.5m/3m via APP |
| Max Detection Distance (Static Human) | (Static Human),3m (±0.5m), adjustable 2m/2.5m/3m via APP |

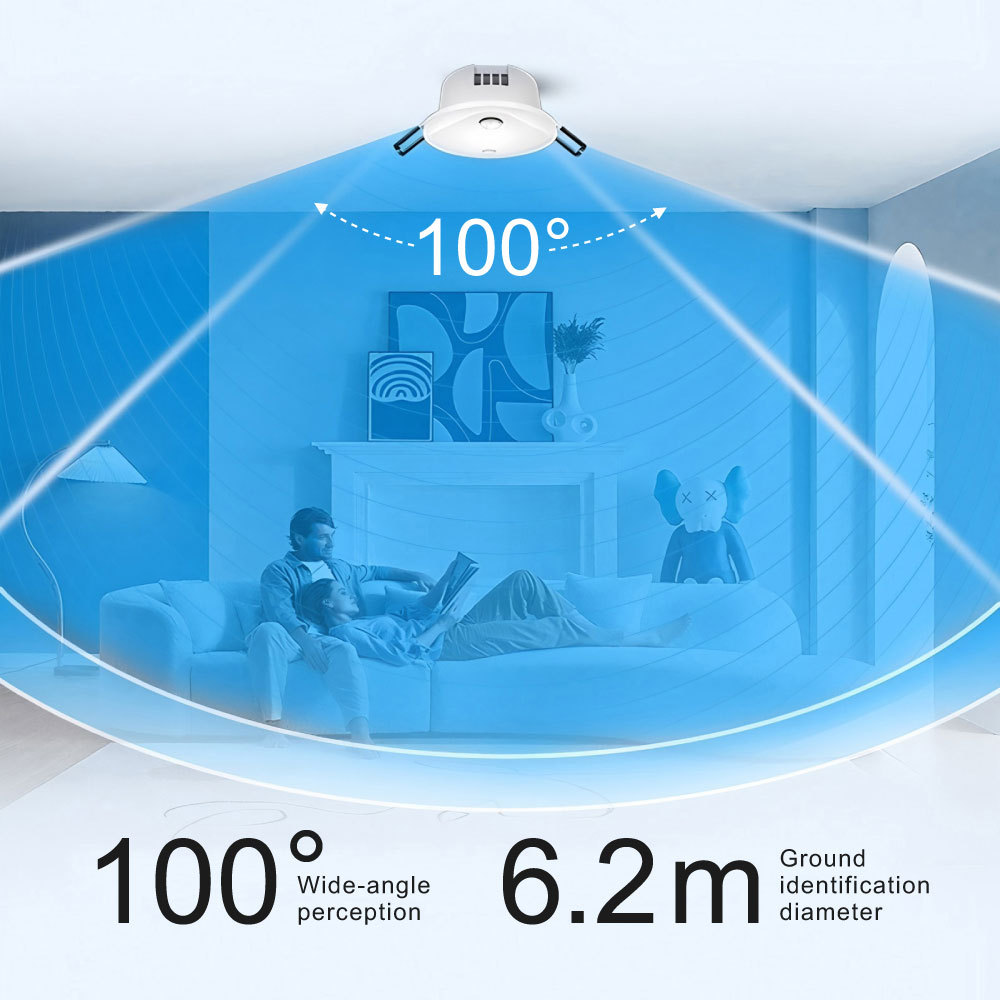

| Detection Coverage Angle | 360° Omni-directional |
| Response Speed | 0.5s human detection trigger speed |
| Operating Temperature | -10℃ ~ +55℃ |
| Max Operating Humidity | ≤95% RH (Non-condensing) |
| Sensitivity Level | 3 levels: High / Default / Low |
| Unoccupied Delay Time Options | 10s,30s,1min,3min,5min,10min,30min |
| Recommended Installation Height | ≤3 Meters |
| Output Wiring Terminal | L(Live),N(Neutral),L1(Nobody),L2(Someone) |
| Supported Circuit Mode | Single-control & Multi-control Lighting Circuit |
| Calibration Function | Automatic Environment Compensation (30s calibration) |
| Reset Operation | Long press reset button 3-5s for network pairing |
| Status Indicator | Red flash: Pairing; Light off: Normal working |
| Detection Target | Only human biological features (filter inanimate objects) |
| Environmental Anti-interference | Not affected by light,smog,temperature,dust |
| Penetration Performance | Pass cotton/cloth; Blocked fully by metal |
| Application Environment | Indoor only (bathroom,bedroom,office,hotel room) |
| Parallel Interference Control | Max 3 radars without mutual interference |
| Stabilization Time After Power On | ≥30 seconds for stable calibration |
| Box Dimension | 10*7*8cm |
| Unit Weight | 0.12kg |
| PST-MGB1-2NRTW Package List | |
| WiFi Ceiling Breathing Presence Sensor | x1 |
| User Manual | x1 |
| PST-MGB1-2NRTW Product FAQ | |
| Q1: What type of radar technology does this product use? A: This product adopts 24GHz millimeter wave radar technology, which can accurately detect both moving and stationary human bodies. |
|
| Q2: Which WiFi frequencies does it support? A: It supports 2.4G Hz b/g/n WiFi frequencies. |
|
| Q3: How do I connect the sensor to my Wi - Fi network? A: Download the Tuya Smart app from the app store. Open the app, create an account if you don't have one. Then, follow the in - app instructions to add a new device. Select the Wi - Fi vibration sensor and enter your Wi - Fi password when prompted. |
|
| Q4: What if my Wi - Fi signal is weak near the sensor's location? A: You may consider using a Wi - Fi extender or a mesh Wi - Fi system to boost the signal. Ensure that the sensor is within a reasonable range of your router for optimal connectivity. |
|
| Q5: Is it a standalone device? A: Yes, it's a standalone device. However, it requires a WiFi connection and can be managed through the Tuya app for full functionality. |
|
| Q6: How to install this human presence radar? A: This radar supports top-mounted (ceiling mount) installation. It is recommended to install it at a height of ≤3m, fix it with the spring buckle, and complete the wiring according to the manual. |
|
| Q7: How fast is the response speed of this radar? A: The radar can detect and report the presence of a human body within about 0.5 seconds, realizing real-time sensing of human presence. |
|
| Q8: Where should I install the sensor? A: It is recommended to install it on the ceiling, away from direct sunlight, heat sources, and strong air currents for optimal performance. |
|
| Q9: Can the detection sensitivity of this radar be adjusted? A：Yes, the radar provides 3 levels of sensitivity adjustment (High/Default/Low) for both stationary and motion detection, which can be set via the Tuya APP. |
|
| Q10: What should I do if the sensor doesn't connect to my Wi-Fi network? 1. Check the Basics Power: Ensure the sensor is properly powered. Wi - Fi Signal: Make sure the sensor is within range of your Wi - Fi router. 2. Reset the Sensor 3. Re - add the Device in the App 4. Check Router Settings 5. Update Router and App Firmware |
|
| Q11: Is this radar safe for human body? A: Yes, this radar has extremely low output power (≤10dBm), which will not cause any physical harm to the human body, and there is no risk of privacy leakage. |
|
| Q12: Does the sensor work with voice assistants? A: It supports Amazon Alexa and Google Assistant. |
|
| Q13. What if I can't connect it to the app? Ensure your WiFi network is working and the password is correct. Make sure the device is in pairing mode. If the problem persists, try resetting the device by pressing and holding the red button for a longer time (usually 10 - 15 seconds) and then attempt to connect again. |
|
| Q14: How to reset this radar? A: You can long press the reset button on the radar for 3-5 seconds to enter the network pairing mode, and it can also be restored to factory settings through this operation. |
|
| Q15. Can I control the device remotely? A: Yes, as long as the device is connected to WiFi and your phone has an internet connection, you can control it remotely through the app. |
|
| Q16: What does the status indicator of the radar mean? A: The red indicator light flashes during the network pairing process, and the indicator light will turn off when the pairing is successful and the radar enters the normal working state. |
|
| Q17: Will light or darkness affect the detection effect? A: No, radar detection is completely unaffected by light, darkness, strong light and shadow changes, supporting 24-hour all-weather stable work. |
|
| Q18. The app can't find the sensor. What's wrong? Ensure the sensor is powered on and in pairing mode. Also, check your phone's Bluetooth and Wi - Fi settings, and make sure they are turned on. |
|
| Q19. Can someone else access my sensor's data? As long as you keep your app account credentials secure, and your Wi - Fi network is protected, it's very unlikely that others can access your sensor's data. |
|
| Q20. Can I share the sensor data with other family members? Yes, in the Tuya Smart app, there's an option to share the device with other users. You can add their email addresses or phone numbers associated with their Tuya accounts. |
|
| Q21. Can it detect through walls? A: No, the sensor cannot detect through solid walls. It relies on direct line - of - sight or minimal obstructions for accurate detection. |
|
| Q22: Can it work normally in humid environments such as bathrooms? A: Yes, it is not affected by water vapor, humidity and dust, and is perfectly suitable for installation in bathrooms, toilets and other humid private spaces. |
|
| Q23: The sensor is not showing up in the app. What should I do? First, make sure the sensor is powered on and in pairing mode. Check your WiFi connection and try resetting the sensor by pressing the reset button for a few seconds. Then, try adding the device again in the app. |
|
| Q24: What are the main application scenarios of this radar? A: This radar is mainly used for indoor human presence detection, smart lighting control, energy saving management, security monitoring, smart home automation and other scenarios. |
|
| Q25: The sensor is offline in the app. How do I fix it? Check your WiFi router to ensure it's working properly. Try restarting the sensor and the router. If it's still offline, check the sensor's connection settings in the app. |
|
| Q26: Will this radar detect pets or other moving objects? A: This radar is designed to only detect human bodies with biological characteristics, and will not be triggered by small pets or other inanimate moving objects under normal circumstances. |
|
| Q27: What installation method does this product support? A: It adopts embedded ceiling installation, which is beautiful and concealed, suitable for ceiling openings of standard specifications. |
|
| Q28: How to solve the problem of false detection of the radar? A: You can adjust the sensitivity level to low, reduce the maximum detection distance, or perform automatic compensation calibration via the Tuya APP to solve the false detection problem. |
|
| Q29: Can this radar be used in bathrooms or kitchens? A: Yes, this radar has a humidity resistance of ≤95% RH, and can be used in bathrooms, kitchens and other humid indoor environments, but it should be installed away from the direct spray of water flow. |
|

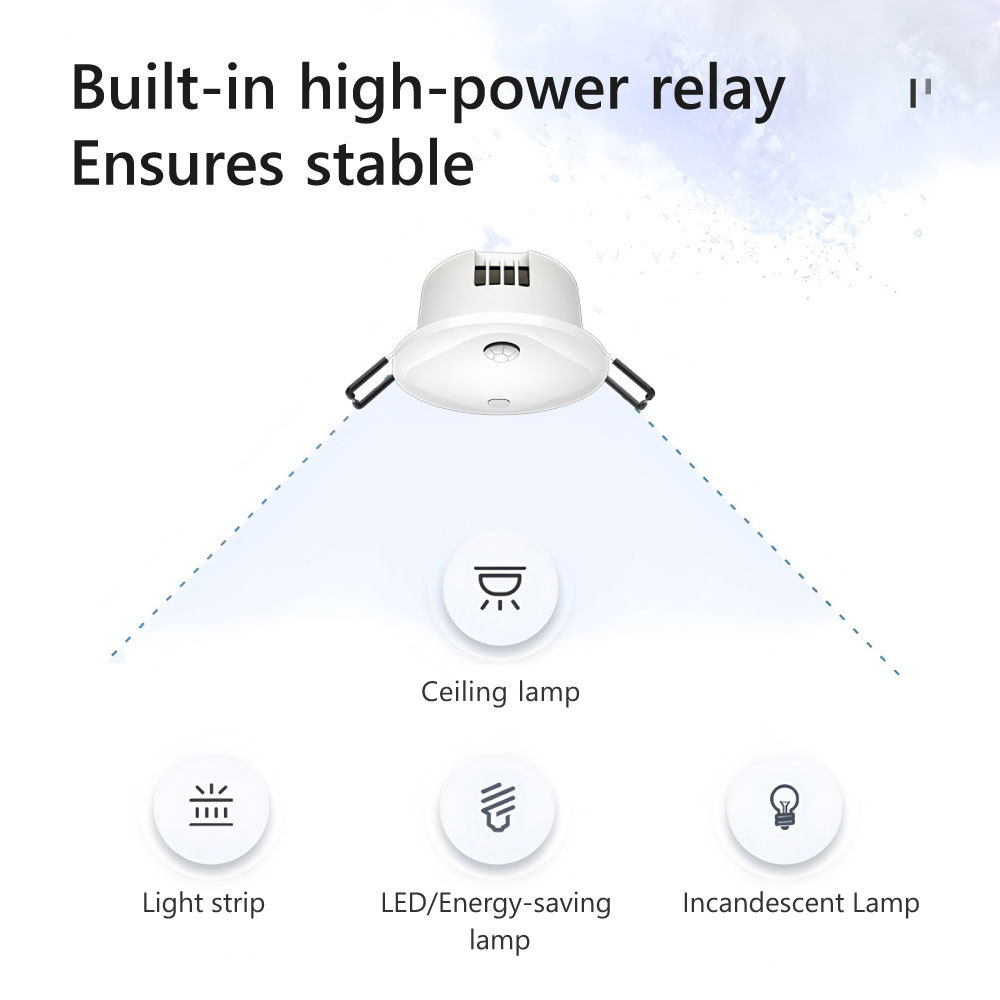

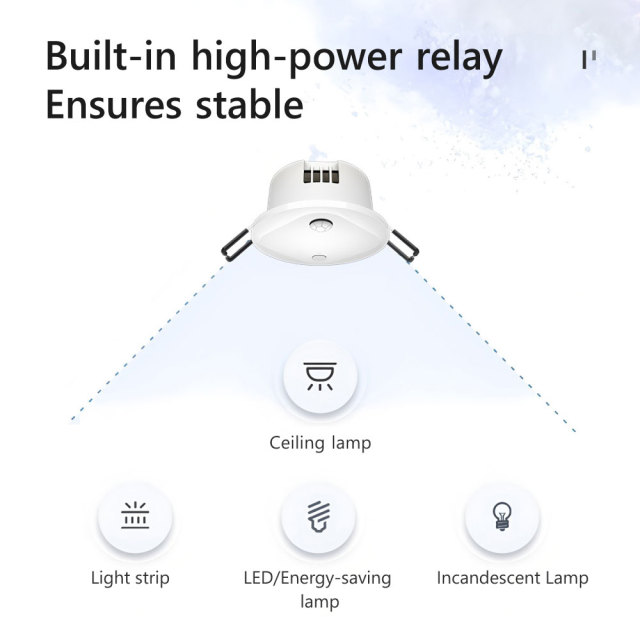

| Q30: Does this radar support multi-control circuit connection? A: Yes, this radar supports single-control and multi-control circuit connections, and can be used with wall switches to realize multi-scene intelligent control of lighting. |
|
| OEM Service: Box & manual OEM: 1000PCS, if only 500PCS extra charge 0.30USD/PCS; Laser Logo: 500PCS |
|
