| PST-IP-MSA2K Specifications | |

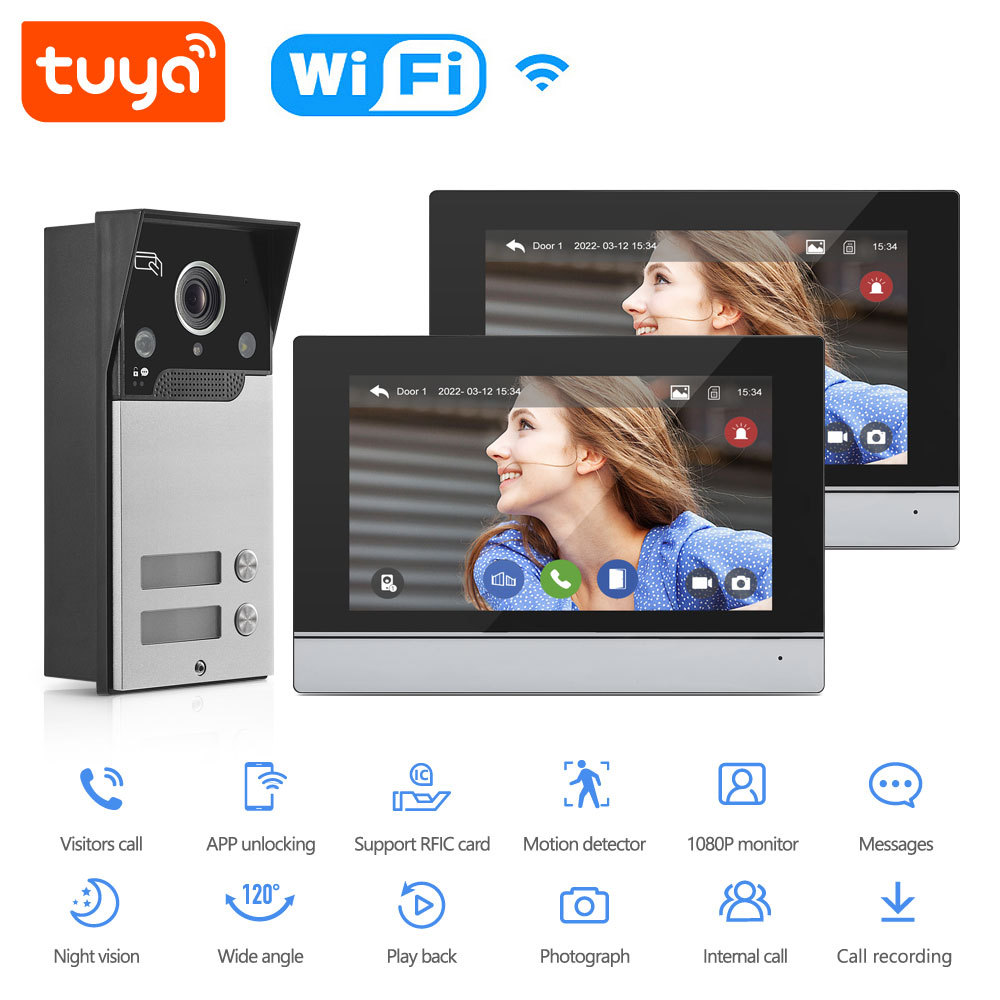

| Product Name | Tuya Smart WiFi 2 Button Waterproof IP Apartment Video Door Phone Kit |
| APP Name | Tuya Smart or Smart Life |

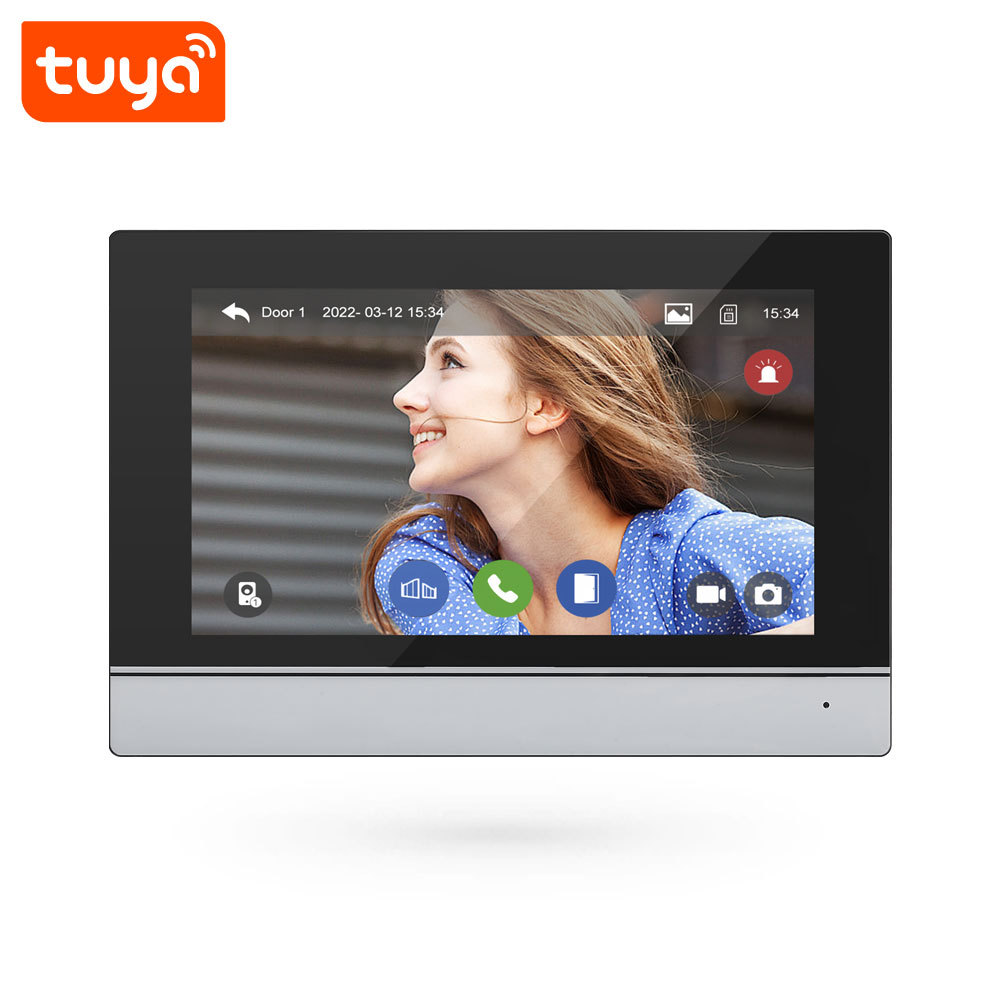

| Indoor Unit Screen | FHD 7 inch IPS Touch monitor: support digital photo frame+weather display |

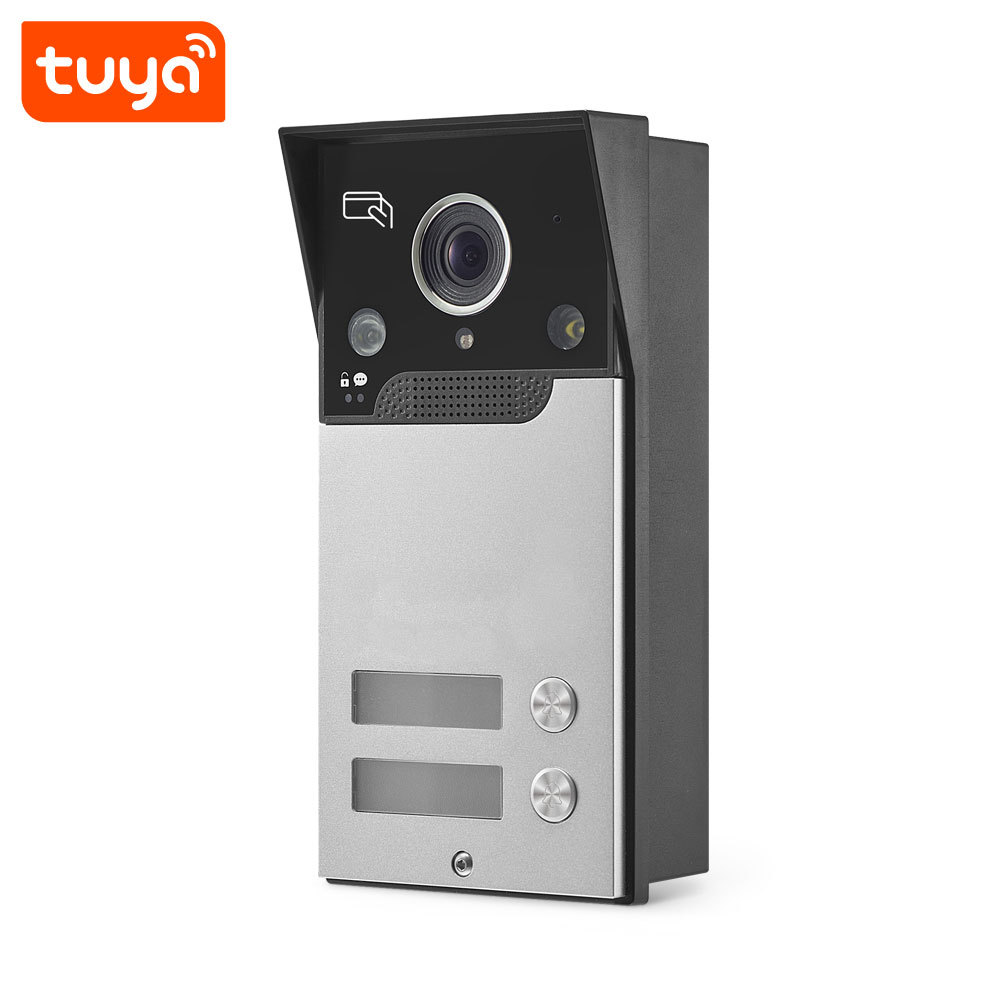

| Outdoor Unit Camera | HD Wide-angle Camera |
| Night Vision Function | Infrared Night Vision Fill Light |
| Waterproof Rating | IP65 Waterproof & Rainproof (Outdoor Unit) |
| Power Supply Mode | DC15V 1.2A / Standard POE Power Supply--Both Optional |
| Standby Power Consumption | ≤2W |
| Operating Power Consumption | ≤5W |
| Installation Method | Flush Mount for Outdoor Unit, Wall Mount for Indoor Unit |
| Outdoor Unit Material | Outdoor: ABS Engineering Plastic+Aluminum Alloy |
| Indoor Monitor Material | Tempered glass+ABS+Brushed aluminum alloy |
| Supported Languages | English, Chinese, Arabic, Russian, French, German, Portuguese, Spanish, Italian |
| Max Supported Indoor Units | 4 Units per Call Button of Single Outdoor Station |
| Max Supported Outdoor Stations | 2 Units (DOOR1/DOOR2) |
| Alarm Sensor Interface | 8-Zone Anti-intrusion Alarm Interface |
| Max Supported ID Cards | 50 Cards |
| Local Storage | Built-in 5MB Storage, Support TF Card Expansion |
| Video Recording | Support Auto/Manual Video Recording, TF Card Required |
| Photo Capture Function | Support Auto/Manual Photo Capture |

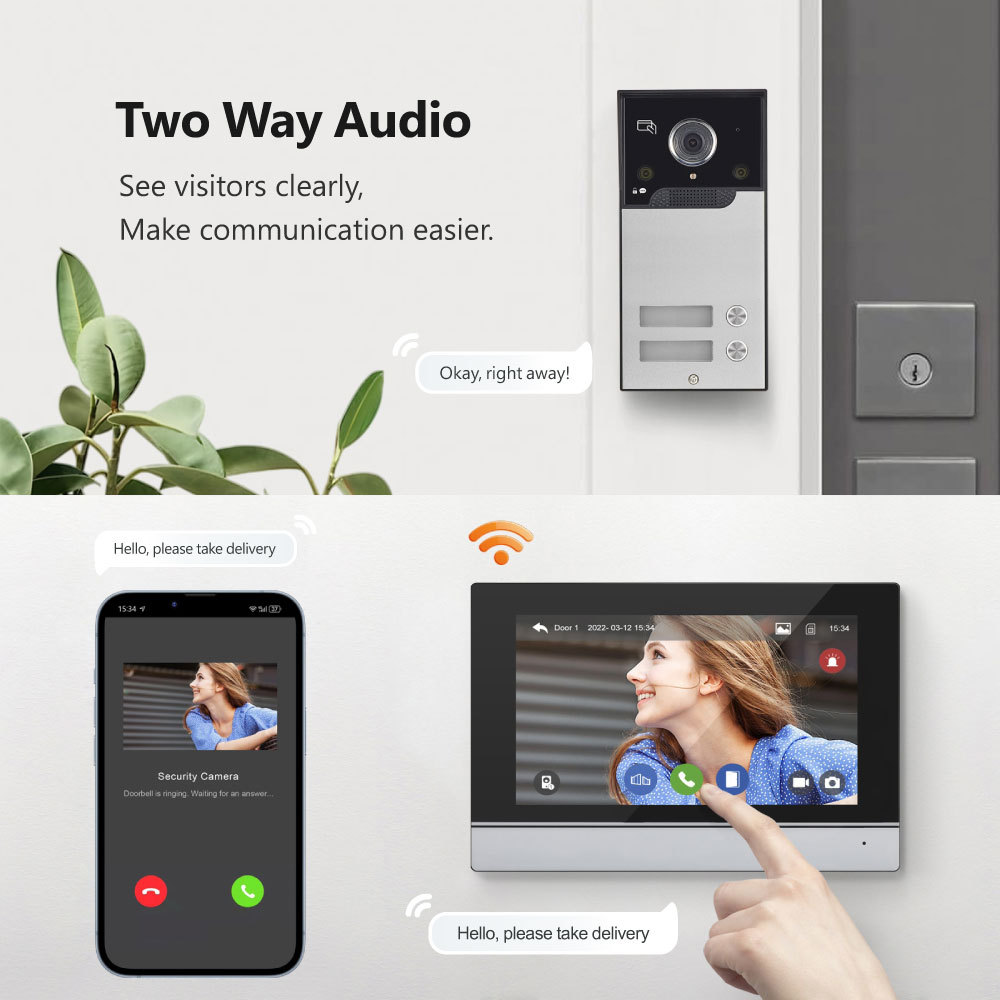

| Two-way Intercom | Support Two-way Intercom between Indoor & Outdoor Unit, Indoor Units, Indoor Unit & Mobile APP |
| Remote Unlock | Support Remote Control of Electric Lock/Garage Lock via Indoor Unit & Mobile APP |
| Scene Modes | Support 3 Scene Modes: At Home, Away, Sleep |
| Message Push | Support Incoming Call & Alarm Message Push to Mobile APP |
| Network Connection | Support WiFi 802.11b/g/n + Wired RJ45 Network Connection |
| Operating Temperature | -10℃ ~ +55℃ |
| Operating Humidity | 10% ~ 90%RH (No Condensation) |
| Unit Box Dimension | 27*18.5*12cm |
| Unit Weight | 1.56kg |

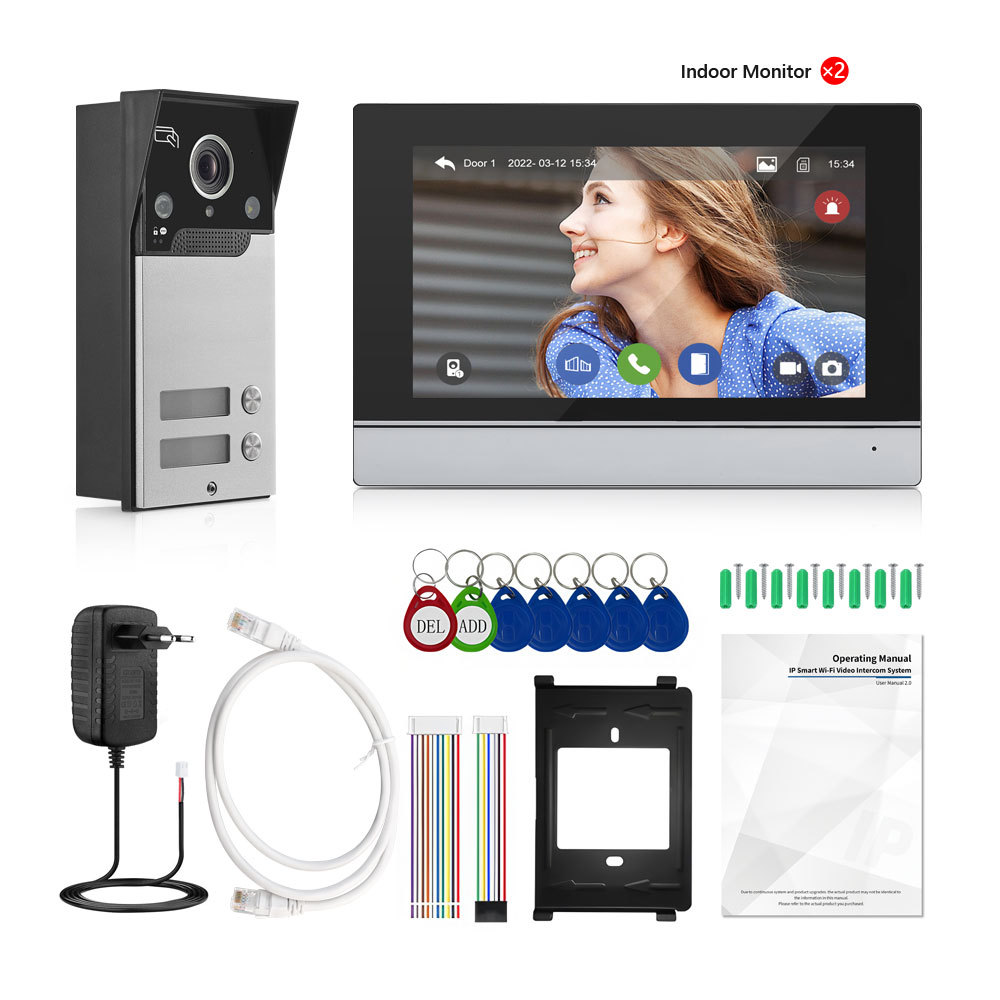

| PST-IP-MSA2K Package List | |
| Outdoor station | x1 |
| Indoor monitor | x2 |
| Standard RJ45 Network Cable | x3 |
| Installation Screw Kit | x1 |
| Indoor Monitor Mount Bracket | x2 |
| ID cards | x5 |
| Product User Manual | x1 |
| PST-IP-MSA2K Product FAQ | |
| Q1: What is the Tuya Smart WiFi 2 Button Video Door Phone Kit? A: It is a 2-button apartment video intercom system compatible with the Tuya Smart ecosystem, designed for 2-family or 2-floor buildings with indoor monitor and outdoor door station. |
|
| Q2: What power supply options does this system support? A: The system supports dual power supply modes: DC 15V power adapter and standard POE (Power over Ethernet). Users can switch between the two modes via the DIP switch on the device---both are optional & extra charge. |
|
| Q3: What is the camera resolution of the outdoor unit? A: The outdoor door station features a 2.0 megapixel HD camera, delivering clear and sharp video images for visitor identification. |
|
| Q4: Does this system support card access control? A: Yes, the outdoor door station has a built-in ID card reader. It supports up to 50 ID cards for door access, allowing residents to unlock the door by swiping a registered card. |
|
| Q5: What types of door locks are compatible with this system? A: The system supports NC/COM/NO relay output, making it compatible with most electric locks, magnetic locks, and electronic door locks commonly used in access control systems. |
|
| Q6: Does the system support an exit button? A: Yes, the system supports connection to an external exit button, allowing people inside to open the door by pressing the exit button without using the indoor monitor. |
|
| Q7: How is video recording stored on this system? A: The system uses a TF card (Micro SD card) for local video and photo storage. The indoor unit has a built-in TF card slot for inserting a memory card. |
|
| Q8: What working modes does this intercom system have? A: The system features three scene modes: Home mode, Away mode, and Sleep mode, each with different ringtone, recording, and notification settings to suit different scenarios. |
|
| Q9: Can indoor units call each other internally? A: Yes, multiple indoor units in the same system can call each other for internal intercom communication using room numbers (e.g., 101-104). |
|
| Q10: Does the system support security alarm functions? A: Yes, the system supports external security sensors. When sensors are triggered, the system will activate an alarm with a buzzer sound. Three security modes (Home/Away/Sleep) are available. |
|
| Q11: How many alarm sensors can be connected to the system? A: Each indoor unit can be connected to a maximum of 8 alarm sensors for 8-zone anti-intrusion monitoring. |
|
| Q12: Can the system work with both WiFi and wired network? A: Yes, the indoor monitor unit supports both WiFi and wired Ethernet connections. Users can switch between the two network modes in the system settings. |
|
| Q13: How many ID cards can be registered in the system? A: The system supports registration of up to 50 ID cards for access control. |
|
| PST-IP-MSA2K OEM & ODM Service | |
| Customization Type | Supported Service Content |
| Branding Customization | Support custom product model, silk-screen LOGO, brand packaging and labeling |
| System Customization | Support custom boot screen, default system language, function parameter presets |
| Accessories Customization | Support custom package list, accessory specifications, user manual language versions |
| Technical Support | Provide exclusive OEM/ODM technical support, one-to-one after-sales guarantee service |
| MOQ | Box OEM: 500PCS; User Manual OEM: 1000PCS, Laser logo: 50PCS. |
