| PST-SM-PW801 Specifications | |

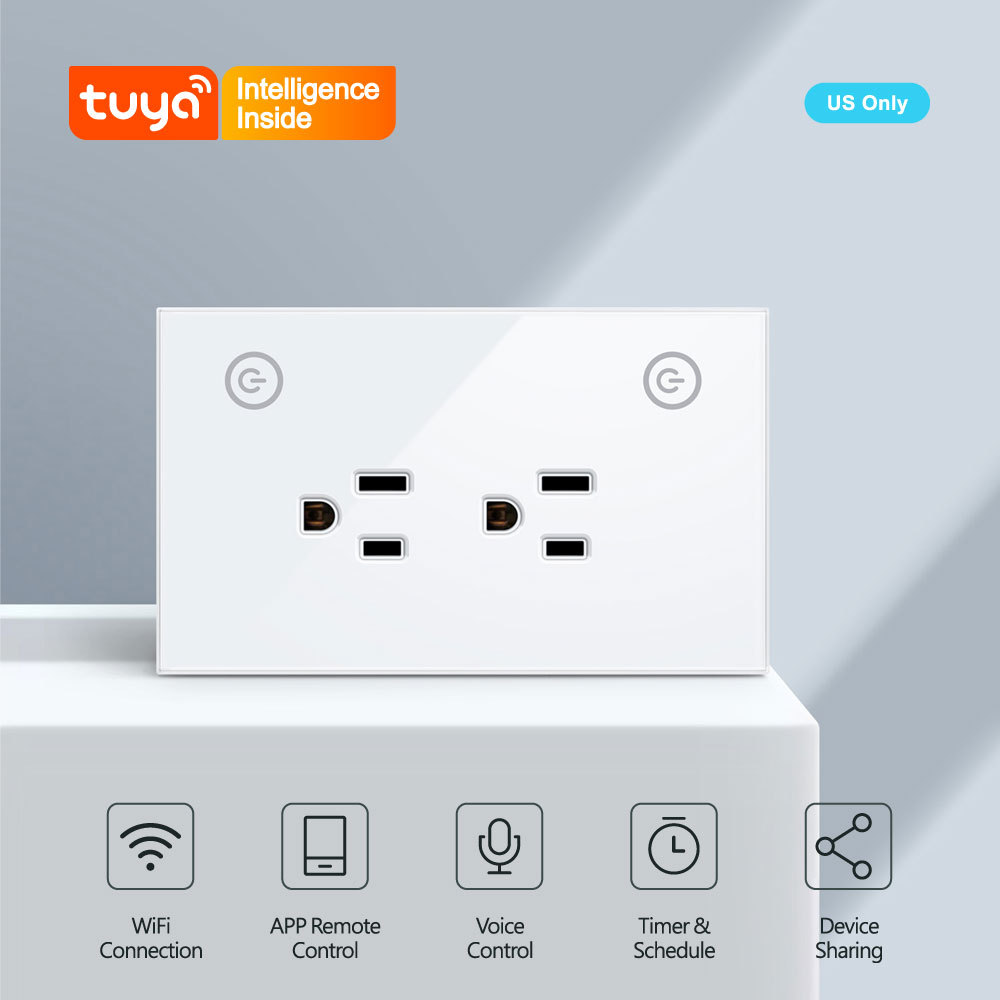

| Name | Tuya Smart US Version 2CH WiFi Smart Wall Socket |
| Model | PST-SM-PW801 |
| Power Strip Standard | US Standard |
| Input Voltage | AC100-240V 50/60Hz |
| Output Voltage | AC 110V-240V 10A |
| Switch mode | Switch/Mobile phone |
| APP | Tuya Smart or Smart Life |
| Rated Current | 1800W 15A |
| Material (Shell) | Fire - retardant material |
| Panel Material | Tempered glass panel |

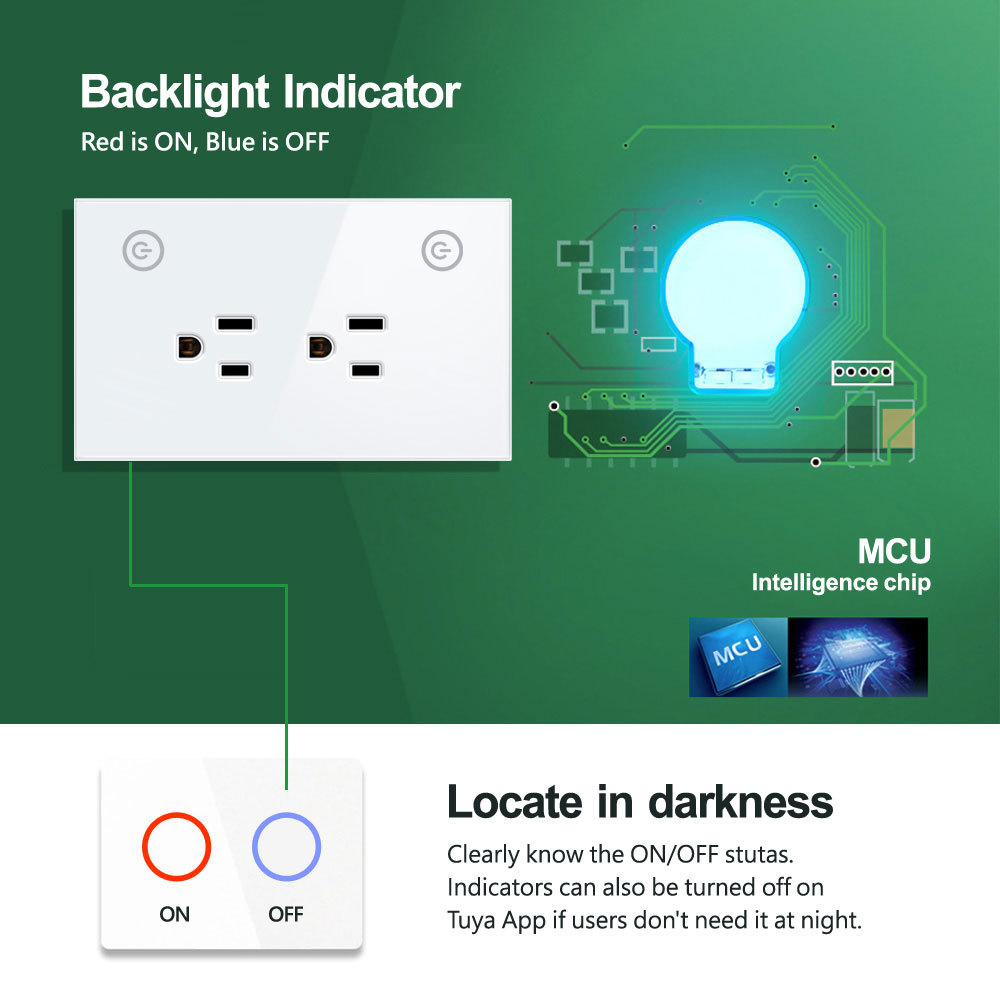

| Backlight Indicator | Red (ON), Blue (OFF); Indicators can be turned off via Tuya App |

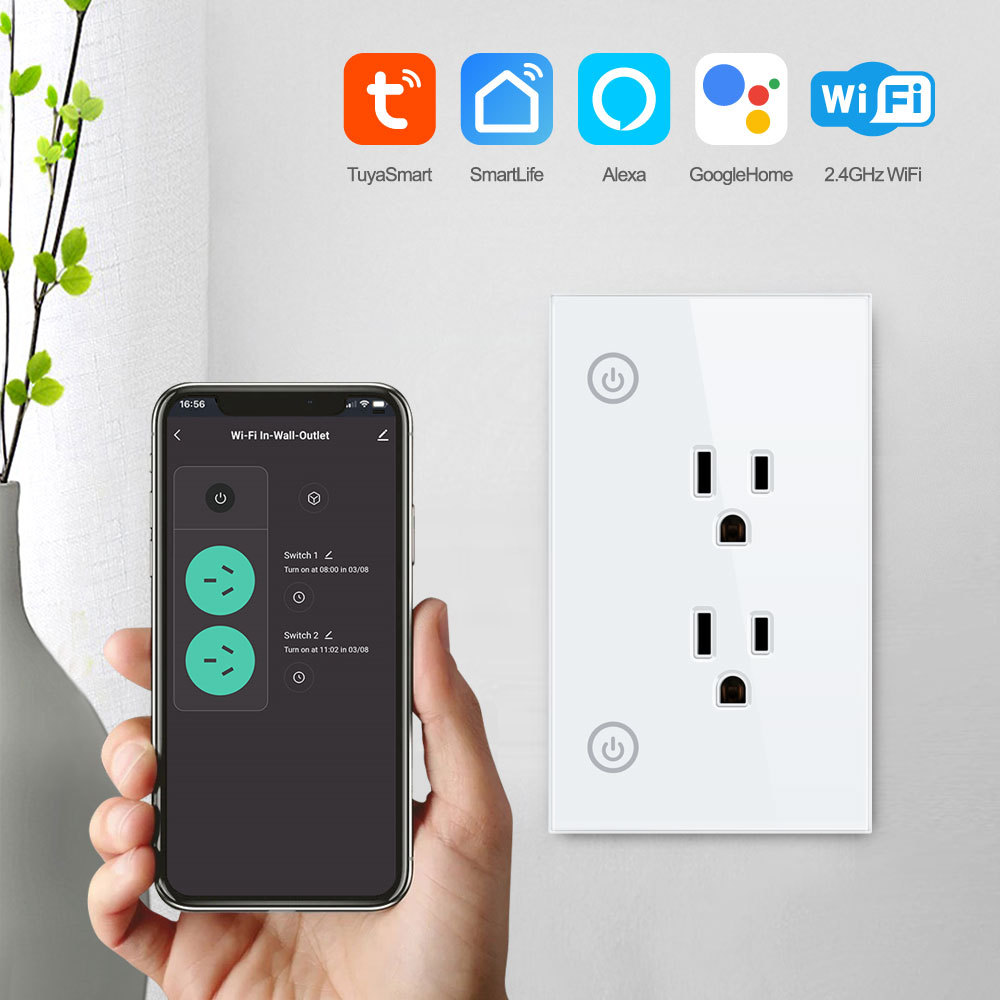

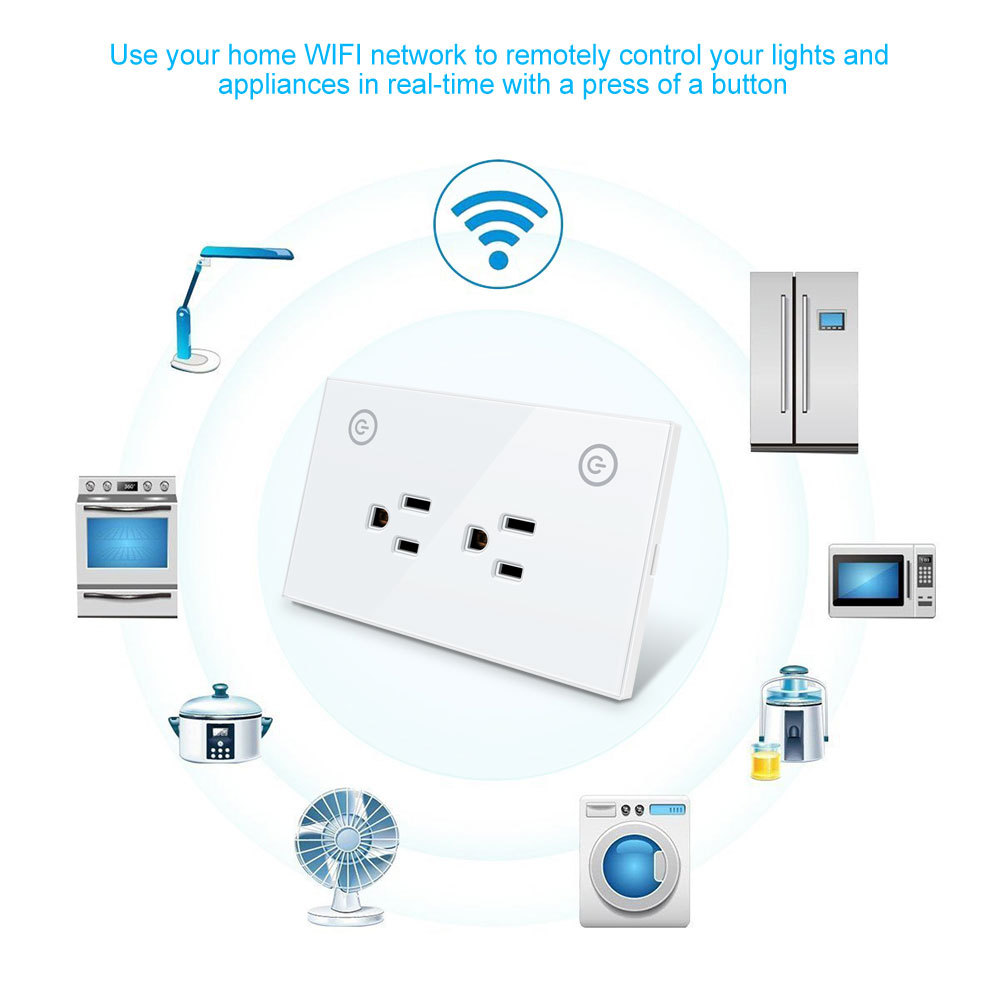

| Remote Control | Via Tuya Smart App, anytime/anywhere |

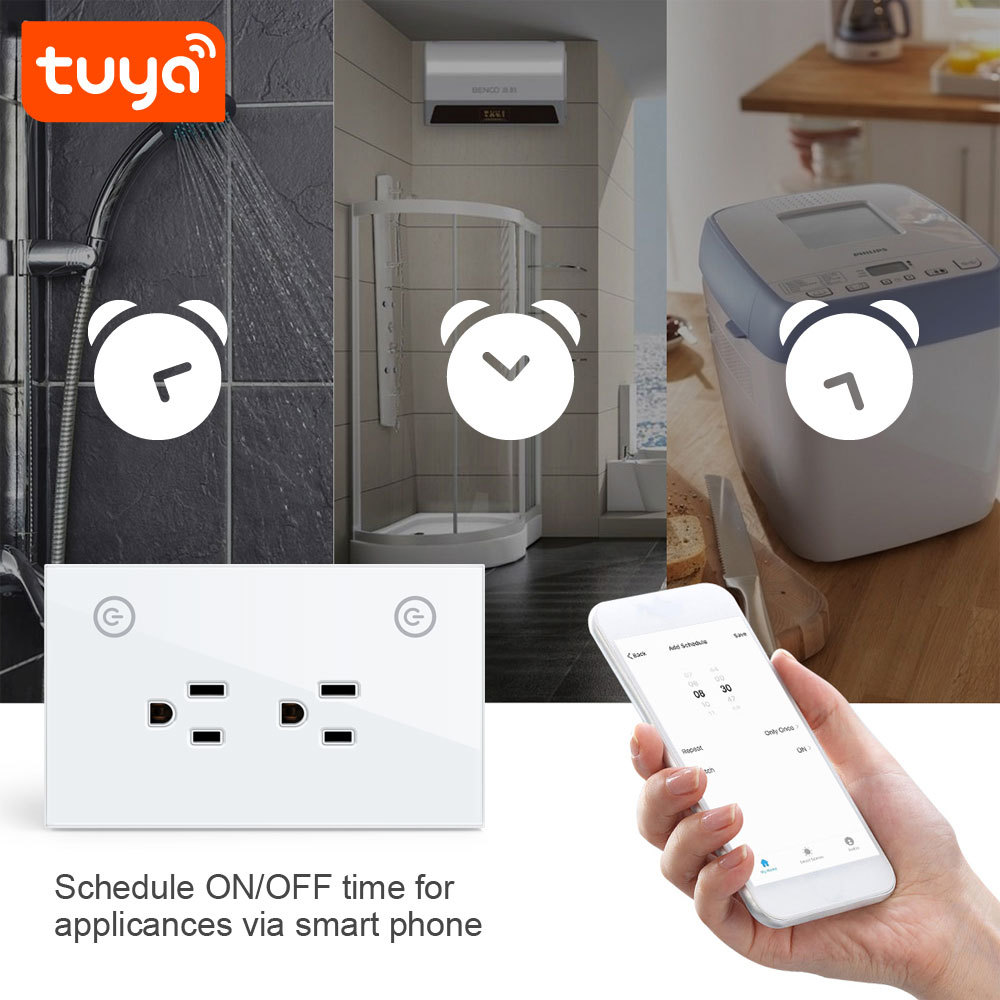

| Timer & Schedule | Support setting automatic on/off schedules |
| Installation | Wall - mounted |
| LED Backlight | Yes, for easy location in darkness |
| Device Sharing | Allow sharing device control with family members |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |

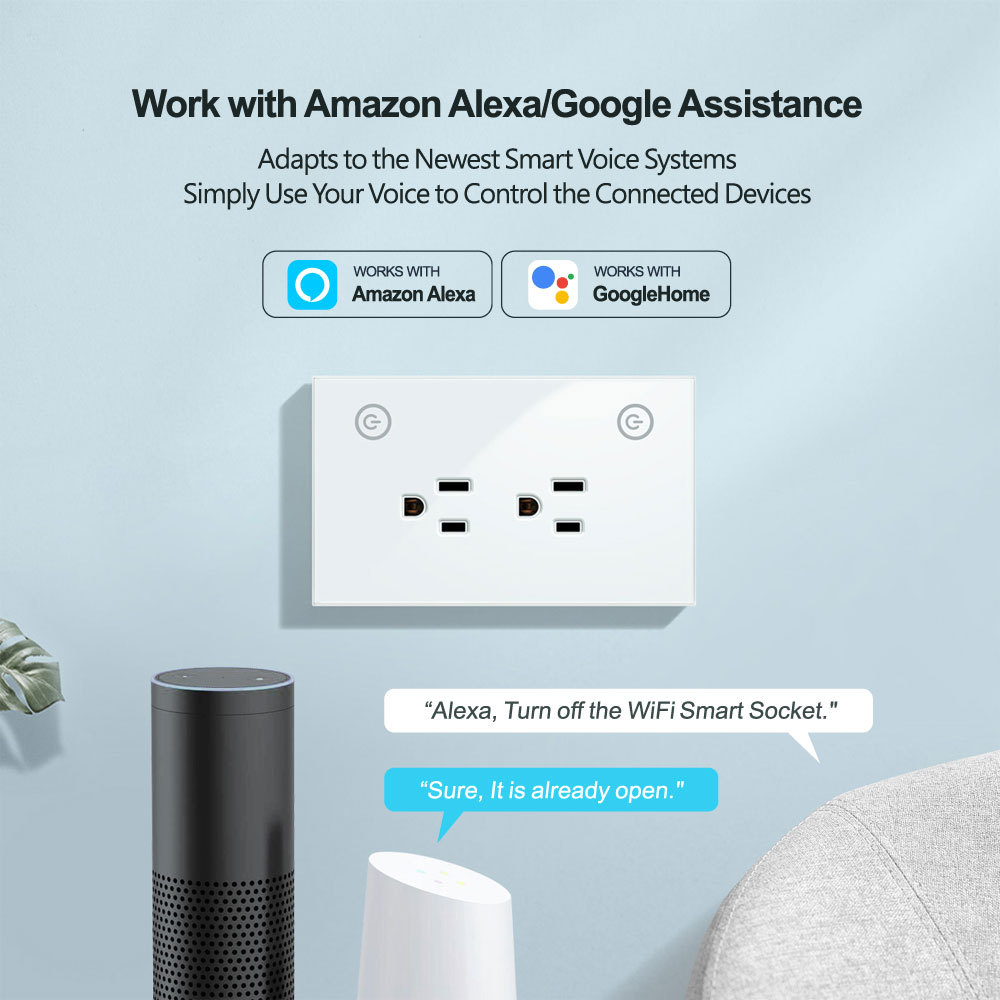

| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Color | Default White; Black Color MOQ 200PCS. |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 12.5*8*6cm |
| Weight | 0.21kg |
| PST-SM-PW801 Package List | |
| Smart Wall Socket | x1 |
| User Manual | x1 |
| PST-SM-PW801 Product FAQ | |
| Q1: What is the product name? A: Tuya Smart US Version 2CH WiFi Smart Wall Socket. |
|
| Q2: What is the maximum current the smart socket can support? A: It supports a maximum current of 16A. |
|
| Q3: Can I control it without WiFi? A: Physical buttons work without WiFi, but smart features (app/voice) need WiFi. |
|
| Q4: How do I install the socket? A: It’s wall - mounted. Turn off power, follow wiring labels (N, L, E), then restore power and pair via app. |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: How to set a timer? A: Open Tuya Smart App → select the socket → tap “Timer/Schedule” → set on/off times. |
|
| Q7: Can it work during power outages? A: No, but it retains settings and resumes smart functions when power returns. |
|
| Q8: Which voice assistants is the smart socket compatible with? It works with Amazon Alexa and Google Assistant. |
|
| Q9: Can I control the smart socket with my voice? Yes, you can control connected devices simply with your voice via Amazon Echo or Google Home. |
|
| Q10: How do I connect the smart socket to the app? Follow three steps: Download the Tuya app, connect to WiFi, and add the device in the app. |
|
| Q11: How to set up voice control? First, connect the power strip to the Tuya App. Then, in the Alexa or Google Assistant app, search for and enable the Tuya skill, and follow the prompts to link your Tuya account. After that, you can use voice commands like “Alexa, turn on the [device name] connected to the power strip”. |
|
| Q12: Can I set a schedule for the smart plug? A: Yes, you can use the Tuya or Smart Life app to set schedules for when the plug turns on or off. For example, you can schedule a lamp to turn on at 7 PM every day. |
|
| Q13: Is remote control possible? A: Absolutely. As long as your mobile device has an internet connection, you can open the app and control the smart plug from anywhere in the world. |
|
| Q14. Can I install it outdoors? A: No. It’s for indoor use. Protect from direct rain/water; it’s not waterproof. |
|
| Q15. What is device sharing? A: Device sharing allows you to share control of the smart plug with other family members. You can send an invitation via the app, and once accepted, they can also control the plug. |
|
| Q16. What plug standard does the smart socket use? It uses the US plug standard only. |
|
| Q17. Can I control multiple devices at once with the app? Yes, you can add and control multiple devices at once with the TuyaSmart app. |
|
| Q18. The smart plug is offline in the app. What should I do? A: Check if the plug is still plugged into the outlet and receiving power. Restart the plug and your router. If the problem persists, try resetting the smart plug (usually by pressing and holding the power button for a few seconds) and set it up again. |
|
| Q19: The power strip won't connect to Wi - Fi. What should I do? A: First, check if your Wi - Fi is 2.4GHz (it doesn't support 5GHz). Ensure the Wi - Fi password is correct. Restart the power strip and your router, then try the connection process again in the Tuya App. |
|
| Q20: Voice control isn't working. How to fix? A: Verify that the power strip is connected to the Tuya App and the voice assistant skill is properly linked. Check if the voice assistant is connected to the internet. Try re - enabling the skill and re - linking the accounts. |
|
| Q21: One of the outlets isn't working. What to check? A: First, make sure the device plugged into the outlet is in good condition. Check if the outlet is enabled in the Tuya App. If not, try resetting the power strip (follow the reset steps in the manual) and check again. |
|
| Q22: Is the socket fire - safe? A: Yes, the shell uses fire - retardant material to prevent fire risks. |
|
| Q23: Does the smart socket support timer settings? Yes, you can set automatic on/off schedules or auto-off routines for connected appliances. |
|
| Q24: How does the timer function improve daily life? It helps save time and makes life more comfortable, e.g., turning on the air conditioner before arriving home. |
|
| Q25: Can I share the smart socket with family members? Yes, you can easily share the device among family members via the app. |
|
| Q26: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| Q27: What safety features does the smart socket have? It has an integrated anti-surge circuit for stable surge immunity, making it safer and more durable. |
|
| Q28: Can the smart socket work with other Tuya smart products? Yes, it supports linkage control with all Tuya smart products. |
|
| Q29: Can the smart socket start/stop working based on environmental factors? Yes, connected devices can automatically start/stop based on temperature, location, and time. |
|
| Q30: Does it have surge protection? A: No, main safety features are fire - retardant shell and overload protection (via 16A limit). |
|
| PST-SM-PW801 OEM & ODM Service | |
| Q31. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS: each add 0.15USD/PCS. If over 2000PCS. OEM box free, OEM user manual: 0.15USD/PCS. Laser logo: 100PCS |
|
