| PST-008-F Specifications | |

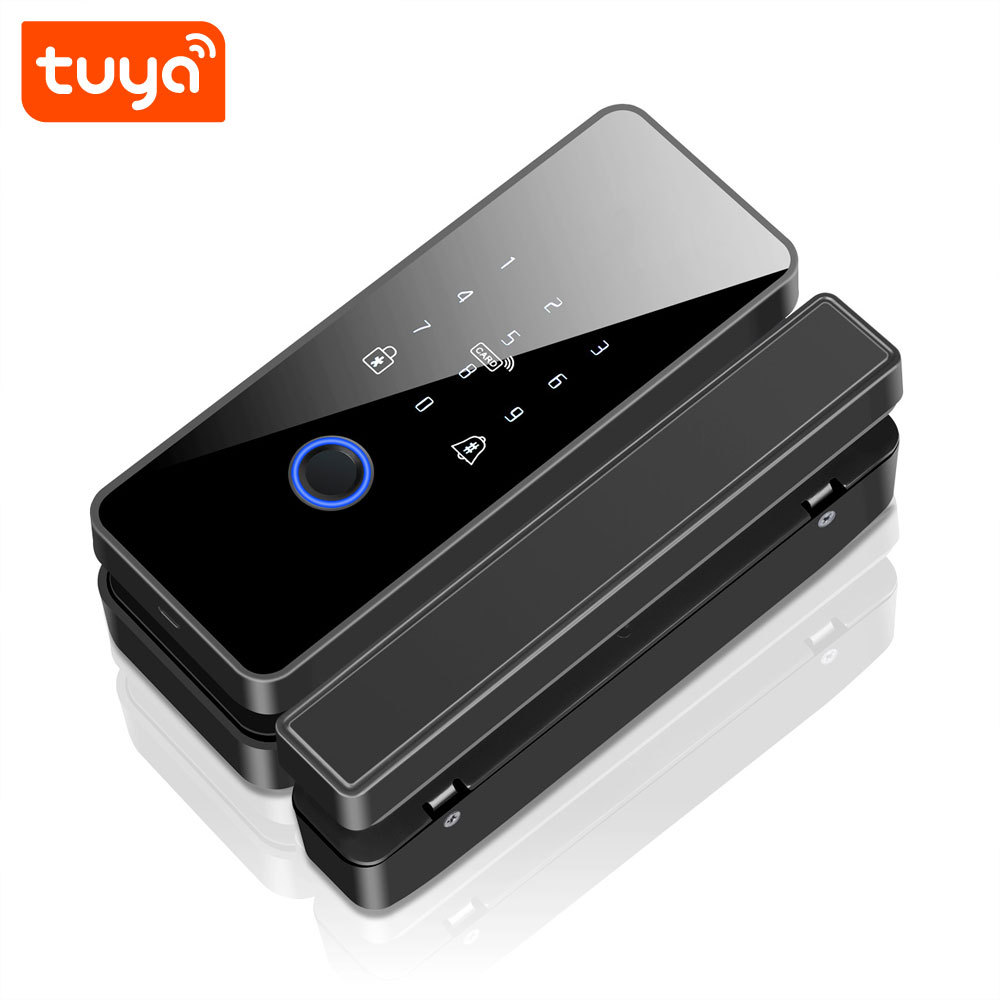

| Product Name | Tuya Smart Bluetooth Glass Door Lock without Mechanical Key |
| APP Name | Tuya Smart or Smart Life |
| Color | Black, Silver optional |
| Material | Alloy + Tempered Glass Panel+ABS |
| Unlock Way | Fingerprint, Password, IC Card, mobile NFC, App, temporary password, RF433 Remote(optional) |
| RF433 Remote | Optional: Need controller function extra 1.9USD, Remote controller extra: 2.9USD |
| Opening Method | Left and Right Interchange |
| Language Option | Chinese and English |
| User Capacity | Fingerprint 50, Password + Card 249, Remote Control 10 |
| Fingerprint Sensor Type | Semiconductor Sensor |
| Card types | IC Card (13.56Mhz M1 Card) |
| Emergency power supply | TPC data interface (can be powered by a power bank) |
| Power Supply | Four AA alkaline batteries-(not included) |
| Working Voltage | DC6V |
| Applicable door thickness | Frameless glass: 10-12mm (15mm custom iron plate) (door gap size 4-10mm); Framed glass and wooden doors: 40-70mm |
| Operating current | Static ≤135uA; Dynamic ≤300mA |
| Application | Office, Commercial, Home: Glass doors, sliding doors, wooden doors, iron doors, aluminum alloy doors, etc. |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Operation Temp. | –10°C to +50°C |
| Humidity | 5%--95% non-condensing |

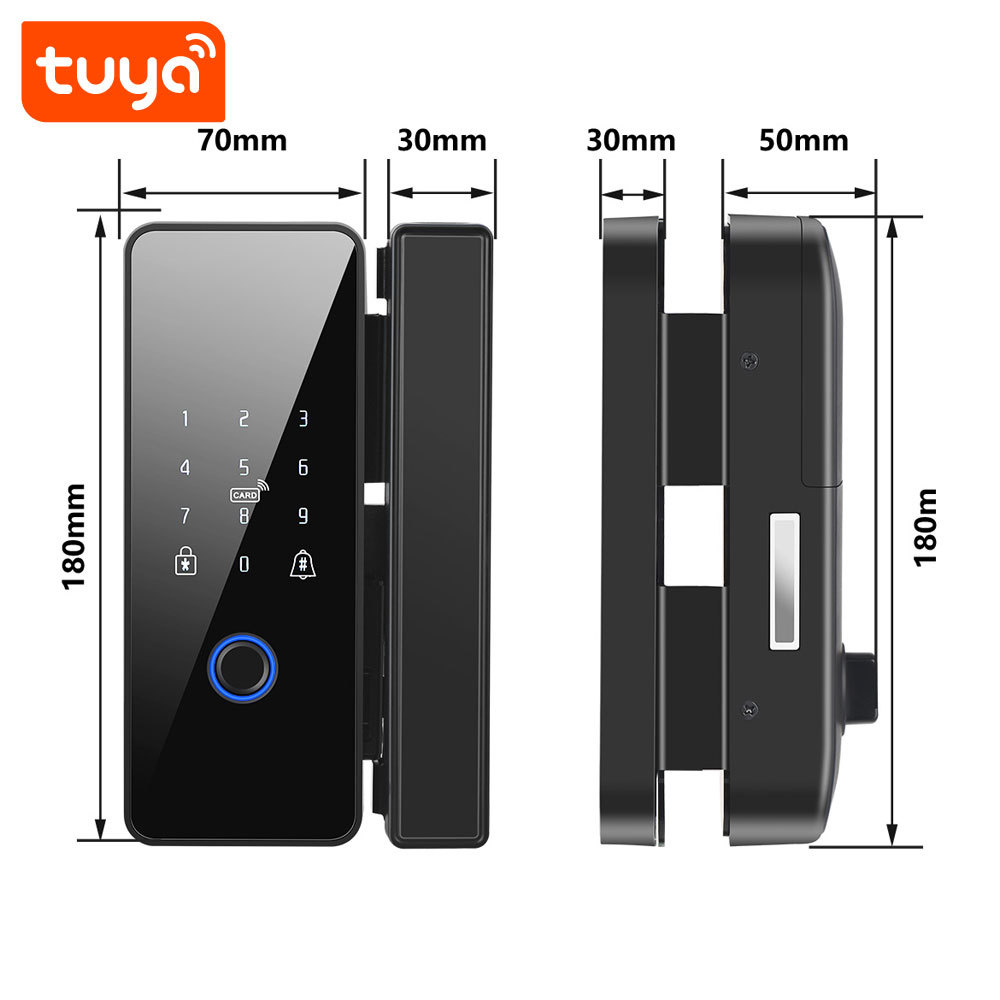

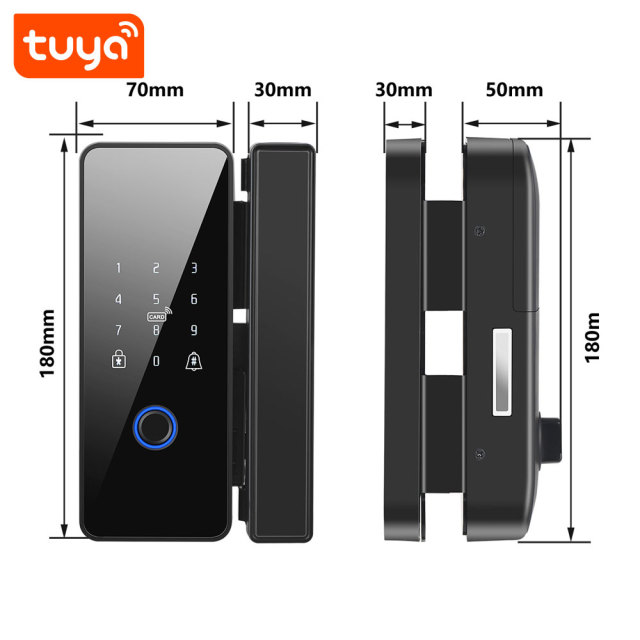

| Product Size | Length: 180mm, Width: 70mm, Thickness: 26mm |
| Unit Box Dimension | 23*9.5*19CM |
| Unit Weight | 1.3Kg |
| Carton Packing | 14PCS per CTN: 70.5*24.340.3CM , Box weight: 18.9kg |
| PST-008-F Package List | |
| Fingerprint Door Lock | x1 |
| Glue | x1 |
| ID Card | x2 |
| Screws and Others | x1 |
| Use Manual | x1 |
| PST-008-F Product FAQ | |
| Q1: What is this Tuya Smart Glass Door Lock? A: It’s a smart lock designed for glass doors, supporting fingerprint, password, RFID card, and Tuya app (Bluetooth) unlocking, ideal for offices, commercial spaces, and homes. |
|
| Q2: How many unlocking methods does it have? A: It has 4 unlocking methods: fingerprint, password, RFID card, and Tuya Smart/Smart Life app via Bluetooth. |
|
| Q3: How fast is the fingerprint recognition? A: The semiconductor fingerprint sensor unlocks in ≤0.3 seconds with a recognition rate of ≥99%. |
|
| Q4: Is the password secure against peeping? A: Yes, it supports virtual passwords—you can add random digits before the correct password to prevent peeping. |
|
| Q5: Can I control it via my smartphone? A: Yes, it works with the Tuya Smart or Smart Life app via Bluetooth for remote unlocking, user management, and access records. |
|
| Q6: What batteries does it use and how long do they last? A: It uses 4×AA batteries, with a battery life of ≥12 months depending on usage frequency. |
|
| Q7: Will I get a low battery alert? A: Yes, it has a low battery reminder via voice prompt and app notification. |
|
| Q8: Is it waterproof? A: It has an IPX4 waterproof rating, resistant to splashing water, ideal for indoor or semi-outdoor glass doors. |
|
| Q9: Can I generate temporary passwords? A: Yes, you can create temporary passwords via the app for guests or short-term access. |
|
| Q10: What glass door thicknesses is it compatible with? A: Glass door thickness(only for without frame glass door):10-12mm; Framed glass and wooden doors 40-70mm; |
|

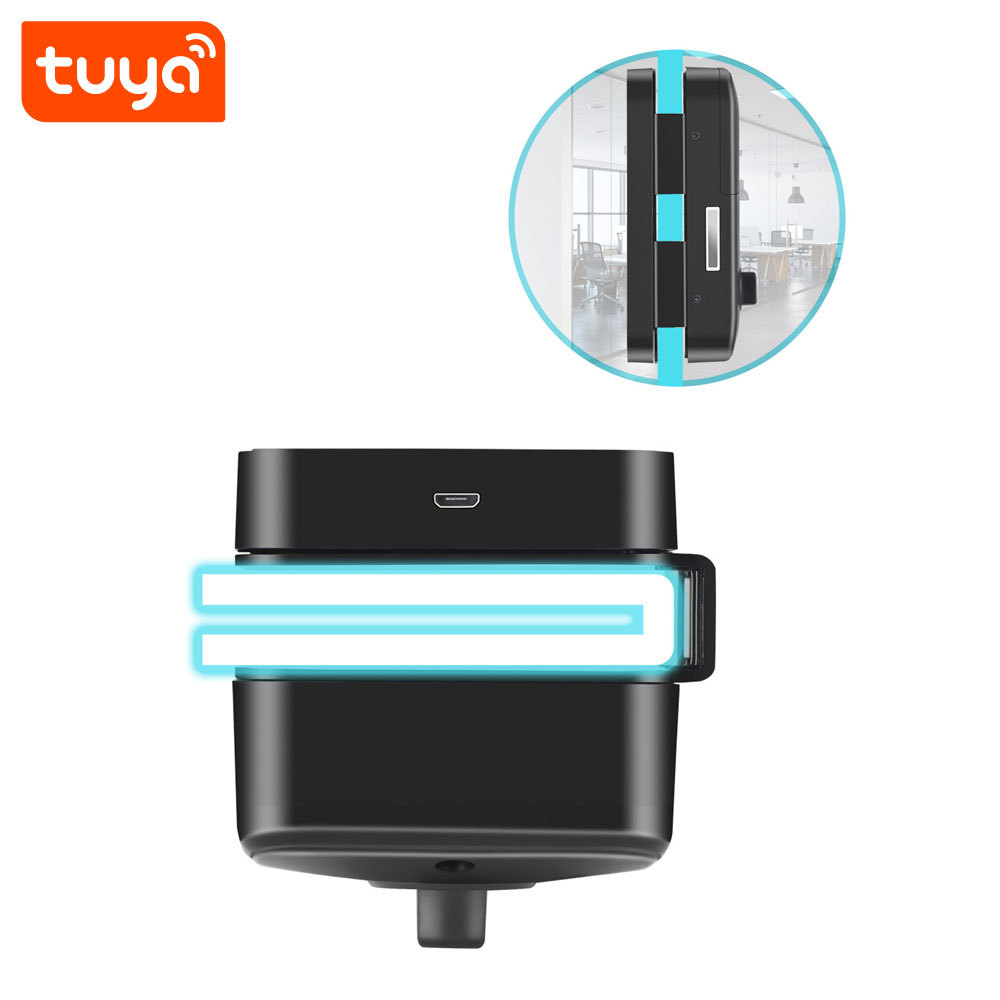

| Q11: How is it installed? A: It uses a clamp-on installation method—no drilling required, making installation quick and easy on glass doors. |
|
| Q12: Can I view unlock records? A: Yes, the Tuya app records all unlock activities, including who unlocked and when. |
|
| Q13. What smart modes does it have? A: It has Normal Mode, Privacy Mode (locks from the inside), and Passage Mode (stays unlocked temporarily). |
|
| Q14. Fingerprint sensor is slow—how to fix? A: Clean the sensor (no moisture/dust), re - enroll the fingerprint for better accuracy. |
|
| Q15: Can it be integrated with other Tuya smart devices? A: Yes, it can be integrated into the Tuya IoT ecosystem to work with other smart devices via the app. |
|
| Q16: Will I receive real-time alerts? Yes, it sends real-time alerts to ensure safety. |
|
| Q17: Is it suitable for home use? A: Yes, it’s suitable for home glass doors (like patio or balcony doors) as well as offices and commercial spaces. |
|
| Q18: Can I set temporary access for guests? A: Yes, you can create temporary passwords or RFID cards via the app, which can be time-limited. |
|
| Q19: Does it have a physical key? A: No, it relies on electronic unlocking methods (fingerprint, password, card, app) and emergency power for backup. |
|
| PST-008-F OEM & ODM Service | |
| Q20. Can make OEM? A: Yes, we can. Box & manual OEM: 500PCS; Silk-Screen logo OEM: 100PCS: |
|
