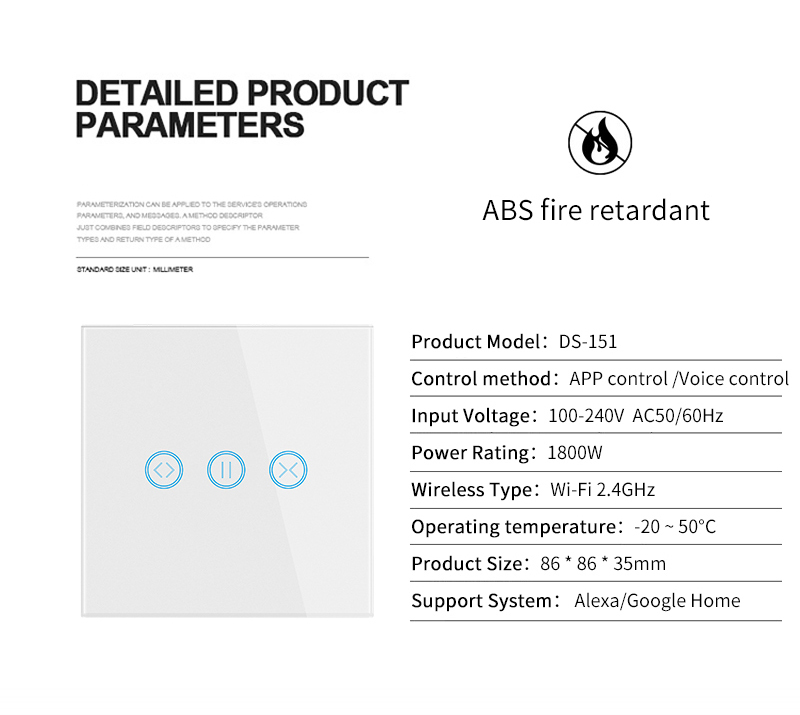

| PST-DS-151 Specifications | |

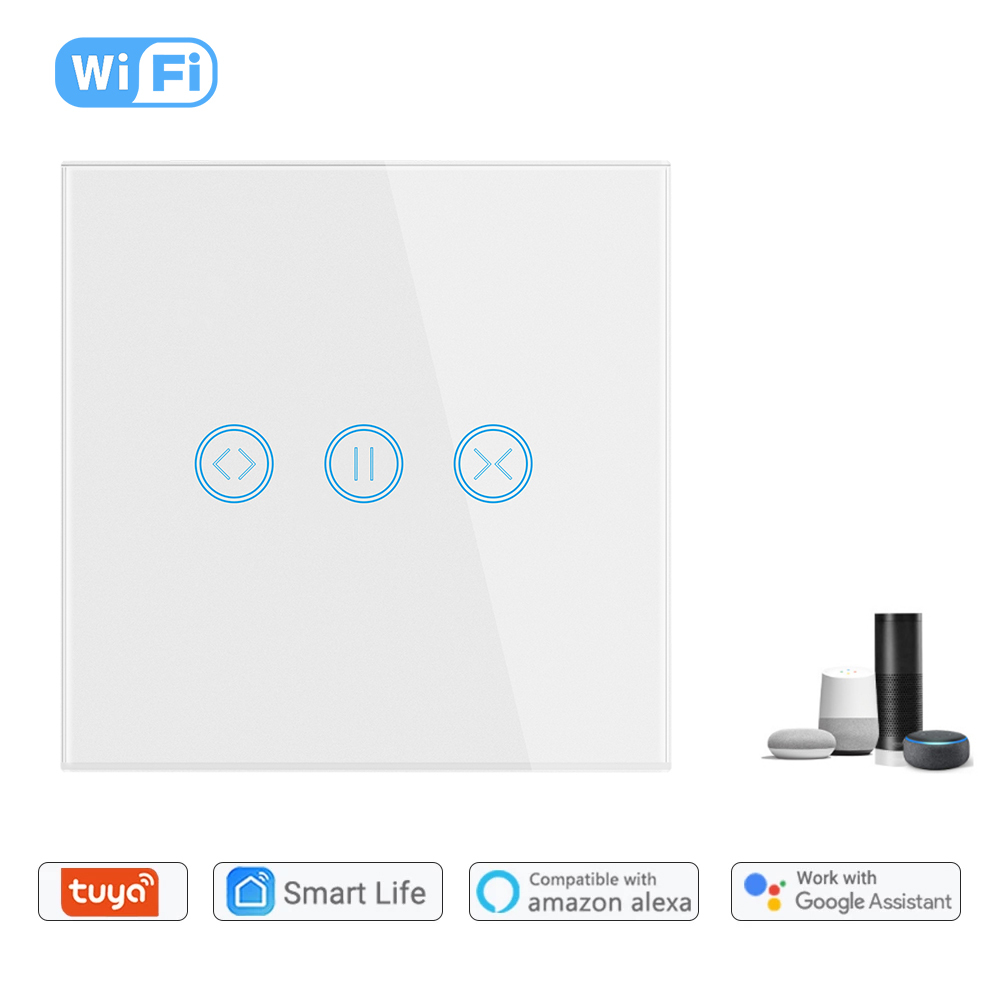

| Product Name | Tuya Smart WiFi EU Curtain Switch |
| APP Name | Tuya Smart or Smart Life |

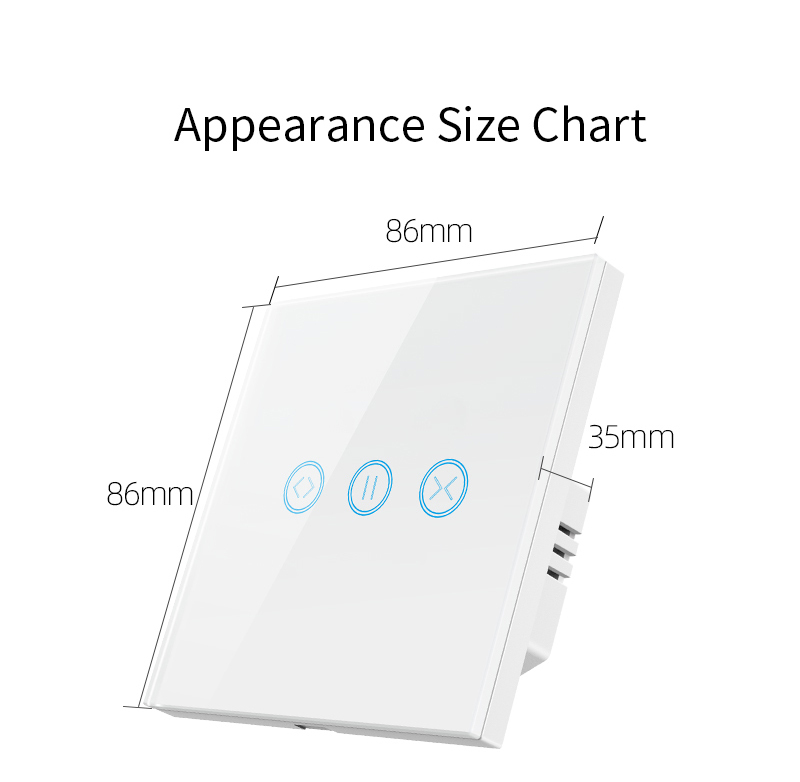

| Switch | EU Version (86*86*35mm) |
| Voltage | AC 100-240V, 50/60Hz 10A |
| Control Method | WiFi, Voice (Alexa/Google Home), App (Tuya Smart/Smart Life), Touch |
| Switch mode | Touch/Mobile phone |
| Max Power Load | 1800W |
| Installation Type | Flush mount (EU standard 86-type wall box) |
| Function | Remote control, Timing, Scheduling, Scene linkage |
| Curtain Motor Compatibility | Work with most standard AC-driven roller blinds and curtains |
| Protection Features | Overload protection, Overvoltage protection |
| Pairing Mode | EZ mode / AP mode |
| Power Consumption | Standby <0.5W |
| Lifespan | The button life is 100000 times. |
| Switch Type | Single pole (1 gang) |
| Back Shell Material | Fire-Retardant PC |
| Wiring Requirement | Neutral Wire Required |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Material | Panel: Ultra clear tempered glass panel; Back shell: fire restriction PC |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%--95% non-condensing |
| Color Options | White, Black, Gold (Optional) |
| Unit Box Dimension | 10.6*10*5cm |
| Unit Weight | 0.22kg |
| Carton Packing | 50PCS per ctn: 11.4kg, 51.5x22x26.5CM |
| PST-DS-151 Package List | |
| Touch Switch | x1 |
| User Manual | x1 |
| Screws | x2 |
| PST-DS-151 Product FAQ | |
| Q1: Can I control multiple curtain switches with one app? A: Yes, you can add and manage multiple switches in the app for centralized control. |
|
| Q2: Is the panel material durable? A: The panel is made of tempered glass, which is scratch-resistant and durable. |
|
| Q3: Can I control it via my phone? A: Yes, it can be controlled remotely via a dedicated smart home app (like Tuya Smart, Smart Life) when connected to WiFi. |
|
| Q4: Does it support voice control? A: Yes, if connected to smart assistants like Amazon Alexa or Google Assistant, you can control the switch with voice commands. |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: Is it suitable for DC curtain motors? A: No, it is designed for standard AC curtain motors. |
|
| Q7: Does it have a timer function? A: Yes, you can set timers via the Tuya/Smart Life App. |
|
| Q8: How do I install it? A: Follow the wiring diagram (requires live and neutral wires) and use the included mounting accessories. |
|
| Q9: Can I group it with other Tuya devices? A: Yes, you can group it with other Tuya smart devices via the app for unified control. |
|
| Q10: What’s the response time for commands? A: The response time is typically less than 1 second. |
|
| Q11: Can it work without WiFi? A: Without WiFi, you can still use the touch function to control the switch locally. Remote app and voice control require WiFi. |
|
| Q12: How to reset the switch? A: Usually, long-press the touch area for a certain time (like 5 - 10 seconds) until the indicator light flashes to reset it to factory settings. |
|
| Q13: Does it have status indicators? A: Yes, there are indicator lights (like the small blue light) to show the switch's status (on/off, pairing mode, etc.). |
|
| Q14: Can I share control with family members? A: Yes, through the app, you can share device control permissions with other family members' accounts. |
|
| Q15: Does it support scene settings? A: Yes, the app allows you to create scenes (like "Home Mode" to turn on multiple devices including this switch). |
|
| Q16: What is the wireless control range? A: The wireless range is up to 30 meters in an open area (may vary with obstacles). |
|
| Q17: What if the touch function stops working? A: First, check if the power supply is normal. If power is okay, try resetting the switch. If the problem persists, contact customer support. |
|
| Q18: How do I install it? A: It uses a flush mount design, fitting standard EU 86-type wall boxes. Follow the user manual for wiring. |
|
| Q19: How do I reset the switch? A: Follow the reset instructions in the user manual, usually involving pressing and holding the touch panel for a few seconds. |
|
| Q20: What is the maximum curtain length it can handle? A: It is compatible with motors driving curtains up to 5 meters (varies by motor power). |
|
| Q21: How durable is the ABS material? A: ABS is a durable plastic material, resistant to impact and wear, suitable for long-term use as a wall switch. |
|
| Q22: Can I control it when I’m away from home? A: Yes, remote control via the app is possible as long as the switch and your phone have internet. |
|
| PST-DS-151 OEM & ODM Service | |
| Q23. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 2000PCS; Laser logo: 300PCS. Icon design: 300PCS |
|
