| PST-TAP08 Specifications | |

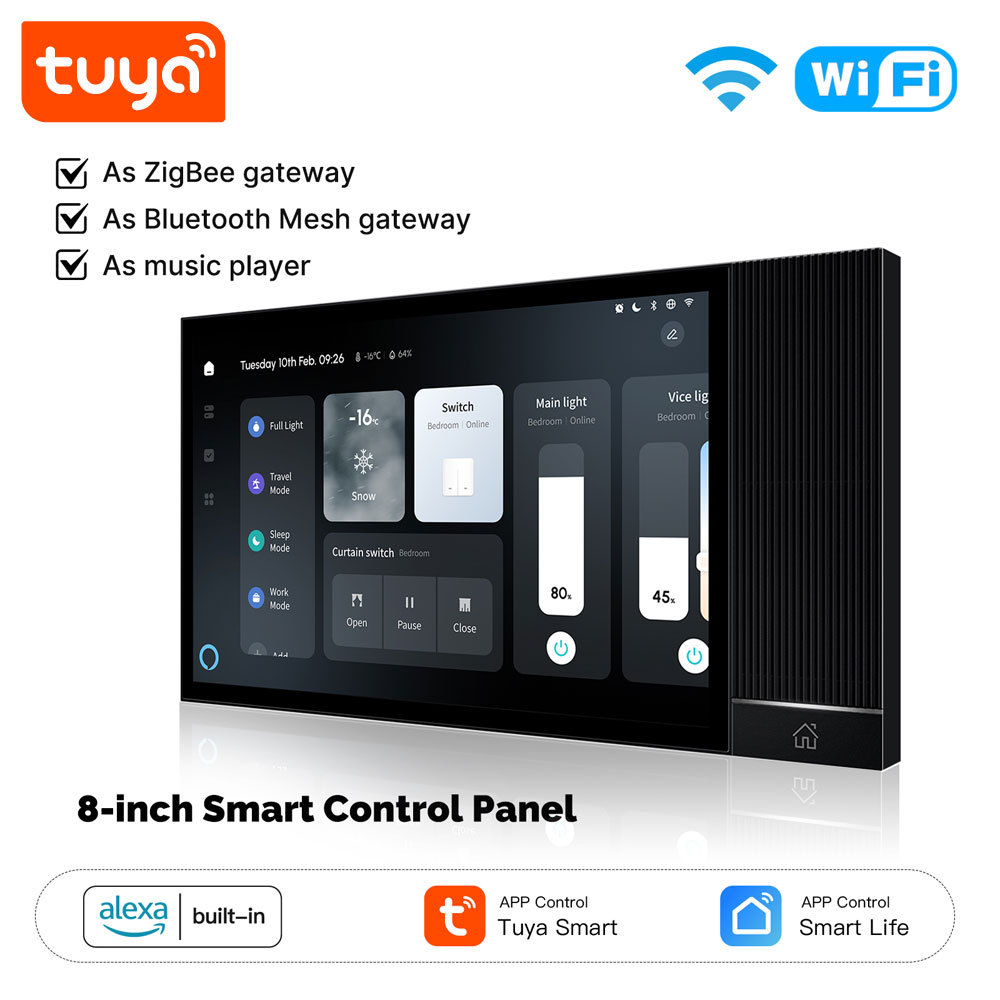

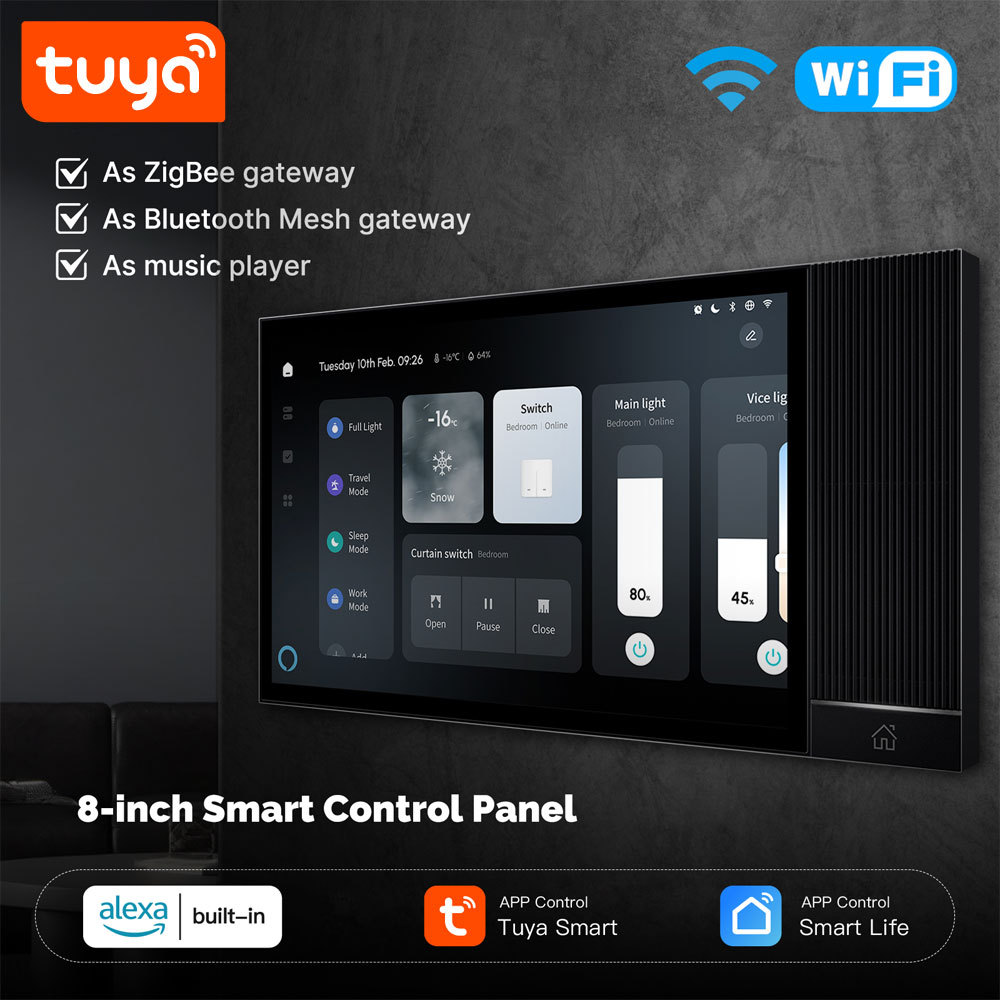

| Product Name | Tuya Smart Touch Screen 8-inch Control Panel with ZigBee, BLE, and Music Features – With Alexa Built-In |
| APP Name | Tuya Smart & Smart Life Mobile App (iOS & Android) |
| Screen Size | 8-inch Capacitive Multi-touch Screen |
| Built-in Voice Assistant | Amazon Alexa Far-field Voice Control |
| Multi-mode Gateway Standard | WiFi 2.4GHz + BLE5.0 + Zigbee 3.0 3-in-1 |
| Max Supported Zigbee Devices | Up to 60 Zigbee Smart Devices |
| Max Supported BLE Mesh Devices | Up to 60 BLE Mesh Devices |
| Local Control | Support LAN Offline Control without Internet |
| IR Remote Function | Built-in Universal IR Transmitter for Traditional Home Appliances |
| Relay Output | 2 Built-in Dry Contact Relays for Direct Light/Socket Control |
| Audio System | 2×2W HiFi Built-in Speakers |
| External Audio Interface | Support Connect 2 Extra Background Music Speakers |
| Music Platform | Spotify & Local Offline Music Playback |
| Scene Modes | Home Mode / Sleep Mode / Guest Mode / Custom Light Scenes |
| Light Adjustment | Cool White / Warm White Brightness & Color Temperature Regulation |
| Power Supply | AC 100-240V 50/60Hz Wide Voltage Input |
| Installation Standard | 86-type Wall Embedded Mount |
| Control Method | Touch Screen / Alexa Voice / Tuya Smart APP / Physical Button |
| Device Sharing | Multi-user Family Device Sharing Permission Management |
| Automation Linkage | Custom Smart Scene Automation for Whole House Tuya Devices |
| Microphone Quantity | Dual Microphones for Long-distance Voice Wake-up |
| Panel Material | High-strength Tempered Glass Touch Surface + ABS Flame Retardant Shell |
| Operating Temperature | -10℃ ~ +60℃ Indoor Use Only |
| Storage Function | Scene & Music Local Offline Storage |
| Security Function | Whole-house Equipment Status Real-time Monitoring |
| Network Protocol | IEEE802.11b/g/n 2.4GHz WiFi (5G WiFi Not Supported) |

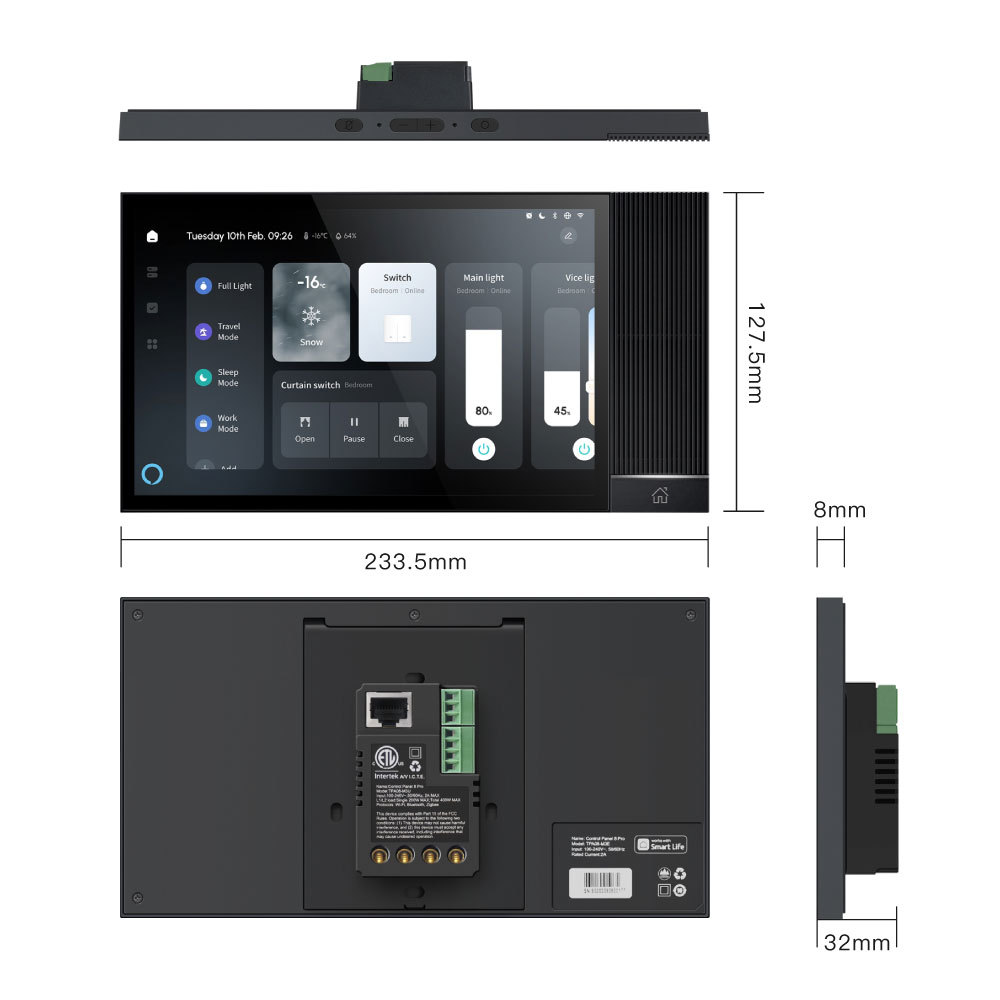

| Dimension | 233.5mm × 149.2mm Wall Panel Size |
| Application Scenarios | Villa |
| Box Dimension | 29×18×7cm |
| Unit Weight | 0.885kg |
| PST-TAP08 Package List | |
| 8-inch Smart Control Panel | x1 |
| Installation Bracket | x1 |
| User Manual | x1 |
| Installation Screw Kit | x1 |
| PST-TAP08 Product FAQ | |
| Q1: What should an installer check before commissioning the TAP08? A: Confirm the selected EU/US/Asian backplate, AC wiring, network access, device placement, speaker connections and the planned Zigbee/BLE device list before handover. |
|
| Q2: What happens to local control if the internet connection is interrupted? A: The source supports LAN offline control for preset scenes, lighting and relay functions. Cloud-dependent remote access and third-party services may require the network to be restored. |
|
| Q3: How should an integrator design the network for a multi-room project? A: Use stable WiFi coverage at the panel location, keep the panel on the intended local network, and verify device discovery and scene execution in every room before project acceptance. |
|
| Q4: What should be checked if a Zigbee device cannot be discovered? A: Confirm the device is in pairing mode, within reliable range, reset if it was bound to another gateway, and verify that the panel has available gateway capacity and the correct home selected. |
|
| Q5: What should be checked if a BLE Mesh device is offline? A: Check the device power, mesh path, gateway location and account home. Test the device locally and review whether another nearby node or network condition is affecting the mesh route. |
|
| Q6: Can an installer separate guest permissions from owner permissions? A: The source supports multi-user sharing and Guest Mode. Configure the guest account and scene permissions separately so temporary users cannot access private whole-house controls. |
|
| Q7: How should hotel operators use Guest Mode? A: Create a restricted guest scene set for lighting, climate or entertainment, and keep private household, security and administrative controls outside the guest permission scope. |
|
| Q8: Why might an Alexa voice command fail while touch control works? A: Check Alexa account linking, device discovery, naming, language/region settings and network status. Touch control and third-party voice services use different service paths. |
|
| Q9: How should voice scenes be named for a commercial project? A: Use short, unique names linked to room and function, such as room-light or meeting-mode, and test pronunciation with the target language before handover. |
|
| Q10: What should be checked when an IR appliance does not respond? A: Confirm the appliance is an IR-controlled model, select the correct remote category, aim or position the panel appropriately, and test the appliance locally before rebuilding the scene. |
|
| Q11: Can one panel operate multiple IR appliances in different rooms? A: The panel includes a universal IR transmitter, but IR range and line-of-sight remain installation factors. Confirm coverage and avoid placing the panel behind obstacles. |
|
| Q12: How should the two dry-contact relays be commissioned? A: Identify each relay circuit, verify the load and wiring, test manual switching first, then test APP control and scene linkage. Do not exceed the relay's confirmed electrical rating. |
|
| Q13: What should be done if a relay scene does not execute? A: Check relay wiring, device online status, scene enablement, trigger conditions and whether the relay is already in the requested state. Test the relay manually before troubleshooting automation. |
|
| Q14: Can the panel directly control a curtain motor? A: The source supports Tuya curtain linkage. Confirm the motor's Tuya compatibility, gateway path and open/close/stop capabilities before project delivery. |
|
| Q15: How should external background speakers be integrated? A: Confirm the external audio interface, speaker impedance, wiring route and amplifier requirements. Test both internal and external audio modes before installation is closed. |
|
| Q16: Why might local music playback fail after a power restart? A: Check local file availability, storage status, audio output selection and system restart behavior. Verify that the audio file format is supported by the production software. |
|
| Q17: How should a distributor handle music licensing for commercial projects? A: The panel supports Spotify and local playback, but commercial use may require separate content licensing. Confirm platform availability and licensing responsibilities in the target market. |
|
| Q18: Can lighting scenes combine brightness and color-temperature changes? A: The source supports cool/warm white adjustment and brightness/color-temperature regulation. Test the target lamp's capabilities because the final result depends on the lamp profile. |
|
| Q19: Why might a scene execute only some actions? A: Check each target device's online status, capability profile, account home, scene delay and automation conditions. Split a large scene into smaller test groups to identify the failing action. |
|
| Q20: How should an installer verify offline scene behavior? A: Disconnect the external network after commissioning, then test the preset local scenes, relay actions and lighting controls. Record which actions remain local and which services require cloud access. |
|
| Q21: What should be collected for a gateway capacity complaint? A: Record the panel version, paired Zigbee/BLE device count, device types, pairing failures, network status and APP screenshots. Do not assume the advertised maximum is available in every topology. |
|
| Q22: Can the panel be used in a villa or smart apartment project? A: Yes, the source lists villas and smart apartments. Complete room-by-room network, gateway, relay, IR, audio and scene testing before final acceptance. |
|
| Q23: What should be checked for SPA or hotel installation environments? A: Use an indoor dry location, protect the panel from steam and liquid, verify ventilation and ensure the selected wall box/backplate matches the market version. |
|

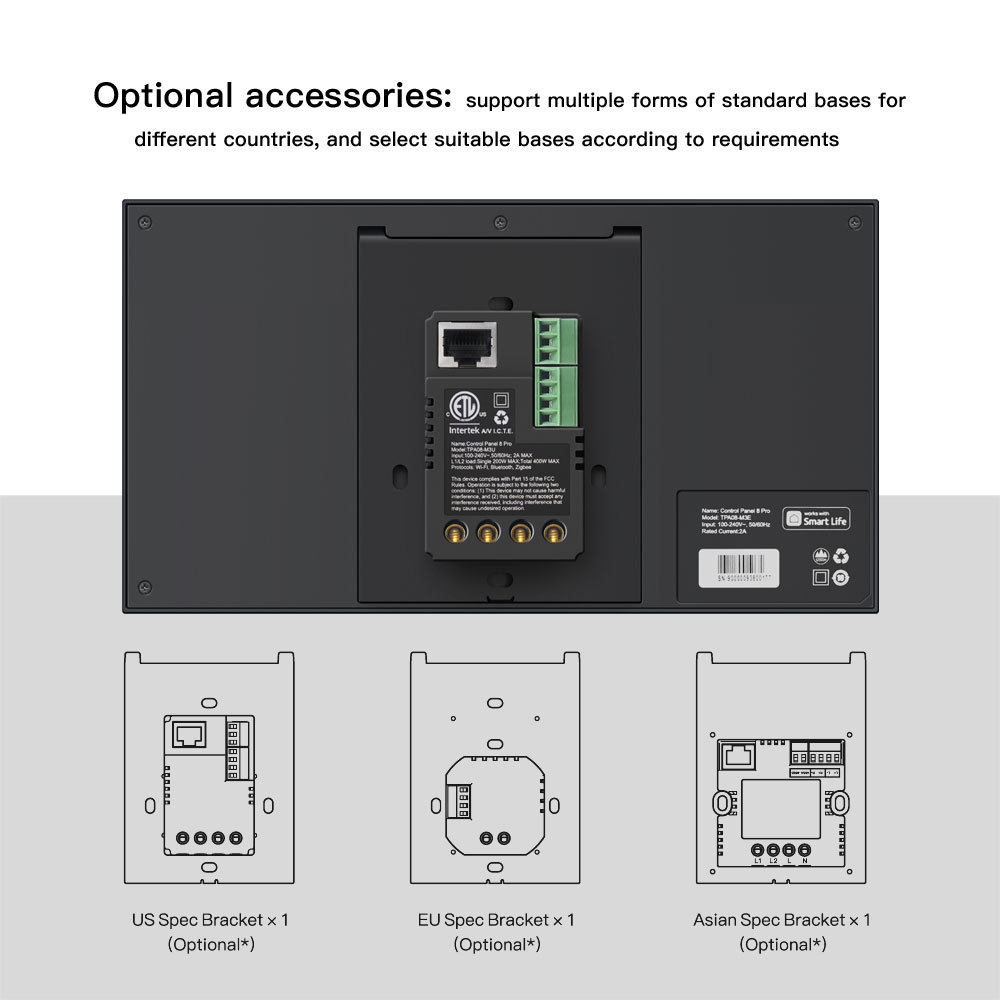

| Q24: How should the 86-type wall installation be prepared? A: Confirm the wall box, backplate version, AC wiring depth, bracket alignment and service clearance before fixing the panel. EU, US and Asian backplates are optional by market. |
|
| Q25: What should be done if the touchscreen becomes unresponsive? A: Check power stability, remove external interference, restart according to the manual and verify whether the issue is isolated to the panel or the connected devices. |
|
| Q26: How should an installer handle a panel replacement? A: Record the original home, scenes, paired devices, permissions and media configuration before replacement, then re-pair and test the new panel step by step. |
|
| Q27: Can the panel be customized for OEM projects? A: OEM/ODM availability, UI branding, packaging, manual, firmware, voice-service region and MOQ must be confirmed for each project; do not publish a fixed MOQ without a current quotation. |
|
| PST-TAP08 OEM & ODM Service | |
| OEM / ODM service available. Logo, customized packaging, manual, firmware, MOQ, warranty and product certificates to be confirmed per project. | |
