| Moel Number: PST-IOT-C23B | |
| Product Name: Tuya Smart 4MP HD Indoor WiFi Camera with IOT Alarm system | |
| APP Name: Tuya Smart or Smart Life | |

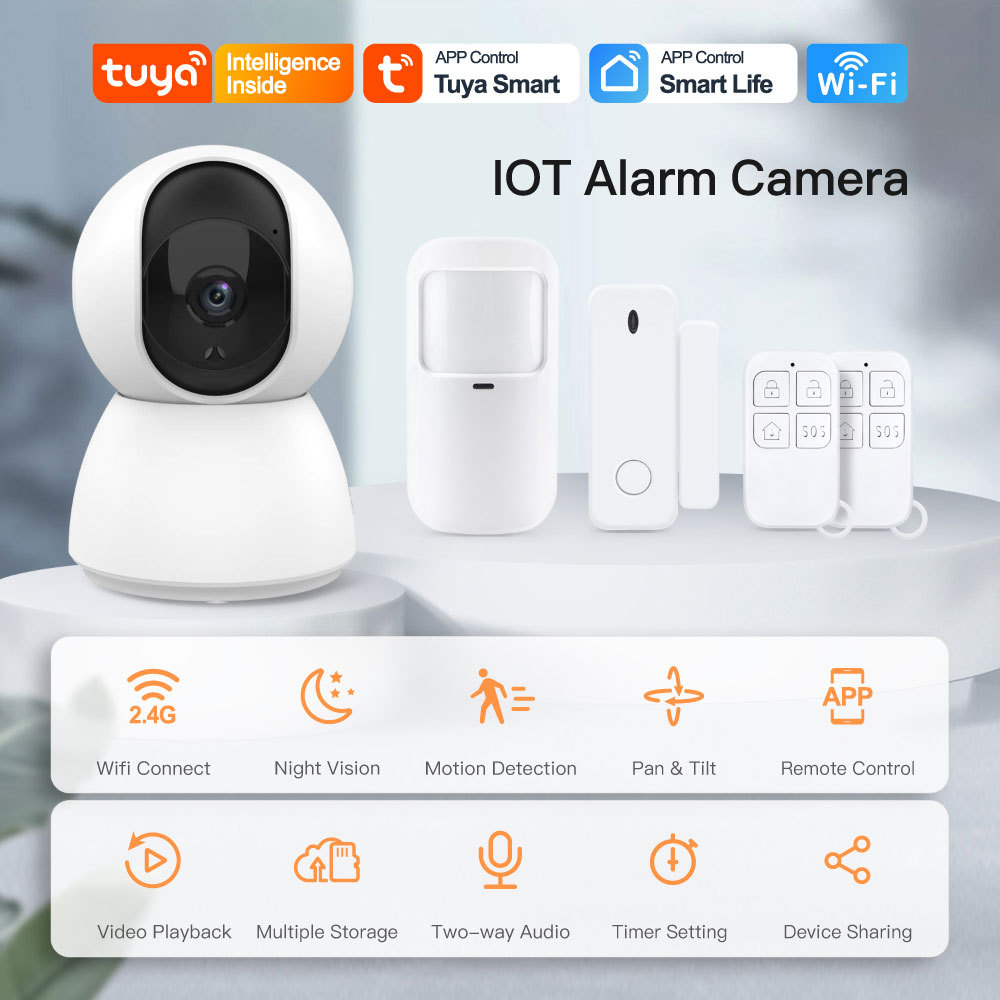

| Main features: ◆ 1/2.8'' 4MP CMOS sensor ◆ Support two-way voice ◆ Support infrared night vision mode ◆ Support up to 256G SD card ◆ Support 5V power supply ◆ H.264 encoding ◆ Support human detection and motion detection ◆ Support mobile phone alarm notification ◆ Support 2.4G WiFi (5G is optional) ◆ Support Bluetooth network configuration ◆ Support Privacy Mode ◆ Support 32pcs alarm sensors |
|
| Camera: | |
| Image Sensor | 1/2.8" 4MP CMOS |
| Effective Pixels | 2560(H) x 1440(V) |
| Video pixels | 1440p |
| Shutter | 1/15~1/10,000s |
| Min. Illumination | Color 1Lux@F2.0,Black/White 0.01Lux@F2.0 |
| Day/Night | Auto(ICR)/Color/B&W |
| Lens&FOV(H/V/D) | 3.6mm@F2.0, 87°/ 43°/104° |
| Pan and tilt | Pan: 0° to 355°, Tilt: 0° to 90° |
| SoC | FH8626V200 |
| Bluetooth Module chip | BL-M6355CU1/AIC8800D40L |
| WiFi chip | SV6355/AIC8800D40L |
| Video & Audio: | |
| Compression | H.264 |
| Bit Rate | 32Kbps~2Mbps |
| Frame Rate | 15fps |
| Dual Stream | Yes |
| Audio Input/Output | Built-in mic/speaker |
| Recording Tech | |
| Storage | SD card(Max 256GB), Cloud storage |
| Play speed | X1 |
| Play-"Back" speed | X1 |
| Recording format | H264 and encryption |
| Device Offline recording | Yes |
| Network: | |
| Wireless Security | WEP,WPA,WPA2 |
| Communication Protocol | HTTP, DHCP, DNS, TCP/IP |
| Wireless | 2.4G WIFI (IEEE802.11b/g/n) |
| Alarm Trigger | Motion detection, Human detection, Sound detection |
| Mobile Phone OS | iOS 9 or later, Android 5 or later |
| Security | AES128 |
| Max. User Access | More than 5 |
| Antenna | Built-in 1 |
| RJ45 | No |
| POE | No |
| Wired internet supported | No |
| Bluetooth network configuration | Yes |
| 5GHz WiFi | Optional support for 5G WIFI (IEEE802.11ac/ax) |
| 4G SIM | No |
| General | |
| Operating Temperature | -10 °C to 55 °C |
| Power Supply | DC 5V/1A |
| Power Consumption | Max 5W |
| Charging port (Input) | USB type-C |

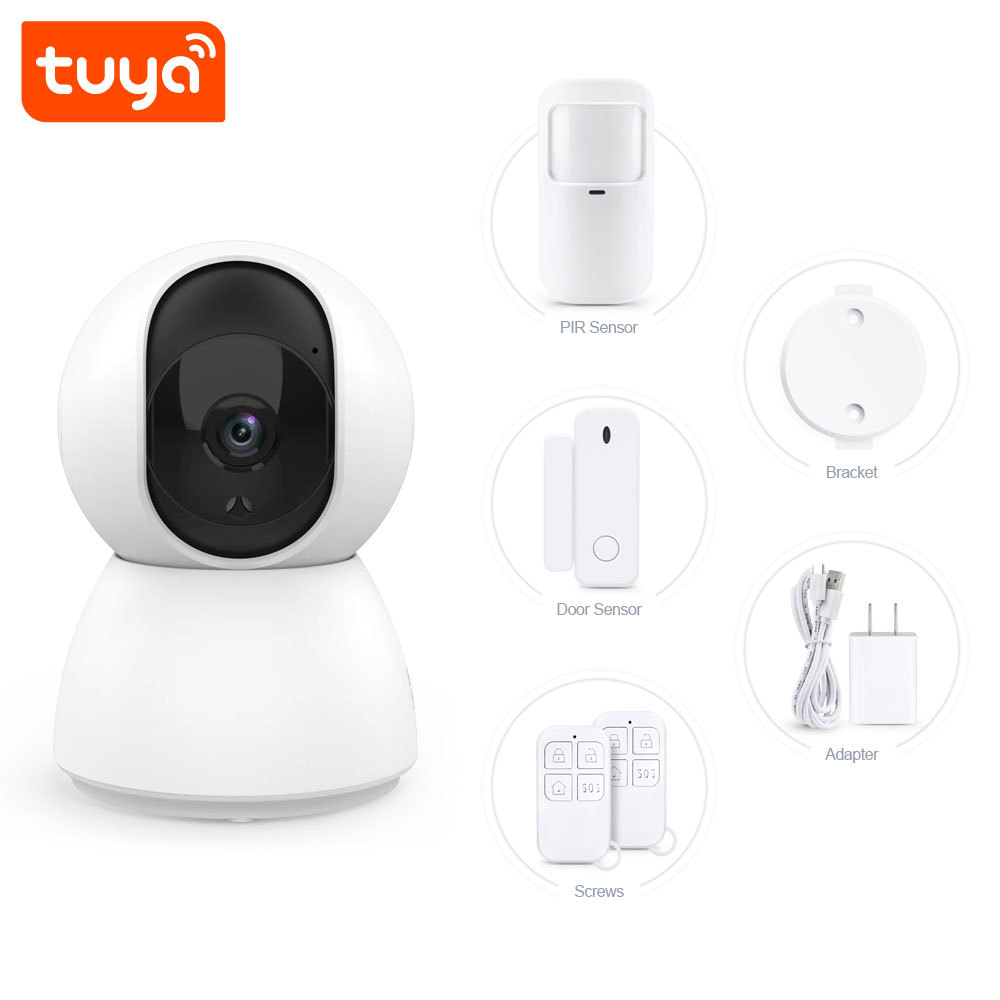

| Accessories | |
| Charging Power cable | Yes |
| Charging Power cable length | 1m |
| Reset Pin | Yes |
| Adaptor | Yes |
| Mounting bracket | Yes |
| Mounting screws | Yes, 1 packs wall plugs |
| Features | |
| Color night vision | No |
| LED output | No |
| Human Filter detection | Yes |
| Sound detection | Yes |
| Activity Zone adjustable | Yes |
| Activity Zone area | 1 |
| Activity Zone shape | Fixed square |
| Motion Tracking | Yes |
| Privacy Mode | Yes |
| Site (PTZ) | Yes, up to 6 sites |
| Alarm sound switch | Yes |
| Alarm tone setting | Yes |
| Siren Volum adjustable | Yes |
| Amazon Alexa | Yes |
| Google Home | Yes |
| Web RTC | Yes |
| ONVIF | Yes |
| Preset site linkage | Yes |
| IoT | |
| Sub-devices | Support 32 sub-devices |
| IoT Log | Supports 30 days, 16 logs per day, cyclic coverage |
| Sub-device type | Motion-PIR/Door contact/Remote/Smoke/Water leak/CO/Gas/others |
| Operation of Arm and Disarm | Remote and APP |
| Sub-device management | Yes |
| IoT params config | Yes |
| PST-IOT-C23B Product FAQ | |
| Q1: Is a separate alarm panel needed? A: No, you can control all sub-devices directly via the camera app, no alarm panel required. |
|
| Q2: How is the camera powered? A: It uses DC5V/1A power supply, with a plug-and-play design. |
|
| Q3: What's the night vision range? A: The night vision distance is 8-10 meters, ensuring clear visibility in the dark. |
|
| Q4: Does it support motion detection? A: Yes, it has built-in motion detection and can send real-time alerts to your phone. |
|
| Q5: Is two-way audio available? A: Absolutely, it has a built-in microphone and speaker for clear two-way conversation. |
|

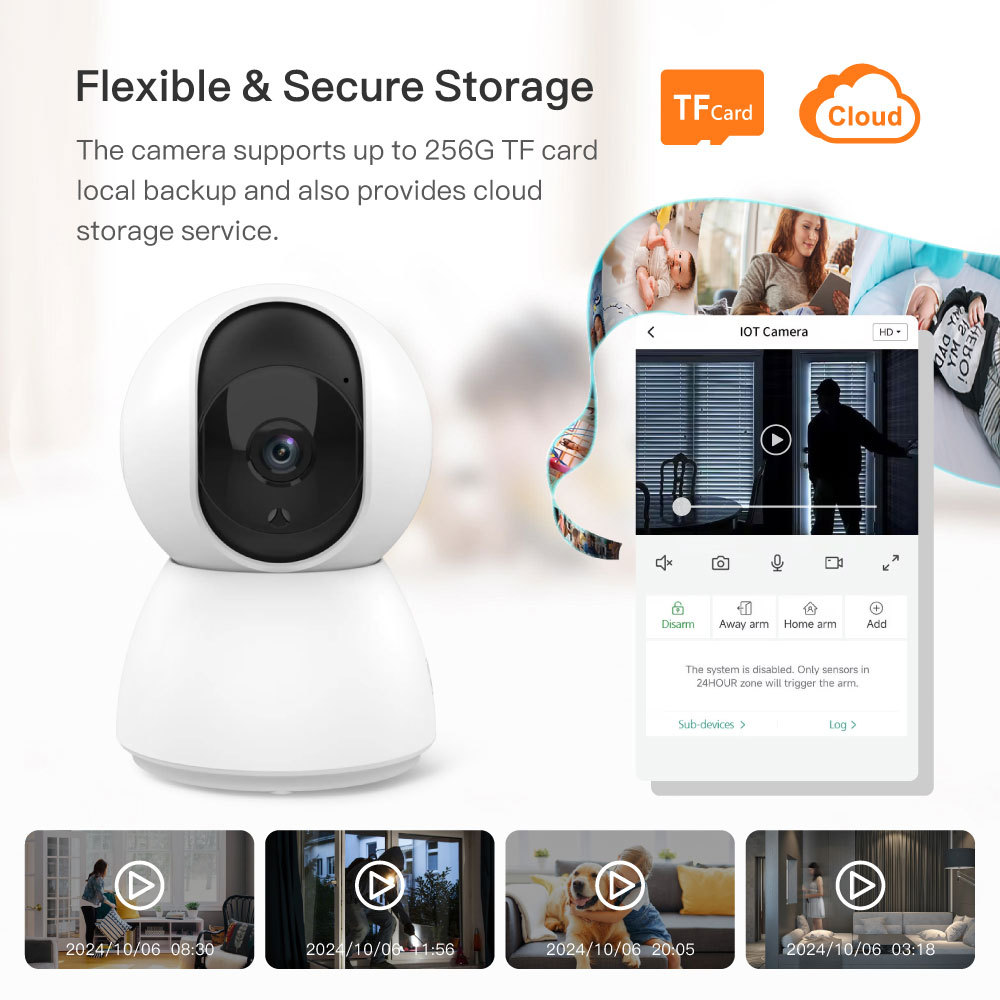

| Q6: What storage methods does it support? A: It supports TF card (up to 256GB) and cloud storage for flexible video storage. |
|
| Q7: Can the camera pan and tilt? A: Yes, it has pan & tilt functionality with a horizontal 355° and vertical 90° rotation range. |
|
| Q8: Can I share device access with others? A: Yes, device sharing is supported, allowing multiple users to access the camera. |
|

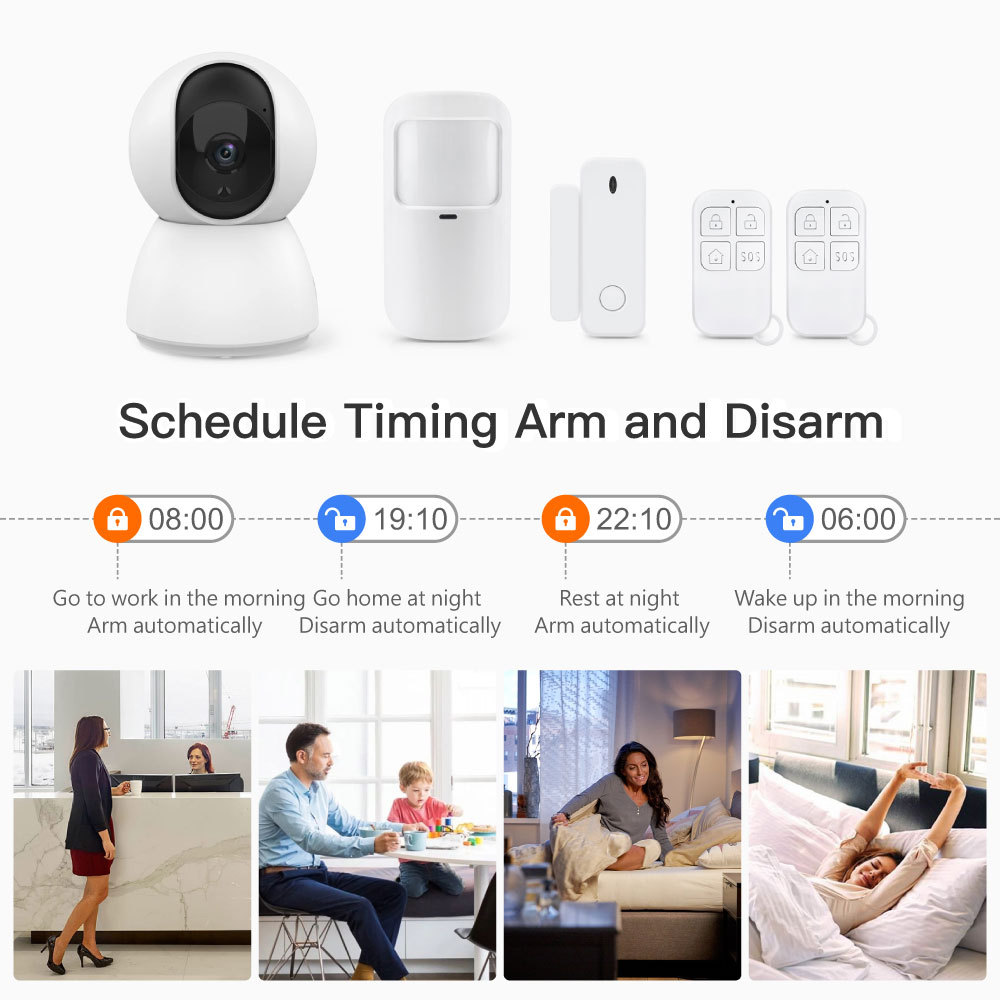

| Q9: Does it support scheduled arm and disarm? A: Yes, you can set schedules for automatic arming and disarming. |
|
| Q10: Can it be mounted on the wall or ceiling? A: Yes, wall mounting and ceiling mounting options are available. |
|
| Q11: Does the door sensor notify me when the door is open? A: Yes, the door sensor sends a signal to the panel (and your phone) when the door is opened. |
|
| Q12: How does the PIR motion detector work? A: The PIR sensor sends a signal when it detects strangers, triggering an alert on your phone. |
|
| Q13: Can I control the alarm system via the remote controller? A: Yes, the remote controller allows you to arm, disarm, and trigger emergency alarms. |
|
| Q14. Is auto tracking available? A: Yes, it features auto tracking to follow moving objects. |
|
| Q15. What triggers an alarm? A: Opening a door/window (if sensor is armed), motion detected by PIR (in away/home arm modes), or pressing the panic button etc. |
|
| Q16. What if my WiFi network is a 5GHz network? This camera typically only supports 2.4GHz WiFi networks. You may need to switch to a 2.4GHz band or use a dual - band router's 2.4GHz option. |
|
| Q17. Can I get alerts on my phone even if I’m abroad? A: Yes, as long as your phone has network (cellular/WiFi) to receive Tuya app notifications. |
|
| Q18. Can someone else access my sensor's data? A: As long as you keep your app account credentials secure, and your Wi - Fi network is protected, it's very unlikely that others can access your sensor's data. |
|
| Q19: Sensor not working. What’s wrong? A: Check sensor battery (replace if low). Re - pair the sensor with the panel. Ensure no physical obstructions (for PIR, keep it clean and unblocked). |
|
| Q20: The sensor is not showing up in the app. What should I do? First, make sure the sensor is powered on and in pairing mode. Check your WiFi connection and try resetting the sensor by pressing the reset button for a few seconds. Then, try adding the device again in the app. |
|
| Q21. Can make OEM? A: Yes, we can. PID OEM:500PCS Box & manual OEM: 1000PCS, if only 500PCS extra charge 0.5USD/PCS; Laser Logo: 100PCS |
|
