| PST-C01 Specifications | |

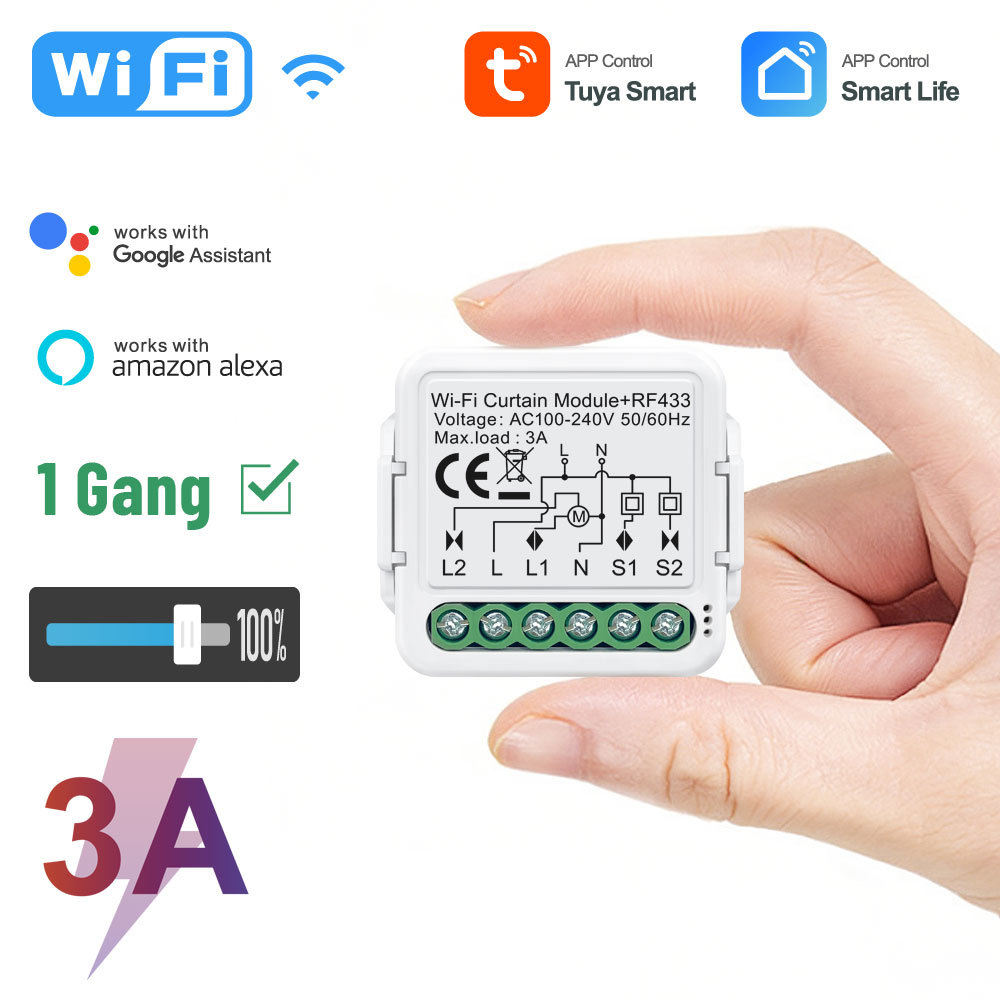

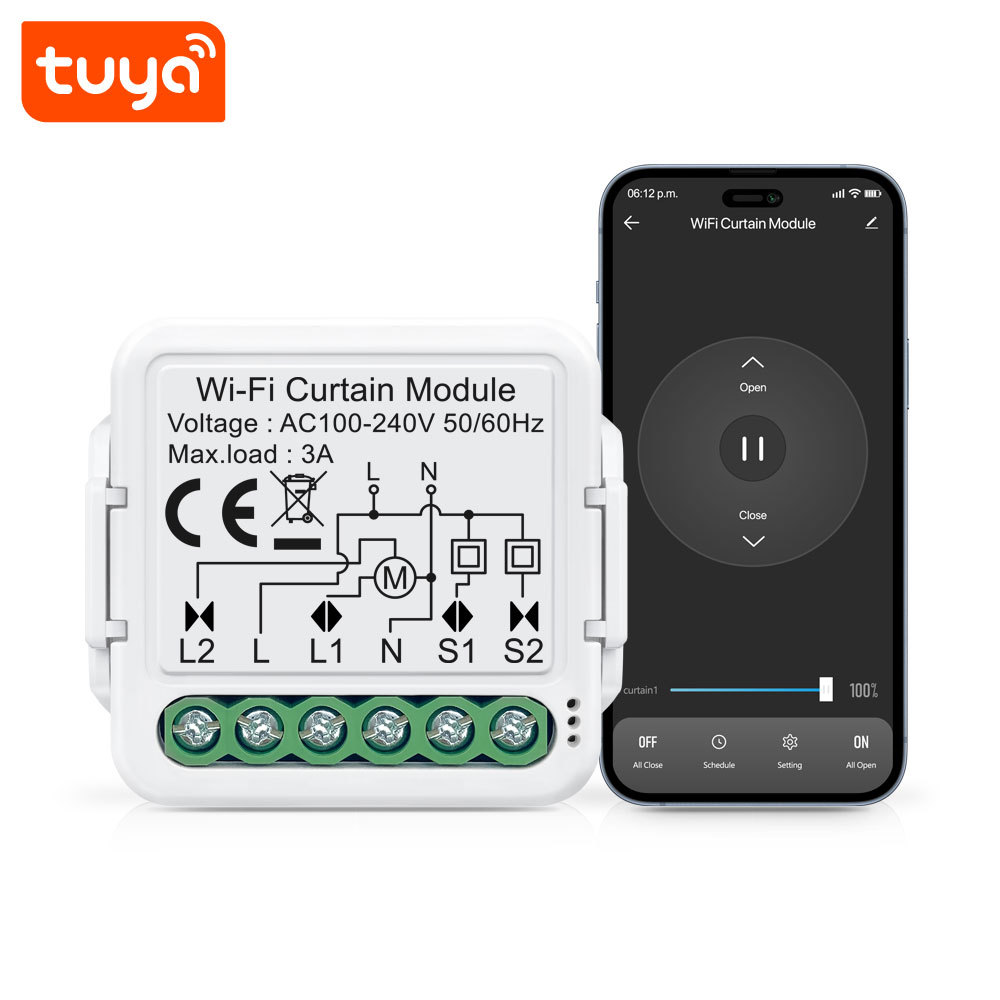

| Product Name | Tuya Smart Wi-Fi Mini 1CH Curtain Blind Switch Module |
| APP Name | Tuya Smart or Smart Life |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Input | AC100-240V 50/60Hz 3A Max |
| Output | AC100-240V 50/60Hz 3A Max |
| Max Load | 3A |
| Protection Grade | IP20 |
| Control Mode | App Control, Voice Control, Manual Control (via Connected Switch) |

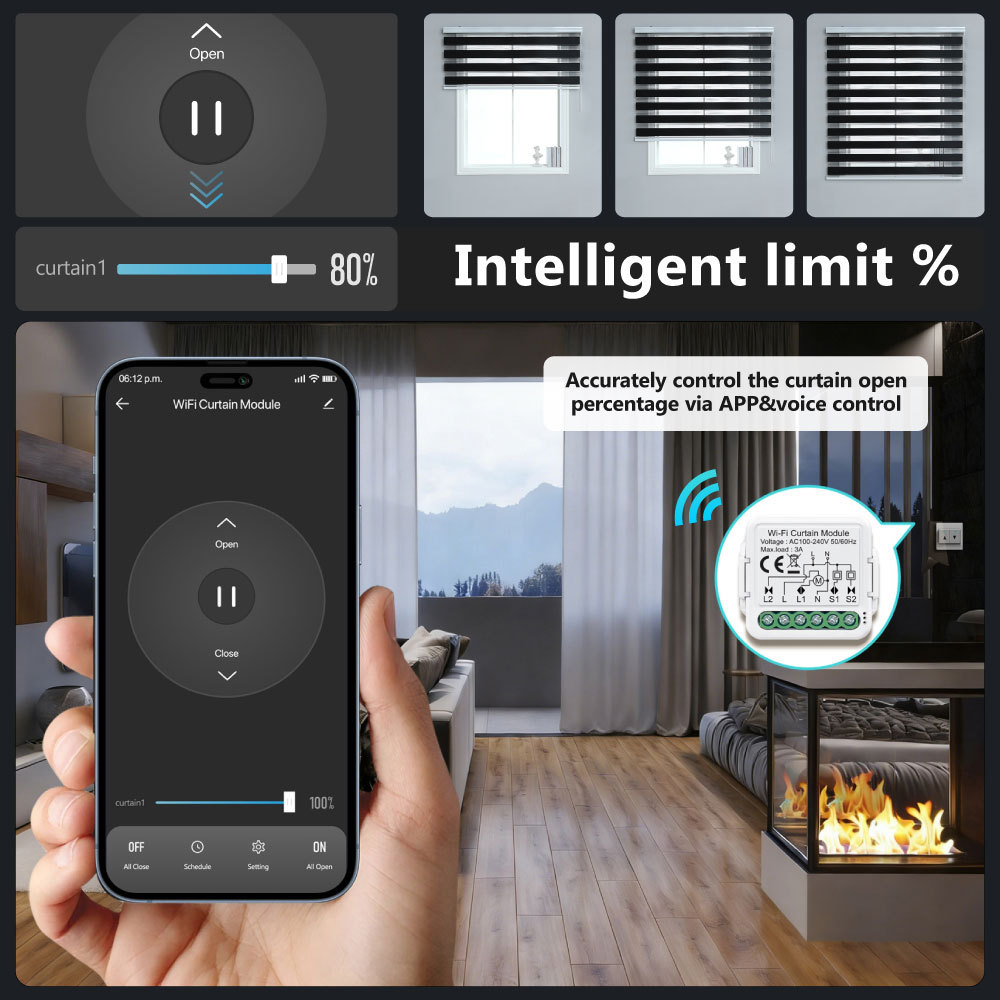

| Curtain Movement Control | Can control curtain opening, closing, and stopping |
| Installation Type | Wall - mounted or junction box installation |
| Material | PC + ABS |
| Operation Temp | from -10°C to +55°C |
| Humidity | 10%--90% non-condensing |
| Product Size | 39.2*39.2*18MM |
| Box Dimension | 5.5*4.5*3CM |
| Unit Weight | 0.04kg |
| PST-C01 Package List | |
| WIFI Smart Switch | x1 |
| User Manual | x1 |
| PST-C01 Product FAQ | |
| Q1: What is this product used for? A: This 1CH WIFI Curtain Module is used to control the opening, closing, and stopping of curtains via Wi-Fi, enabling remote and smart control. |
|
| Q2: Does the module have overload protection? A: Typically, it has basic overload protection to prevent damage from excessive current (subject to actual product). |
|
| Q3: Does it work with 5GHz Wi-Fi? A: No, it only supports 2.4GHz Wi-Fi networks. |
|
| Q4: Can I control it when away from home? A: Yes. As long as the switch is connected to Wi-Fi and your phone has an internet connection, you can control it via the Tuya/Smart Life app. |
|
| Q5: Can the module remember the curtain position after a power outage? A: If equipped with a memory function (check product), it can remember the last curtain position after power restoration. |
|
| Q6: Can multiple users control the device? A: Yes, you can share device access with family members via the app. |
|
| Q7: How to connect to voice assistants like Alexa or Google Assistant? A: Open the Alexa/Google Assistant app, enable the Tuya/Smart Life skill, log in with your Tuya account, and discover the module. Then you can voice-control your lights. |
|
| Q8: What if the module can’t connect to Wi-Fi? A: Check if the Wi-Fi is 2.4GHz, the password is correct. Reset the module (find the reset method in the manual, usually pressing a reset button until the indicator flashes), then retry setup. |
|
| Q9: Can I set curtain scenes (like morning open)? A: If the APP or system supports it, you can set curtain scenes for automatic control. |
|
| Q10: Does it have a timer function? A: Yes. In the Tuya/Smart Life app, you can set scheduled on/off times for the switch. |
|
| Q11: Does it need a hub? A: No, it connects directly to your Wi-Fi network, so no additional hub is required. |
|
| Q12: How do I pair the module with Wi-Fi? A: It supports easy Wi-Fi pairing, such as via AP mode or EZ mode (follow APP instructions). |
|

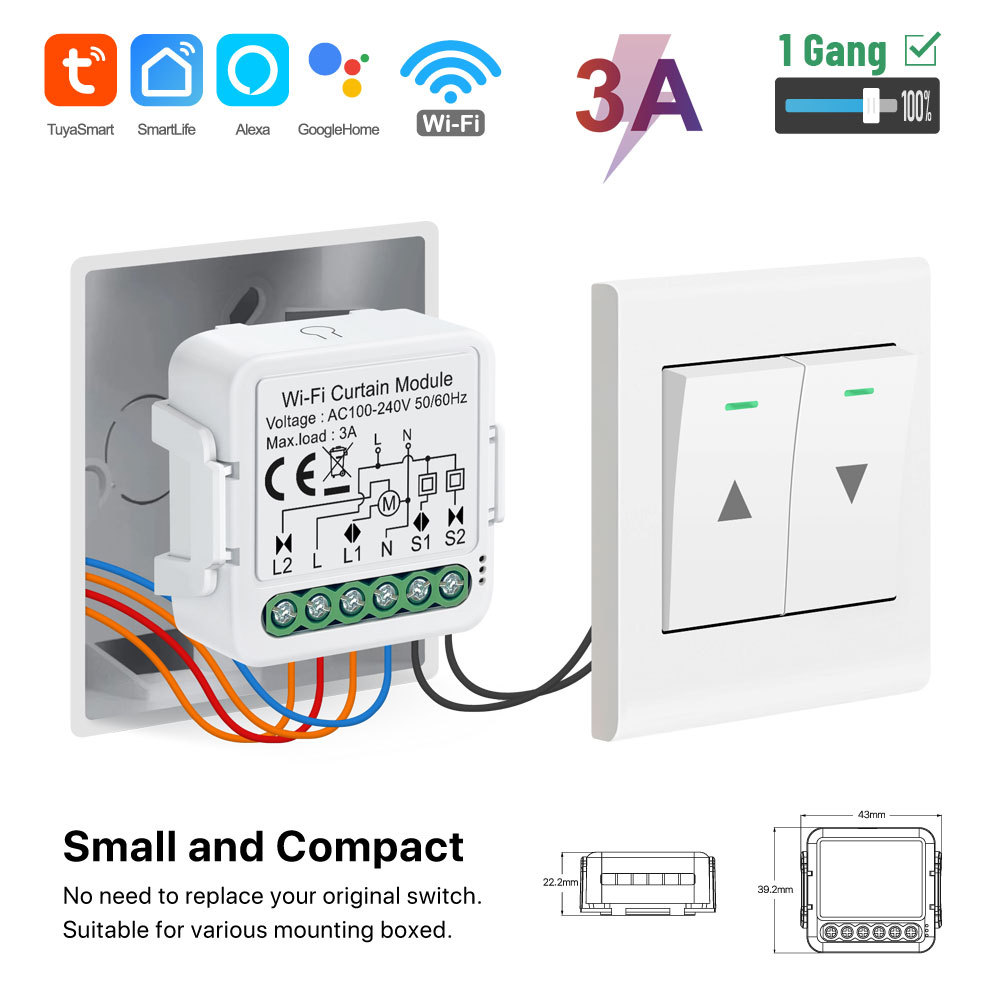

| Q13: How to install the module? A: It’s typically installed in a junction box. Follow the wiring diagram in the user manual for proper installation, ensuring power is off during wiring. |
|
| Q14: What's the standby power consumption? A: The standby power consumption is typically ≤0.5W (subject to actual product). |
|
| Q15: What if the app can’t find the switch during setup? A: Make sure the switch is in pairing mode (indicator flashing rapidly), your phone’s Bluetooth is on, and you’re using a 2.4GHz Wi-Fi network. |
|
| Q16: Does it support multiple languages in the app? A: Yes, the Tuya Smart and Smart Life apps support multiple languages. |
|
| Q17: Does it support scheduling? A: Yes, you can set schedules in the app to turn devices on or off at specific times. |
|
| Q18: Does the module provide curtain status feedback? A: If equipped, it can provide feedback on whether the curtain is open or closed. |
|
| Q19: How many curtains can one module control? A: This is a 1 - channel module, so it can control one curtain. |
|
| Q20: Is the module compatible with all curtain motor types? A: It is compatible with curtain motors that match its voltage and load specifications; check motor compatibility before use. |
|
| PST-C01 OEM & ODM Service | |
| Q21: Can make OEM? A: Yes, we can. PID OEM:1000PCS Box OEM: 2000PCS, If less than 2000PCS: charge 60USD. User Manual OEM: 40USD. Laser logo: 50PCS. |
|
