| PST-TPA10 Specifications | |

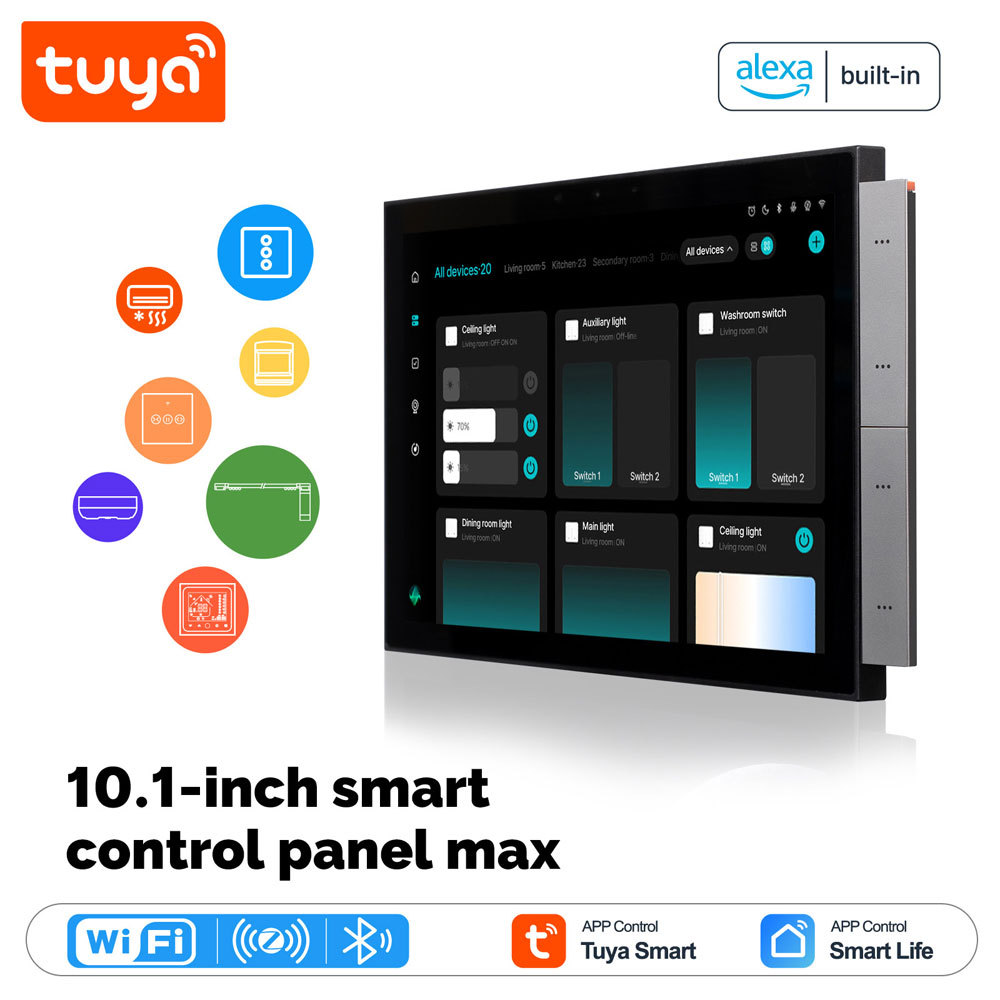

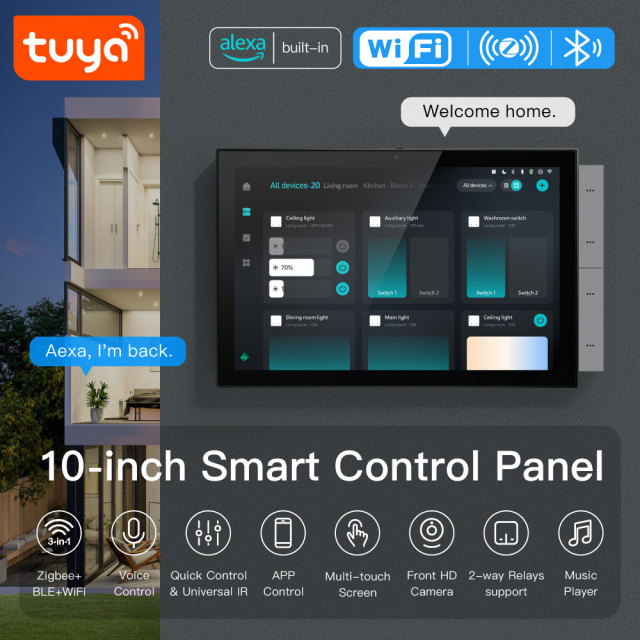

| Product Name | Tuya Smart Touch Screen 10-inch Smart Control Panel with ZigBee, BLE, and Music & Video Intercom Features – Works with Alexa Built-In. |
| Screen Size | 10 Inch Capacitive Touch HD Screen |
| Built-in Gateway Protocol | WiFi 2.4GHz + Zigbee 3.0 + BLE Mesh 3-in-1 Multi-mode Gateway |
| Voice Assistant | Built-in Amazon Alexa Far-field Voice |
| Onboard Relay | 2-way Dry Contact Relay Support |
| Front Camera | 5MP HD Front Camera with Physical Privacy Cover |
| Human Sensing | Built-in Proximity Wake-up Sensor |
| Audio Output | Built-in Stereo Speaker + External Background Music Audio Port |
| Supported APP | Tuya Smart / Smart Life |
| Max Connected Zigbee Devices | 60 Units |
| Max Connected BLE Mesh Devices | 60 Units |
| Control Modes | Touch Screen |
| Scene Function | Custom One-click Smart Scene & Group Dimming Control |
| Intercom Function | Video Intercom with Smart Doorbell & Indoor Monitor Replacement |
| Firmware Upgrade | OTA Remote Online Upgrade |
| Data Storage | Local Offline Scene & Device Pairing Memory |
| Power Supply | AC 100-240V Wide Voltage 50/60Hz |
| Shell Material | Front Scratch-resistant Tempered Glass |
| Installation Standard | Embedded Wall Mount |
| Working Environment | Indoor Dry Space Only |
| Working Humidity | 10%~80% RH Non-condensing |
| Core Integration | 6-in-1:Gateway + Touch Panel + Voice Host + Intercom + Music Player + Light Switch |
| Network Control | LAN Local Offline Control Supported |
| Security Encryption | SSL Video Transmission Encryption |
| Custom Function | Custom Screen Saver & Electronic Album |
| Signal Indicator | Multi-color LED Working Status Light |
| Linkage Devices | Full Compatible with All Tuya Certified Smart Devices |
| Application Scenarios | Residential Home |
| Box Dimension | 32.2*22*7cm |
| Unit Weight | 1.58kg |
| PST-TPA10 Package List | |
| 10.1-inch Smart Control Panel MAX | x1 |

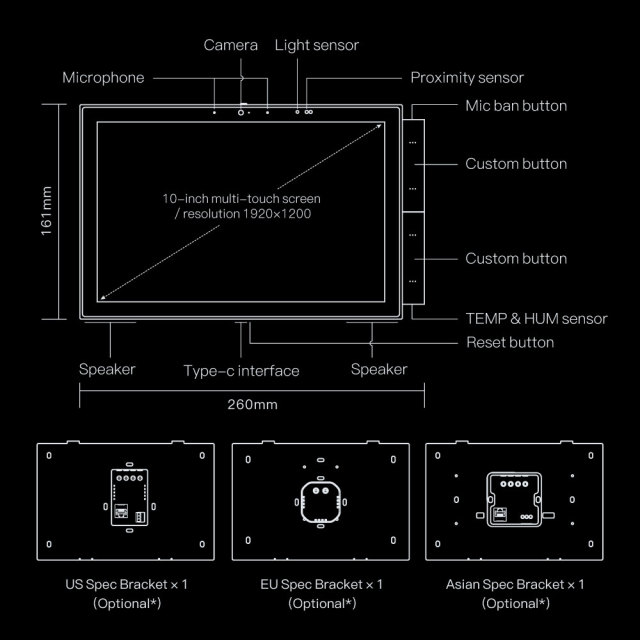

| Regional Power Base / Bracket | x1 |
| Screw Kit | x1 |
| User Manual | x1 |
| PST-TPA10 Product FAQ | |
| Q1: What should an installer prepare before commissioning the TPA10? A: Confirm the regional EU/US/Asia base, AC wiring, neutral wire, network path, wall box, relay cables and any RS485 or security-network cable required for the project. |
|
| Q2: What happens if the internet connection is interrupted? A: LAN offline control is supported for preset local scenes and device linkage. Cloud-dependent remote access and selected third-party services may require the network to recover. |
|
| Q3: What should be checked if a Zigbee device cannot be paired? A: Put the device into pairing mode, keep it within reliable range, reset any previous binding, select the correct Tuya home and verify that the panel gateway is available. |
|
| Q4: What should be checked if a BLE Mesh device becomes offline? A: Check device power, mesh route, nearby nodes, panel gateway status and the selected account home. Test the device locally before rebuilding the scene. |
|
| Q5: How should a multi-room project be designed to avoid network instability? A: Provide stable WiFi or Ethernet access at the panel, plan gateway placement, name each room clearly and complete room-by-room discovery and scene tests before handover. |
|
| Q6: Can guest permissions be separated from owner permissions? A: The panel supports device sharing and guest-oriented access control. Configure guest permissions separately so temporary users cannot operate private or administrative scenes. |
|
| Q7: How can hotel operators use the panel in guest rooms? A: Create a restricted guest scene set for lighting, climate and entertainment, while keeping private, security and administrative controls outside guest access. |
|
| Q8: Why may Alexa fail while touch control works? A: Check the linked Alexa account, device discovery, device name, language/region settings and network status. Touch control and third-party voice control use separate service paths. |
|
| Q9: How should voice scenes be named for a commercial project? A: Use short, unique names linked to room and function, then test pronunciation with the target language and voice assistant before project acceptance. |
|
| Q10: What should be checked when an IR appliance does not respond? A: Confirm the appliance uses infrared control, select the correct remote category, keep line of sight and test the appliance locally before adding it to a scene. |
|
| Q11: Can one panel operate IR appliances in different rooms? A: The panel includes an IR transmitter, but range and line of sight limit coverage. Verify each room during installation rather than assuming whole-building coverage. |
|
| Q12: How should the two dry-contact relays be commissioned? A: Identify each relay circuit, verify the load and wiring, test manual switching first, then test APP control and scene linkage. Do not exceed the confirmed relay rating. |
|
| Q13: What should be done if a relay scene does not execute? A: Check wiring, device online status, scene enablement, trigger conditions and the current relay state. Test the relay manually before troubleshooting automation. |
|
| Q14: Can the panel control a Tuya curtain motor or air conditioner? A: Compatible Tuya curtain, climate and other certified devices can be linked. Confirm the target device profile, gateway path and available control commands before delivery. |
|
| Q15: How should external background speakers be integrated? A: Confirm the external audio interface, speaker impedance, wiring route and amplifier requirements. Test internal and external audio modes before closing the installation. |
|
| Q16: Why might local music playback fail after a restart? A: Check local file availability, storage status, audio output selection and restart behavior. Verify that the audio format is supported by the production software. |
|
| Q17: How should commercial users handle music licensing? A: The panel supports Spotify and local playback, but commercial use may require separate content licensing. Confirm platform availability and licensing responsibilities in the target market. |
|
| Q18: Can lighting scenes combine brightness and color-temperature changes? A: The panel supports group dimming and color-temperature adjustment when the target lighting devices expose those functions. Test the actual lamp profiles before handover. |
|
| Q19: Why might a scene execute only some actions? A: Check each target device's online status, capability profile, account home, scene delay and automation conditions. Test the actions in smaller groups to identify the failing device. |
|
| Q20: How should offline scene behavior be verified? A: After commissioning, disconnect the external network and test preset scenes, relay actions and local device linkage. Record which functions remain local and which require cloud access. |
|
| Q21: What should be collected for a gateway-capacity complaint? A: Record panel version, paired Zigbee and BLE device counts, device types, pairing failures, network status and APP screenshots. Do not assume the stated maximum applies to every topology. |
|
| Q22: Is the panel suitable for villas and smart apartments? A: The source lists residential and smart-apartment applications. Complete room-by-room network, gateway, intercom, relay, IR, audio and scene testing before acceptance. |
|
| Q23: What should be checked for hotel or SPA installation environments? A: Use an indoor dry location, protect the panel from steam and liquid, verify ventilation and confirm the regional wall base and wall-box requirements. |
|
| Q24: How should the wall box be prepared? A: Confirm the regional EU/US/Asia base, box depth, AC wiring, neutral wire, bracket alignment and service clearance before fixing the panel. |
|
| Q25: What should be done if the touchscreen becomes unresponsive? A: Check power stability, remove external interference, restart according to the manual and determine whether the issue is isolated to the panel or connected devices. |
|
| Q26: How should a replacement panel be commissioned? A: Record the original home, scenes, paired devices, permissions and media configuration, then re-pair and test the replacement step by step. |
|
| Q27: Can the panel be customized for OEM projects? A: OEM/ODM availability, UI branding, packaging, manual, firmware, voice-service region and MOQ must be confirmed for each project. |
|
| PST-TPA10 OEM & ODM Service | |
| OEM / ODM service available. UI branding, logo, customized packaging, manual, firmware, regional base, MOQ, warranty and product certificates to be confirmed per project. | |
