| PST-MCB-2P Specifications | |

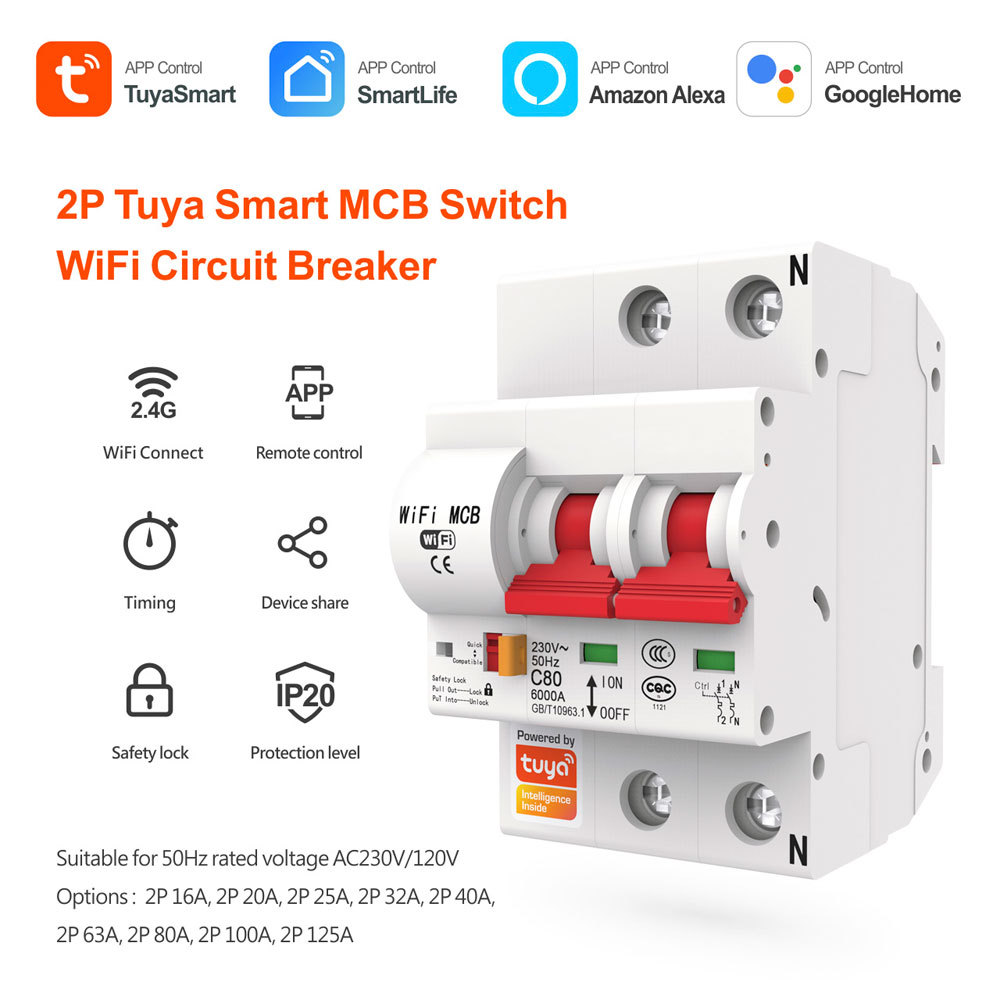

| Product Name | Tuya Smart 2P WiFi MCB Circuit Breaker Switch |
| APP Name | Tuya Smart or Smart Life |
| Input Voltage | AC 120V/230V |
| Output Voltage | AC 120V/230V |
| Number of poles | 2 Poles (2P) |
| Rated current | 16A/20A/25A/32A/40A/63A/80A/100A/125A |
| Rated short-circuit breaking capacity | lcn=6kA lcs=6kA |
| Connection Type | Screw terminal (copper, 25mm² wire compatible) |
| Applicable places | 2P usually for home & shop etc use |
| Switch mode | Switch/Mobile phone |
| Main Functions | Remote on/off control, overload protection, short-circuit protection |
| Current Monitoring Accuracy | ±5% |
| Protection Degree | IP20 (suitable for indoor distribution boxes) |
| Mechanical Life | ≥10,000 operations |
| Electrical Life | ≥6,000 operations (at rated current) |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance |
| Operation Temp. | –25°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Box Dimension | Box:10.5*12*11.6cm |
| Unit Weight | 0.36kg |
| Carton Packing | 36PCS per carton: 13.7kg, 47*37*33cm |
| PST-MCB-2P Package List | |
| WIFI Circuit Breaker | x1 |
| User Manual | x1 |
| PST-MCB-2P Product FAQ | |
| Q1: What does "2P" mean in the Tuya Smart 2P WiFi MCB Circuit Breaker? A: "2P" refers to 2 poles, meaning it controls a two phase (live wire) of the electrical circuit, suitable for two-phase power systems. |
|
| Q2: What is the rated voltage of this circuit breaker? A: It operates at AC 120V/230V ±10% (single phase), compatible with most household and light commercial electrical systems. |
|

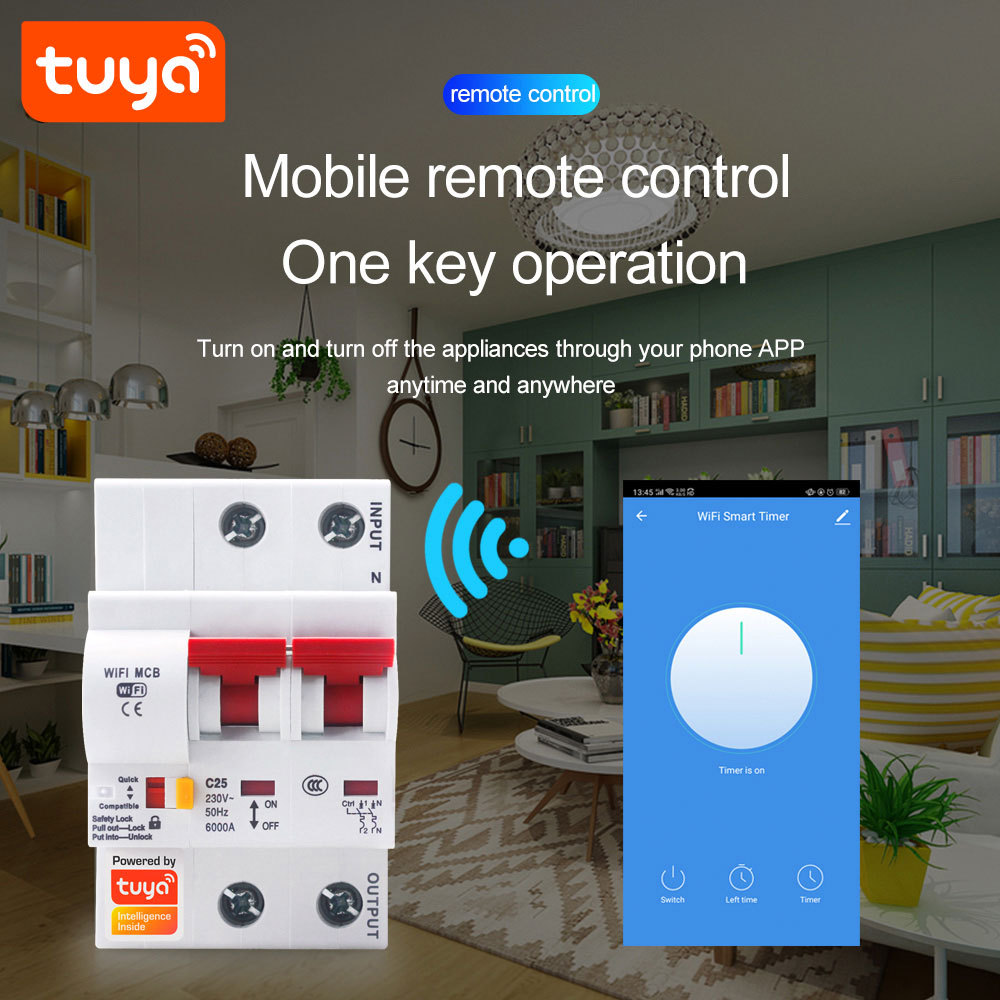

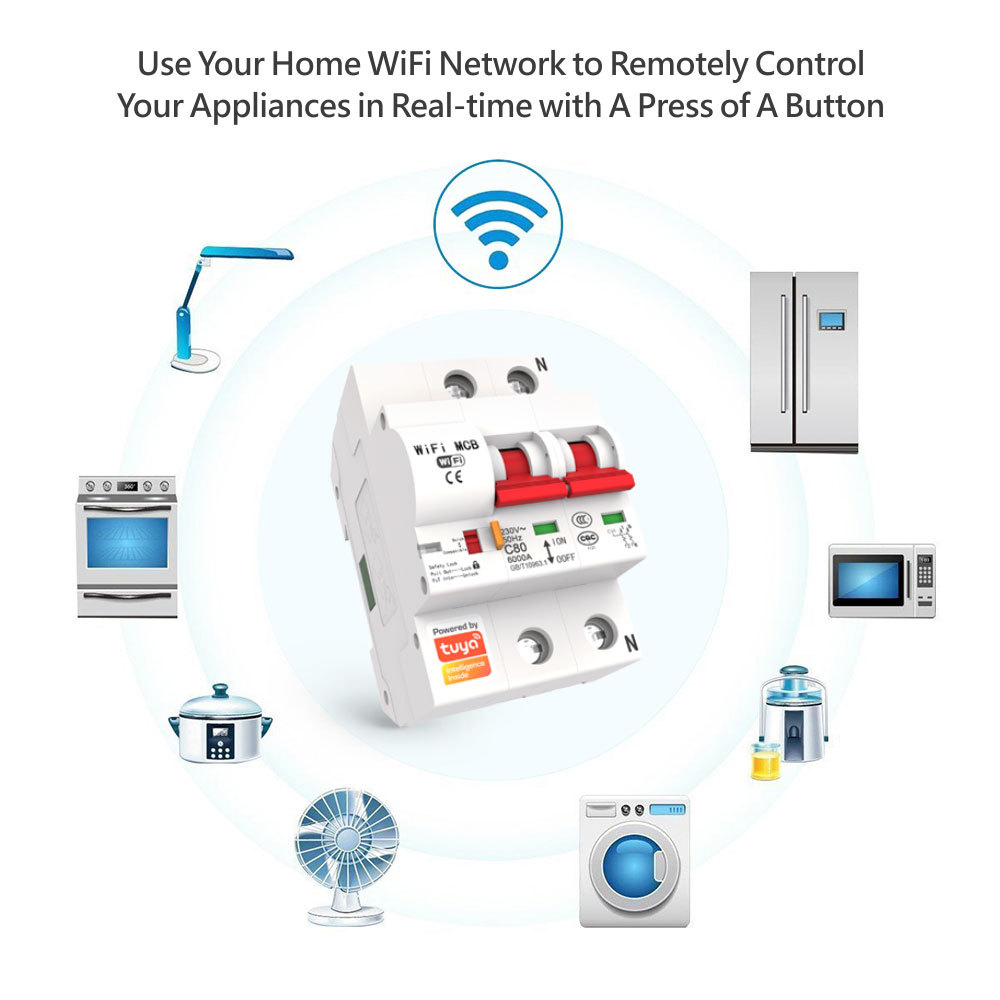

| Q3: Can I control it via my phone? A: Yes, it can be controlled remotely via a dedicated smart home app (like Tuya Smart, Smart Life) when connected to WiFi. |
|
| Q4: Does it support voice control? A: Yes, if connected to smart assistants like Amazon Alexa or Google Assistant, you can control the switch with voice commands. |
|
| Q5: Does it support 5GHz WiFi? A: No, only 2.4GHz WiFi (common for Tuya smart devices). |
|
| Q6: Can multiple switches be controlled by one app? A: Yes, the app allows you to manage multiple smart switches in one interface for centralized control. |
|
| Q7: What protection features does it have? A: It includes overload protection (trips when current exceeds 130% of rated value with a time delay) and short-circuit protection (instant trip when current exceeds 10x rated value). |
|
| Q8: Can I set a schedule for the breaker to turn on/off automatically? A: Yes, the timer function supports daily or weekly schedules, as well as countdown controls, to manage power usage efficiently. |
|
| Q9: What wire sizes is it compatible with? A: It works with 1.5-6mm² wires via screw terminals, suitable for most standard household wiring. |
|
| Q10: How is it mounted? A: It installs on a 35mm DIN rail (EN 50022 standard), common in distribution boxes for easy integration. |
|
| Q11: Can it work without WiFi? A: Without WiFi, you can still use the touch function to control the switch locally. Remote app and voice control require WiFi. |
|
| Q12: What material is the housing made of? A: The housing is flame-retardant PC (UL94 V0) for safety, with copper contacts for good conductivity. |
|
| Q13: How do I reset the breaker after a trip? A: First, resolve the cause of the trip (e.g., reduce load for overloads). Then, toggle the breaker to "Off" and back to "On" manually or via the App. |
|
| Q14: Can I share control with family members? A: Yes, through the app, you can share device control permissions with other family members' accounts. |
|
| Q15: Can I check the operation history? A: Yes, the App logs all on/off actions, trips, and alerts with timestamps for easy tracking of circuit activity. |
|
| Q16: What is the WiFi range of the breaker? A: It has a wireless range of up to 30m in open areas, though walls or interference may reduce this—position your router nearby for stable connectivity. |
|
| PST-MCB-2P OEM & ODM Service | |
| Q17. Can make OEM? A: Yes, we can. PID OEM:1000PCS Box & manual OEM: 1000PCS; Laser logo: 100PCS. |
|
